Eyepieces > Baader > Hyperion > Baader Hyperion Universal Mark IV 2", 8-24mm Zoom eyepiece
( 5 / 5 )
Product no.: 53114

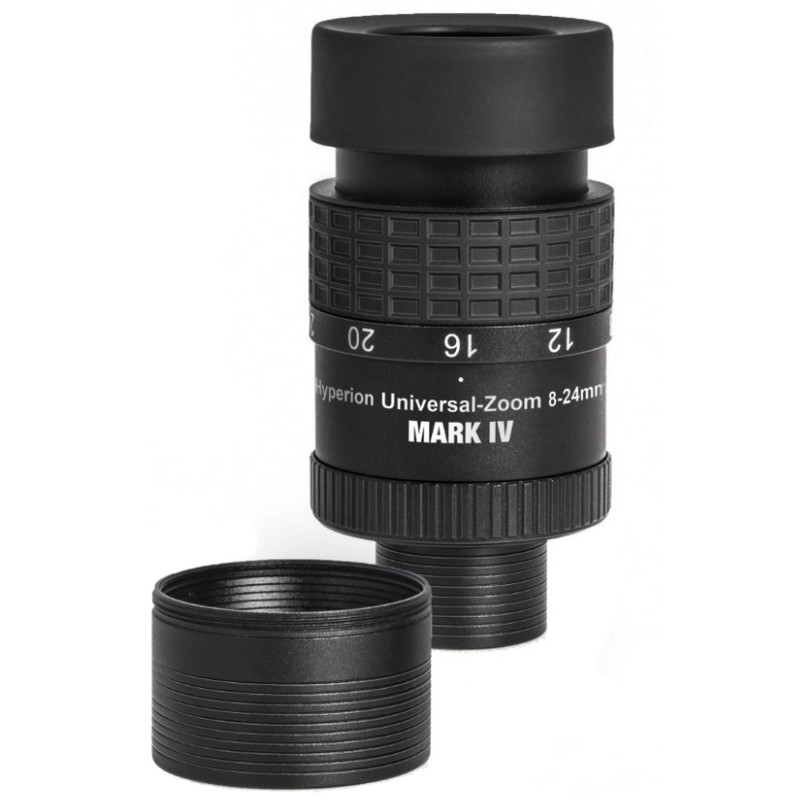

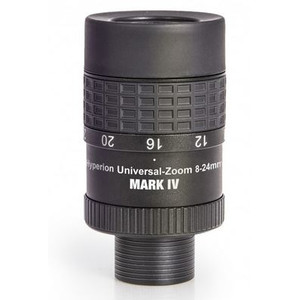

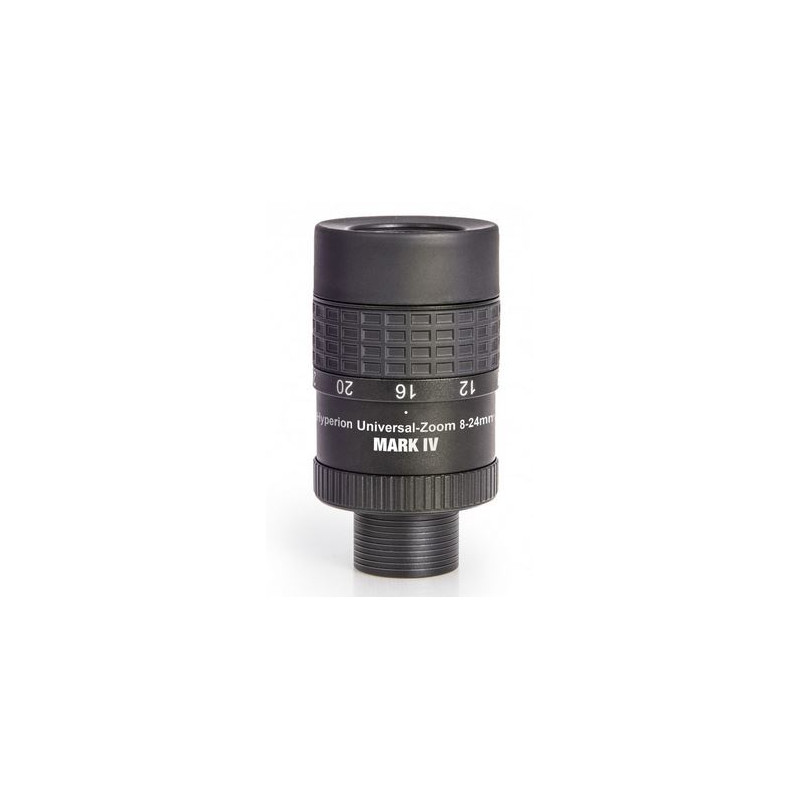

Hyperion Universal Mark IV 2", 8-24mm Zoom eyepiece

$ 296.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Product description

More about the series Hyperion...

The Hyperion zoom eyepiece is already in its fourth generation - five magnifications in one eyepiece - focal lengths of 8, 12, 16, 20 and 24mm, with a further improved click-stop detent design and an apparent field of view of up to 68°.

Some of the special feature of this very high-quality zoom eyepiece include:

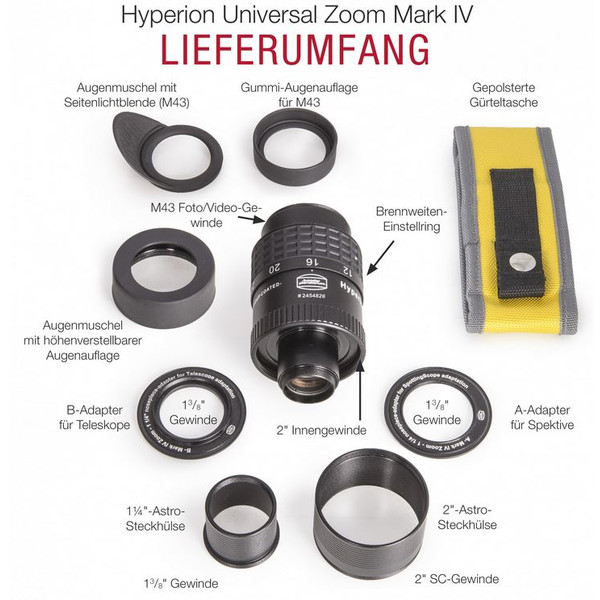

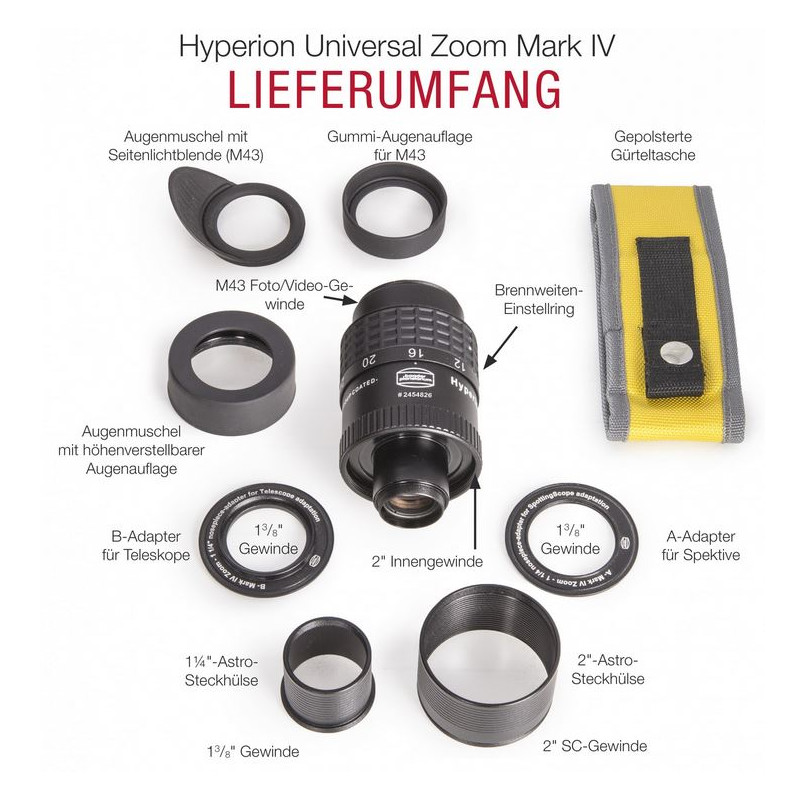

  • connection to telescope - 2" and 1.25" barrels (the normal sizes with telescope focusers). Also suitable for all 1.25" bino-viewers, and includes a 1 and 3/8" spotting scope thread.
  • camera side - M43 camera/video adapter thread for afocal and classic projection photography, allows the connection of most cameras.

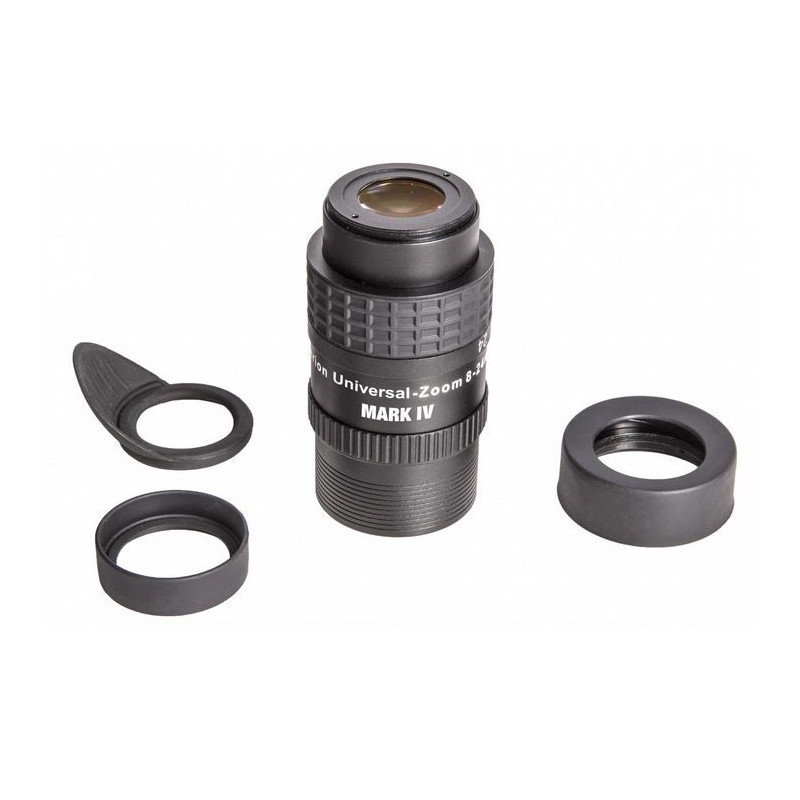

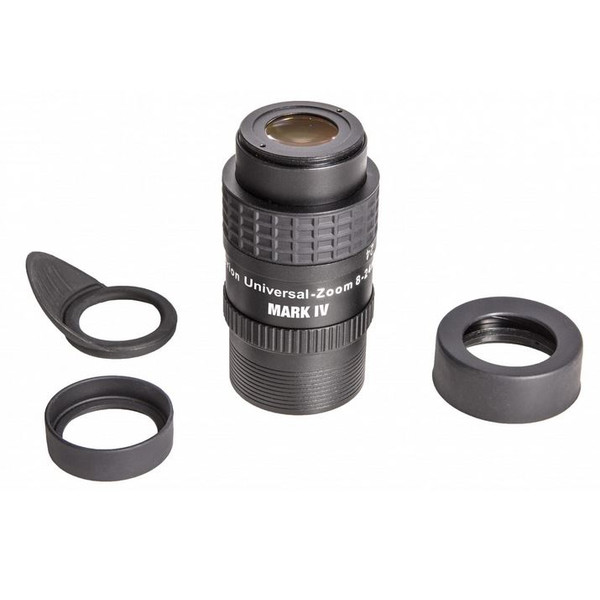

  • for visual use - includes three different eyecups that fit over the M43 thread: a large height-adjustable eyecup, a smaller rubber eyecup and a fold-down winged eyecup.
  • safety kerfs instead of irritating safety grooves in the barrels
  • eyepiece holster with belt loop - also attaches to tripod legs

Baader Phantom Group coating™ - this is a 7-layer broadband anti-reflection coating with extremely low residual reflection. The designation 'Group' indicates that the most effective anti-reflection layer system is worked out for each type of glass used in the respective eyepiece.

All these various antireflection coatings, on each type of glass surface, have then been optimized so that they are most effective where the human eye is at its most sensitive at night - i.e. at about 520nm, which is in the green region of the spectrum.

The best anti-reflection coatings appear almost colourless - this proves that the coating is functioning equally well over the entire visible spectrum. Phantom Group antireflection coatings are - depending on the type of glass - almost entirely colourless. In this way it is ensured that the least light is lost to the night-adapted eye and that no scattered light will interfere.

If you look directly at a coated lens (eyepiece or objective) and can see a strong green reflection, then it is not a Baader Phantom Group coating! An intense green reflection is indicative of a relatively low-tech coating technology and means that light is being wastefully reflected - i.e. lost - right in the useful spectral range between 500-550nm.

Specifications

Capacity


Coating of optical system
Baader Phantom Group coating
Focal length (mm)
8 (Zoom spans 8-24)
Connection (to the telescope)
2"
Connector (at camera end)
M43
Number of groups
4
Number of lenses
7
Eye relief (mm)
16
Apparent field of view (°)
68 (24mm: 48°; 8mm: 68°)

Special features


Filter thread
yes
inert gas charge
no
Adjustable eyepiece cup
yes

Equipment


Carry case
yes

General


Weight (g)
309
Series
Hyperion
Diameter (mm)
55
Height (mm)
81
Type
Eyepiece
Type of build
Zoom eyepiece

Recommended accessories

Telescope accessories > Adaptors (6)
Extension tube

Baader Extension tube M43 7,5mm

$ 21.90*
Telescope accessories > Transport & storage (3)
Carry case

Oklop Carry case for accessories

$ 42.90*
Astrophotography (1)

Baader Hyperion T-adapter M43/T-2

$ 26.90*

*All prices include VAT plus shipping costs.

Baader Hyperion Universal Mark IV 2", 8-24mm Zoom eyepiece
Includes
Baader Hyperion Universal Mark IV 2", 8-24mm Zoom eyepiece
Eyecup zoom

Customer reviews

The best

Review by B. C. on 15.11.2023 12:58:08

( 5 / 5 )

I stepped up from a Celestron 8-24 zoom to this Baader. There is no comparison. I have undistorted stars right out to the edge in my F5 dob.The 2" adapter is very handy as well.
