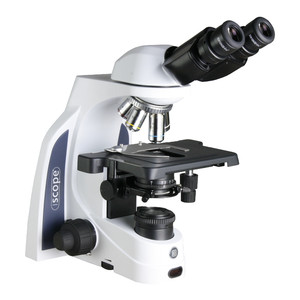

iScope® IS.1152-PLPH – Binocular microscope with plan phase contrast
The iScope IS.1152‑PLPH combines plan achromatic DIN lenses with integrated phase contrast optics, which significantly improves the visualisation of transparent structures without staining – ideal for diagnostic tasks in veterinary medicine, training and technical work environments.
The 3W NeoLED lighting ensures constant transmitted light intensity, while the stable microscope stage allows for safe handling. The phase contrast function offers a clear advantage in visualising finely structured samples without the need for extensive specialised equipment.
This model is ideal for everyday veterinary diagnostics and technical training, and is designed to be easy to use and maintain – unlike specialised research equipment.
Euromex iScope for phase contrast IS.1152-PLPH
- Eyepieces EWF10x/20 mm
- Head Binocular with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on both eyepieces
- Nosepiece Revolving quintuple reversed nosepiece on ball bearings
- Objectives Plan PLi 4x/0.10, PLPH 10x/0.25, PLPH S40x/0.65, PLPH S100x/1.25 oil-immersion DIN objectives. All optical parts are anti-fungus treated
- Stage 140 mm x 160 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
- Condenser In height adjustable Zernike, N.A. 1.25 condenser with positions for darkfield and brightfield.
- Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
- Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240V power supply
- iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
- CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
- Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover
