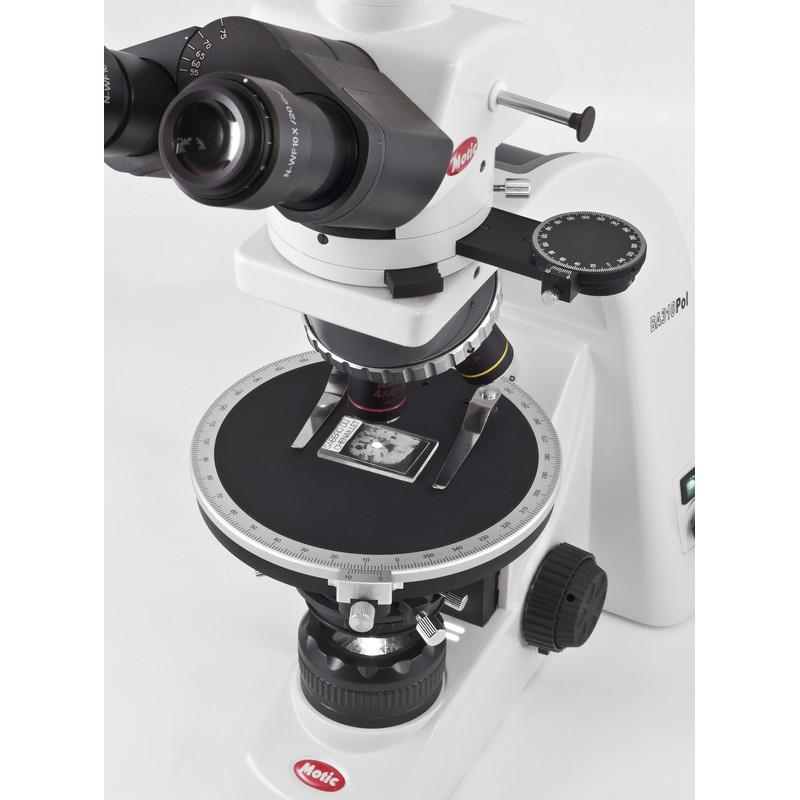

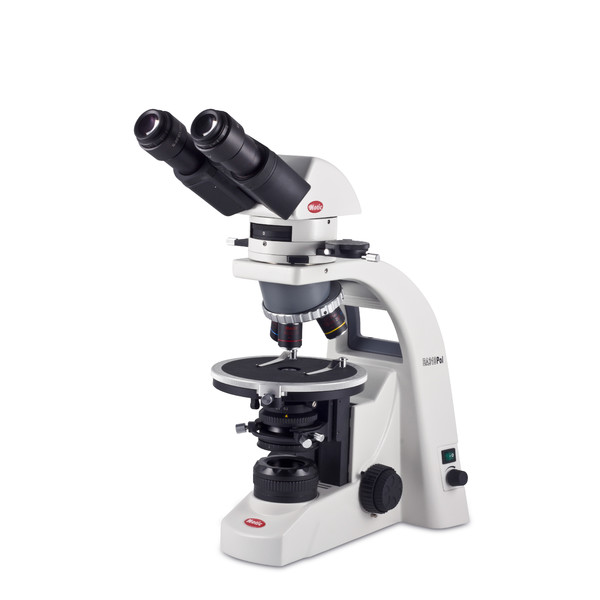

Motic BA310 POL binocular microscope

Motic BA310 POL binocular microscope

Motic BA310 POL binocular microscope

Motic BA310 POL binocular microscope

Motic BA310 POL binocular microscope

Motic

Product no.: 45016

BA310 POL binocular microscope

$ 4,800.00 incl. VAT, plus shipping costs

short-term
ready for shipping in 1-2 weeks + lead time

Product questions?

advice for Microscopy

Product description Specifications Downloads Recommended accessories Customer reviews (0)

Product description

Specifications

Optics

Eyepiece

Eyepiece

The upper element of a microscope. An eyepiece consists of several lenses and is used for visually observing the object. In microscopy, the magnification power is expressed as -x.

Click to read more...

10

Lens type

Lens type

Describes the optical design of the lens.

Click to read more...

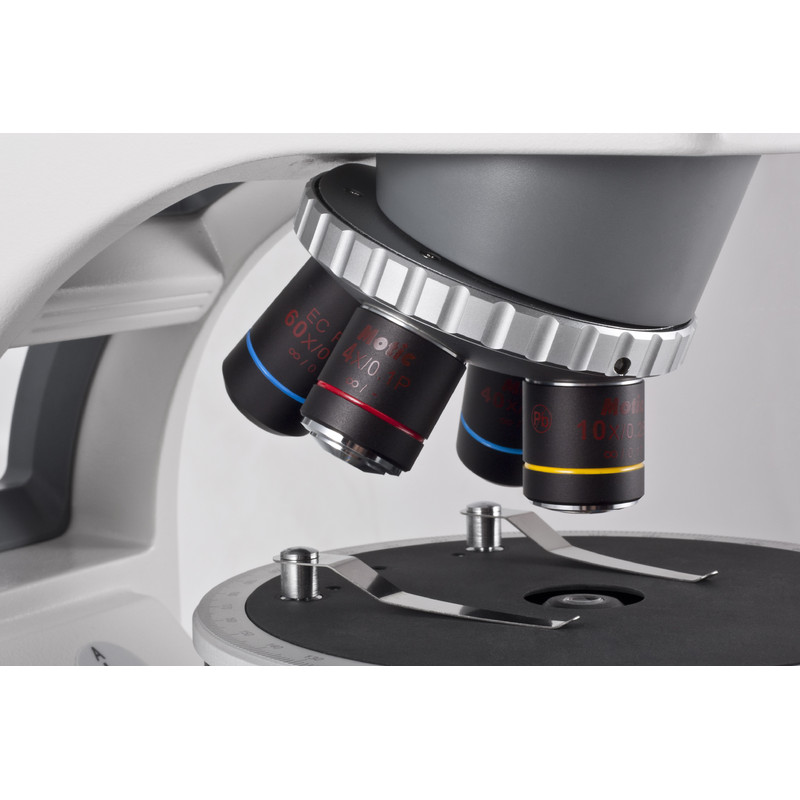

Plan, achromatic (4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection))

Lamp type

Halogen (6V/30W, adjustable, Köhler illumination)

Condensor

Condensor

A condenser serves to ensure a uniform homogeneous illumination of the object. The Abbe condenser consists of a lens system and an adjustable diaphragm. With it, you can set the optimal contrast for the object.

Click to read more...

Achromatic swing condenser, N.A. 0.90 with iris diaphragm and rotatable polarizer

Lighting

Light source

The light source illuminates the object and is available in various forms.

Click to read more...

Transmitted light

Magnification

Magnification

Specifies how much larger an object appears compared to when viewed with the naked eye.

Click to read more...

600 (40, 100, 400, 600)

Power supply

100-240V, VDE plug (CE) mains adaptor

Capacity

Polarization

yes

brightfield

yes

Contrast methods

Polarization

Mechanics

Type of build

binocular

Focusing

Focusing

A focusing wheel is used to focus the microscope on the particular object.

Click to read more...

Coarse and fine movement

Viewing posture (°)

Viewing position

Describes the position in which you look through the eyepiece, for example at 45° or straight.

Click to read more...

Siedentop tube; 30° viewing angle

Specimen stage

Specimen stage

The object or specimen slide is positioned and centred on this.

Click to read more...

Specimen stage (Rotating)

Special features

Centering stage

-

Dust cover bag

yes

Filter holder

Filter holder

Used to hold colour filters for contrast enhancement.

Click to read more...

yes

Wide-angle eyepiece

yes

General

Colour

grey/black

Weight (g)

10200

Width (mm)

220

Height (mm)

452

Length (mm)

400

Series

BA-310 POL

Contrast methods

Polarization

yes

Field of application

Industry

yes

Area of application

Polarization

yes

Mineralogy

yes

show more...

show less...

Downloads

Data sheet (EN)

Recommended accessories

Microscopy > Microscopy accessories (41)

Transport cases

Motic Aluminium Transportbox

$ 146.00*

Eyepiece

Motic Widefield eyepiece N-WF10X/20mm with diopter adjustment

$ 80.00*

Motic Spare bulb, halogen 12V/50W for incident light BA-310

$ 21.90*

Motic eyepiece reticule crosshairs (25mm diameter)

$ 59.00*

Motic , eyepiece reticule scale (10mm in 100 parts), (25mm diameter)

$ 59.00*

Motic , eyepiece reticule crosshairs with dual scale (10mm in 100 parts), (25mm diameter)

$ 59.00*

Camera adaptor

Motic 0.5X C-mount camera adapter for 1/3"

$ 199.00*

Camera adaptor

Motic 0.65X C-mount camera adapter for 2/3"

$ 199.00*

Camera adaptor

Motic , 1X C-mount camera adapter (without optics)

$ 173.00*

Camera adaptor

Motic Camera adapter for SLR (without photo eyepiece)

$ 160.00*

Camera adaptor

Motic 2.5X photo eyepiece for SLR (without camera adapter)

$ 157.00*

Camera adaptor

Motic 4X photo eyepiece for SLR (without camera adapter)

$ 157.00*

Motic Eyecups (unit) (SMZ-171)

$ 6.90*

Motic Polarisator for BA-310MET

$ 41.90*

Motic Analyzer for BA-310MET microscope

$ 65.00*

Objective

Motic Objective CCIS LM Plan achromatic objective LM PL 5X/0.13 (WD=20.3mm)

$ 143.00*

Objective

Motic Objective CCIS LM Plan achromatic LM PL 10X/0.25 (WD=17.5mm)

$ 327.00*

Objective

Motic Objective Objectiv, CCIS achromat. LM PL 20x/0.4 (AA=8.1mm)

$ 450.00*

Objective

Motic Objective, CCIS achromat. LM PL 50x/0.55 (AA=8.4mm)

$ 1,090.00*

Motic filter blue (Ø 45mm) for BA310 MET transmittedl light

$ 21.90*

Motic Epi-illuminator 12V/50W external lamp house

$ 1,290.00*

Dust cover

Motic dust cover for BA

$ 8.90*

Motic Kompensator Lambda-Platte (Rot I. Ordnung); für BA-310POL

$ 130.00*

Motic Yellow filter, Ø45mm (BA310, BA410, AE31 microscopes)

$ 21.90*

Motic Green filter, Ø45mm (BA310, BA410, AE31 microscopes)

$ 21.90*

Motic Didymium filter, Ø 45mm (BA310, BA410, AE31)

$ 87.00*

Motic ND2 neutral density filter (Ø45mm) (BA310, BA410, AE31 microscopes)

$ 44.90*

Camera adaptor

Motic Camera adaptor 0.35X, C-mount, 1/3" chip (BA410E, BA310)

$ 251.00*

Objective

Motic Objective EC PL P, CCIS, plan, achro, (spannungsfrei), 4x/0.10, w.d.15.9mm (BA-310 POL)

$ 133.00*

Objective

Motic Objective EC PL P, CCIS, plan achro, (spannungsfrei), 10x/0.25, w.d.17.4mm (BA-310 POL)

$ 254.00*

Objective

Motic Objective EC PL P, CCIS, plan achro, (spannungsfrei) 20x/0.40, w.d. 0.9mm (BA-310 POL)

$ 341.00*

Objective

Motic Objective EC PL P, CCIS, plan, achro, (spannungsfrei) 40x/0.65, S, w.d. 0.5mm (BA-310 POL)

$ 446.00*

Objective

Motic Objective EC PL P, CCIS, plan, achro, (spannungsfrei) 60x/0.80, S, w.d. 0.35mm (BA-310 POL)

$ 660.00*

Motic Attachable XY microscope stage (for BA-310 POL)

$ 520.00*

Motic Achromatic swing-out condenser N.A. 0.90/0.13 (tension-free) (BA-310 POL)

$ 300.00*

Motic Rubber eyecup with stray light protection for Epi-LED FL (1 pc) (for BA-210)

$ 7.90*

no image

Motic Trinocular Siedetopf microscope tube, 100:0/20:80 (BA-310 POL)

$ 550.00*

no image

Motic Binocular microscope Siedentopf tube, 30° (for BA-310 POL)

$ 344.00*

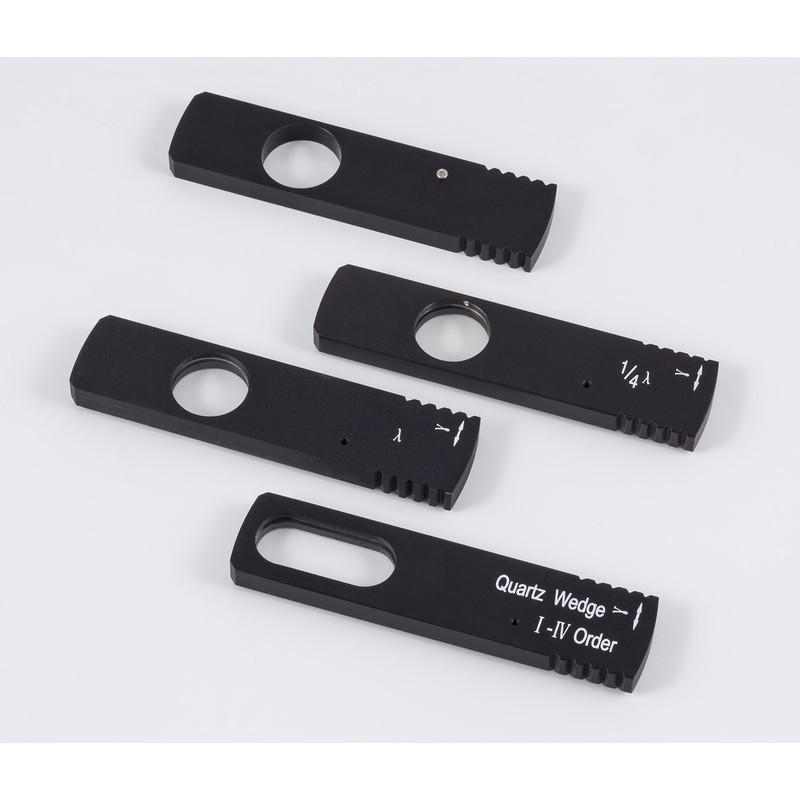

Motic 1/4 lambda plate (BA-310 POL)
