Microscopy > Microscopes > Upright microscopes > Polarising microscopes > Optika > B-380 > Optika B-383POL-polarization, trinocular microscope
Product no.: 44720

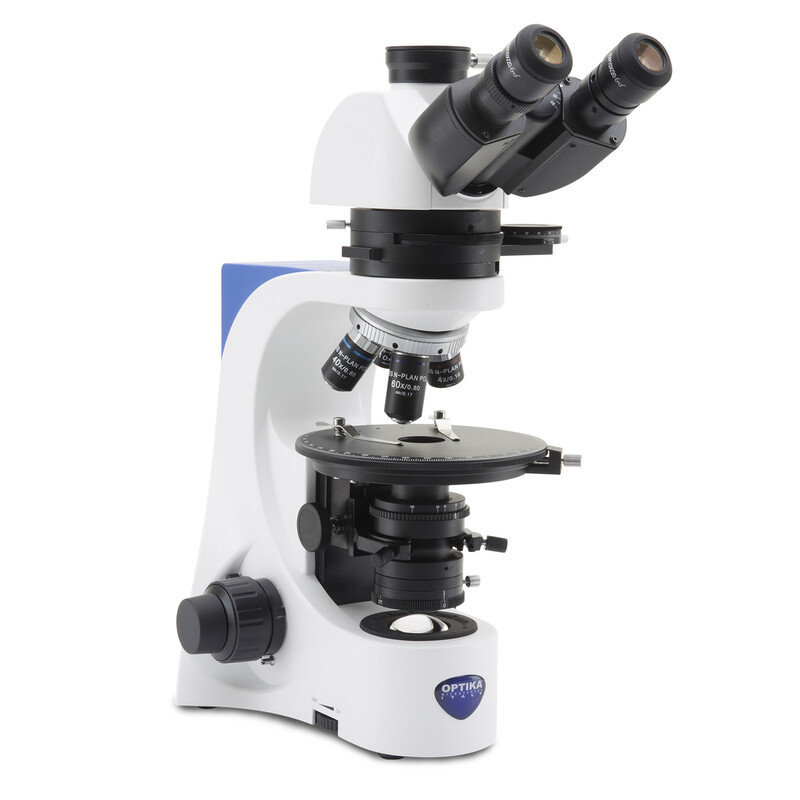

B-383POL-polarization, trinocular microscope

RRP: $ 3,140.00 Our price:
$ 2,830.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

More about the series B-380...

B-380 Series
Upright laboratory microscopes.

Your routine work requires long hours on your microscope. Easily accessible controls, including the stage drive, fine focus and brightness control combined with Optika’s revulotionary ALC system grants maximum comfort and relaxed working conditions.

Optical system & objectives:
The models of the B-380 series are equipped, depending on version, with two different types of optical systems: the standard 160mm one and the infinity corrected system (IOS). In both cases the field diameter of the eyepieces is 20mm.The fokuslenghth of the tube lens is 180 mm the parfocal lenght of the ojectives is 45 mm.
Microscope stand:
Modern and ergonomic, this stand is made of die-cast aluminium. Coarse and fine focusing (graduation: 0.002mm) with coaxial control knobs. Adjustable focusing tension and limit stop.
Heads:
Available in binocular or trinocular version. The heads are equipped with interpupillary distance control (55-75 mm) as well with dioptric compensation. All heads are 360° rotatable and 30° inclined.
Illumination:
The illuminating system consists of X-LED source. The brightness can be adjusted by a rheostat located on the left side of the microscope base.

X-LED 3 - The future of illumination OPTIKA is proud to introduce its own revolutionary LED powered illumination system.
Developed by our R&D dept. it consists of a new combination of LED and optical technology. A new high-efficiency single chip LED works in combination with a special optical lens, which allows to double the intensity of the light generated by the LED itself. The result is a quantity of light equivalent to the light generated by a standard 50W halogen bulb, but with a colour temperature of 6300K. It means white light instead of the yellow one produced by halogen bulbs.
The electrical consumption (3.6W only) shows the high efficiency of the system: same light intensity with less than 10% of the consumption of a standard halogen bulb. Last but not least, the lifetime of our LED is 50.000 hours, instead of 1.500 hours ...!

Specifications

Optics


Eyepiece
10
Lamp type
LED
Condensor
Abbe 1.25 N.A., focus adjustable, with iris diaphragm
Lighting
Transmitted light
Magnification
600 (40, 100, 400, 600)

Capacity


Temperature of color (K)
6300 K
Polarization
yes
brightfield
yes
Contrast methods
Polarization

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement

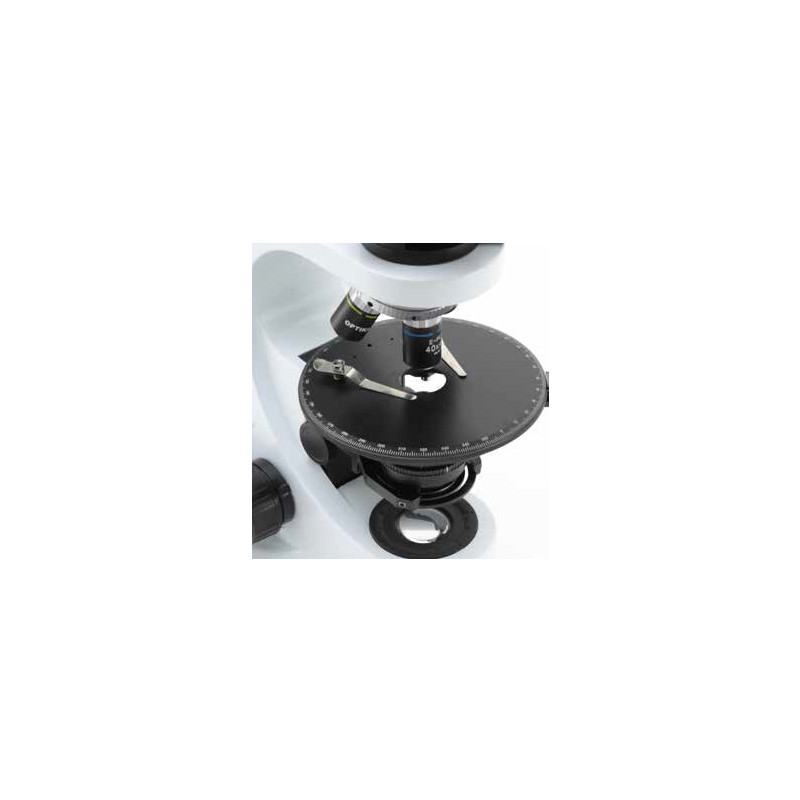

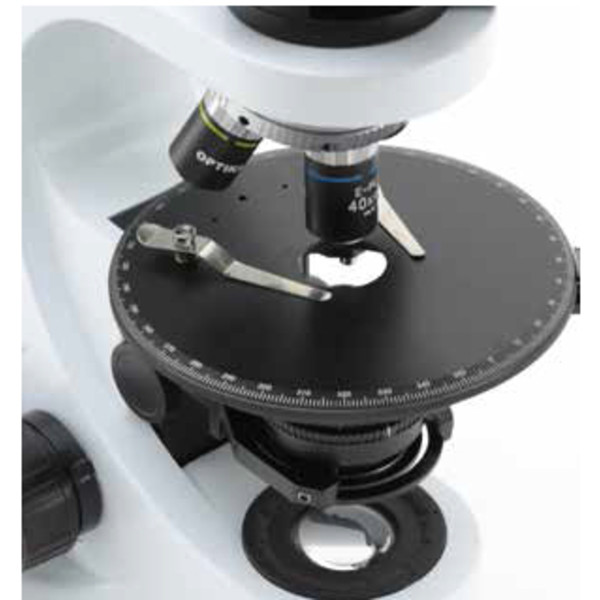

Specimen stage
Centering stage
Viewing posture (°)
30° oblique viewing, 360° rotating head
Revolver
4

Special features


Centering stage
yes
Wide-angle eyepiece
yes

General


Width (mm)
210
Colour
grey/black
Weight (g)
4000
Height (mm)
480
Series
B-380
Length (mm)
370

Contrast methods


Polarization
yes

Field of application


Medicine
-
Industry
yes

Area of application


Dark field
-
Fluorescence
-
Interference contrast
-
Metallurgy
-
Phase contrast
-
Polarization
yes
Mineralogy
yes
Forensic science
yes
