Microscopy > Microscopes > Stereo microscope > Stereo zoom heads > Optika > SZO > Optika Stereo zoom head SZO-B, bino, 6.7x-45x, w.d. 110 mm, Ø 23 mm, click stop
Product no.: 61881

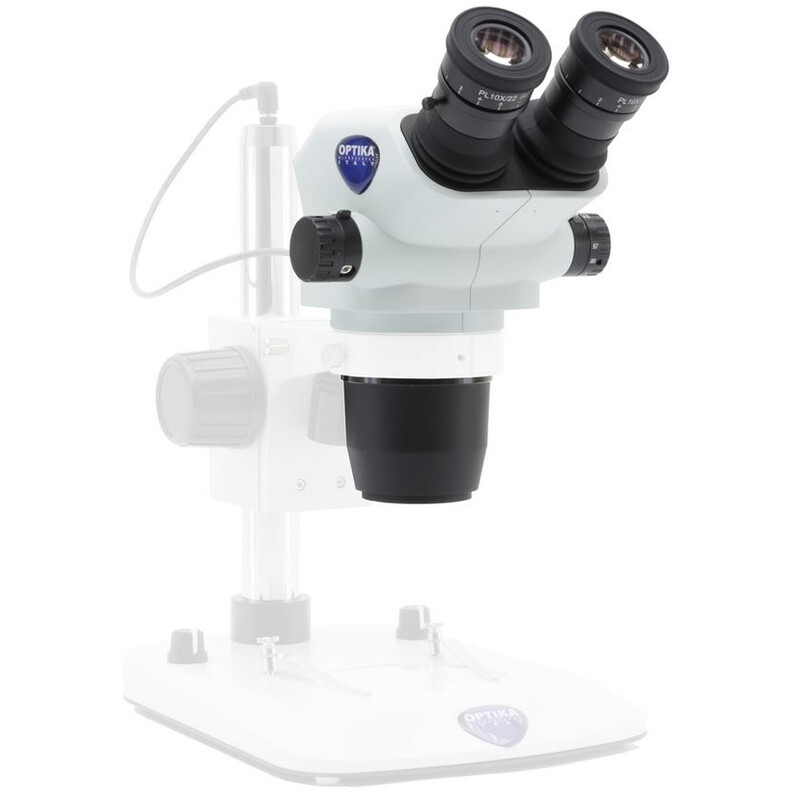

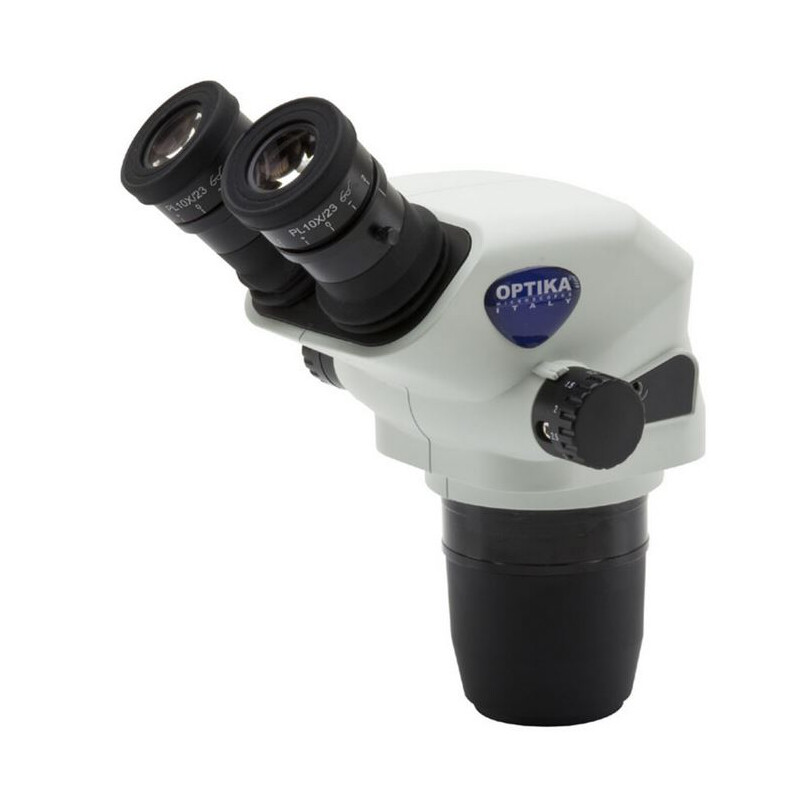

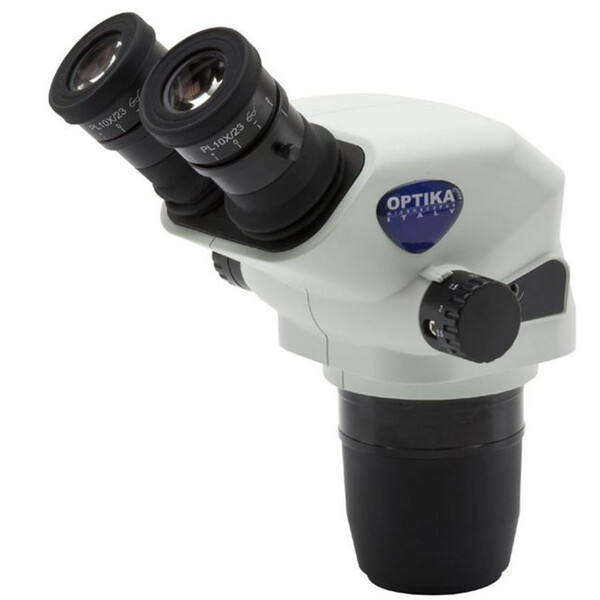

Stereo zoom head SZO-B, bino, 6.7x-45x, w.d. 110 mm, Ø 23 mm, click stop

RRP: $ 910.00 Our price:
$ 820.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

More about the series SZO...

SZO Series

OPTIKA SZO Series represents a very compact Greenough stereo microscope with 6.72:1 zoom and 110mm working distance for professional environments and laboratories which allows the observation of samples without any particular preparation, yet producing incredibly crisp and detailed images. An extensive range composed by binocular and trinocular heads with 23mm field of view for a very wide peripheral view and comfortable posture even after several hours of operation. Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Discover how easily an enhanced accuracy and repeatability can be achieved thanks to the click-stop zoom for precise and repetitive observations. An extremely wide stand selection gives the chance to create tailored stereomicroscope: choose among the several models available to cover every customers’ needs, in terms of illumination (including the state-of-the-art, exclusive X-LED³ incident light of 3.6W on selected models), arm extension (including overhanging stands) and focusing system. Special external illuminators and moving/heating stages are also available for specific applications. Keep in my mind the application, always: if you are soldering a printed circuit board, it may be more important to have a long working distance; if you are counting items, then a large field of view will be of great assistance.

SZO-B

Head: Binocular, 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/23 mm, high eye-point.
Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1) with click-stop detents.
Working distance: 110 mm
Optical system: Greenough (15° inclined)

Specifications

Optics


Image scale
6.7-45
Lighting
none
Condensor
-
Lens type
Achromatic
Eyepiece
10/23
Power supply
-
Magnification
45
Optical system
Greenough
Zoom shot
yes

Mechanics


Type of build
binocular
Working distance (mm)
110
Viewing posture (°)
45° angled eyepiece, 360° rotatable

General


Series
SZO
Colour
white
Height (mm)
240
Length (mm)
200
Width (mm)
167
Weight (g)
1800

Field of application


Industry
yes
Biology
yes

Area of application


Mineralogy
yes
Semiconductor technology
yes
Odontotechnics
yes
Marine Biology
yes
