More about the series Nexius EVO...
Nexius Zoom Evo
The NexiusZoom and NexiusZoom Evo stereo microscopes from Euromex enable you to examine your samples with high precision. They generate three-dimensional images for microscopy of the highest standards. These high-end zoom microscopes are perfect for analysing all types of surfaces or observing biological samples. The NexiusZoom stereo microscopes are available with a wide range of tripods and are supplied with or without LED lighting. Ideal for all types of educational and laboratory applications. With additional ancillary lenses and objectives, magnifications from 3.3x to 220x can be achieved
NexiusZoom EVO series
Technical
- Eyepieces: Pair of WF 10x/23 mm, both eyepieces with ± 5 diopter adjustment
- Head: Binocular or trinocular head with 45° oblique view, interpupillary distance adjustable from 54 mm to 75 mm
- Objectives: Zoom from 1:8.4 objectives with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm
- Ancillary lens: 0.5x / 0.75x / 1.5x and 2.0x optional
- Tripod: Ergonomically designed column or fixed arm stand with LED lighting and two object clamps or ergonomically designed overhanging stand with single or double arm with coarse adjustment, without lighting.
- Material: Metal alloy, white lacquered
- Optical parts are treated against fungi

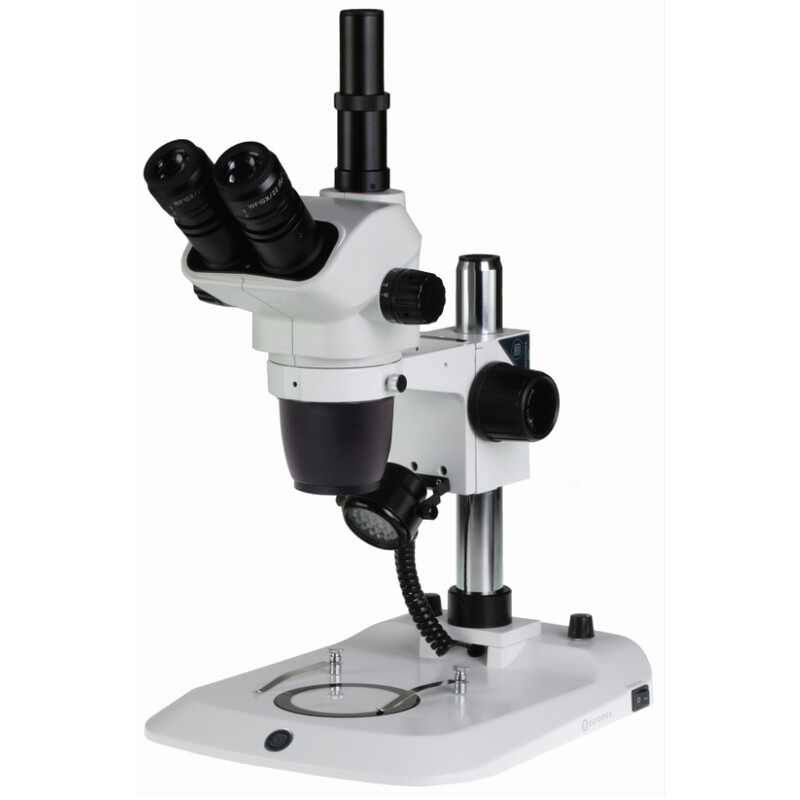

NexiusZoom EVO, NZ.1703-P, trino, 6.5x-55x
- Objective: 0.65 x - 5.5 x
- Eyepieces: WF 10x/23 eyepieces in 45° inclined tube with +/- 5 diopter adjustment
- Magnification: from 6.5 to 55x
- Field of view: from 32.8 mm to 24.9 mm
- Free working distance: 110 mm
- Maximum object height: 148 mm
- Packaged in a Styrofoam box
- Tripod: Stand column
- Lighting: reflected and transmitted light 3W LED, separately controllable
- Tube: Trinocular
EYEPIEC ES
The NexiusZoom Evo comes with a pair of HWF 10x/ 23 mm eyepieces.
LENSES
The NexiusZoom Evo is equipped with a plan achromatic 1:8.4 objective with 0.65x to 5.5x magnification. Field of view from 35.4 mm to 4.2 mm. Large working distance of 110 mm
Ancillary lenses 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are treated against fungi.
