Euromex NexiusZoom
The NexiusZoom stereomicroscopes are often used for professional industrial purposes, scientific research and education because of the excellent optical and mechanical properties while very attractively priced
- Standard wide field secured WF10x eyepices with 22 mm field of view
- 45° inclined, 360° rotatable bino- and trinocular stereo heads
- 0.67 to 45x Zoom objectif, parafocal over the entire zoom range with a working distance of 110 mm
- With optionale additional lenses, magnifications from 3.3x to 90 times can be achieved
- 2 read-to-use stereomicroscope models with ergonomic flat stand with 3 W LED diascopic and incident illumination
- 4 configuratieons with universal one arm or double arm stands

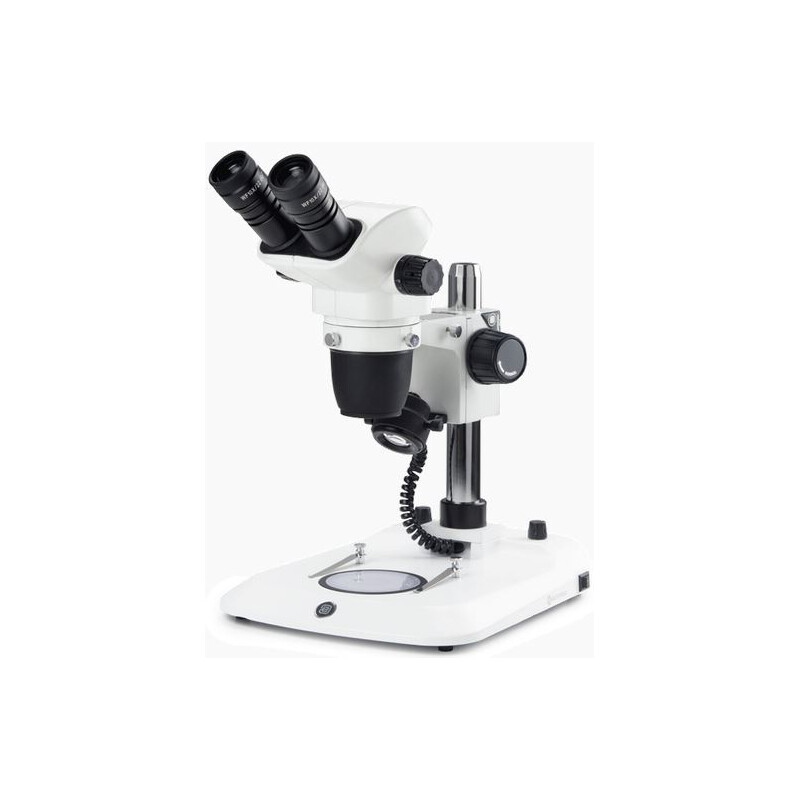

NZ.1902-P, NexiusZoom, 6.7x - 45x, LED, bino
- WF10x/22 eyepieces in 45° inclined tube with diopter adjustment
- Standard total magnification from 6.67 to 45x
- Field of view 33 to 4.9 mm
- Working distance 110 mm, maximum object height 213 mm
- Universal pillar stands
- With reflected and transmitted light
- Supplied with object plate with 2 mounting clamps
EYEPIECES
The standard NexiusZoom is supplied with a pair of HWF 10x/ 22 mm eyepieces.
OBJECTIVES
The standard NexiusZoom is equipped with a plan achromatic 1:6.7 objective with 0.67x to 4.5x magnification. Field of view from 33 mm to 4.9 mm. Large working distance of 110 mm.
Ancillary lenses 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are treated against fungi.
