Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Euromex > Nexius ESD > Euromex NZ.1902-S-ESD, NexiusZoom ESD, 6.7x - 45x, LED, ESD
Product no.: 55597

NZ.1902-S-ESD, NexiusZoom ESD, 6.7x - 45x, LED, ESD

$ 1,240.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

NexiusZoom ESD series

Specifications

  • Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments
  • Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm
  • Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm
  • Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available
  • Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment:Coarse adjustment
  • Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately

All optical parts are anti-fungus treated

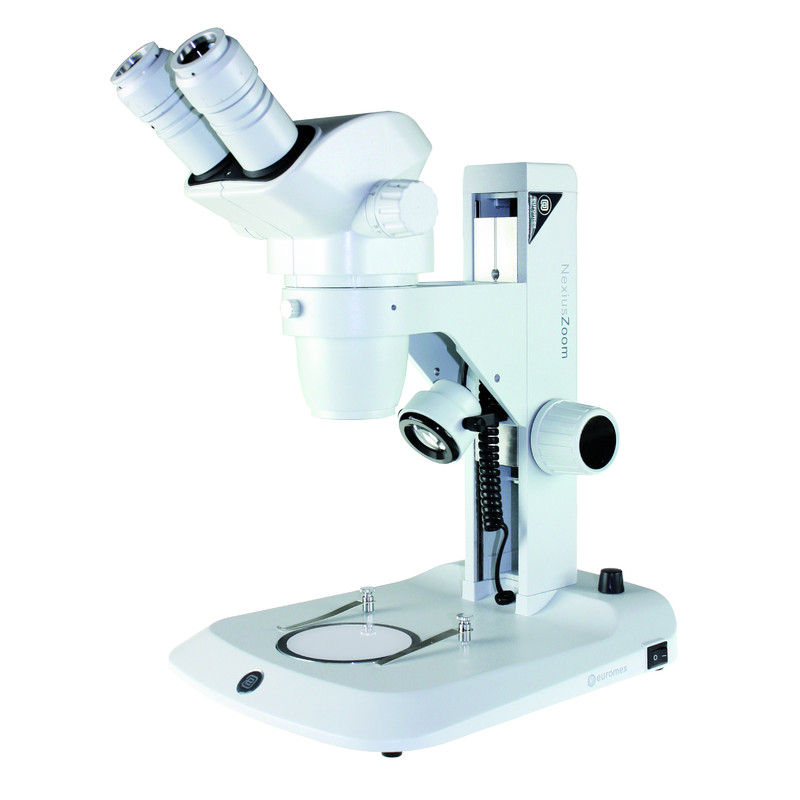

NexiusZoom binocular zoom stereo microscope NZ.1902-S

NexiusZoom Binocular Greenough Zoom stereo microscope

Binocular stereo head with 0.67x to 4,5x stereo objective

WF10x/22 eyepieces in 45° inclined tubus with diopter adjustment

Total standard magnification from 6.67x to 45x

Field of views: 33mm to 4,9mm

Working distance: 110mm

Stand: Rack and pinion stand

Illunimation: Translucend and incident 3 W LED illumination

Delivered with object plate and 2 object clamps

Packed in styrofoam box

Specifications

Optics


Eyepiece
10 (WF 10/22)
Magnification
0.67-4.5 (zoom lens)
Lamp type
LED
Lighting
Incident light and transmitted light
Optical system
Greenough

Mechanics


Type of build
binocular
Working distance (mm)
110
Viewing posture (°)
45° oblique viewing

Special features


Dust cover bag
yes

General


Width (mm)
219
Length (mm)
266
Series
Nexius ESD

Matches the series


Nexius
-

Field of application


Industry
yes
Education
yes

Area of application


Materials technology
yes
Mineralogy
yes
Metallurgy
yes
Mechanical engineering
yes
Construction materials industry
yes
University
yes
school
yes
Electronics
yes
Semiconductor technology
yes
Odontotechnics
yes

Miscellaneous


supplier product number
NZ.1702-S-ESD
