Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Euromex > Nexius ESD > Euromex NZ.1903-P-ESD, NexiusZoom, 6.7x to 45x, LED, (ESD)
Product no.: 55600

NZ.1903-P-ESD, NexiusZoom, 6.7x to 45x, LED, (ESD)

$ 1,280.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

NexiusZoom ESD series

Specifications

  • Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments
  • Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm
  • Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm
  • Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available
  • Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment:Coarse adjustment
  • Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately

All optical parts are anti-fungus treated

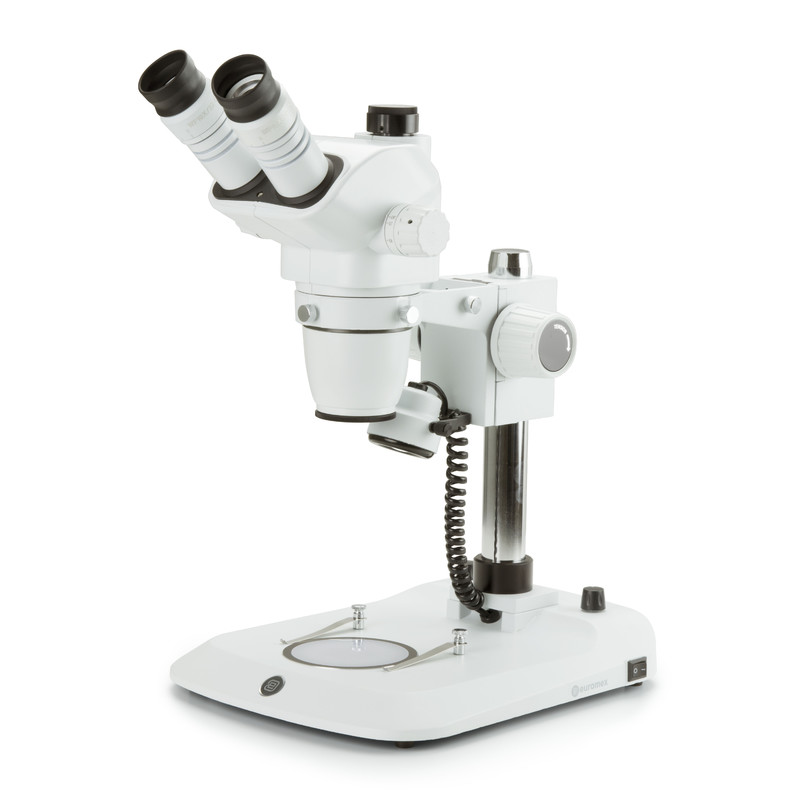

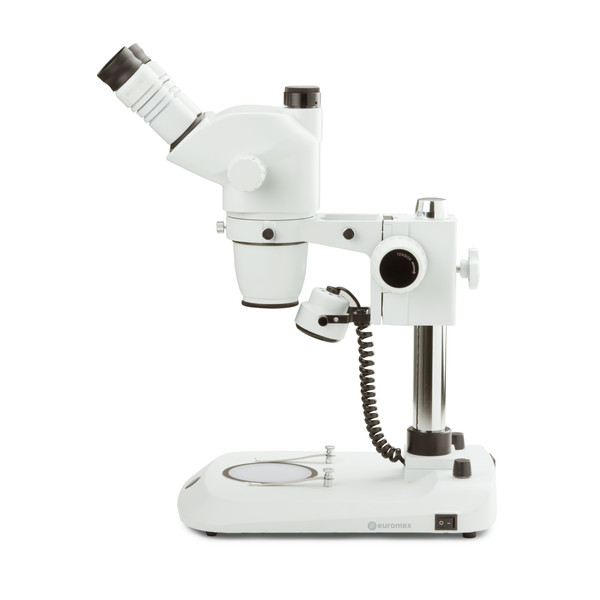

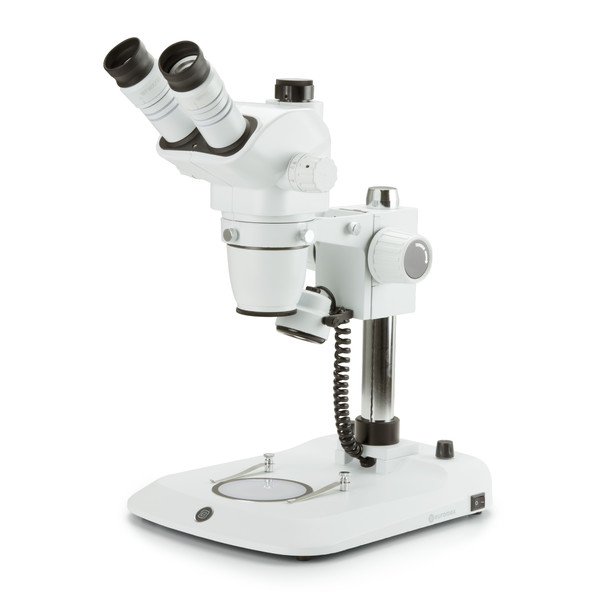

NexiusZoom Trinocular Greenough Zoom stereo microscope NZ.1903-B-ESD

Trinocular stereo head with 0.67 x to 4,5 x stereo objective

WF10x/22 eyepieces in 45° inclined tubus with diopter adjustment

Total standard magnification: from 6.67 to 45x

Field of view: 33 to 4,9 mm

Working distance: 110 mm

Maximal Object Height: 148 mm

Stand: Metal pillar stand

Illumination: Incident and translucent Light 3 W LED; both illuminations can be separatedly adjusted.

Packed in styrofoam box

Specifications

Optics


Eyepiece
10 (WF 10/22)
Magnification
0.67-4.5 (zoom lens)
Lamp type
LED
Lighting
Incident light and transmitted light
Optical system
Greenough

Mechanics


Type of build
Trinocular
Working distance (mm)
110
Viewing posture (°)
45° oblique viewing

Special features


Dust cover bag
yes

General


Width (mm)
219
Length (mm)
266
Series
Nexius ESD

Matches the series


Nexius
-

Field of application


Industry
yes
Education
yes

Area of application


Electronics
yes
Semiconductor technology
yes

Miscellaneous


supplier product number
NZ.1703-P-ESD

Downloads
