Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Optika > SZR Serie > Optika SZR-14 trinocular stereo zoom microscope, hinged overhanging stand
Product no.: 23468

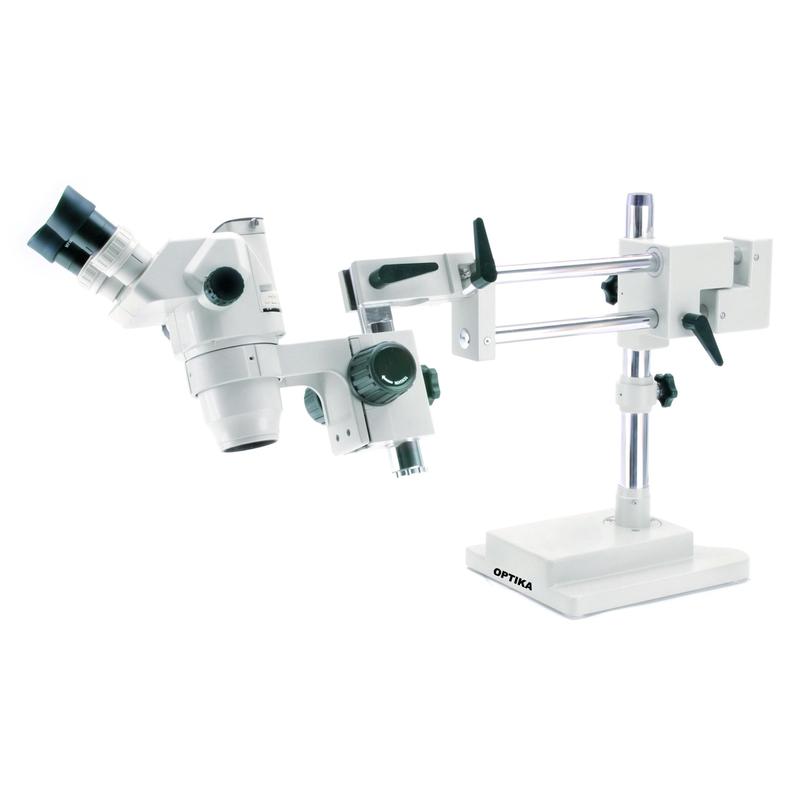

SZR-14 trinocular stereo zoom microscope, hinged overhanging stand

RRP: $ 1,450.00 Our price:
$ 1,310.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

SZR series

The SZR stereo microscopes are particularly suitable for laboratory and research applications. Thanks to their features and optical and mechanical qualities, they are first-class research instruments. They are available in fourteen different models to meet the various needs of users. The main feature of this series is the binocular and trinocular heads with zoom optics. Numerous tripods and bases can be combined with the heads. A wide range of accessories further expands the possible uses of these microscopes.

lenses

Parfocal achromatic zoom lenses, from 0.67x to 4.5x with continuously adjustable magnification (max. 45x with standard configuration, can reach 180x with accessories).

Object holders

The instruments have a white/black disc and clamps (except for instruments with overhanging stands). Microscopes with transmitted light have a frosted glass disc.

tripod

There are five different versions: simple stand without transmitted light; simple stand with base for reflected and transmitted light; with integrated lighting system; with overhanging stand – simple or rotating – for viewing large objects.


Technical data for the SZR series microscopes:

  • Binocular/trinocular heads, 360° rotatable, 45° inclined view
  • 12V/15W halogen lamps with adjustable brightness
  • Eye relief adjustable between 52 and 75 mm
  • Diopter adjustment on both eyepieces
  • EWF10x/22mm eyepieces, high point
  • Working distance 110 mm
  • Focusing controlled by rack and pinion drive, knobs on both sides

Specifications

Optics


Lighting
-
Lamp type
-
Magnification
45 (6,7 - 45)
Lens type
Achromatic
Image scale
0,67 - 4,5 (Zoomobjektiv)
Eyepiece
10 (Wide-angle eyepiece)
Condensor
-
Optical system
Greenough

Mechanics


Type of build
Trinocular
Viewing posture (°)
45° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement

Special features


Built-in digital camera
-
Filter holder
-
Rechargeable battery operation
-
Dust cover bag
-

General


Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (g)
-
Series
SZR Serie
Colour
white

Suitable for


Beginners
-
Advanced
yes
Pros
yes

Area of application


Interference contrast
-
Metallurgy
-

Product safety

Manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
