Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Optika > SLX > Optika zoom stereo microscope SLX-3, 7-45x zoom, LED, w.d.100mm, trino
Product no.: 63316

zoom stereo microscope SLX-3, 7-45x zoom, LED, w.d.100mm, trino

RRP: $ 640.00 Our price:
$ 580.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 30.03.2024!

Product description

More about the series SLX...

Optika zoom stereo microscope SLX-3, 7-45x zoom, LED, w.d.100mm, trino

(SLX-3)

Valuable configurations of cordless and modern stereo & stereozoom microscopes ideal for a variety of applications, including dissection, biology, entomology, anatomy, chemistry, material science among the others and even industrial purposes.

Head: Trinocular (split ratio: 50/50), 45° inclined; 360° rotating

  • Type: Trinocular
  • Construction material: Aluminum & Plastic molds / Aluminum gears
  • Split ratio: Fixed. 50 (eyepiece) / 50 (photo)
  • Inclination: 45°
  • 360° rotating: Yes
  • Interpupillary distance (mm): 51-75
  • Dioptric adjustment: On both tubes
  • Head holder internal diameter (mm): 76
  • Tube inner diameter (mm): 30

Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups.

  • Field number (mm): 21
  • Dioptric adjustment: Both eyepieces.
  • Magnification: 10x
  • Micrometric scale: As optional
  • Diameter of micrometer glass (mm): 23
  • High eyepoint (for glass wearers): Yes
  • Rubber cup: Yes
  • Retractable protections: Yes

Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment.

  • Optical system: Greenough
  • Anti-fungus treatment: Yes
  • Objective Type: Achromatic
  • Zoom type: Parfocal achromatic
  • Working distance (mm): 100
  • Standard magnifications: 7x-45x
  • Zoom ratio: 6.43

Focusing: Rack and pinion focusing mechanism.

  • Type: Coarse
  • Coarse total travel (mm): 110
  • Adjustable tension: Yes
  • Head holder internal diameter (mm): 76

Stand: High-grade, precision fixed with handle and focus

  • Type: Fixed arm
  • Handle: Yes

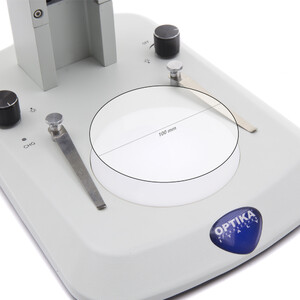

Stage:

  • White diffusion plate for transmitted ill.: Yes, diameter 100 mm
  • Black/white contrast plate for incident ill.: As optional
  • Specimen clips: Yes

Illumination: EcoLED™ swiveling incident and transmitted, with brightness control, rechargeable batteries. Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply

  • Observation Method - Transmitted Light: Brightfield - Yes
  • Observation Method - Incident Light: Brightfield - Yes
  • Type: EcoLED
  • Brightness control: Manual
  • Lifetime (hours): > 65,000
  • Temperature (K): 6,300

Power Supply for Illumination:

  • Type: External
  • Microscope connector: Jack, 2.1 mm
  • Power plug type: Multi-plug (EU, UK, US)
  • Input voltage: 100/240 Vac, 50/60 Hz
  • Output voltage: 5 Vdc 500 mA
  • LED indicator: Yes
  • Rechargeable batteries: Yes
  • Battery type: Ni-MH (3x, AA size)
  • Working time of batteries (hours): 12
  • Charging time of batteries (hours): 8

Additional Information

  • Maximum sample height (mm): 100

Included components:

  • SLX-3
  • Dust cover
  • User Manual: Digital version (downloadable)

Specifications

Optics


Lighting
Incident light and transmitted light
Lamp type
LED
Magnification
7x-45x
Eyepiece
10x/21 WF
Power supply
Power plug
Optical system
Greenough
Lens type
Achromatic
Zoom shot
yes

Capacity


Magnification
0.7x…4.5x
Diameter (mm)
76

Mechanics


Type of build
Trinocular
Viewing posture (°)
45 (45° oblique viewing, 360° rotating head)
Focusing
Coarse movement
Specimen stage
Specimen stage
Working distance (mm)
100

Special features


Rechargeable battery operation
yes (AA (3))

General


Suitable from
8
Length (mm)
280
Width (mm)
205
Height (mm)
365
Weight (g)
3.5
Series
SLX
Colour
white

Field of application


Education
yes

Area of application


school
yes
Parasite analysis
yes
Tinker
yes

Miscellaneous


supplier product number
SLX-3
