OPTIKA-WI-LEARN: TRANSFORM YOUR CLASSROOM INTO AN INTERACTIVE LEARNING ENVIRONMENT

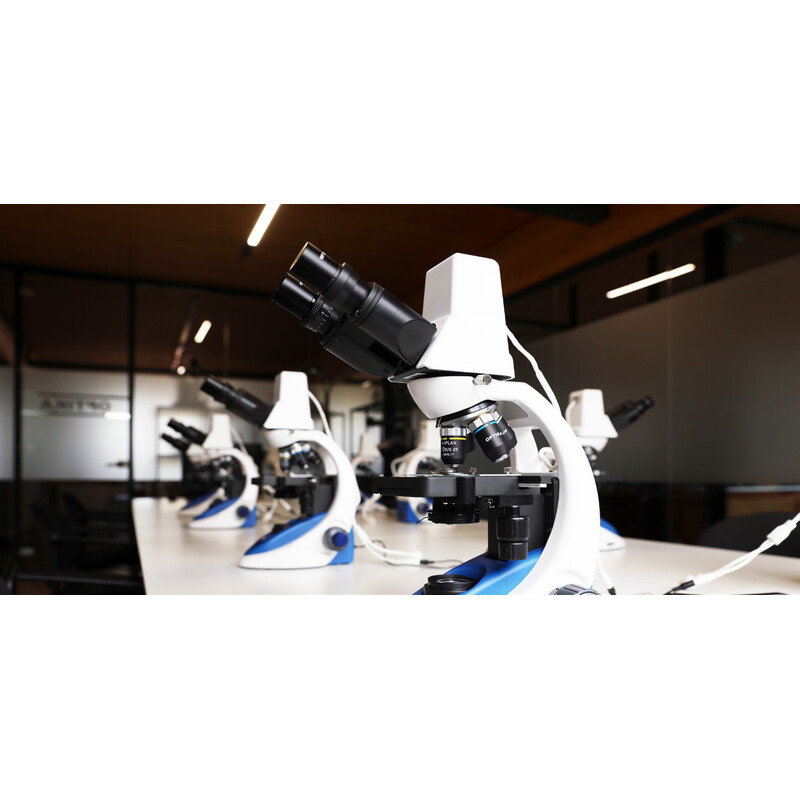

Optika-Wi-Learn provides the teacher with a true central command station, collecting real-time images from all the connected microscopes in the classroom. (Package Teacher + Student Station)

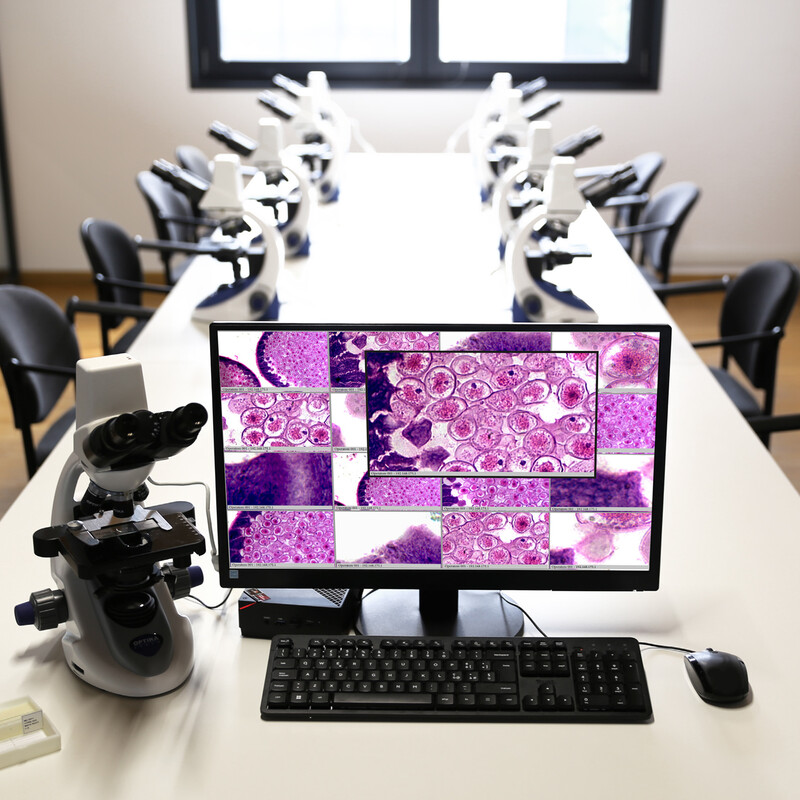

The teacher can choose to display images from all stations in “mosaic” mode, focus on specific microscopes, or view only one. Additionally, the teacher can save images or videos from each individual station, share them with the class, and stimulate collective discussion. The station also includes a large 24” monitor that displays microscope images clearly and in detail, facilitating a shared view. Thanks to the HDMI port on the main station, a second monitor or interactive whiteboard can be connected, enabling real-time sharing of observations with the class.
This setup creates an interactive visual environment that enriches the educational experience, promoting interaction among all participants.
Modularity and flexibility:
The pre-configured configuration guarantees immediate use and easy scalability based on classroom needs.
Centralized Control:
The teacher can monitor what each student observes, choose which images to project to the class, and save photos or videos for later analysis.

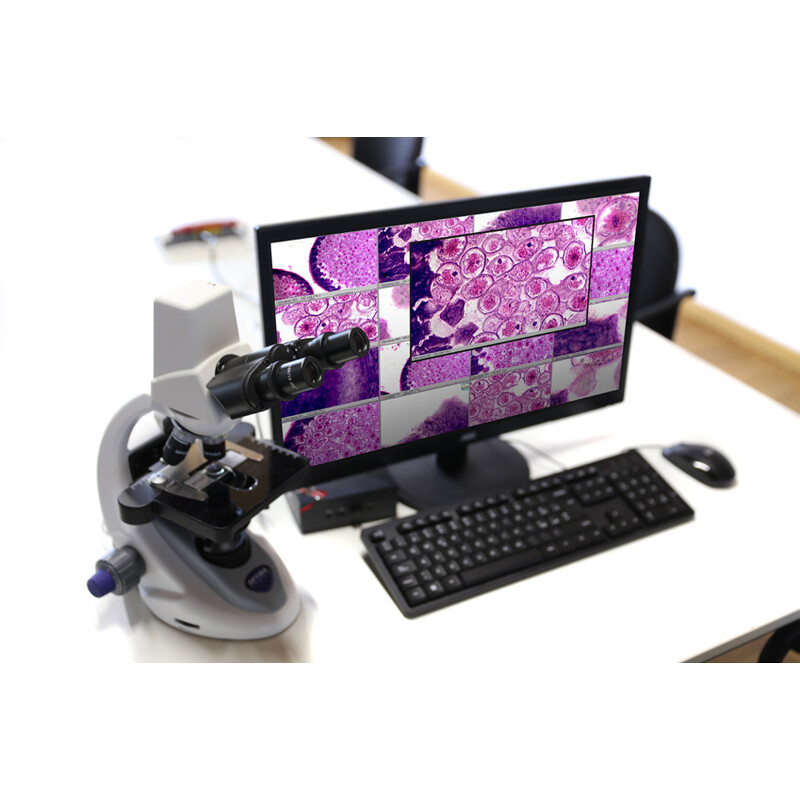

Teacher Station:
B-290 Microscope with Optika-Wi-Learn Digital Binocular Head
Optika-Wi-Learn Digital Binocular Head
• Type: Binocular inclined at 30°, 360° rotation, with interpupillary distance adjustment from 48 to 75 mm and dioptric correction on the left tube.
• Sensor: CMOS 1/3” for clear and precise vision.
• Frame Rate: 25 fps with resolutions 2560×1440, 1920×1080, and 1280×720.
• Video Compression: Supports H264, H265, H264+, and H265+ for smooth and high-quality transmission.
• Connections: Supports RJ45 Ethernet (10/100 Base-T) and 2.4 GHz Wi-Fi for a stable and secure connection.
B-290 Microscope
• Field of View (FOV): 20 mm for a wide sample view.
• Objectives: N-PLAN 4x, 10x, 40x (spring), 100x (oil, spring); working distance 160 mm; magnifications from 40x to 1000x.
• Condenser: Abbe 1.25 N.A., centering and focusing, with iris diaphragm for precise and controlled illumination.
• Illumination: X-LED3 3.6 W, with a lifespan of over 65,000 hours, for intense and durable light.
• Focusing: Coaxial system for macro and micrometric focusing.
• Stage: 150×139 mm, with double layer and rackless movement, travel 75×33 mm, for smooth and precise sample manipulation.
To complete the teacher station
• 24” Monitor – Mini PC – Wi-Fi Modem router
