Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 183 > ZWO Camera ASI 183 MC Color
Product no.: 56536

Camera ASI 183 MC Color

RRP: $ 940.00 Our price:
$ 770.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 30.03.2024!

Product description

ASI183 has much potential, and each feature means a new posibility! This camera is suitable for a wide range of astronomical application.

The ASI 183 camera series is the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!

Astrophotography Performance

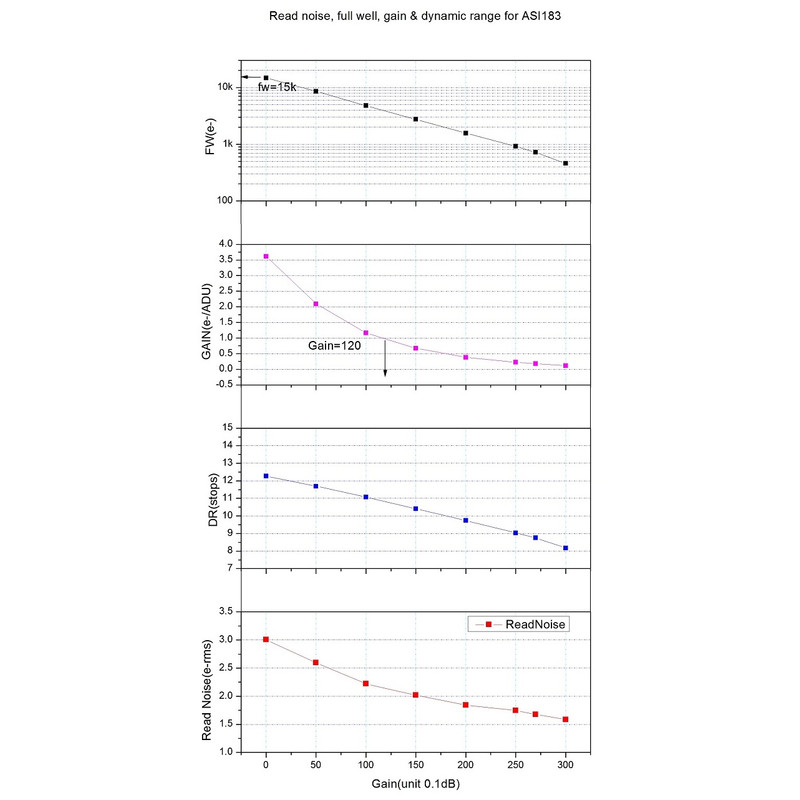

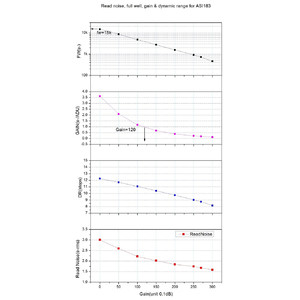

In the astronomic application field, Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors uses a very high sensitivity back-illuminated structure with high resolution 2.4 μm square unit pixel. The ASI183 cameras have a very large full well capacity (15000e) for such small pixel size, 1.6e read noise @ 30DB, and 12 stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

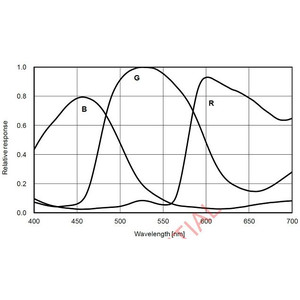

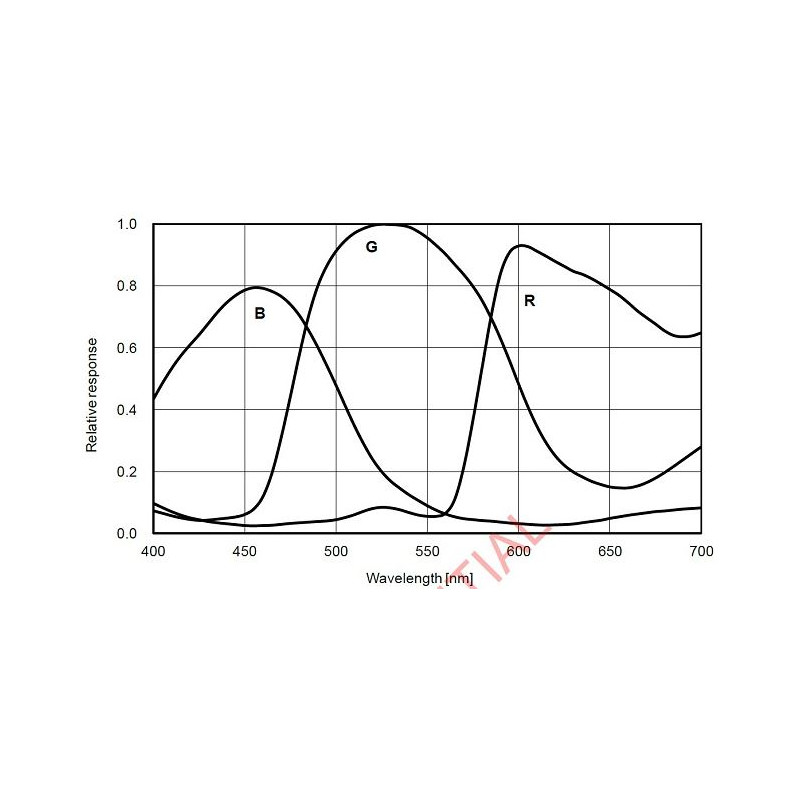

Sony’s back-illuminated Exmor R technology is giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%. Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. The ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA. The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

Possible framerates:

10Bit ADC

  • 5496×3672 19fps
  • 3840×2160 41.04fps
  • 1920×1080 80.10fps
  • 1280×720 117.30fps

12bit ADC

  • 5496×3672 19fps
  • 3840×2160 36.12fps
  • 1920×1080 70.48fps
  • 1280×720 103.23fps

ST4 Port: Can be used to connect with the auto guide port of your mount, for guiding.

Colour or mono? Black and white cameras have the advantage of higher sensitivity and resolution than colour cameras. However, more effort is required to obtain a colour image. You also need colour filters and a filter wheel

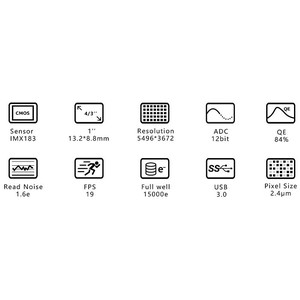

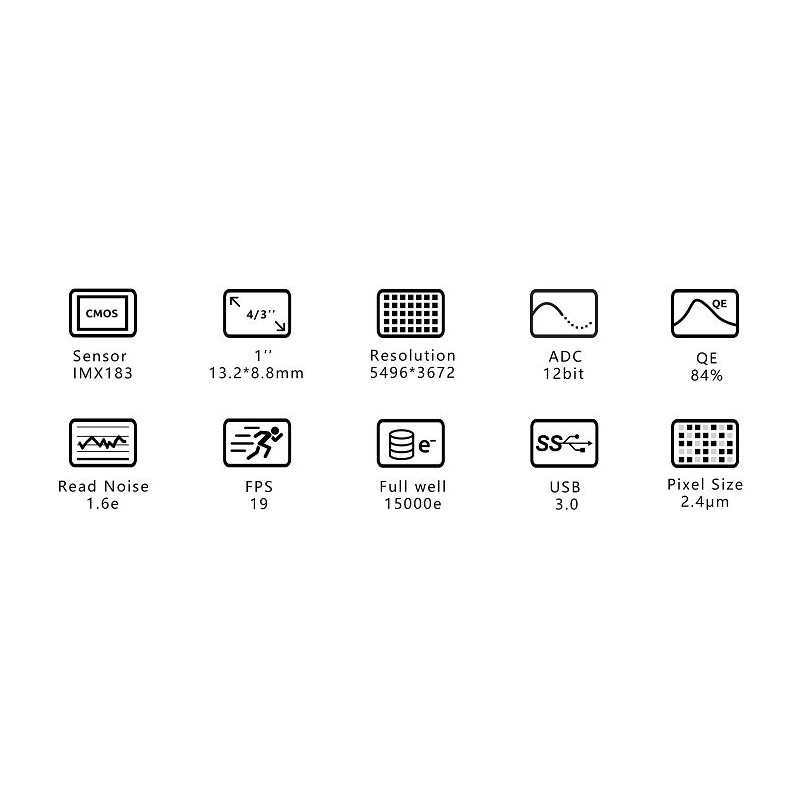

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX183)
Size of chip (mm)
13,2 x 8,8
Megapixel
20,18
Pixel size
2,4
Resolution Photograph (Pixel)
5496 x 3672
Bit depth (Bit)
12
Active cooling
no
Interfaces
USB 2.0, USB 3.0, ST-4
Connection (to the telescope)
1,25" & 2" & T2
Colour camera
yes
Operating temperature
-5 - 45
Max. exposure time (min)
33,3
Min. exposure time
32µ
Images per second
19 (at full resolution)
Reading noise
1,6
Full Well Capacity
15.000
Flange focal distance (mm)
6,5
Power supply
5 (via USB)
Chip - Diagonal (mm)
15,9

Equipment


Filter wheel
no

General


Weight (g)
120
Series
ASI 183
Diameter (mm)
62
Length (mm)
36

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Telescope accessories (1)
Filters

Omegon Filters 1.25'' deep sky filter

$ 89.00*
Filters (1)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography > Controls & Shutter Release (3)

ZWO ASIAIR PLUS (32GB) Astrophotography-Computer

$ 464.00*
Astrophotography > Other (1)

Artesky Adapter Canon to CMOS with Filter Drawer

$ 183.00*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 203.00*

*All prices include VAT plus shipping costs.

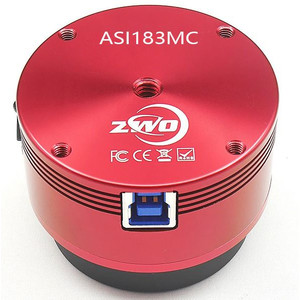

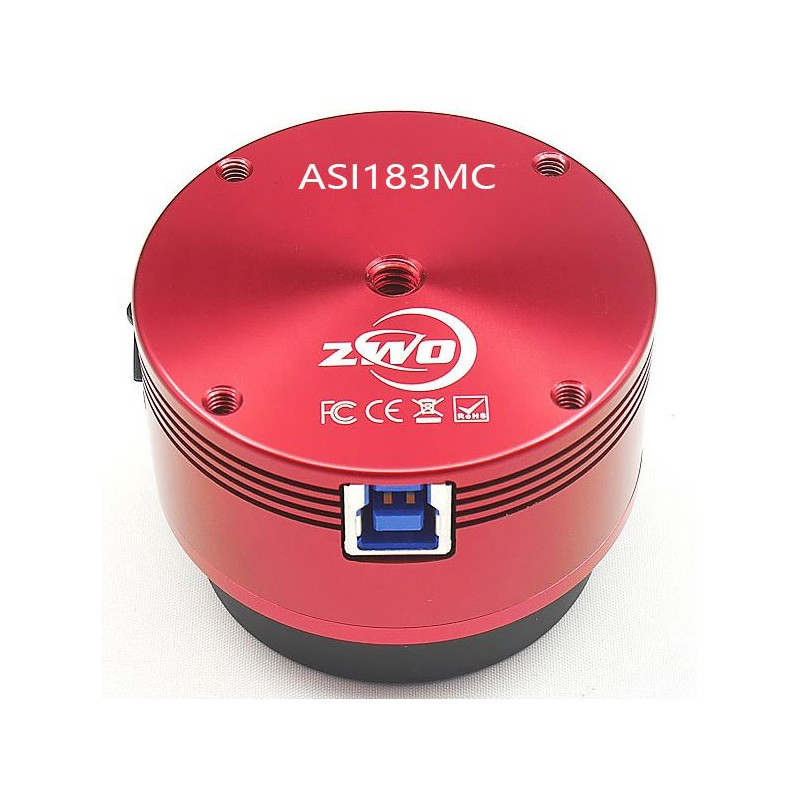

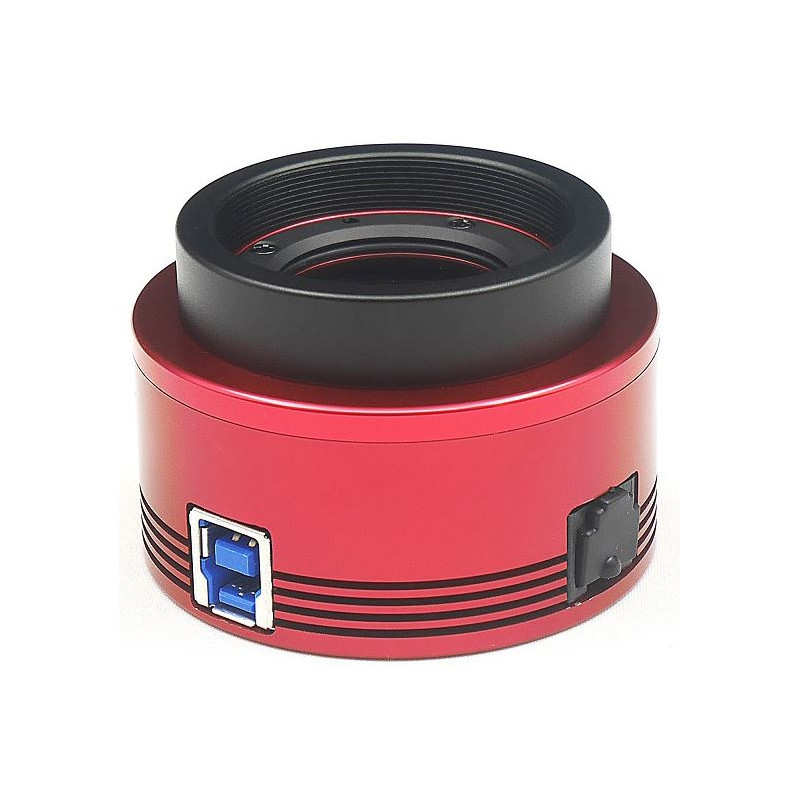

ZWO Camera ASI 183 MC Color
Overview
ZWO Camera ASI 183 MC Color

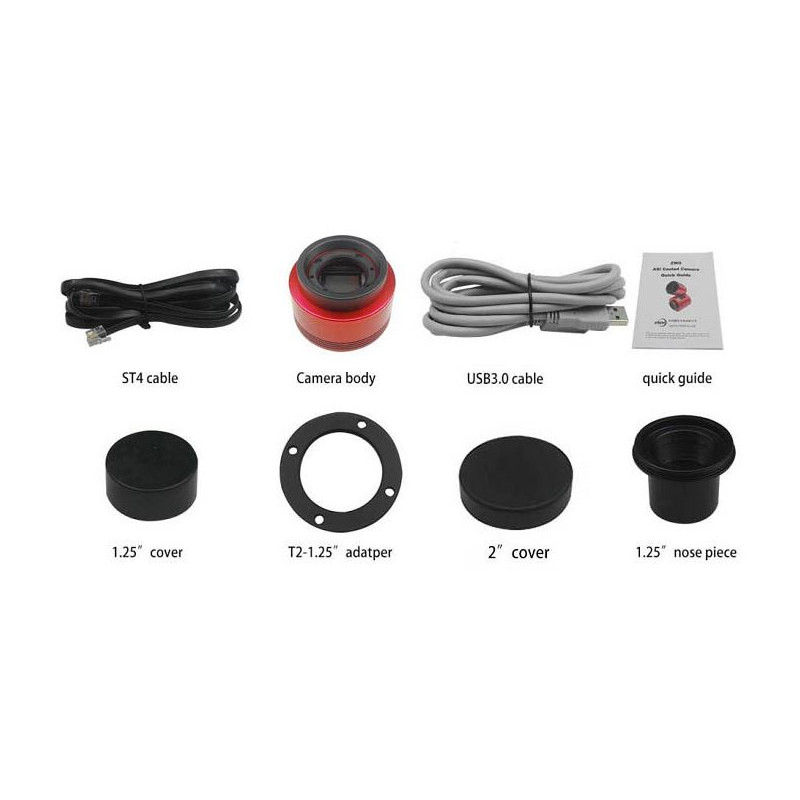

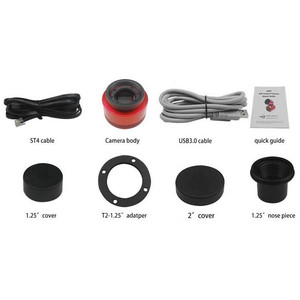

Includes
ZWO Camera ASI 183 MC Color

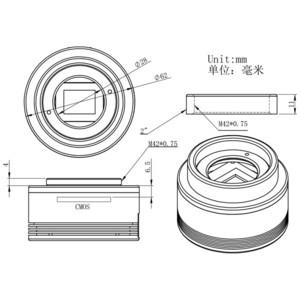

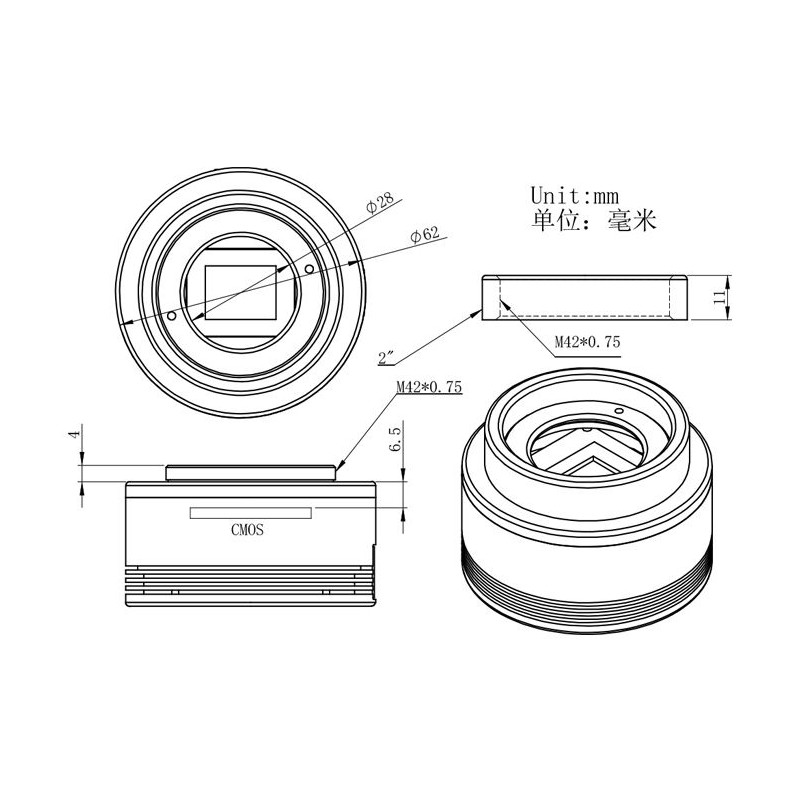

Dimensions
