Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Optika > B-150 > Optika Microscope B-159 ALC, bino, DIN, HC-achro, 40-1000x, 10x/18, LED 1W
Product no.: 67648

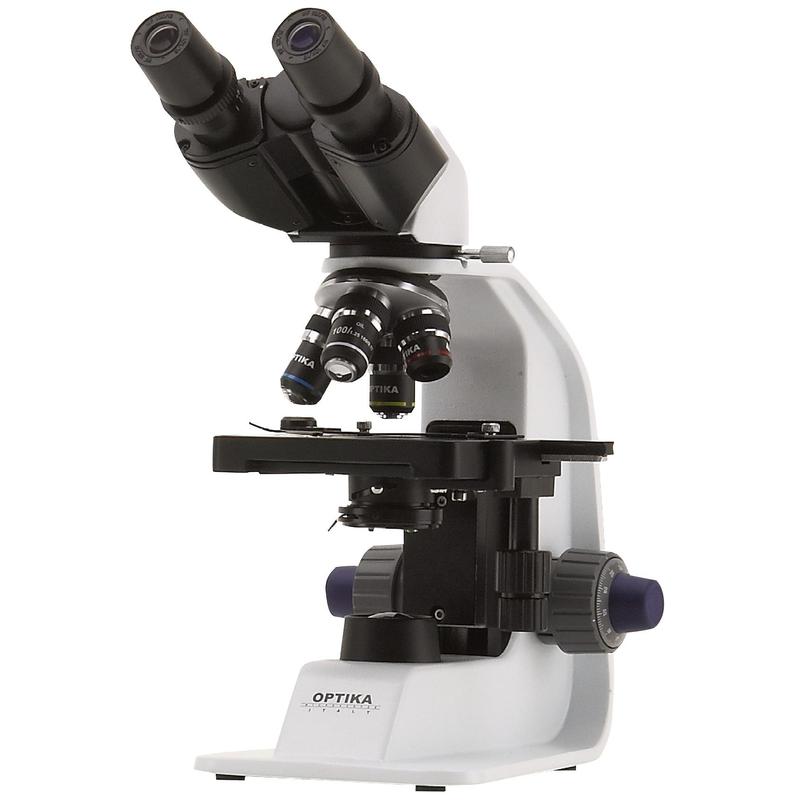

Microscope B-159 ALC, bino, DIN, HC-achro, 40-1000x, 10x/18, LED 1W

$ 530.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time
Product questions?
advice for Microscopy

Product description

More about the series B-150...

The B-150 series is designed to meet all the needs of an educational laboratory. These microscopes promise a smooth and successful introduction to microscopy.

The relationship between optical quality, mechanical reliability and low price guarantees them a place among the top microscopes in this field.

B-159ALC

  • Observation mode: Brightfield.
  • Head: Binocular, 30° inclined; 360° rotating.
  • Eyepieces: WF10x/18 mm, secured by screw.
  • Objectives: – High Contrast Achromatic 4x/0.10 , with anti-fungus treatment – High Contrast Achromatic 10x/0.25 , with anti-fungus treatment – High Contrast Achromatic 40x/0.65 , with anti-fungus treatment – High Contrast Achromatic 100x/1.25 (Oil/Water) , with anti-fungus treat.
  • Specimen stage: Mechanical stage, 125x116mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
  • Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
  • Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
  • Illumination: X-LED1 with white 1 W LED and light intensity control.
  • Color temperature: 6,300 K. With ALC (Automatic Light Control). Multi-plug 100-240Vac/5Vdc external power supply.

Specifications

Optics

Lighting
Transmitted light
Lamp type
LED
Magnification
1000
Lens type
Achromatic
Image scale
4,10,40,100
Eyepiece
10x/18 Weitfeld
Power supply
Power plug
Condensor
Abbe condenser, NA 1.25 with iris diaphragm
Optical system
DIN (160mm)

Capacity

Coating of optical system
Plan (Plan objective, infinity corrected)
brightfield
yes

Mechanics

Type of build
binocular
Viewing posture (°)
30° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement
Specimen stage
125x116 mm

Special features

Rechargeable battery operation
-
Filter holder
-
Built-in digital camera
-
Luminous field diaphragm
yes
Dust cover bag
yes
Centering stage
yes

General

Length (mm)
350
Width (mm)
170
Height (mm)
210
Weight (g)
4000
Series
B-150
Colour
white

Field of application

Education
yes
Medicine
yes

Area of application

University
yes
Parasite analysis
yes
