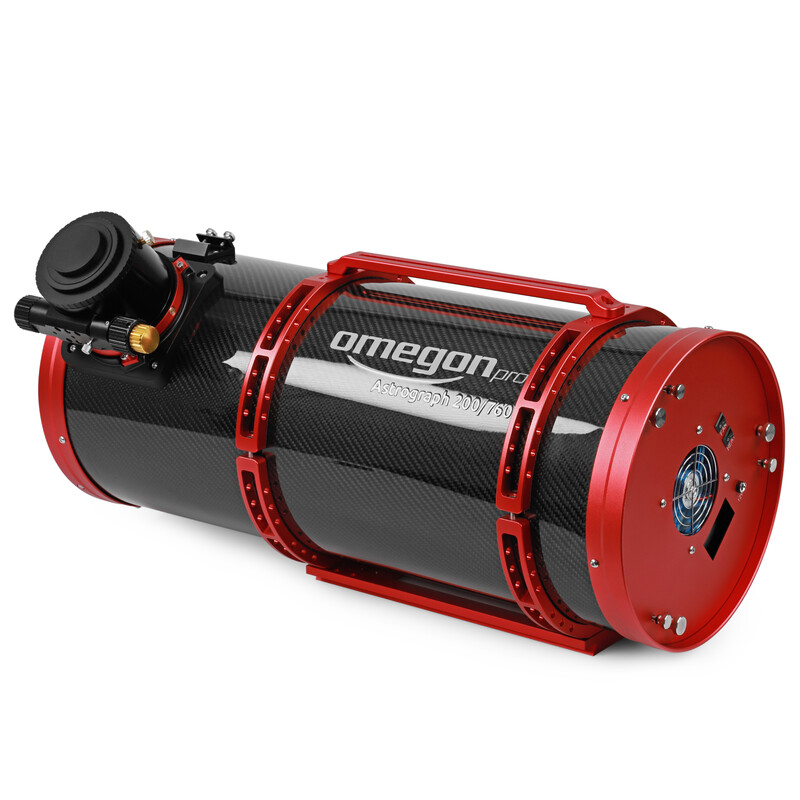

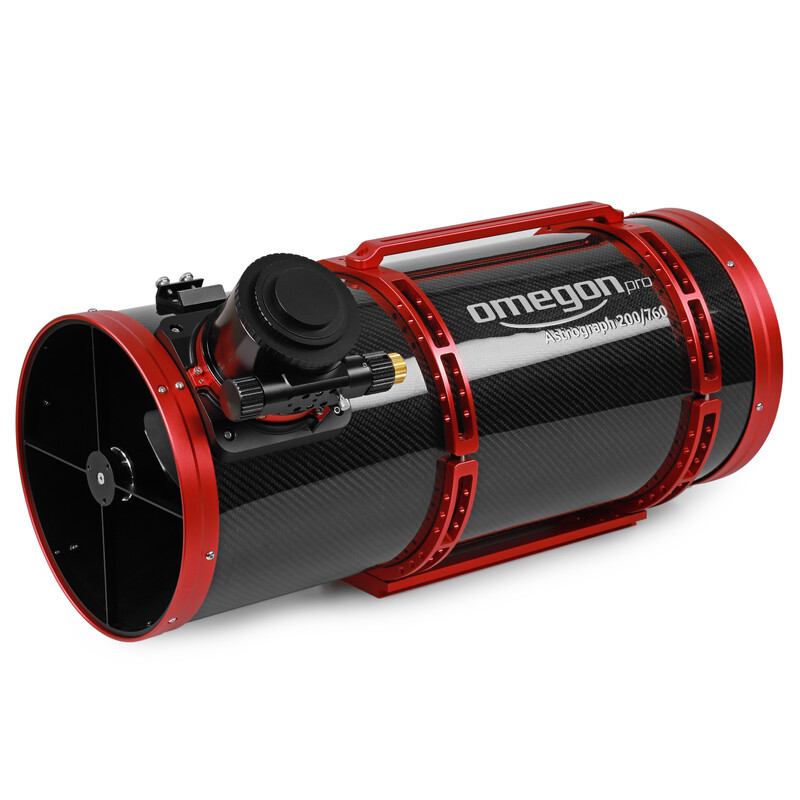

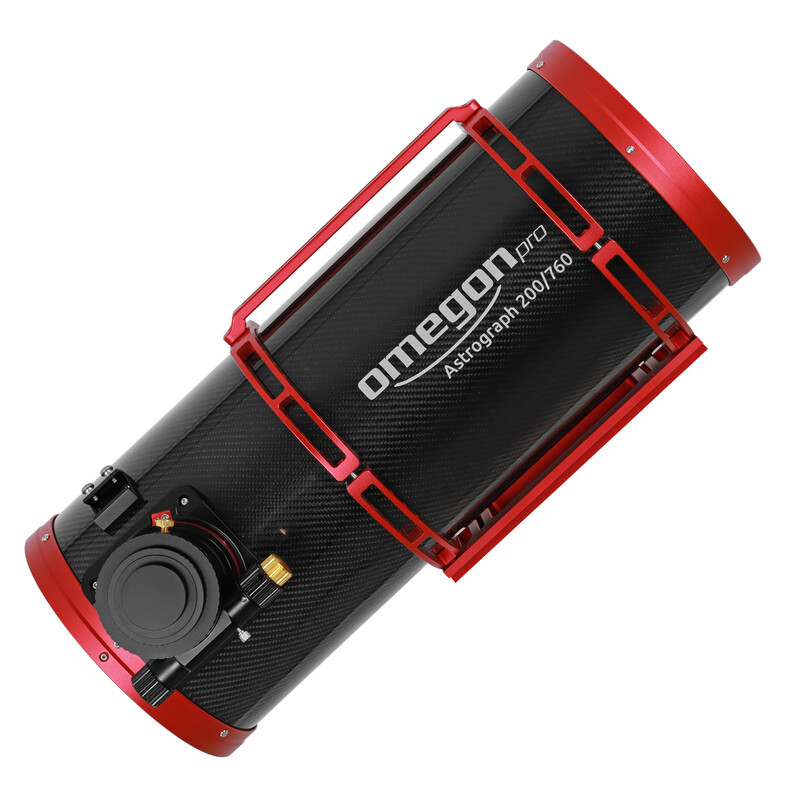

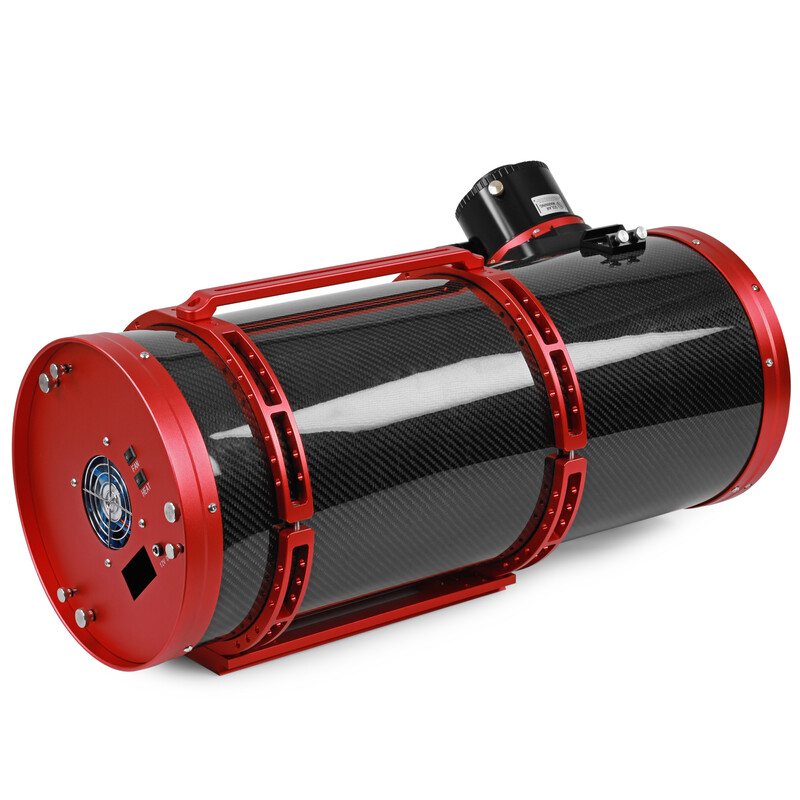

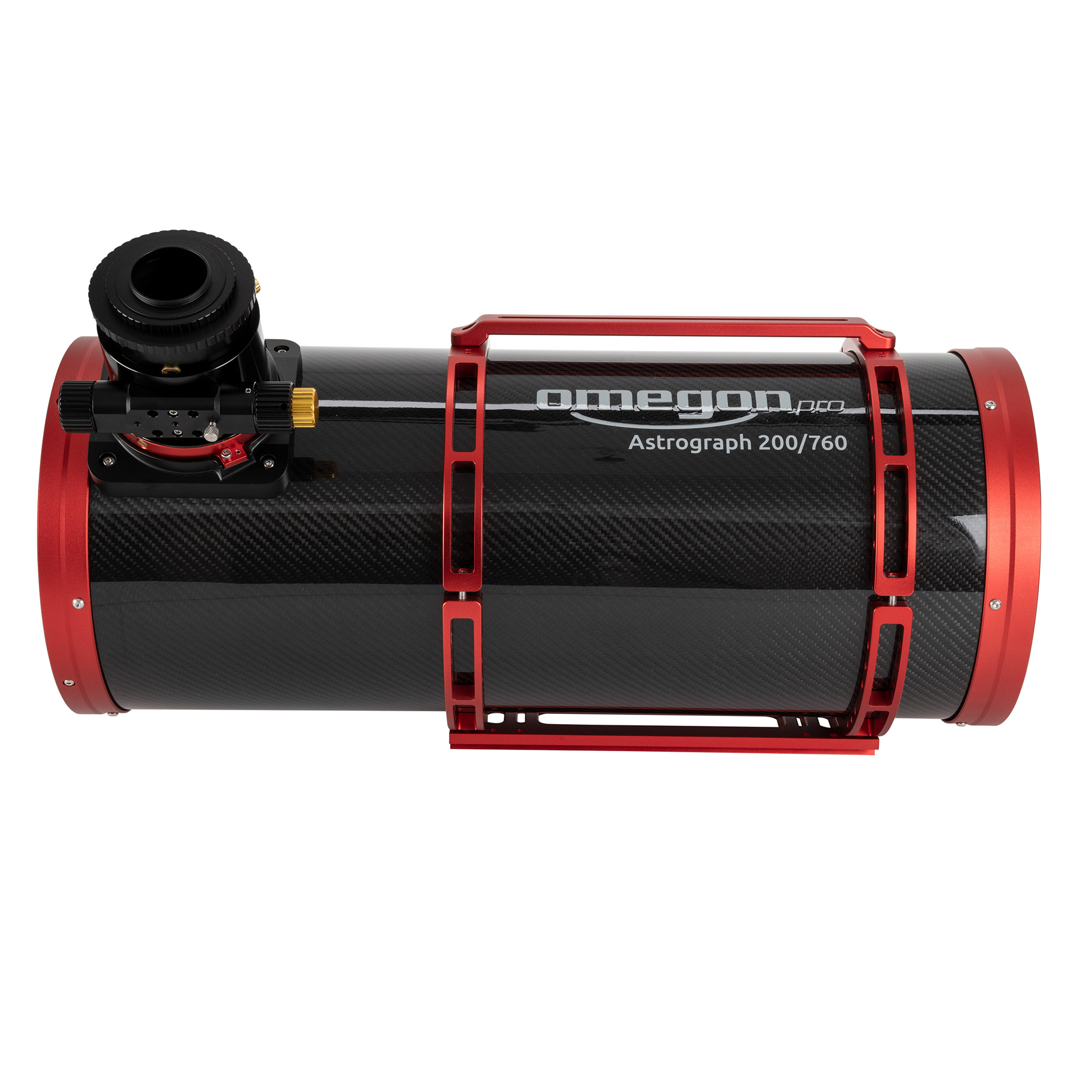

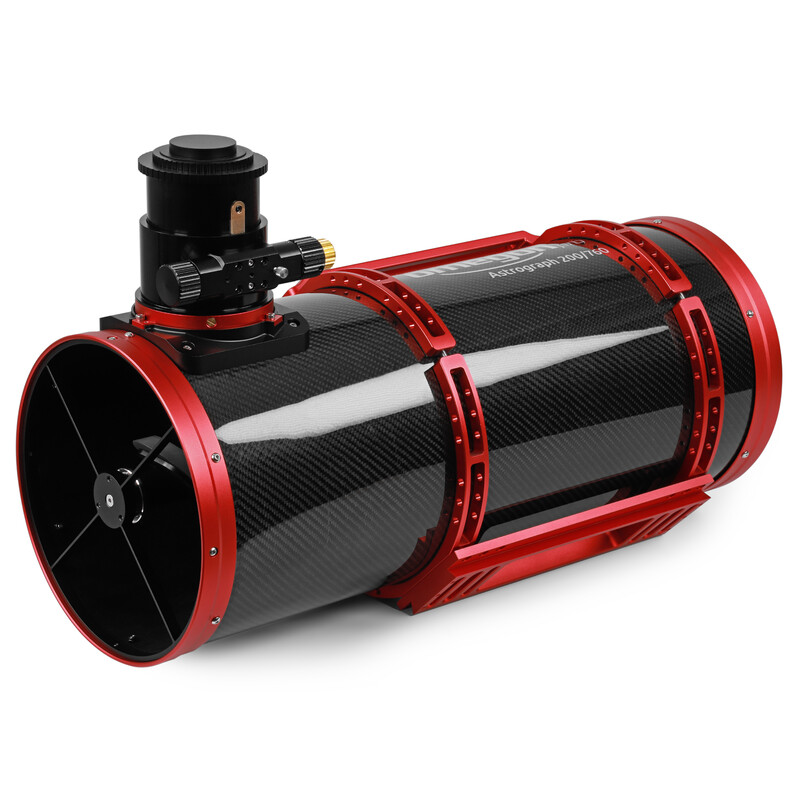

Omegon 200mm f/3.2 Newtonian Astrograph

The compact and portable Newtonian Astrograph has been developed for the dedicated astrophotographer who wants a powerful telescope with very good sharpness over a large field of view. The Astrograph has been developed for modern sensors with high resolution and large diameters up to full format.

The extremely fast aperture ratio of f/3.2 allows you to take very deep shots of deep-sky objects in just one night, while maintaining very high magnification. Images of extended nebula objects or galaxy clusters are thus possible.

The highlights at a glance:

• Parabolic primary mirror with a 200mm, f/3.8 aperture
• 3" corrector with 0.85 reduction built into the focuser
• 90mm diameter secondary mirror (minor axis) for full illumination up to full format
• Large 3" rack and pinion focuser with reduction and M48 adapter
• Tilting possibility at the focuser
• Adjustable and stable holder for primary mirror and secondary mirror
• Fully illuminated and corrected image field of 44mm diameter
• Working distance of 55mm from the M48x0.75 thread
