OWL
OPTIKA Wi-Learn
OPTIKA-WI-LEARN: TRANSFORM YOUR CLASSROOM INTO AN INTERACTIVE LEARNING ENVIRONMENT
Optika-Wi-Learn provides the teacher with a true central command station, collecting real-time images from all the connected microscopes in the classroom. (Package Teacher + Student Station)
The teacher can choose to display images from all stations in “mosaic” mode, focus on specific microscopes, or view only one. Additionally, the teacher can save images or videos from each individual station, share them with the class, and stimulate collective discussion. The station also includes a large 24” monitor that displays microscope images clearly and in detail, facilitating a shared view. Thanks to the HDMI port on the main station, a second monitor or interactive whiteboard can be connected, enabling real-time sharing of observations with the class.
This setup creates an interactive visual environment that enriches the educational experience, promoting interaction among all participants.
Modularity and flexibility:
The pre-configured configuration guarantees immediate use and easy scalability based on classroom needs.
Centralized Control:
The teacher can monitor what each student observes, choose which images to project to the class, and save photos or videos for later analysis.
Optika-Wi-Learn Preconfigured Packages
Optika-Wi-Learn is available in preconfigured packages, ideal for meeting the needs of classrooms of various sizes. Each package includes:
• Teacher Microscope: Optika-Wi-Learn Teacher Station, which combines a microscope with a Wi-Fi digital head, a mini PC with a 24” monitor, and a preconfigured Wi-Fi router for the selected number of “student” devices.
• Student Microscopes: Optika-Wi-Learn Student Station, microscopes with Wi-Fi digital heads, ideal for classroom interaction.
• Wi-Fi Cameras: Digital sensors for microscope heads.
• Software: License free (no license required, completely free).
• Network Cables and Preconfigured Router: Facilitates installation and immediate use of the system.
The packages are available for:
• OWL-8PKG: 8 students + 1 Teacher Station
• OWL-12PKG: 12 students + 1 Teacher Station
• OWL-16PKG: 16 students + 1 Teacher Station
This modular configuration allows you to easily choose the solution most suitable for your classroom’s needs, with a ready-to-use system that can grow with your school, up to a maximum of 32 students.

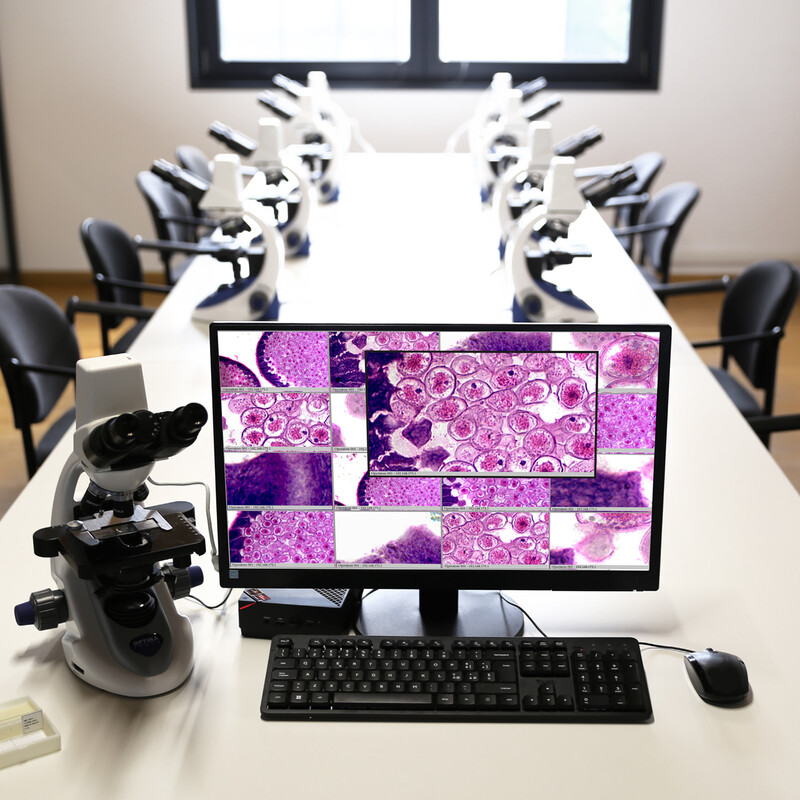

24 Student Stations + 1 Teacher Station
• Includes 24 Optika-Wi-Learn Student Stations + 1 Teacher Station.
• Includes a factory preconfigured router to ensure a dedicated Wi-Fi connection.
• The Teacher Station allows the teacher to have an overview of all microscope stations in the classroom in real-time.
• Includes 24 microscopes with Wi-Fi digital heads for the students.
• The microscope images can be displayed on a dedicated 24” monitor or an interactive whiteboard for an immersive experience.
• A student’s work can be shared with the entire class in real-time to stimulate discussion.
• Easy sharing of images between the teacher and students through a dedicated Wi-Fi connection.
• Centralized and simple management of microscopes in the classroom, no additional licenses required.
• The Optika-Wi-Learn system does not require any licenses.

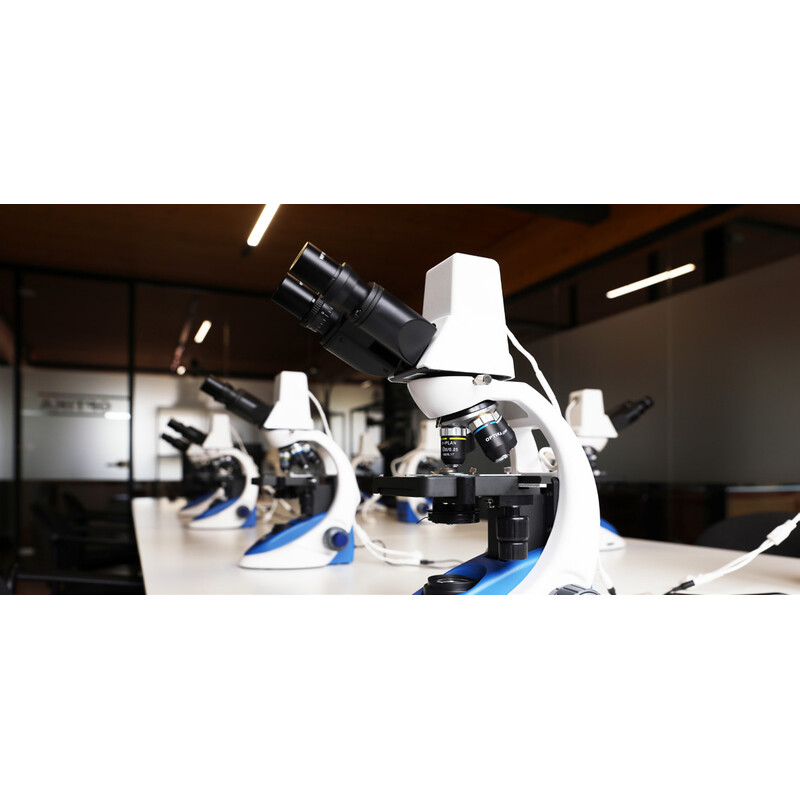

Student station:
B-190 Microscope with Optika-Wi-Learn Digital Binocular Head
Optika-Wi-Learn Digital Binocular Head
• Type: Binocular inclined at 30°, 360° rotation, with interpupillary distance adjustment from 48 to 75 mm and dioptric correction on the left tube.
• Sensor: CMOS 1/3” for clear and precise vision.
• Frame Rate: 25 fps with resolutions 2560×1440, 1920×1080, and 1280×720.
• Video Compression: Supports H264, H265, H264+, and H265+ for smooth and high-quality transmission.
• Connections: Supports RJ45 Ethernet (10/100 Base-T) and 2.4 GHz Wi-Fi for a stable and secure connection.
B-190 Microscope
• Field of View (FOV): 18 mm for a sharp sample view.
• Objectives: N-PLAN 4x, 10x, 40x (spring), 100x (oil, spring); working distance 160 mm; magnifications from 40x to 1000x.
• Condenser: Abbe 1.25 N.A., pre-centered and focusing, with iris diaphragm for controlled illumination.
• Illumination: X-LED2 3 W, with a lifespan of over 65,000 hours, for intense and durable lighting.
• Focusing: Coaxial system for macro and micrometric focusing.
• Stage: 125×115 mm, with double layer and rack & pinion movement, travel 75×30 mm, for smooth and precise sample manipulation.

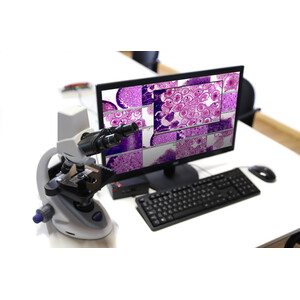

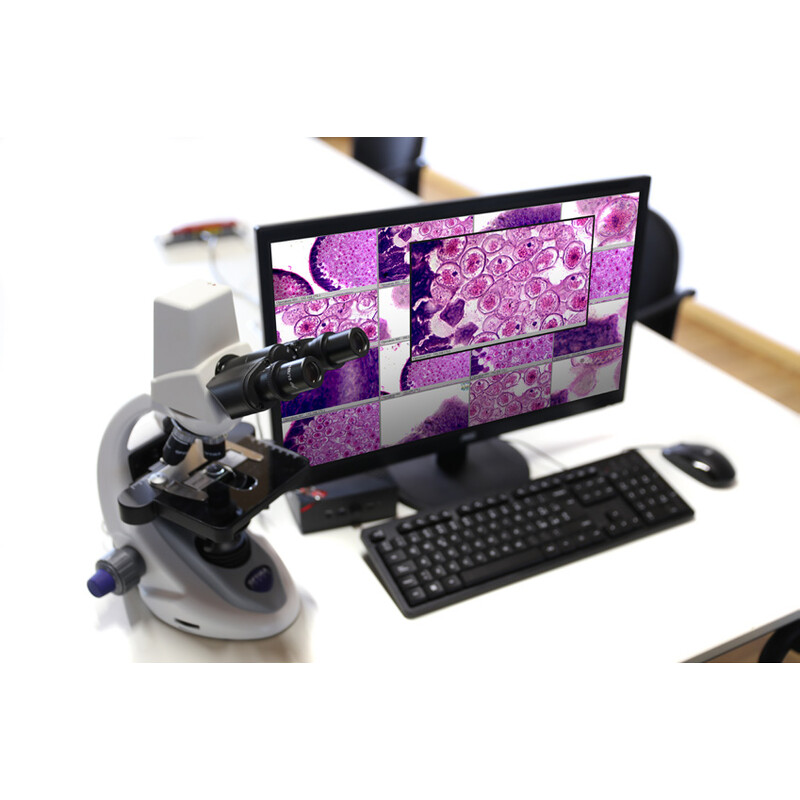

Teacher Station:
B-290 Microscope with Optika-Wi-Learn Digital Binocular Head
Optika-Wi-Learn Digital Binocular Head
• Type: Binocular inclined at 30°, 360° rotation, with interpupillary distance adjustment from 48 to 75 mm and dioptric correction on the left tube.
• Sensor: CMOS 1/3” for clear and precise vision.
• Frame Rate: 25 fps with resolutions 2560×1440, 1920×1080, and 1280×720.
• Video Compression: Supports H264, H265, H264+, and H265+ for smooth and high-quality transmission.
• Connections: Supports RJ45 Ethernet (10/100 Base-T) and 2.4 GHz Wi-Fi for a stable and secure connection.
B-290 Microscope
• Field of View (FOV): 20 mm for a wide sample view.
• Objectives: N-PLAN 4x, 10x, 40x (spring), 100x (oil, spring); working distance 160 mm; magnifications from 40x to 1000x.
• Condenser: Abbe 1.25 N.A., centering and focusing, with iris diaphragm for precise and controlled illumination.
• Illumination: X-LED3 3.6 W, with a lifespan of over 65,000 hours, for intense and durable light.
• Focusing: Coaxial system for macro and micrometric focusing.
• Stage: 150×139 mm, with double layer and rackless movement, travel 75×33 mm, for smooth and precise sample manipulation.
To complete the teacher station
• 24” Monitor – Mini PC – Wi-Fi Modem router
