Product series:
StereoBlue
Euromex BlueLine offers a range of high-quality stereo microscopes. These models are especially suitable for laboratories and universities. StereoBlue microscopes are specifically designed for laboratory and educational applications. They are very popular with biologists, entomologists, geologists, mechanical and electrical engineering engineers as well as other professionals such as jewellers and dental technicians. StereoBlue stereo microscopes are available in versions with switchable dual magnification and 3.5x to 135x zoom. For illumination, you can choose between LED incident and transmitted illumination.
StereoBlue
StereoBlue microscopes are especially developed for laboratory applications, education and greatly appreciated by biologists, entomologists, geologists, mechanical and electronic engineers and other professionals like jewelers and dental technicians.
Euromex

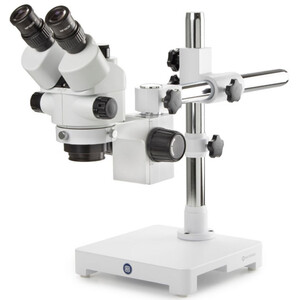

Stereo microscope SB.1903-U StereoBlue 0.7/4.5 Trino
$ 970.00
Euromex
StereoBlue SB.1903, zoom, trino
$ 690.00
Euromex

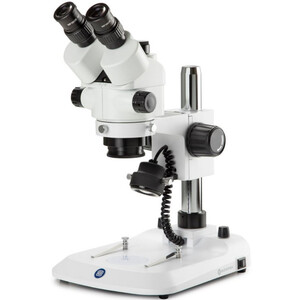

Stereo microscope SB.1903-P StereoBlue 0.7/4.5 Trino
$ 670.00
Euromex
Stereozoommicroscope SB.1902-P, StereoBlue Bino, pillar, 0.7x-4.5x
$ 610.00
Euromex

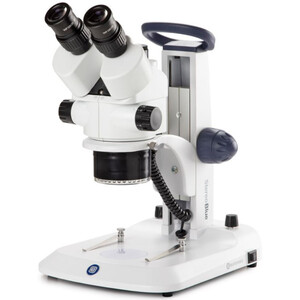

Stereo microscope SB.3903 StereoBlue 0.7/4.5 Trino
$ 830.00
Euromex

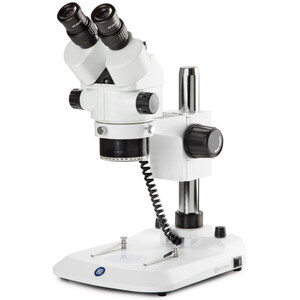

Stereo microscope SB.3903-P StereoBlue 0.7/4.5 Trino
$ 800.00
Euromex
StereoBlue SB.1402, 2/4 stereo microscope
$ 430.00
Euromex
StereoBlue SB.1302 1/3 stereo microscope
$ 430.00
Euromex
Stereomikroskop SB.1302-P StereoBlue 1/3 Bino
$ 420.00
Euromex
2/4 SB-1402-P StereoBlue stereomicroscope
$ 420.00
Euromex
Stereo zoom microscope SB.1902, Bino 0,7x-4,5x
$ 620.00
StereoBlue
Model overview
EYEPIECES Two WF10x/21mm eyepieces with eyecups
HEAD Binocular or trinocular head with 45° inclined tubes • Both eyepieces with dioptre adjustment, except models SB.1302-P/1402-P and SB.1302 /1402, which have a dioptre adjustment on one side only • Interocular distance adjustable from 55mm to 75mm • Trinocular head is supplied with a fixed light beam path splitter (50:50)
DUAL OBJECTIVE NOSEPIECE with dual 1x/3x, 2x/4x objectives • 10x/30x or 20x/40x magnification (can be enlarged to 135x) • Field of view 21mm/6.9mm or 10.5 mm/5.2mm • Working distance 100mm
ZOOM MODELS
MAGNIFICATION Working distance and field of view specifications
STANDS The StereoBlue microscope’s rack and pinion and pillar stands have an ergonomically-shaped stand, complete with two object clamps and Ø 60 mm transparent and black & white stage plate • The coarse adjustment is equipped with tension control • The ergonomically designed (single-arm) universal stand or dual-arm stand with base plate (-U and -B) are ideal for viewing large specimens They are supplied without illumination • The U and B stands can be equipped with LE.1974 and LE.1973 ring illuminators with respectively 72 or 144 segment-controlled power LEDs, ideal for creating or removing shade • The stands are of metal alloy with white lacquer coating • SB.3903 has built-in LED (for further illumination options see “Accessories”)
ILLUMINATION The 3W incident and transmitted light LED illumination can be used simultaneously. SB.3903 and SB.3903-P models have a built-in 30 LED ring illuminator for incident lighting and 3W transmitted light • SB.1902-U, SB.1903-U, SB.1902-B and SB.1903-B are supplied without illumination. Suitable ring illuminators are LE.1973 and LE.1974
ANTI-THEFT SLOT A Kensington Security Slot is located on the back of the microscope to allow the instrument to be protected from theft (not available for U- and B- models)
PACKAGE CONTENTS Supplied with power cable, dust cover, eyecups, one spare fuse, Ø 60mm transparent and black & white plates and instruction manual • Supplied packed in a polystyrene box • A spare fuse, Ø 60 mm transparent and black & white stage plates are not applicable for -U and -B models
These microscopes are available with dual pair of objectives or zoom objective for magnifications from 3.5x to 135x and incident and transmitted LED illuminations.
- Designed for professional use
- Robust and sturdy
- Dual magnifications or Zoom model
- Available in ergonomic rack & pinion, pillar and universal stands
- Double 3 W LED illumination
- Ergonomic carrying grip
- 5 years warranty
