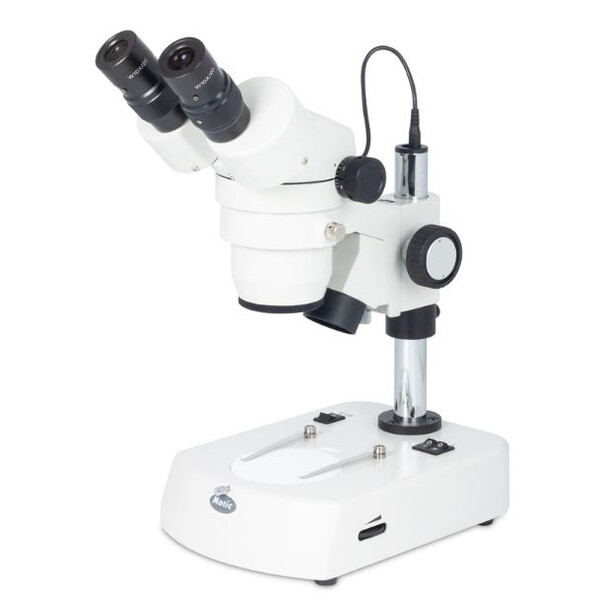

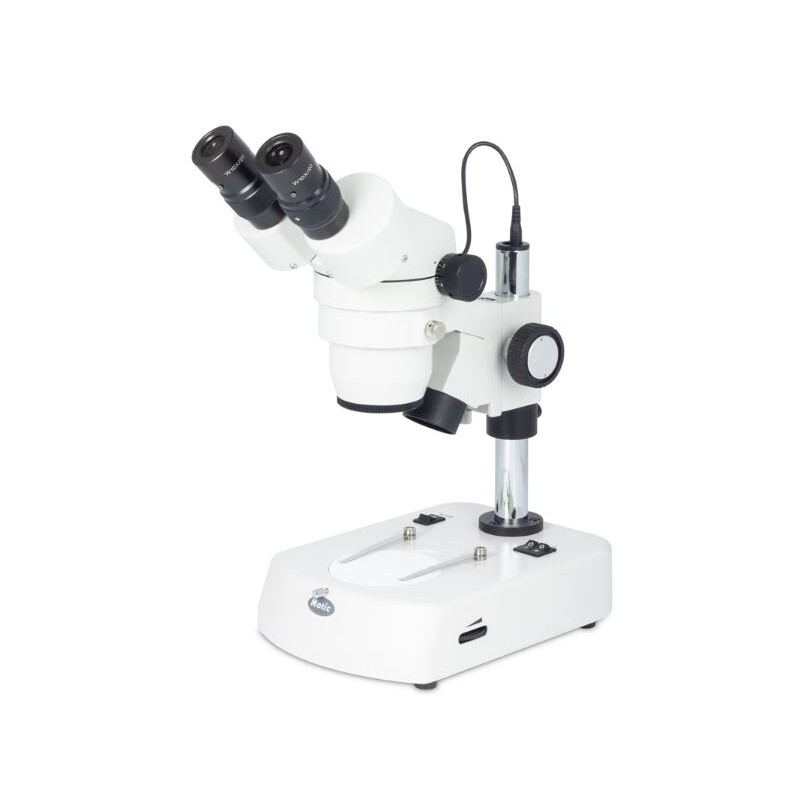

More about the series SMZ-140...
SMZ-140 / 143 In brief
- The basic stereo microscope for teaching and university
- Greenough system
- Parfocal 4:1 zoom
- Magnification 10x - 40x
- LED or halogen lighting for reflected and transmitted light
Specifications SMZ-140-N2LED
Optical system: Greenough
Observation tube: Binocular head
Inclination: 45º inclined, 360º rotatable
Interpupillary distance: 54-76 mm
Diopter adjustment: On both eyepiece mounts, +/- 5 diopters
Eyepieces: Wide field WF10X/20mm
Objective concept: Zoom 1:4
Lenses: 1X - 4X
Working distance: 80 mm
Stand type: Stand column with transmitted light illumination
Head mount: For Ø25mm column and Ø74mm head, with incident light illumination
Focusing mechanism: coarse focus with smoothness adjustment
Focusing travel: 49 mm
Incident light illumination: LED 3W with intensity control
Transmitted light illumination: LED 3W with intensity control
Transformer: External
Power supply: 100-240V (CE)
Dimensions LxWxH: 237x170x335 mm
Base: 237x170mm
Stand column / arm: Height 210 mm / Ø25 mm
Net weight: 6.2 kg
Scope of delivery: Dust cover, black/white and matt glass table insert plate
