Telescopes > TS Optics > EDPH > TS Optics Apochromatic refractor AP 76/418
Product no.: 73830

Apochromatic refractor AP 76/418

$ 1,500.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
  • Also suitable for visual observations with optional diagonal mirror

Product description

Portable at home or for travelling. Always great shots

On top of a mountain or in the desert. An excellent night also requires an excellent telescope. But good conditions are not to be found everywhere. This small apochromat is so compact you can take it with you wherever there is a clear sky. It makes good astrophotography even more mobile.

The highlights at a glance:

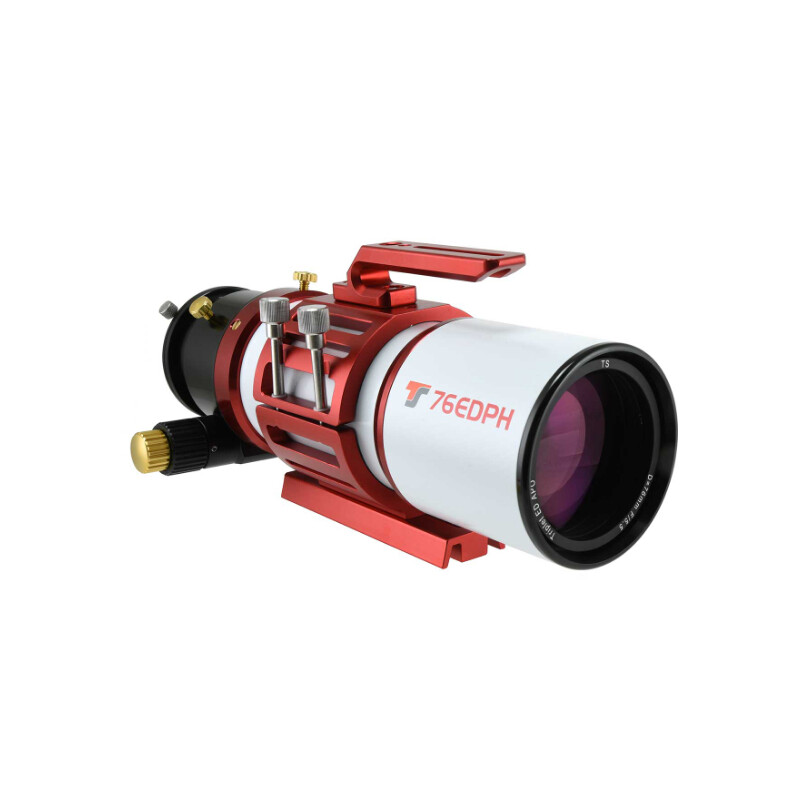

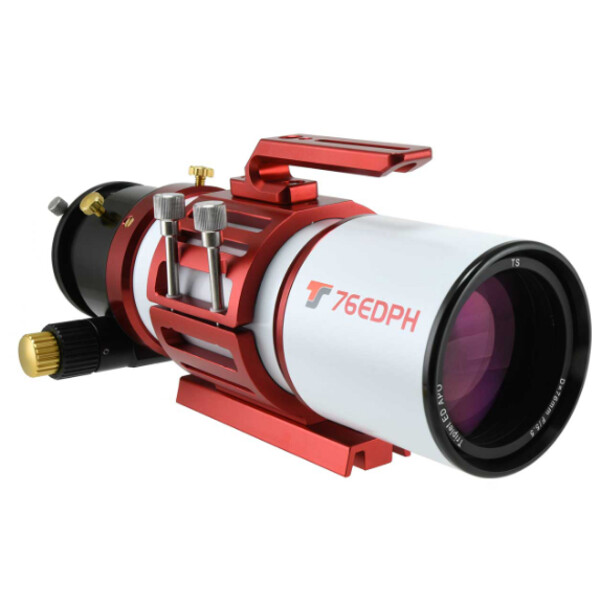

  • 76mm triplet ED Apo with three lenses for a colour-pure image with good contrast
  • Retractable dew cap for easy transport

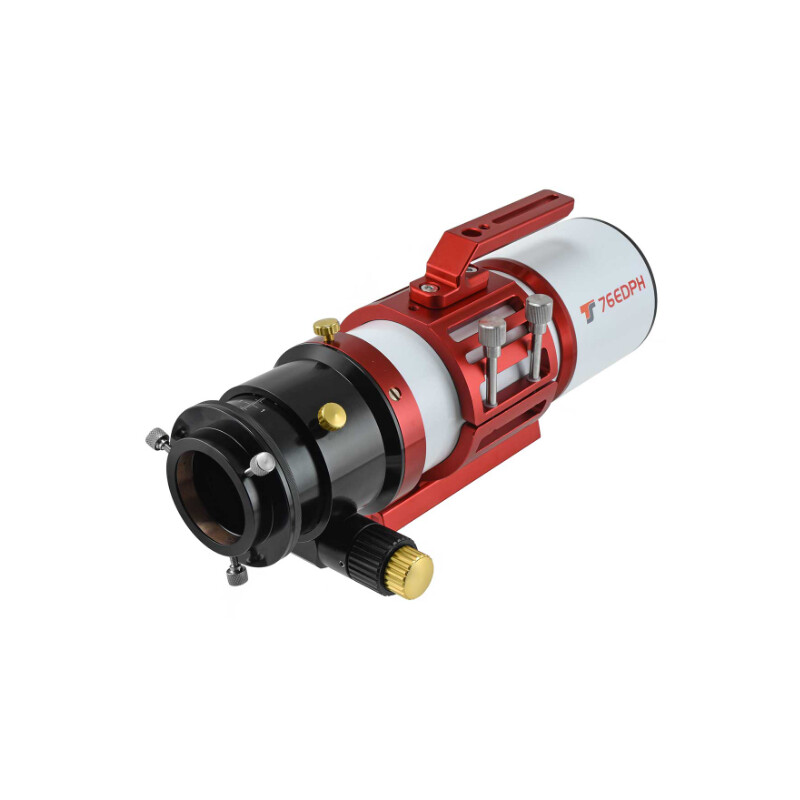

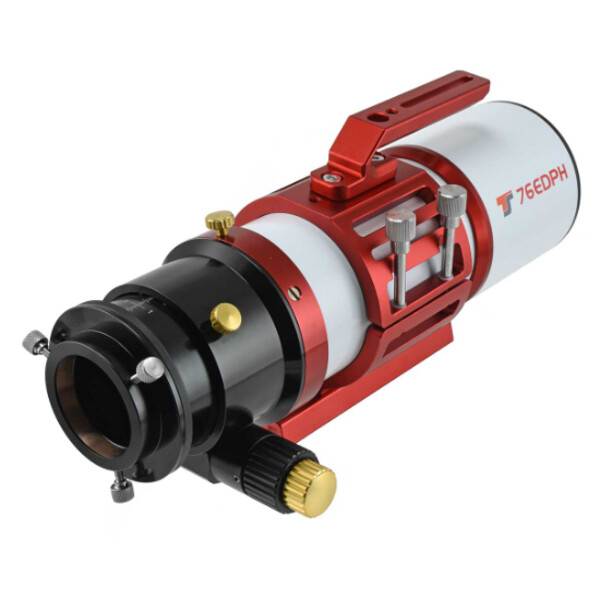

  • 3" focuser with a 1:10 reduction ratio: Easily focus larger and heavier cameras with high precision.
  • Camera rotates 360° so you can find the right orientation
  • Vixen-type finder shoe so you can easily mount any finderscope

Why these optics reveal more details
No more images without contrast. This apochromat shows what is really possible: pure-colour and high-contrast observations and astrophotos. The key is a sophisticated optical design with premium ED glass for a crystal-clear image. Compared to most mirror systems, the better-defined optics allow you to see more and finer details when observing the planets, for example. All surfaces of the lens elements are treated with an effective multi-coating to prevent reflections. Enjoy memorable observations and shots.

2" connector

The focuser has a standard 2" connection with a reduction to 1.25". This allows you to connect all accessories from our range, such as eyepieces and adapters.

CNC tube designed for the best optics
The tube of the Omegon Apo consists of a CNC machined metal construction with a sophisticated anti-reflective aperture system. The entire tube is lined with a velvet-like, black fabric.

Extending and fixing the dew cap
The Apo's dew cap can be extended. It can be retracted for transport.

The carrying handle is a truly multi-functional part: The handle not only makes mounting on a photo tripod easier, but is also the basis for further adaptations. The handle has a slotted hole and a 1/4" photo thread. You can attach a ball head to it and mount a second camera in parallel, for example. Next to the carrying handle is a finder shoe for finder scopes, mini telescopes or red-dot finders.

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
76
Focal length (mm)
418
Aperture ratio (f/)
5,5
Resolving capacity
1,82
Limit value (mag)
11,2
Light gathering capacity
120
Max. useful magnification
152
Tube construction
Full tube
Coating
multiple
lens design
Triplet
Fully Corrected Field (mm)
44

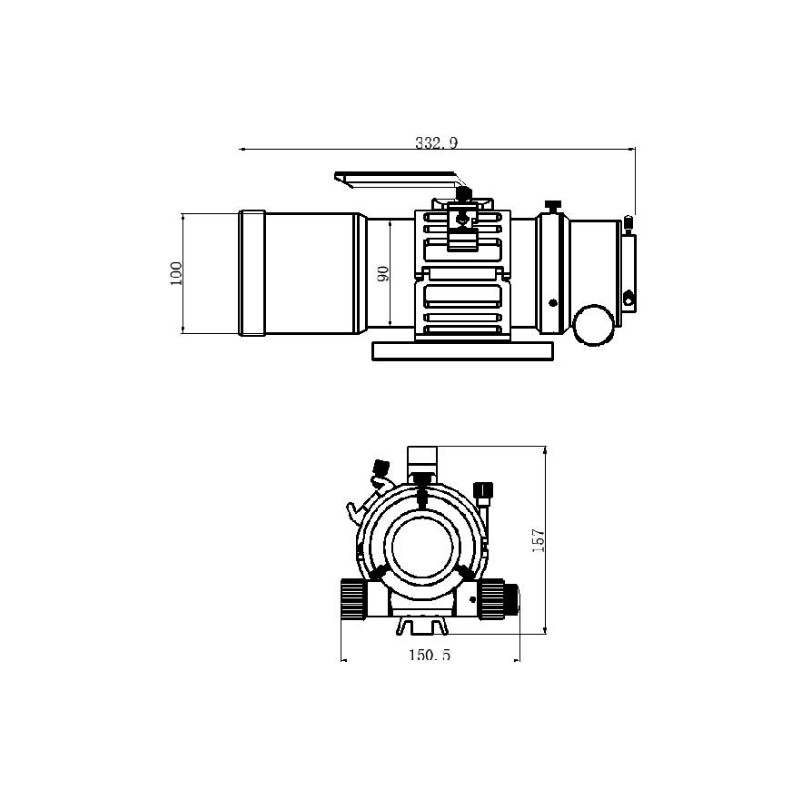

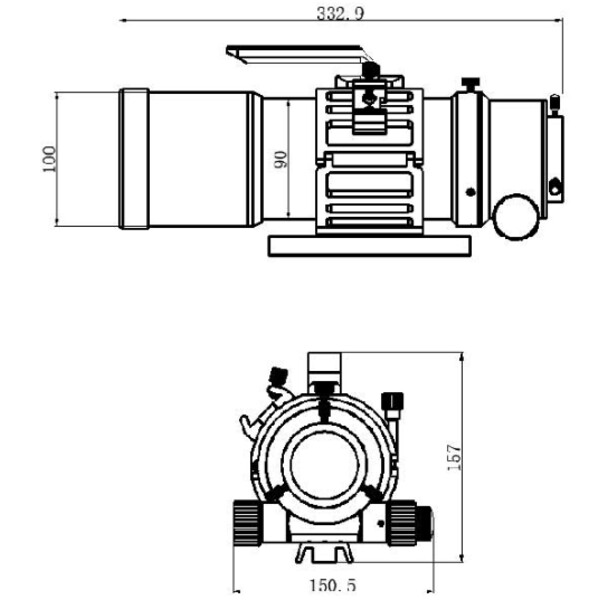

dew cap diameter (mm)
100
Carrying length (mm)
333
tube diameter (mm)
90

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Rotating
yes
Gear reduction
1:10 Fine movement
Adjustment range (mm)
58
Ring clamp
yes
Free aperture (mm)
76

Mount


Type of build
OTA
GoTo control
no
Mounting type
no mount

Included accessories


Eyepiece adaptor
1,25" & 2"
Tube clamps
yes
finder base
Vixen/Skywatcher Level
Prism rail
Vixen-Style
Corrector
without
Transport cases
no
Test protocol
no

General


Series
EDPH
Total weight (kg)
3,5

Area of application


Nature Observation
no
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes
Sun
no

Recommended for


Beginners
no
Advanced
yes
Observatories
yes
