Solar Observation > Solar telescopes > Lunt Solar Systems > Lunt Solar Systems Solar telescope Lunt ST 60/500 LS60T Ha DS50 B600 FT PT OTA
Product no.: 16221

Solar telescope Lunt ST 60/500 LS60T Ha DS50 B600 FT PT OTA

$ 5,300.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Lunt Solar System H-alpha telescope:

This complete solar telescope is a high-quality achromat, with the front lens reducing stray light to half that of a standard achromatic objective. This eliminates possible coma, astigmatism, centering deviations and, together with the appropriate collimation lenses, makes a spherically-corrected flat-field solar telescope. The image is optimized for maximum sharpness in the red part of the spectrum. The optical system is shadow-free (no central obstruction) and is suitable for observing the Sun's surface, as well as for prominences. The tube is made of metal and has been painted white.

Filtering is via an Etalon system: 2 parallel plates made of transparent material, e.g. silica glass with a mirrored surface. Such a system has frequency-dependent, periodic transmission maxima and loss minima. The Etalon filter used by the Lunt Solar System telescope isolates a specific wavelength of the solar spectrum: the H-alpha line. The internal Etalon system with fine tuning allows observing over a better than 0.7 Angstrom bandwidth. With an additional double-stack Etalon filter, which can be mounted in front of the front lens of the telescope, a bandwith of less than 0.5 angstrom is achieved.

PT pressure tuner: Fine-tuning on the Etalon filter is provided via an air pressure system. A small change to air pressure within a pressure chamber inside the telescope changes the refractive index of the air, resulting in precise yet effortless adjustment to the H-alpha spectral line. The pressure tuner guarantees a uniform image with no central obstructions and a long-lasting wear-resistant etalon.

Fine adjustment is achieved with a Crayford style focuser or feather touch focuser with 10:1 reduction standard. An internal etalon with tune adjustment allows for a <0.8 Angstrom bandpass.

The refractor based system has a precision aligned singlet chromatical lens with a 60mm aperture. The front singlet lens reduce half the straylight of an achromat , fully eleminate the possibility for on axis coma, astigmatism, decentering aberrations and provides with the matched collimation lens set a full spherical corrected flat-field Solar-Telescope. The focal length is 500mm providing a ~4.5 mm image thru a optional 6mm blocking filter.

Specifications:

  • Optical Aperture: 60mm
  • Focal Length: 500mm
  • Etalon: Internal <0.7 Angstrom
  • Starlight Instruments 2 "Feather Touch Focuser with 1:10 reduction

  • B600 blocking filter with 6mm hole

  • Coordinated external LS50F Ha Double Stack Etalon filter

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Our expert comment:

At Lunt telescopes, there are a number of variants with different options. It is possible to find out which model is being offered by looking at the designation.

An important criterion, also reflected in the price, is the size of the blocking filter. There are 3 different blocking filter sizes: 6mm, 12mm and 18mm in diameter. The designations for these are B600, B1200 and B1800 respectively. If there is nothing in the title, then it is an OTA without a blocking filter!

CaK or Ha mean that the instrument has been optimized for the blue calcium line or the red H-alpha line. Over 90% of instruments sold are H-alpha instruments, with the designation Ha.

C or FT refer to the two different focuser versions. C means the standard focuser and FT means an improved model from FeatherTouch.

PT is the designation for instruments with fine tuning that uses air pressure. Non-PT filters have fine tuning that works by tilting. The air pressure version usually provides a somewhat more homogeneous field.

DS or DS50 is the term for a 'double stack'. These instruments have two Etalon filters. This achieves a tighter bandwidth and therefore better contrast.

In addition, you can find 2 numbers in the title separated by a slash. The first number indicates the diameter of the front lens. The second number is the focal length. So a 60/500 telescope would have a 60mm aperture and a focal length of 500mm. The lens diameter is usually also the diameter of the Etalon supplied.

Specifications

Optics


Type
Refractor
Aperture (mm)
60
Focal length (mm)
500
Aperture ratio (f/)
8,3
Resolving capacity
1,92
Light gathering capacity
73
Max. useful magnification
120
Type of build
Solar H-Alpha
Blocking Filter (mm)
6
Double Stack
yes
Tube construction
Full tube

Focuser


Connection ( to eyepiece)
1,25"

Mount


Mounting type
no mount
Type of build
OTA
GoTo control
no

Area of application


Sun
yes

Recommended for


Beginners
yes
Observatories
no
Advanced
yes

Recommended accessories

Telescope accessories (9)

Lunt Solar Systems PCUSB Pressure-Tuner Controller with USB

$ 1,520.00*
Eyepieces (3)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (1)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Nebulae filters (5)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (1)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Camera mounts (4)

Omegon Easypic Universal Smartphone Adapter

$ 129.00*
Mountings & accessories (2)

Lunt Solar Systems Prism rail, 100mm

$ 75.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (3)

John Wiley & Sons Astronomy For Dummies

$ 24.90*
Outdoor > Lamps (3)
Astronomy torch

Explore Scientific Astronomy torch Astro R-Lite

$ 18.90*
Outdoor > Other (1)

Lunt Solar Systems Sun hat with neck protector

$ 64.00*
Astronomy (2)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 31.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Lunt Solar Systems Solar telescope Lunt ST 60/500 LS60T Ha DS50 B600 FT PT OTA

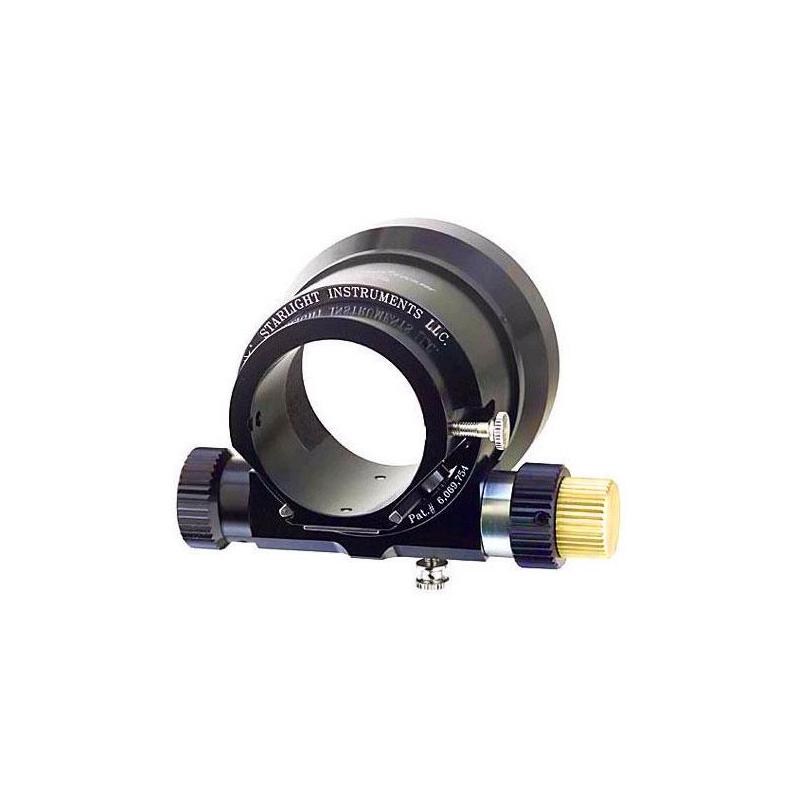

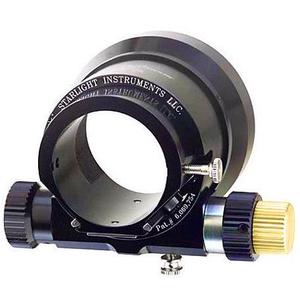

The famous Starlight instruments FeatherTouch focuser allows extremely precise focusing
Lunt Solar Systems Solar telescope Lunt ST 60/500 LS60T Ha DS50 B600 FT PT OTA

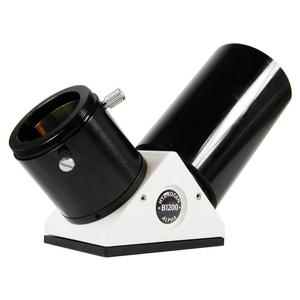

A suitable blocking filter is essential for the operation of a solar telescope.

Lunt Solar Systems Solar telescope Lunt ST 60/500 LS60T Ha DS50 B600 FT PT OTA

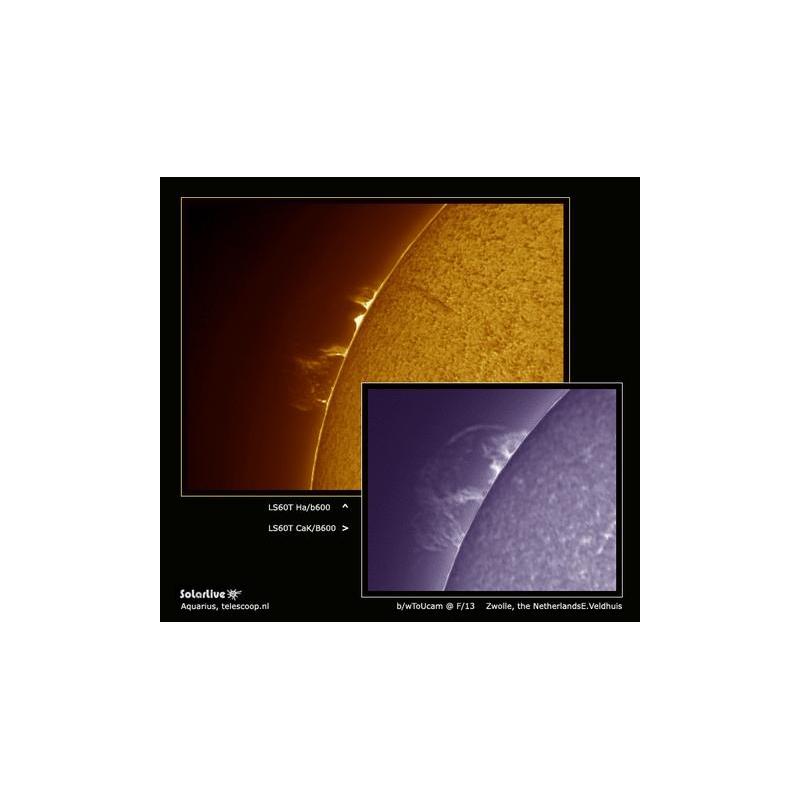

A comparison of the Sun in the blue light of the LS60T CaK and the red light of the LS60T Ha.
