Telescopes > Vixen > Porta > Vixen Telescope AC 62/520 A62SS Mobile Porta
Product no.: 64567

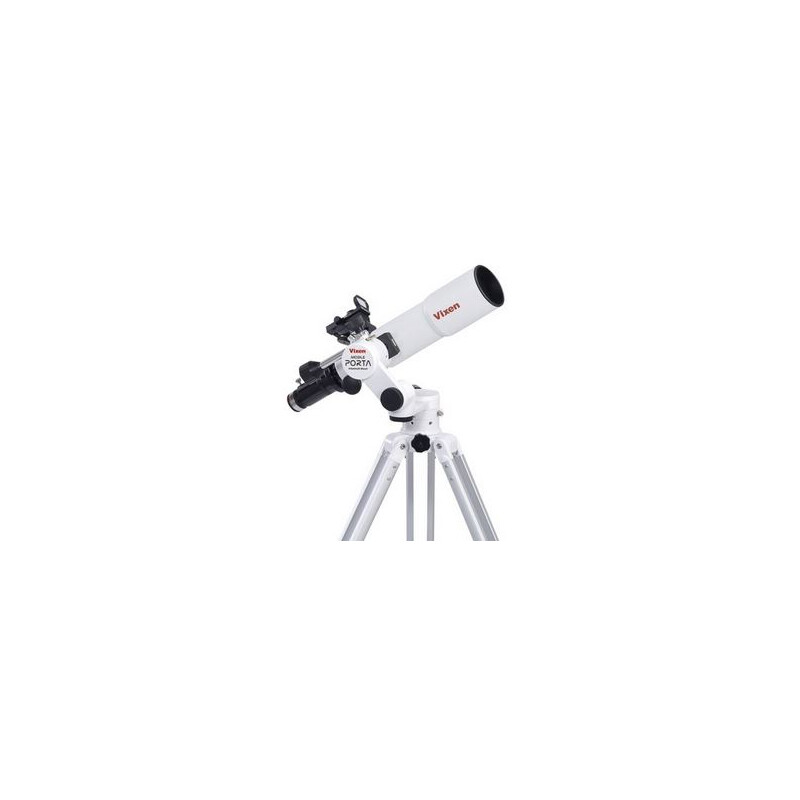

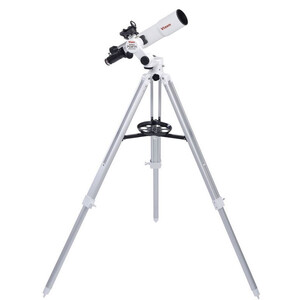

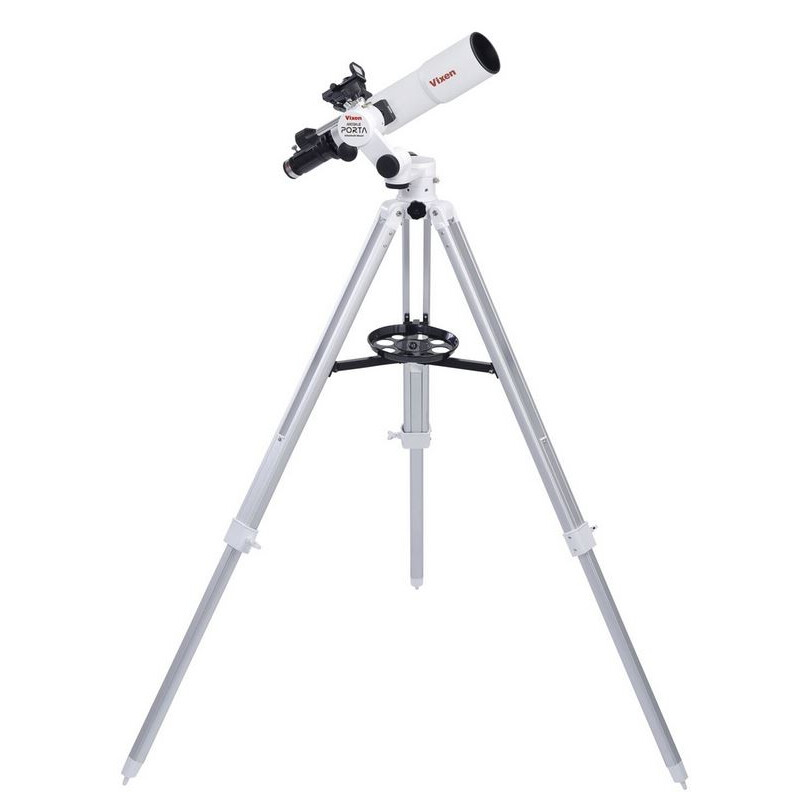

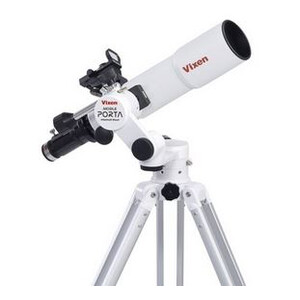

Telescope AC 62/520 A62SS Mobile Porta

$ 840.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series Porta...

Similar to illustration: delivery without finder scope

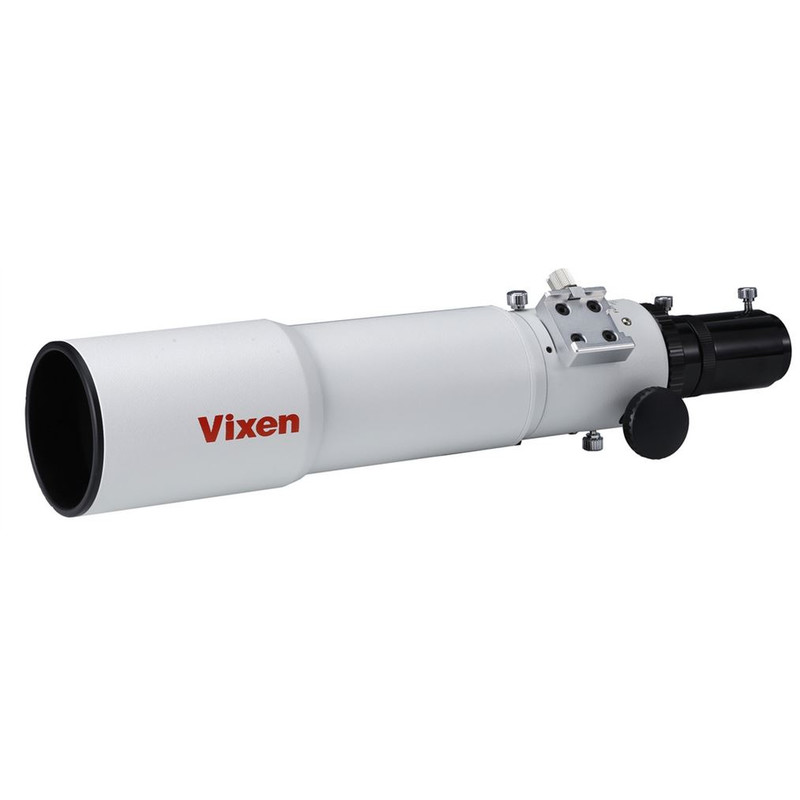

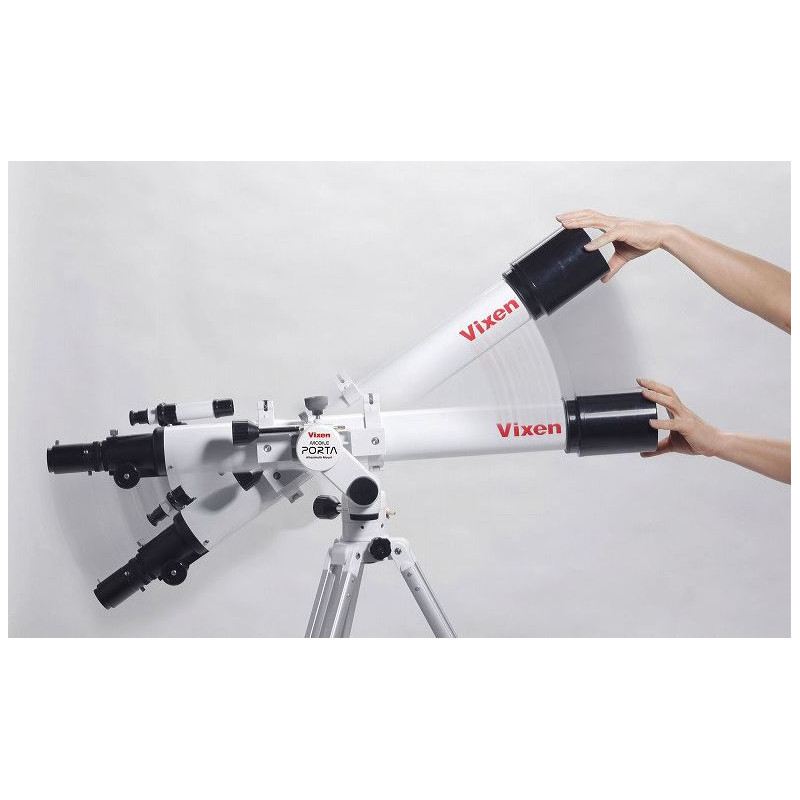

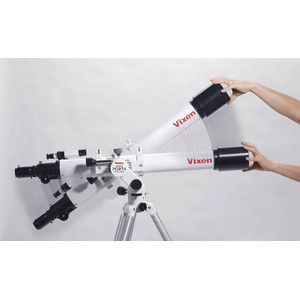

The Vixen A62SS comes with an aluminum tube and dew shield that is finished in Vixen astronomical white. The dew shield retracts reducing the length of the telescope from 370mm to 305mm making for easy storage. Extending the dew-shield minimizes dewing of the objective lens at night and works as a glare shade during the daytime.

The Objective lens: D=62mm F=520mm (f/8.4) consists of 4 Achromatic lens that are multicoated and configured perfectly to give this optical tube the best combination of compactness, contrast and resolution. The Vixen A62SS includes a precision Crayford Focuser with a compression ring eyepiece adapter. The extension tube adapter is threaded in 42mm diameter for a T-ring and 37mm for commercial available filters. A scale is engraved on the drawtube. The telescope includes a rotatable focuser. This is useful when doing astro-photography for camera positioning and helpful to look through a finder scope in a convenient position when you use the scope with a variety of mounts. It also comes with a built-in dovetail attachment plate. The base of the dovetail attachment plate has a 1/4 inch thread socket (changeable to 3/8 inch thread socket). This allows the telescope to be attached to either an astronomical mount or standard camera tripod.

The Vixen A62SS features a side face flat lock on the finder bracket shoe that prevents a finder bracket from marring the optical tube. It also comes with a custom designed soft padded case to protect the optical tube and includes additional cutouts for a variety of accessories.

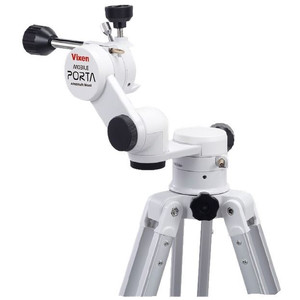

Mobile Porta: A small but excellent transportable mount: Ideal for a quick observation without time-consuming set-up, or for travel.

The new compact design and low weight makes the Mobile Porta ready for use in just a few simple steps, and very portable. The new multi-arm is easy to adjust to the correct angle before observation, so that for each application and each instrument a comfortable viewing position is possible: from the view of the valley, up to the zenith - even with long focal length refractors.

The foldable multi-arm is also especially compact for transport - a well thought-out design!

In addition to these new features the Mobile Porta also offers the tried and tested characteristics of the Porta range such as slipper clutch and slow motion.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics


Type
Refractor
Type of build
Achromat
Aperture (mm)
62
Focal length (mm)
520
Aperture ratio (f/)
8,4
Resolving capacity
1,85
Limit value (mag)
10,8
Light gathering capacity
80
Max. useful magnification
124
Tube weight (kg)
1,5
Tube length (mm)
370
Carrying length (mm)
305
tube diameter (mm)
75
Tube material
Aluminium
Coating
multiple

Focuser


Type of build
Crayford
Connection ( to eyepiece)
1,25"
Connecting threaded socket (camera-side)
M42
Gear reduction
without
Rotating
yes

Mount


Mounting type
Azimuthal
Type of build
Single tine
GoTo control
no
Load capacity (kg)
3,6

Tripod


Type
Tripod
Material
Aluminium
Max. tripod height (cm)
130
Min. tripod height (cm)
90

Included accessories


1.25'' eyepieces
20mm, 6mm
Finder scope
without
Deviating optics
1.25", 90°Amici prism
Slow motion cable (piece)
2

General


Series
Porta
Total weight (kg)
5

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
yes
Astrophotography
no
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
yes
Advanced
no
Observatories
no

Recommended accessories

Telescope accessories > Transport & storage (6)
Carry case

Omegon carry case for 5" tubes/lenses

$ 99.00*
Telescope accessories > Other (7)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Eyepieces (4)

Omegon Suitcase with eyepieces and accessories

$ 199.00*
Filters > Nebulae filters (5)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (1)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Camera mounts (4)

Omegon Easypic Universal Smartphone Adapter

$ 129.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (3)

John Wiley & Sons Astronomy For Dummies

$ 24.90*
Outdoor > Lamps (3)
Astronomy torch

Explore Scientific Astronomy torch Astro R-Lite

$ 18.90*
Astronomy (1)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 18.90*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 31.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
Miscellaneous (1)

Star In A Star Moon Hat

$ 17.90*

*All prices include VAT plus shipping costs.

Vixen Telescope AC 62/520 A62SS Mobile Porta
AC 62/520 A62SS
Vixen Telescope AC 62/520 A62SS Mobile Porta
Mobile Porta
Vixen Telescope AC 62/520 A62SS Mobile Porta

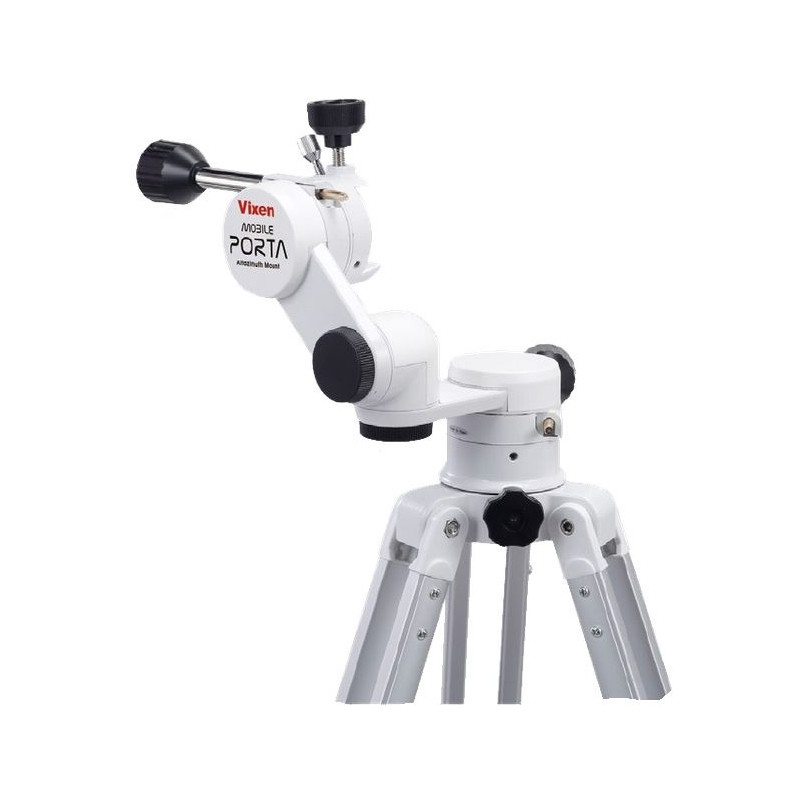

The resistance of the slip clutch is adjustable and so can be adapted to optics of different weights.
