Your partner for astronomy
Telescopes > Vixen > Porta > Vixen Telescope AC 80/910 A80Mf Porta-II
Product no.: 14813

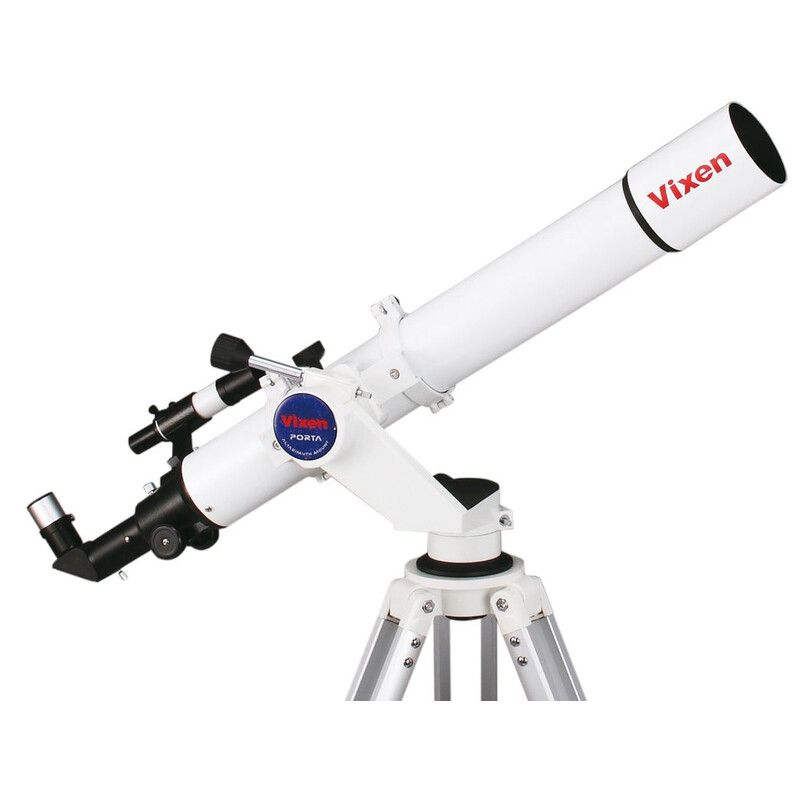

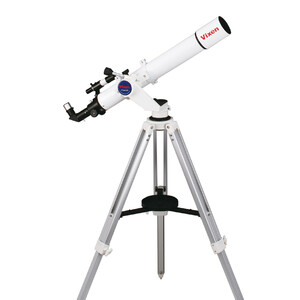

Telescope AC 80/910 A80Mf Porta-II

RRP: $ 690.00 Our price:
$ 660.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Porta...

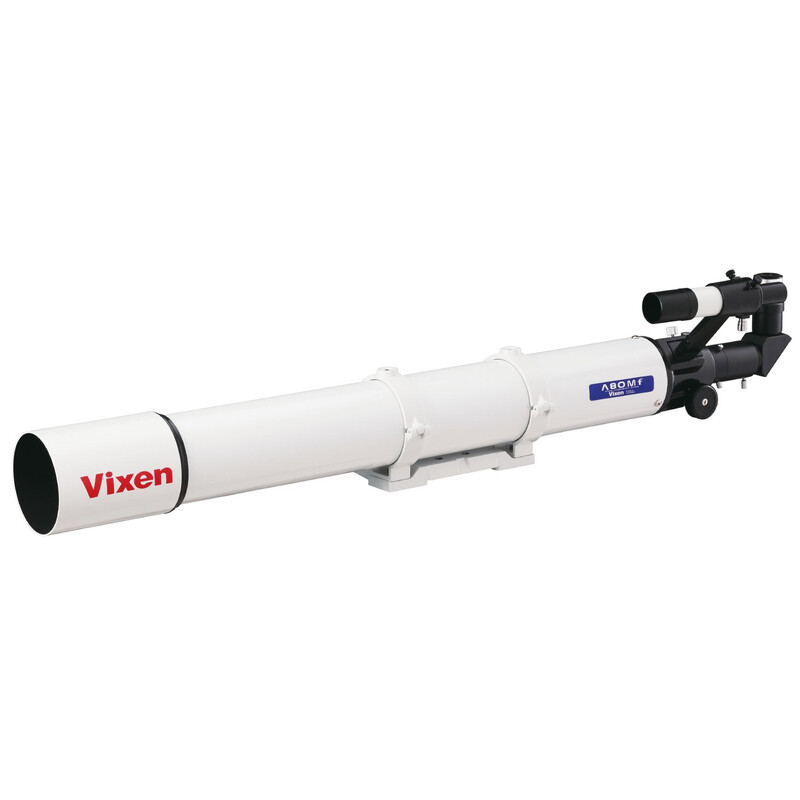

The Vixen AC 80/910 optics: With this compact refractor, you can enjoy extensive moon observations, detailed images of planets and star clusters. Great optics with really good image quality! Thanks to the favourable aperture ratio, no colour fringing disturbs the observation of bright objects such as the moon and planets.

The telescope can be attached to almost any astronomical mount using the standardised prism rail. With the telescope's accessories, nothing stands in the way of astronomical observation.

The Porta II is the Mercedes among azimuth mounts: beautifully designed, very solidly constructed and proven thousands of times over!

If you are looking for a simple mount that can be quickly packed, easily transported and set up, the Porta II is the right choice. It can safely support smaller optics up to 5 kg and 16 cm outer diameter. You can easily move your telescope in azimuth and elevation by hand, and thanks to the friction brake, the mount holds the set elevation angle firmly in place.

The Porta II has two handles for fine adjustment and tracking. The position of the handles is variable, so you can ergonomically adapt your Porta II to different optical tubes.

The tool included in the scope of delivery is required to adjust the fine adjustment position or the friction brake. The Porta II has a small storage compartment for this purpose.

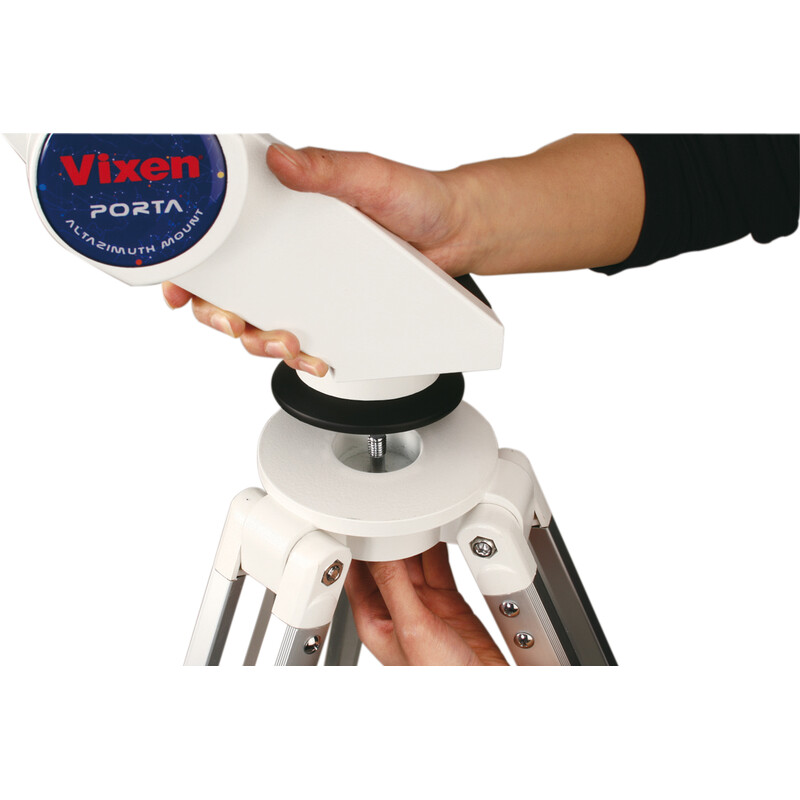

The Porta II mount can be detached from the tripod with a simple screw. This can be done easily by hand with a non-slip screw, so that you can transport the tripod and mount separately and still be ready for use quickly.

The PORTA II is equipped with the prism rail system introduced by Vixen. Most telescope manufacturers have adopted this system, so you can use virtually any optical tube.

Azimuth mounts are ideal for quick, mobile use of small optics. They owe their popularity to their intuitive operation, light weight and the fact that they take up very little space. The Porta II is the best choice for this type of mount!

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Achromat
Aperture (mm)
80
Focal length (mm)
910
Aperture ratio (f/)
11,4
Resolving capacity
1,44
Limit value (mag)
11,3
Light gathering capacity
131
Max. useful magnification
160
Tube weight (kg)
2,5
Tube length (mm)
890
Tube construction
Full tube

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
1,25"

Mount


Mounting type
Azimuthal
Type of build
Single tine
GoTo control
no
Load capacity (kg)
5

Tripod


Type
Tripod
Accessory plate
yes
Material
Aluminium

Included accessories


1.25'' eyepieces
20mm, 6mm
Finder scope
6x30
Deviating optics
1.25", 90° star diagonal

General


Series
Porta
Special recommendation
yes
Total weight (kg)
9

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
no
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
yes
Advanced
no
Observatories
no

Product safety

Manufacturer:

Recommended accessories

Telescope accessories > Transport & storage (7)
Carry case

Vixen Carry case Tube and Tripod Bag 100

$ 108.00*
Telescope accessories > Other (6)
Barlow Lens

Skywatcher Barlow Lens Nomad-5 Premium 5x 1.25"

$ 96.00*
Eyepieces (5)
Eyepiece

Omegon Eyepiece OGDO 4mm 80°

$ 299.00*
Eyepieces (3)

Omegon Suitcase with eyepieces and accessories

$ 199.00*
Eyepieces > Other (1)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Nebulae filters (4)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (3)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Astrophotography > Camera mounts (3)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Observatories (1)

Omegon Tent observatory

$ 175.00*
Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor > Lamps (3)
Astronomy torch

Explore Scientific Astronomy torch Astro R-Lite

$ 19.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 26.90*
Solar Observation > Solar Filters (3)

Vixen Sun projection screen, set A

$ 190.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Vixen Telescope AC 80/910 A80Mf Porta-II

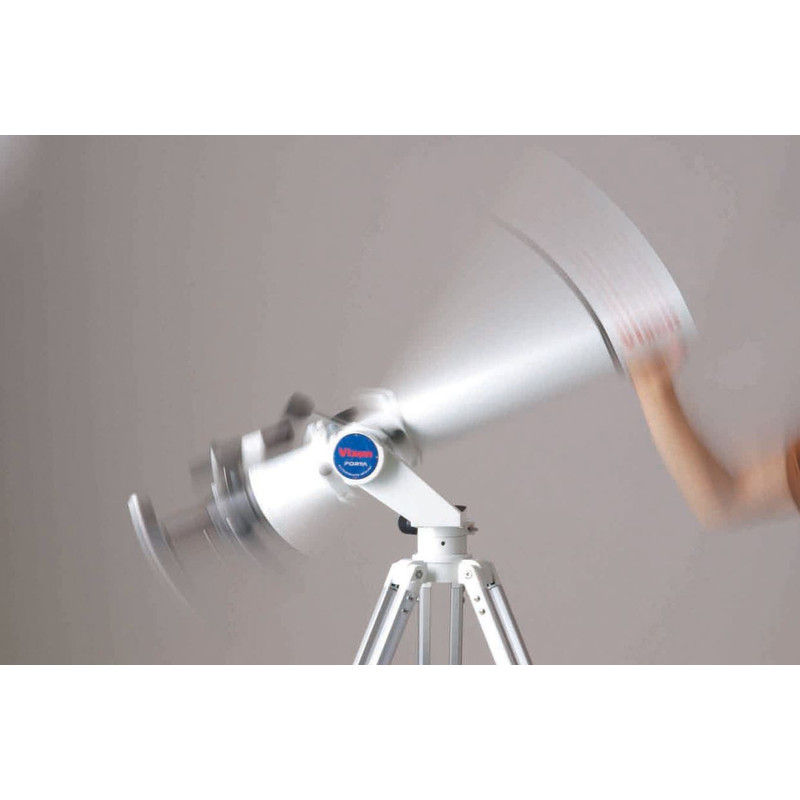

The resistance of the slip clutch is adjustable and so can be adapted to optics of different weights.
