This product is no longer stocked and therefore cannot be purchased until further notice.

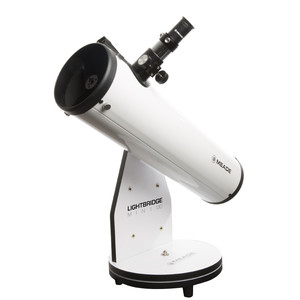

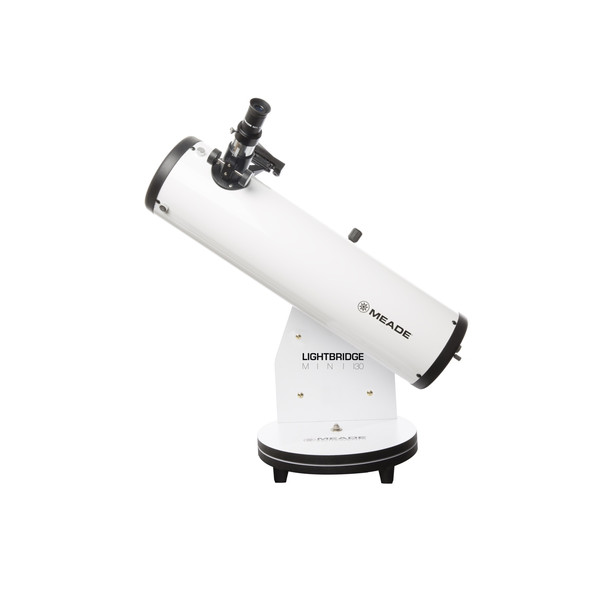

A compact, optically-fast telescope for astronomers that is easy to transport and simple to operate. It is a so-called 'Dobsonian' telescope. This type of reflecting telescope is very easy for beginners to use and collects a lot of light from astronomical objects.
This Dobsonian reflector telescope comes fully assembled. It can be simply placed on a table for you to immediately get started with your space exploration. Extensive accessories are provided for getting started as simply as easily as possible with your star-filled fun.
A special feature of this Dobsonian telescope is that the OTA is connected to the single-armed mount via a prism rail (swallow-tail). As a result, the OTA can not only be removed for transport, but also be attached to any other astronomical mount equipped with a prism-rail. It is also easier to balance the telescope - something which is especially important with Dobsonians.
It is not only important which telescope you buy, but also where you buy it.
We provide extra help:
Optics![]() Optics
X
A telescope tube is referred to as an optic because it contains the components necessary to collect and concentrate light.
Click to read more...
|
|
Type
![]() Type
X
There are basically two different types of telescope. A distinction is made between refractor (lens) and reflector (mirror) telescopes.
Click to read more...
|
Reflector |
Type of build
![]() Type of build
X
Describes the exact structure of the telescope thereby further subdividing the different types of telescope.
Click to read more...
|
Newton
![]() Newton
X
Reflector telescope with a secondary mirror at the beginning of the tube which redirects light to one side.
Click to read more...
|
Aperture
(mm)
![]() Aperture
X
The aperture indicates the diameter of the objective lens or the mirror.
Click to read more...
|
130 |
Focal length
(mm)
![]() Focal length
X
This is the distance between the objective lens or mirror and the focal point.
Click to read more...
|
650 |
Aperture ratio
(f/)
![]() Aperture ratio
X
Is the ratio of the aperture to the focal length of a telescope.
Click to read more...
|
5 |
Resolving capacity
![]() Resolving capacity
X
The ability of the optic to discern the fine detail of objects that are close together.
Click to read more...
|
0,88 |
Limit value
(mag)
![]() Limit value
X
Describes the brightness of a star or point-shaped object, which can still just be distinguished by the telescope. The naked eye, for example, can make out stars with a magnitude of up to 6.
Click to read more...
|
12,4 |
Light gathering capacity
![]() Light gathering capacity
X
Light-gathering capacity of the telescope compared to the eye.
Click to read more...
|
345 |
Max. useful magnification
![]() Max. useful magnification
X
The telescope’s magnification should not exceed this factor, because otherwise the image will appear weak and dark.
Click to read more...
|
260 |
Tube construction | Full tube |
Tube weight
(kg)
![]() Tube weight
X
The weight of the tube is critical for the correct choice of mount.
Click to read more...
|
3,7 |
Reflector![]() Reflector
X
Special characteristics which only reflectors possess, can be found under this heading.
Click to read more...
|
|
Main mirror´s construction
![]() Main mirror construction
X
Here, the construction type means the geometric shape of the primary mirror.
Click to read more...
|
parabolic |
Adjustable | yes |
Ventilation for central mirror
![]() Ventilation for primary mirror
X
Fan for a quicker alignment of the mirror temperature to the ambient temperature.
Click to read more...
|
no |
Focuser![]() Focuser
X
A focuser is used to hold an eyepiece. The image can be focussed using the focus wheels on the side.
Click to read more...
|
|
Type of build
![]() Type of build
X
There are basically two different construction types: the rack and pinion focuser and the Crayford focuser.
Click to read more...
|
Gear rack |
Connection ( to eyepiece)
![]() Connection ( to eyepiece)
X
Focusers are available in 1.25" or 2" formats. Many 2" focusers also have a 1.25" adapter.
Click to read more...
|
1,25" |
Mount![]() Mount
X
A mount is the foundation of an astronomical telescope. It usually consists of the mount head and an appropriate tripod.
Click to read more...
|
|
GoTo control
![]() GoTo control
X
Object positioning system, available in real GoTo and also PushTo versions.
Click to read more...
|
no |
Type of build
![]() Type of build
X
Describes the exact construction of the particular mount and thereby further subdivides the different types of mount.
Click to read more...
|
Dobson |
Mounting type
![]() Mounting type
X
Are mainly differentiated between equatorial and altazimuth. A special type of altazimuth mount is the Dobsonian mount.
Click to read more...
|
Dobson
![]() |
Motors | no |
Tripod![]() Tripod
X
The tripod is a part of the mount, it provides a stable stand and is usually adjustable in height.
Click to read more...
|
|
Type | Table |
Included accessories![]() |
|
1.25'' eyepieces
![]() 1.25'' eyepieces
X
Eyepieces are needed for observing. Depending on the focal length, you achieve a certain level of magnification.
The specification 1.25" refers to the diameter of the connector (1.25" = 31.8 millimetres).
Click to read more...
|
26mm, 9mm |
Finder scope
![]() Finder scope
X
A mini telescope used to locate a celestial object. There are optical finders and red dot finders.
Click to read more...
|
Red dot finder
![]() |
Prism rail | Vixen-Style |
General |
|
Series |
LightBridge Mini
![]() LightBridge Mini
X
Optically-fast Dobsonian telescope for newcomers to astronomy.
Click to read more...
|
Total weight (kg) | 6 |
Area of application![]() Area of application
X
The area of application will give you a broad overview of the purposes for which the telescope is suited.
Click to read more...
|
|
Moon & Planets | yes |
Nebulae & galaxies | yes |
Nature Observation | no |
Astrophotography | not recommended |
Sun
![]() |
no |
Recommended for![]() Recommended for...
X
The classification of the telescopes according to their suitability for beginners, advanced or observatories is useful as an initial orientation.
Click to read more...
|
|
Beginners
![]() Beginners
X
Telescopes that are supplied as a complete system and are easy to operate.
Click to read more...
|
yes |
Advanced
![]() Advanced
X
Telescopes for experienced observers, but also for ambitious beginners.
Click to read more...
|
no |
Observatories
![]() Observatories
X
Telescopes suitable for a fixed mount, whether that is in the garden or an observatory.
Click to read more...
|
no |
