Telescopes > TS Optics > Photoline > TS Optics Apochromatic refractor AP 70/420 Photoline OTA
Product no.: 52322

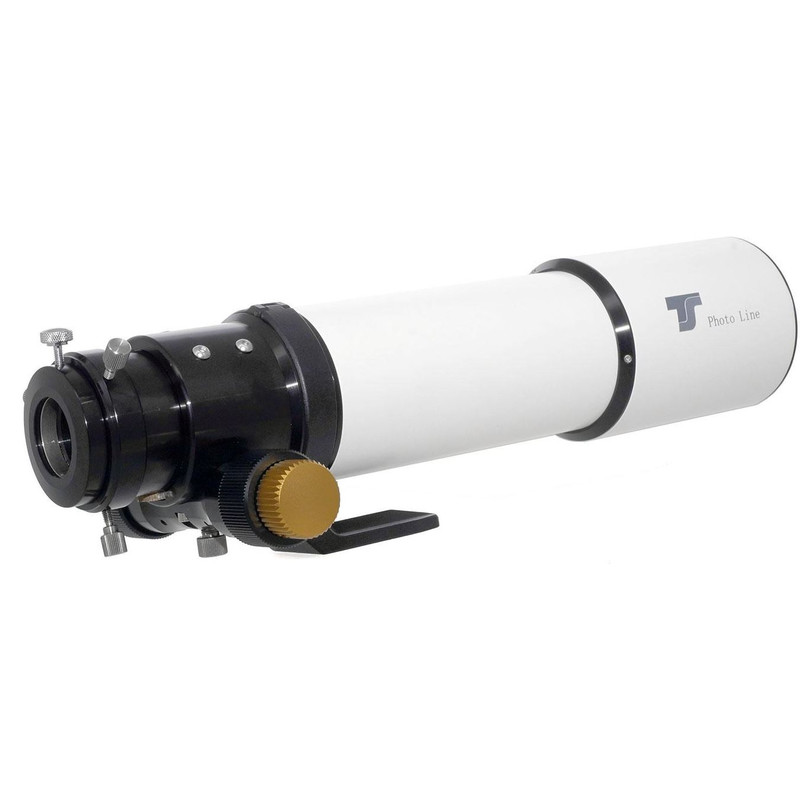

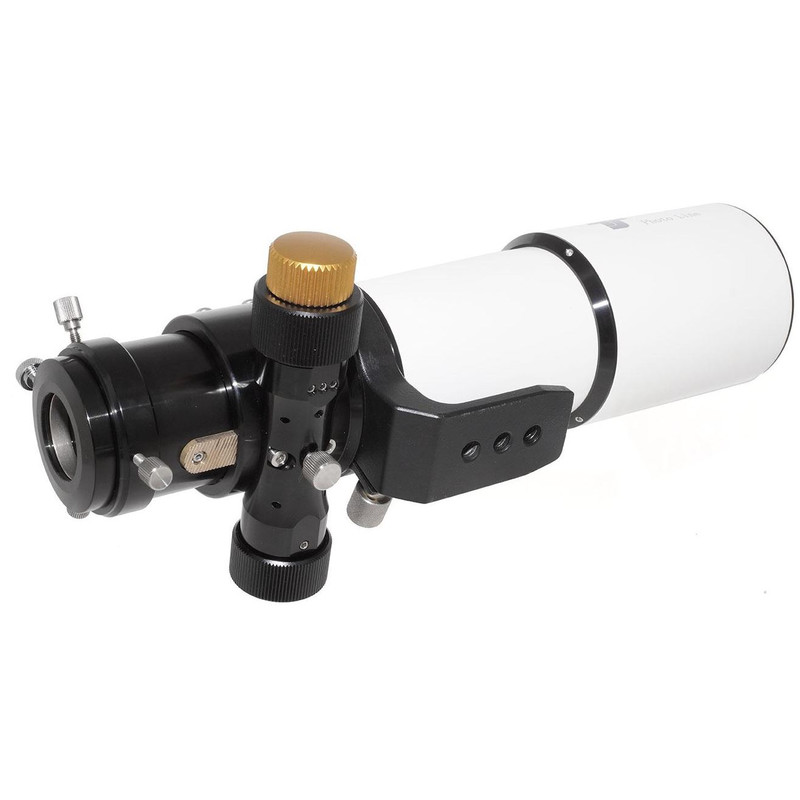

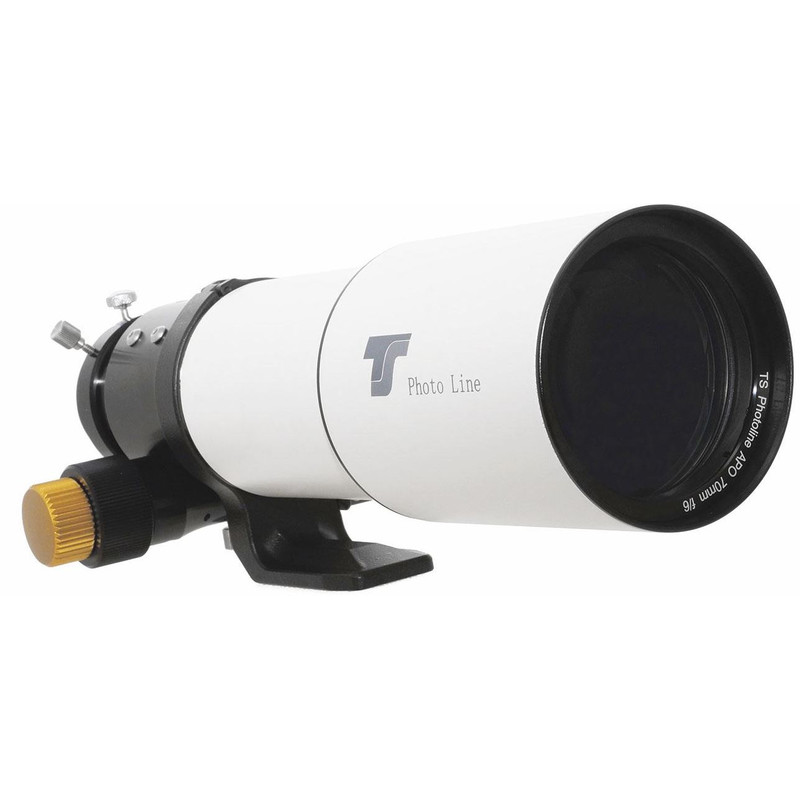

Apochromatic refractor AP 70/420 Photoline OTA

$ 660.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

A high-quality apochromat for mobile use and travel

The heart of the refractor is the multi-coated objective with FPL53 apochromatic element from Ohara, Japan. This high-quality triplet lens with air gap provides colour-pure images even at high magnifications.

The objective with air gap is, of course, mounted in an adjustable position. Each lens is provided with the manufacturer's best possible multi-coating for maximum contrast. The focuser can hold accessories weighing up to approximately 5 kilograms without tilting. The extension tube is adjusted via a rack and pinion mechanism. It is decoupled from the bearing itself. This allows for sensitive adjustment even at maximum load. The 1:11 micro reduction gear also offers precise adjustment for astrophotography. An M54x0.75 internal thread on the extension tube also allows screw connections.

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Aperture (mm)
70
Focal length (mm)
420
Aperture ratio (f/)
6
Resolving capacity
1,64
Limit value (mag)
11
Light gathering capacity
100
Max. useful magnification
140
Coating
multiple
Tube weight (kg)
1,86
Tube material
Aluminium
tube diameter (mm)
77
Tube length (mm)
315

Focuser


Connection ( to eyepiece)
2
Adjustment range (mm)
73
Type of build
Gear rack
Load capacity (kg)
5
Gear reduction
1:11 fine focusing
Backfocus (mm)
135
Connecting threaded socket (camera-side)
M54x0,75

Mount


Mounting type
no mount
GoTo control
no

Included accessories


Eyepiece adaptor
2" / 1.25"
Prism rail
Vixen-Style
Transport cases
no
Carry case
no
Deviating optics
no
Dew Shield
yes
Thread for camera tripod
yes

General


Series
Photoline

Recommended for


Beginners
no
Advanced
yes

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de
