Telescopes > Meade > LX200 > Meade Telescope ACF-SC 406/4064 16" UHTC LX200 GoTo
Product no.: 47325

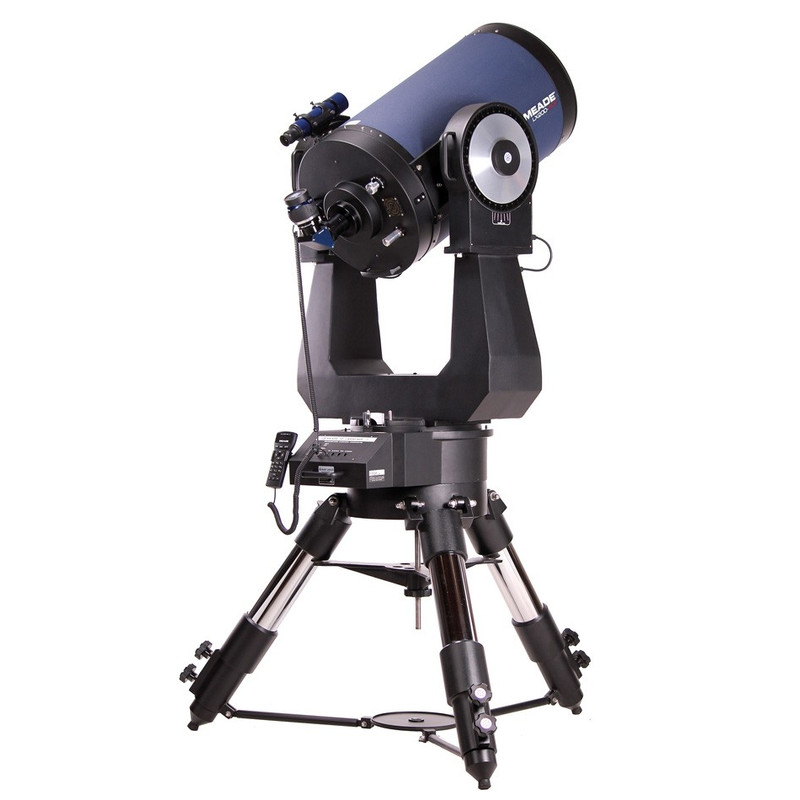

Telescope ACF-SC 406/4064 16" UHTC LX200 GoTo

RRP: $ 30,100.00 Our price:
$ 24,600.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Product description

More about the series LX200...

Meade ACF-SC telescopes:

Almost every large telescope worldwide is a Ritchey-Chrétien, including NASA's Hubble space telescope. The technology used by the pros can now belong to you too. Meade's new Advanced Coma-Free System - powerful and high-precision - is within the reach of all ambitious amateur astronomers, astrophotographers and CCD photographers! It provides perfectly sharp star images, at the highest professional observatory level, over the entire field of view. The secret of coma-free system is - as the name says - the complete absence of coma, an optical aberration in which starlight is distorted and pulled into comet-like tails outside the central part of the image. Whether for observing or photography, the ACF Cassegrain optics from Meade is way ahead of conventional mass produced telescopes. It offers fantastic image quality, previously only available from Ritchey Chrétien telescopes and other exotic systems costing several times as much as the Meade system.

The Meade LX200 mount:

This stable high performance GoTo mount simplifies finding objects in the night sky, both for beginners and experienced observers, and also for photographers The Sony GPS receiver with its Level North Technology (LNT) assists in a rapid and accurate alignment process that uses automatic acquisition of the precise time, date, and location. The AutoStar II software then puts about 145,000 objects of the night sky at your disposal. Observe planets, stars, galaxies, nebulae and comets - simply by pressing a button! Perhaps you don't know the night sky very well? Then simply let the pre-programmed 'Tonight's Best' tour take you to the most rewarding objects! Astronomy was never this easy and convenient.

This mount is available with a tripod and steel pier and is hence adaptable to the intended use and personal preference.

Included in delivery:

  • heavy duty LX200 mount with a 102mm taper bearings
  • 146mm LX worm gears on both axes
  • multifunction port with two RS-232 interfaces
  • manual and electrical control functions on both axes
  • AutoStar II hand box with 3.5MB of flash memory and digital display
  • 9 speed, programmable Smart Drive on both axes
  • GoTo function with over 144,000 selectable objects
  • AutoStar software suite
  • German instruction manual

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
406
Focal length (mm)
4064
Aperture ratio (f/)
10
Resolving capacity
0,28
Limit value (mag)
14,8
Light gathering capacity
3360
Max. useful magnification
810
Coating
UHTC
Tube construction
Full tube

Reflector


Primary mirror - Diameter (mm)
415.9
Correction plate - Material
Float glass
Primary mirror - Material
Pyrex glass
Secondary mirror material
Pyrex glass

Focuser


Type of build
SC thread
Connection ( to eyepiece)
2

Mount


Mounting type
Azimuthal
Power supply
12
GoTo control
yes
Type of build
Fork arm
Power consumption (mA)
5000

GoTo control


GPS
yes
Software
AutoStar II
Precision
1
Database
145000
GoTo Language
English

Tripod


Weight (kg)
44
Material
Steel
Type
Tripod

Included accessories


Deviating optics
2", 90° star diagonal
1.25'' eyepieces
PL 26mm S4000

General


Series
LX200
Total weight (kg)
203

Recommended for


Beginners
no
Advanced
yes
Observatories
yes
