Telescopes > Orion Optics UK > VX > Orion Optics UK Dobson telescope N 500/2000 VX20 DOB

Product no.: 57575

Dobson telescope N 500/2000 VX20 DOB

Name: Orion Optics UK Dobson telescope N 500/2000 VX20 DOB
Brand: Orion Optics UK
Price: 7300 USD

$ 7,300.00 incl. VAT plus shipping costs

too expensive?

long-term
Product not available anymore + lead time

Product questions?

advice for Telescopes

Product description Specifications Recommended accessories Customer reviews (0) Product safety

Product description

More about the series VX...

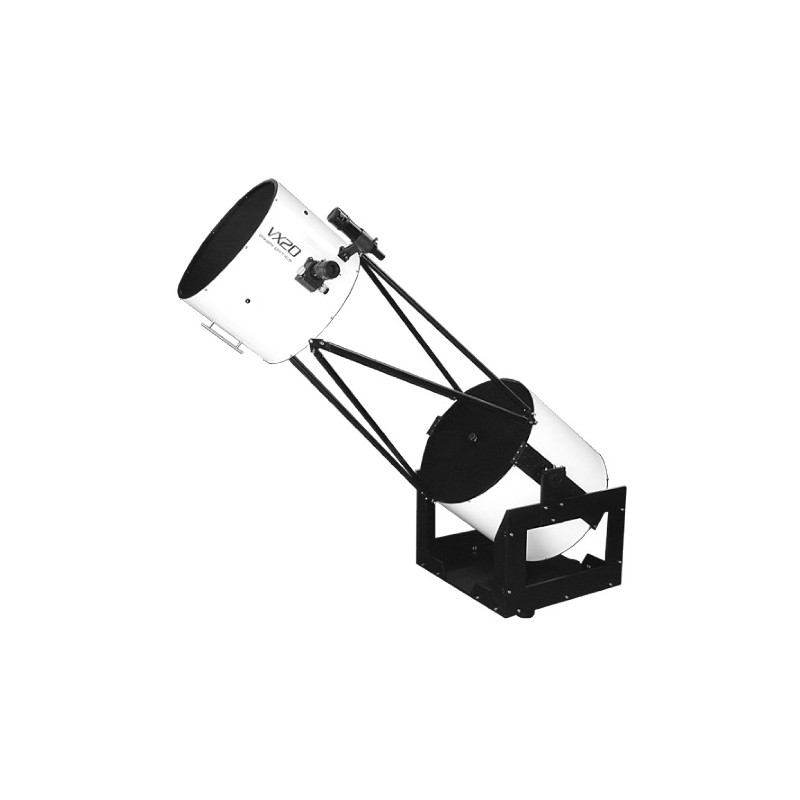

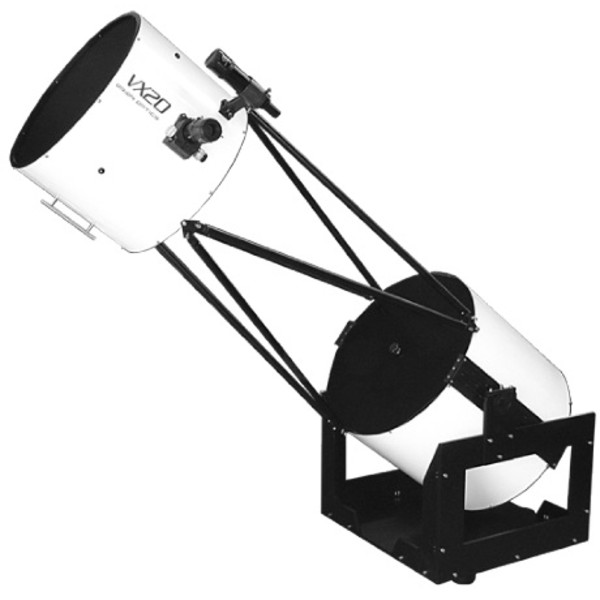

The VX20 is constructed from a semi truss design and modular optical housing. It is a full observatory model and could not be considered portable.

1/8PV HiLux Optics
Fan Assisted Cooling on Optics
9 Point Primary Mirror Cell
Tube Trims
OC1 Focuser with 1:10 reduction
Quality Spider
50mm Finder Scope
Black Tube Cradles
Tube weight:40kg
Tube length: 1945mm
Focal length: 2000mm
Focal ratio: f4
Primary mirror size: 500mm

Specifications

Optics

A telescope tube is referred to as an optic because it contains the components necessary to collect and concentrate light.

Click to read more...

Type

There are basically two different types of telescope. A distinction is made between refractor (lens) and reflector (mirror) telescopes.

Click to read more...

Reflector

Type of build

Describes the exact structure of the telescope thereby further subdividing the different types of telescope.

Click to read more...

Newton

Reflector telescope with a secondary mirror at the beginning of the tube which redirects light to one side.

Click to read more...

Aperture (mm)

Aperture

The aperture indicates the diameter of the objective lens or the mirror.

Click to read more...

500

Focal length (mm)

Focal length

This is the distance between the objective lens or mirror and the focal point.

Click to read more...

2000

Aperture ratio (f/)

Aperture ratio

Is the ratio of the aperture to the focal length of a telescope.

Click to read more...

Resolving capacity

The ability of the optic to discern the fine detail of objects that are close together.

Click to read more...

0,23

Limit value (mag)

Limit value

Describes the brightness of a star or point-shaped object, which can still just be distinguished by the telescope. The naked eye, for example, can make out stars with a magnitude of up to 6.

Click to read more...

15,3

Light gathering capacity

Light-gathering capacity of the telescope compared to the eye.

Click to read more...

5100

Max. useful magnification

The telescope’s magnification should not exceed this factor, because otherwise the image will appear weak and dark.

Click to read more...

1000

Tube weight (kg)

Tube weight

The weight of the tube is critical for the correct choice of mount.

Click to read more...

Tube material

Most telescopes are made of steel, aluminium or carbon fibre.

Click to read more...

Aluminium

Tube length (mm)

Tube length

Including eyepiece, but excluding dew cap.

Click to read more...

1945

Tube construction

Truss Tube

Truss tube

In contrast to the solid tube, here the optical tube is constructed of rods.

Click to read more...

Reflector

Special characteristics which only reflectors possess, can be found under this heading.

Click to read more...

Secondary mirror diameter (mm)

100

finish quality

1/8

Focuser

A focuser is used to hold an eyepiece. The image can be focussed using the focus wheels on the side.

Click to read more...

Connection ( to eyepiece)

Focusers are available in 1.25" or 2" formats. Many 2" focusers also have a 1.25" adapter.

Click to read more...

Gear reduction

1:10 fine focusing

Mount

A mount is the foundation of an astronomical telescope. It usually consists of the mount head and an appropriate tripod.

Click to read more...

Mounting type

Are mainly differentiated between equatorial and altazimuth. A special type of altazimuth mount is the Dobsonian mount.

Click to read more...

Dobson

Dobsonian

Large and high-quality optic with an inexpensive rockerbox mount.

Click to read more...

GoTo control

Object positioning system, available in real GoTo and also PushTo versions.

Click to read more...

Included accessories

Many telescopes came with simple accessories.

Click to read more...

Finder scope

A mini telescope used to locate a celestial object. There are optical finders and red dot finders.

Click to read more...

50mm

General

Series

A VX telescope will give some of the best images possible in a serious introductory telescope.

Click to read more...

Area of application

The area of application will give you a broad overview of the purposes for which the telescope is suited.

Click to read more...

Moon & Planets

yes

Nebulae & galaxies

yes

Nature Observation

Astrophotography

Sun

Telescopes for safe solar observing.

Click to read more...

Recommended for

Recommended for...

The classification of the telescopes according to their suitability for beginners, advanced or observatories is useful as an initial orientation.

Click to read more...

Beginners

Telescopes that are supplied as a complete system and are easy to operate.

Click to read more...

Advanced

Telescopes for experienced observers, but also for ambitious beginners.

Click to read more...

yes

show less...

Product safety

Manufacturer: OOUK Ltd, Brymbo Road Lymedale Ind Est, ST5 9HX Newcastle under Lyme, http://www.orionoptics.co.uk/
