Telescopes > PlaneWave > PlaneWave Cassegrain telescope C 508/1537 DeltaRho 500 f/3.0

Product no.: 83158

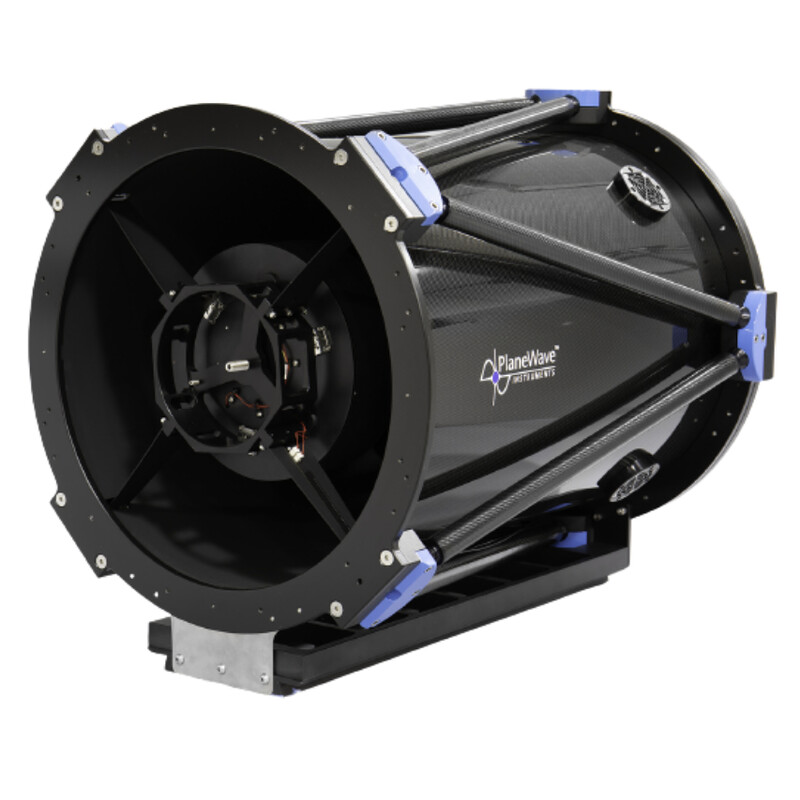

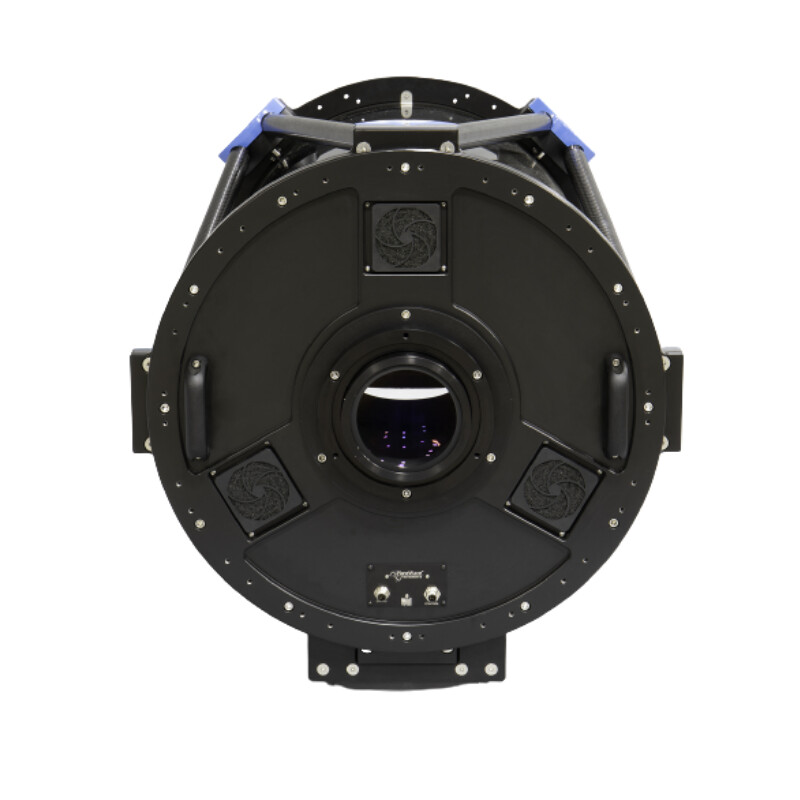

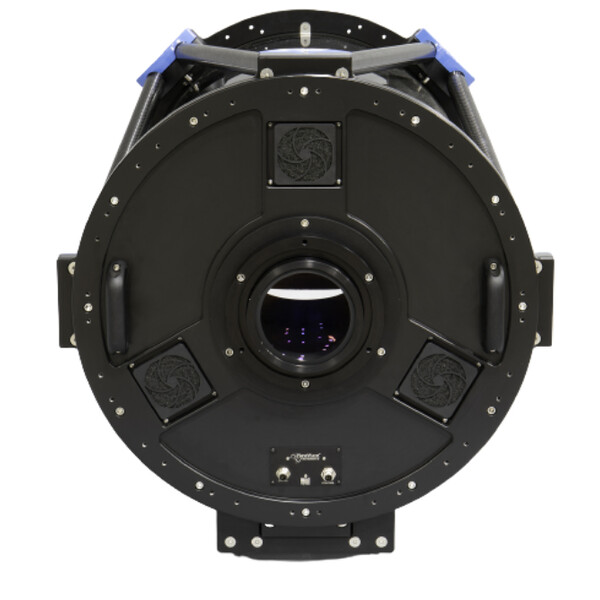

Cassegrain telescope C 508/1537 DeltaRho 500 f/3.0

Name: PlaneWave Cassegrain telescope C 508/1537 DeltaRho 500 f/3.0
Brand: PlaneWave
Price: 90400 USD

$ 90,400.00 incl. VAT plus shipping costs

too expensive?

short-term
Available on request + lead time

If you are interested in this product, please contact our customer service:

Contact our service

Product questions?

advice for Telescopes

Product description Specifications Downloads Recommended accessories Customer reviews (0) Product safety

Product description

Specifications

Optics

A telescope tube is referred to as an optic because it contains the components necessary to collect and concentrate light.

Click to read more...

Type

There are basically two different types of telescope. A distinction is made between refractor (lens) and reflector (mirror) telescopes.

Click to read more...

Reflector

Type of build

Describes the exact structure of the telescope thereby further subdividing the different types of telescope.

Click to read more...

Cassegrain

This telescope consists of a parabolic primary mirror with a central hole and a hyperbolic secondary mirror. In this way the construction can be kept as short as possible.

Click to read more...

Aperture (mm)

Aperture

The aperture indicates the diameter of the objective lens or the mirror.

Click to read more...

508

Focal length (mm)

Focal length

This is the distance between the objective lens or mirror and the focal point.

Click to read more...

1537

Aperture ratio (f/)

Aperture ratio

Is the ratio of the aperture to the focal length of a telescope.

Click to read more...

Resolving capacity

The ability of the optic to discern the fine detail of objects that are close together.

Click to read more...

0,27

Limit value (mag)

Limit value

Describes the brightness of a star or point-shaped object, which can still just be distinguished by the telescope. The naked eye, for example, can make out stars with a magnitude of up to 6.

Click to read more...

15,3

Light gathering capacity

Light-gathering capacity of the telescope compared to the eye.

Click to read more...

5270

Max. useful magnification

The telescope’s magnification should not exceed this factor, because otherwise the image will appear weak and dark.

Click to read more...

1016

Tube weight (kg)

Tube weight

The weight of the tube is critical for the correct choice of mount.

Click to read more...

Tube material

Most telescopes are made of steel, aluminium or carbon fibre.

Click to read more...

Carbon

Carbon is especially light and stable, but is also more expensive than metal

Click to read more...

Fully Corrected Field (mm)

Corrected Field

The optics’ field is illuminated without errors.

Click to read more...

Reflector

Special characteristics which only reflectors possess, can be found under this heading.

Click to read more...

Main mirror´s construction

Main mirror construction

Here, the construction type means the geometric shape of the primary mirror.

Click to read more...

elliptical

Primary mirror - Material

Quartz

secondary mirror design

spherical

Secondary mirror material

Quartz

reflectivity

aluminising

Aluminium

Secondary mirror obstruction

The shadow effect of the telescope optics due to the secondary mirror, because this lies in the optical path.

Click to read more...

Primary mirror - Diameter (mm)

508

Secondary mirror diameter (mm)

286

Ventilation for central mirror

Ventilation for primary mirror

Fan for a quicker alignment of the mirror temperature to the ambient temperature.

Click to read more...

yes

Focuser

A focuser is used to hold an eyepiece. The image can be focussed using the focus wheels on the side.

Click to read more...

Backfocus (mm)

Backfocus

The position of the focus, measured from the plug connection, with the eyepiece fully retracted.

Click to read more...

232,8

Rotating

Undefiniert

Mount

A mount is the foundation of an astronomical telescope. It usually consists of the mount head and an appropriate tripod.

Click to read more...

Type of build

Describes the exact construction of the particular mount and thereby further subdivides the different types of mount.

Click to read more...

OTA

An OTA is an optical tube without a mount. It is short for optical tube assembly.

Click to read more...

Mounting type

Are mainly differentiated between equatorial and altazimuth. A special type of altazimuth mount is the Dobsonian mount.

Click to read more...

no mount

Included accessories

Many telescopes came with simple accessories.

Click to read more...

Corrector

Optical aid to correct aberrations.

Click to read more...

integrated

Tube clamps

yes

Area of application

The area of application will give you a broad overview of the purposes for which the telescope is suited.

Click to read more...

Astrophotography

yes

Moon & Planets

yes

Nature Observation

Nebulae & galaxies

yes

Sun

Telescopes for safe solar observing.

Click to read more...

Recommended for

Recommended for...

The classification of the telescopes according to their suitability for beginners, advanced or observatories is useful as an initial orientation.

Click to read more...

Beginners

Telescopes that are supplied as a complete system and are easy to operate.

Click to read more...

Advanced

Telescopes for experienced observers, but also for ambitious beginners.

Click to read more...

Observatories

Telescopes suitable for a fixed mount, whether that is in the garden or an observatory.

Click to read more...

yes

show less...
