Telescopes > ASA > Astrograph > ASA Telescope 16N 400/1520 Astrograph OTA

Product no.: 46248

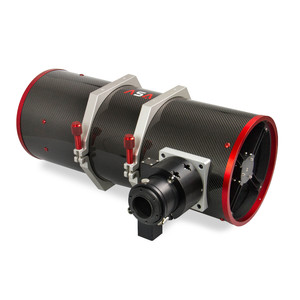

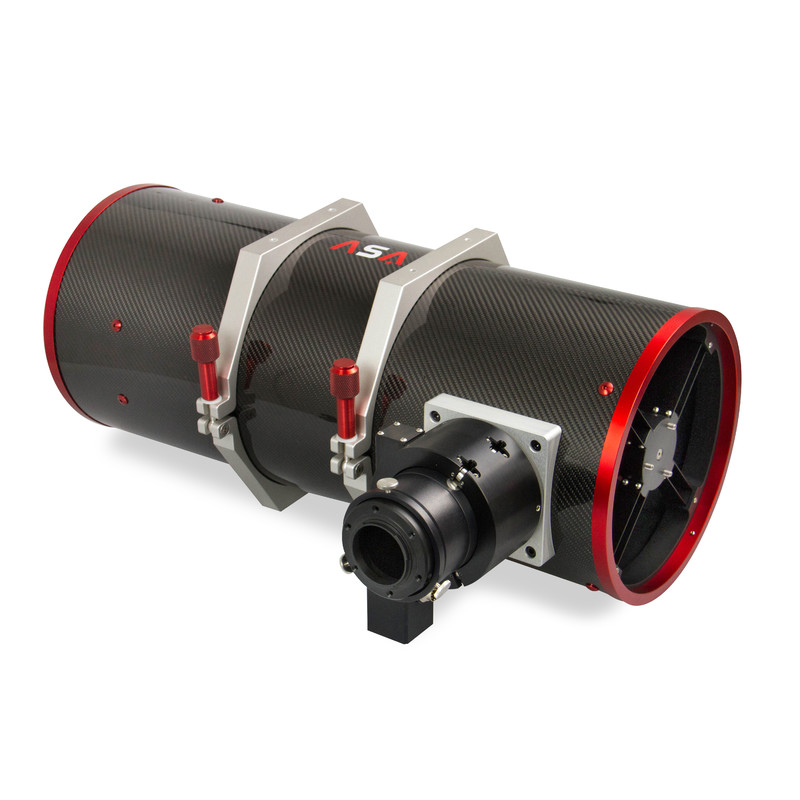

Telescope 16N 400/1520 Astrograph OTA

$ 20,800.00 incl. VAT plus shipping costs

too expensive?

long-term
Product not available anymore + lead time

Product questions?

advice for Telescopes

Product description Specifications Recommended accessories Customer reviews (0) Product safety

Product description

Specifications

Optics

A telescope tube is referred to as an optic because it contains the components necessary to collect and concentrate light.

Click to read more...

Focal length (mm)

Focal length

This is the distance between the objective lens or mirror and the focal point.

Click to read more...

1520

Aperture (mm)

Aperture

The aperture indicates the diameter of the objective lens or the mirror.

Click to read more...

400

Aperture ratio (f/)

Aperture ratio

Is the ratio of the aperture to the focal length of a telescope.

Click to read more...

3,61

Tube weight (kg)

Tube weight

The weight of the tube is critical for the correct choice of mount.

Click to read more...

Tube length (mm)

Tube length

Including eyepiece, but excluding dew cap.

Click to read more...

1310

Tube material

Most telescopes are made of steel, aluminium or carbon fibre.

Click to read more...

Carbon

Carbon is especially light and stable, but is also more expensive than metal

Click to read more...

Type

There are basically two different types of telescope. A distinction is made between refractor (lens) and reflector (mirror) telescopes.

Click to read more...

Reflector

tube diameter (mm)

470

Reflector

Special characteristics which only reflectors possess, can be found under this heading.

Click to read more...

Secondary mirror diameter (mm)

130

Secondary mirror obstruction

The shadow effect of the telescope optics due to the secondary mirror, because this lies in the optical path.

Click to read more...

32,5

Ventilation for central mirror

Ventilation for primary mirror

Fan for a quicker alignment of the mirror temperature to the ambient temperature.

Click to read more...

yes

Main mirror´s construction

Main mirror construction

Here, the construction type means the geometric shape of the primary mirror.

Click to read more...

parabolic

Primary mirror - Material

Suprax

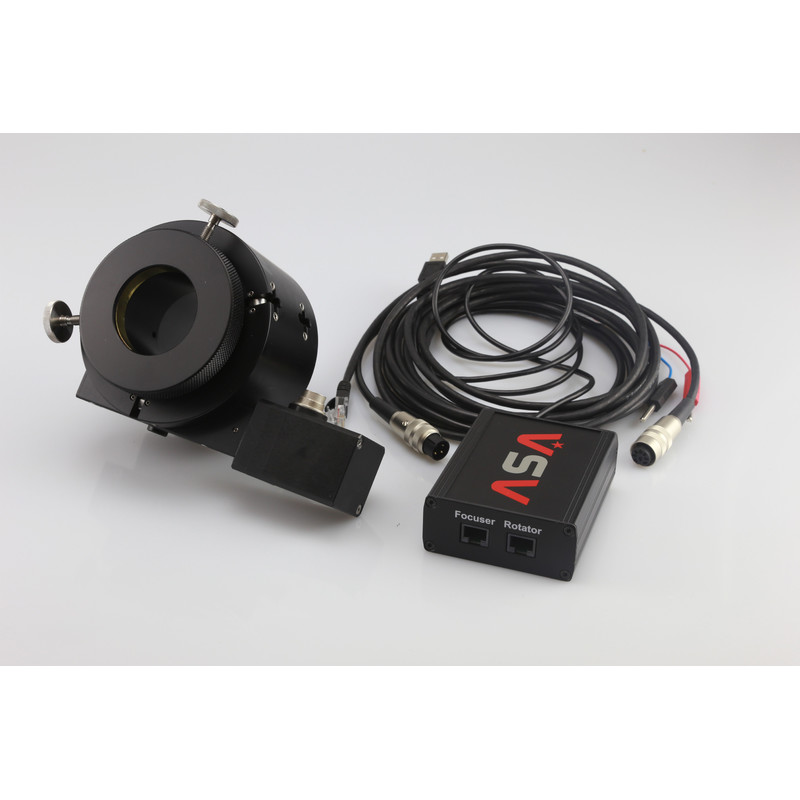

Focuser

A focuser is used to hold an eyepiece. The image can be focussed using the focus wheels on the side.

Click to read more...

Connection ( to eyepiece)

Focusers are available in 1.25" or 2" formats. Many 2" focusers also have a 1.25" adapter.

Click to read more...

Motorized

yes

Included accessories

Many telescopes came with simple accessories.

Click to read more...

Tube clamps

yes

Camera adaptor

Customer-specific

Eyepiece adaptor

2" - 3"

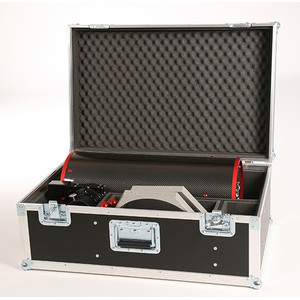

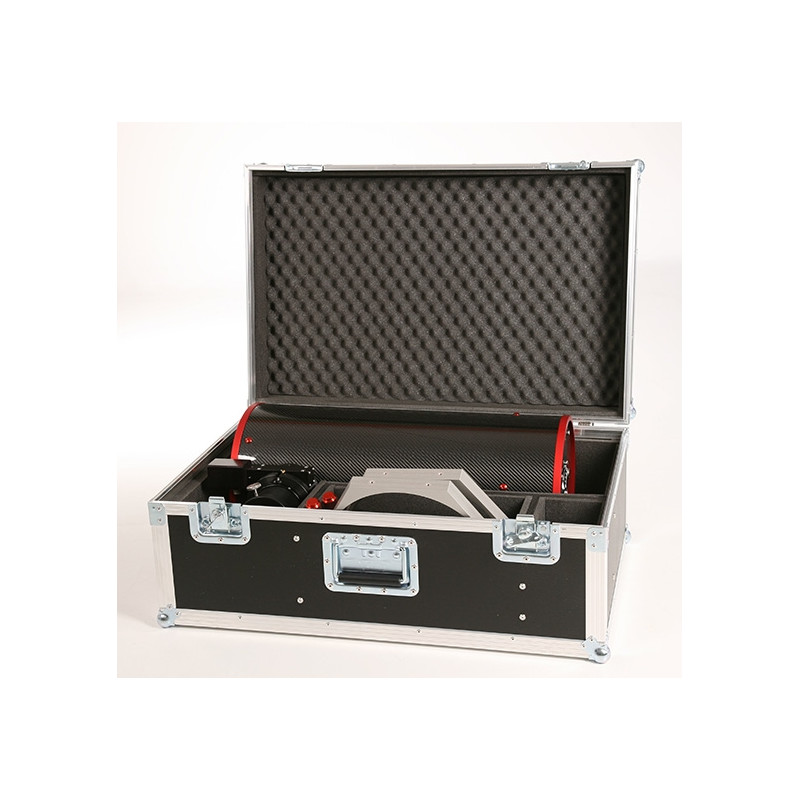

Transport cases

yes

Collimation aid

Laser

Corrector

Optical aid to correct aberrations.

Click to read more...

without

General

Series

Astrograph

Area of application

The area of application will give you a broad overview of the purposes for which the telescope is suited.

Click to read more...

Astrophotography

yes

Nature Observation

Moon & Planets

yes

Nebulae & galaxies

yes

Sun

Telescopes for safe solar observing.

Click to read more...

not recommended (Only with appropriate Sun filter)

Recommended for

Recommended for...

The classification of the telescopes according to their suitability for beginners, advanced or observatories is useful as an initial orientation.

Click to read more...

Beginners

Telescopes that are supplied as a complete system and are easy to operate.

Click to read more...

Advanced

Telescopes for experienced observers, but also for ambitious beginners.

Click to read more...

yes

show less...

Product safety

Manufacturer: ASA Astrosysteme GmbH, Galgenau 19, 4212 Neumarkt i. M. , AT, www.astrosysteme.at

Product safety
