Telescopes > Meade > OTA > Meade Telescope ACF-SC 305/3048 UHTC LX200 OTA
Product no.: 59559

Telescope ACF-SC 305/3048 UHTC LX200 OTA

$ 6,000.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product can be shipped as of 01.04.2025 + lead time

Product description

This telescope, with its Schmidt-Cassegrain optics, leaves nothing to be desired - SC telescopes are suitable for all applications. No matter if you want to observe planets, far-off nebulae or galaxies, no matter if purely visually or also photographically, anything is possible with an SC telescope!

The compact optics ensure low leverage stress on the mount and make the telescope easy to transport. Focusing takes place internally and is so adjustable that even with astrophotographic accessories attached, focusing is usually no problem.

SC telescopes have a spherical primary mirror. This is usually a drawback, since only parabolic mirrors, as used in Newtonian telescopes, can also correctly focus off-axis light rays. The optical designer Bernhard Schmidt (1879-1935) therefore developed a special correction plate to take care of this. The plate is attached to the front of the OTA. Once used in combination with this Schmidt plate, SC telescopes produce a sharp image with no spherical aberration. This also has the advantage that the OTA is completely closed off at both ends, protecting the main mirror from contamination and preventing disturbing air turbulence.

The secondary mirror is mounted under the centre of this correction plate, and reflects the light back to the main mirror. There, it exits through a hole in the main mirror and through an opening in the back of the OTA. This folded light path is named after Laurent Cassegrain (1629-1693). Even professional telescopes use the advantages of this design - heavy accessories generate hardly any leverage stress and the telescope's eyepiece remains at almost the same height, even if objects of very different altitudes are being observed. This means that no ladder is required and the viewing position is comfortable and safe even for children - this is not unimportant, especially for balcony astronomers!

Advanced Coma-free Optics (ACF): Meade's ACF optical design eliminates the typical aberrations of all mirror optics. Thanks to ACF, the stars are also point-shaped right out to the edge of the image field, displaying no elongated comet-like distortions. The image field is flatter than that of classic Schmidt-Cassegrain telescopes. ACF optical systems show their strengths especially in astrophotographic applications.

Ultra-High Transmission Coatings (UHTC): This special multi-layer coating on the front correction plate provides up to 15% more light transmission. The result -brighter star clusters, finer details in nebulae and more surface detail on planets!

All LX200 models feature a primary mirror locking mechanism, which effectively prevents movement of the primary mirror during long exposure astrophotography or observing. Turn the lock knob located just above the telescopes main focus knob and the progressive-tension primary lock completely cancels any residual image shift due to mirror movement during visual, photographic, or imaging applications.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page "Telescope ABC" beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
305
Focal length (mm)
3048
Aperture ratio (f/)
10
Resolving capacity
0,45
Limit value (mag)
14,2
Light gathering capacity
1900
Max. useful magnification
610
Coating
UHTC
Tube weight (kg)
15,9
Tube construction
Full tube

Reflector


Primary mirror - Material
Borosilicate glass
Correction plate - Material
Float glass

Focuser


Type of build
Internal
Connecting thread (telescope side)
SC
Gear reduction
without

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Prism rail
Losmandy-Style
Carrying handle
yes
Dew Shield
no
Deviating optics
no
finder base
Meade/Explore Scientific T-Profil
Finder scope
without

General


Series
OTA
Length (mm)
790

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
yes
Astrophotography
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Recommended accessories

Workshop service (1)

Astroshop Adjustment & auto-collimation star test Schmidt Cassegrain 12"-16"

$ 131.00*
Telescope accessories > Prisms & Diagonal mirrors (4)
Diagonal mirror

Omegon Carbonline 2'', 90° SC mirror star diagonal, 99% dielectric

$ 199.00*
Telescope accessories > Focusers (3)

Meade 1.25" Eyepiece Adapter for SCT and ACF models

$ 65.00*
Telescope accessories > Transport & storage (4)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (5)

Meade SC/T2 adapter

$ 76.00*
Eyepieces (3)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (1)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Nebulae filters (5)
Filters

Omegon Filters 1.25'' deep sky filter

$ 89.00*
Filters > Other (2)
Filters

Omegon Filters Variable grey filter 1.25"

$ 39.90*
Astrophotography > Camera adaptor (3)
Projection adapter

Omegon Camera adapter 1.25"

$ 24.90*
Astrophotography > Other (5)
Camera

Meade Camera Deep Sky Imager DSI IV Color

$ 1,530.00*
Mounts & accessories (2)
Mount

Skywatcher Mount EQ6-R Pro SynScan GoTo

$ 2,200.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 18.90*
Solar Observation (1)
Filters

Meade Filters Glass Solar Filter 1375 ID 349MM

$ 417.00*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Meade Telescope ACF-SC 305/3048 UHTC LX200 OTA

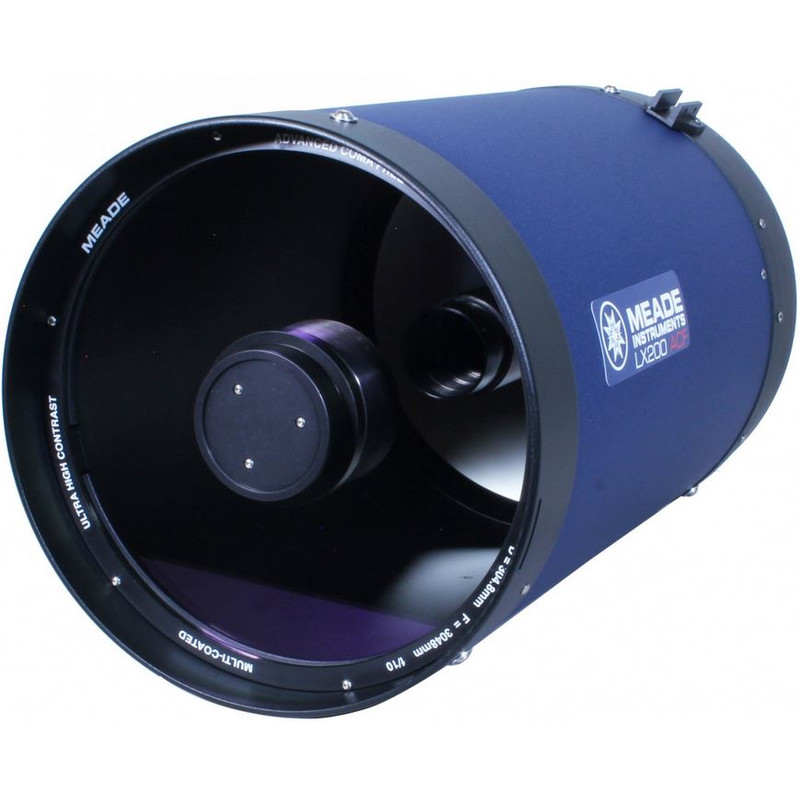

Example image 1

Meade Telescope ACF-SC 305/3048 UHTC LX200 OTA

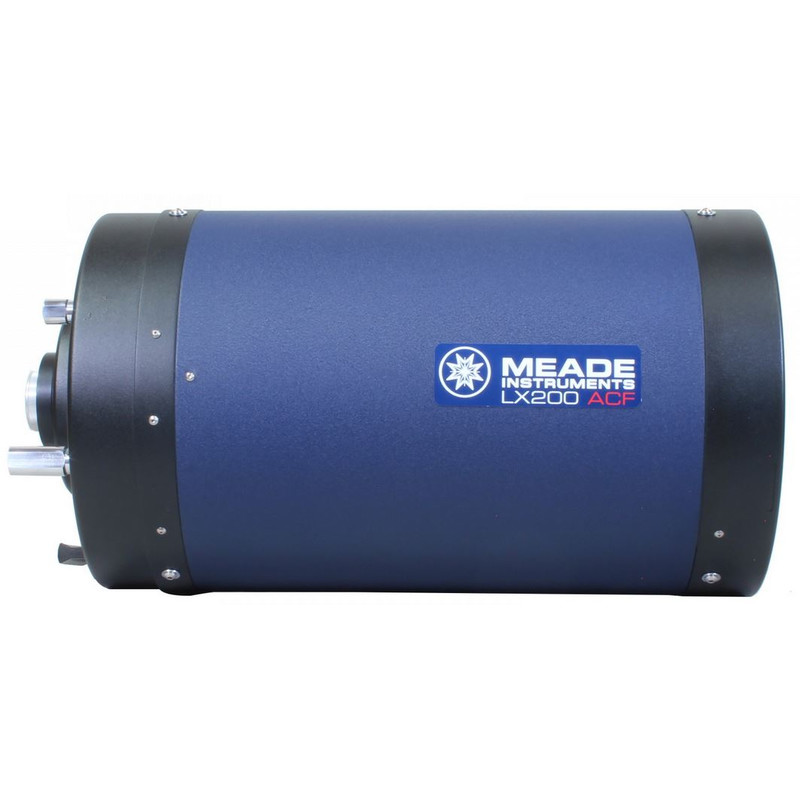

Example image 2
