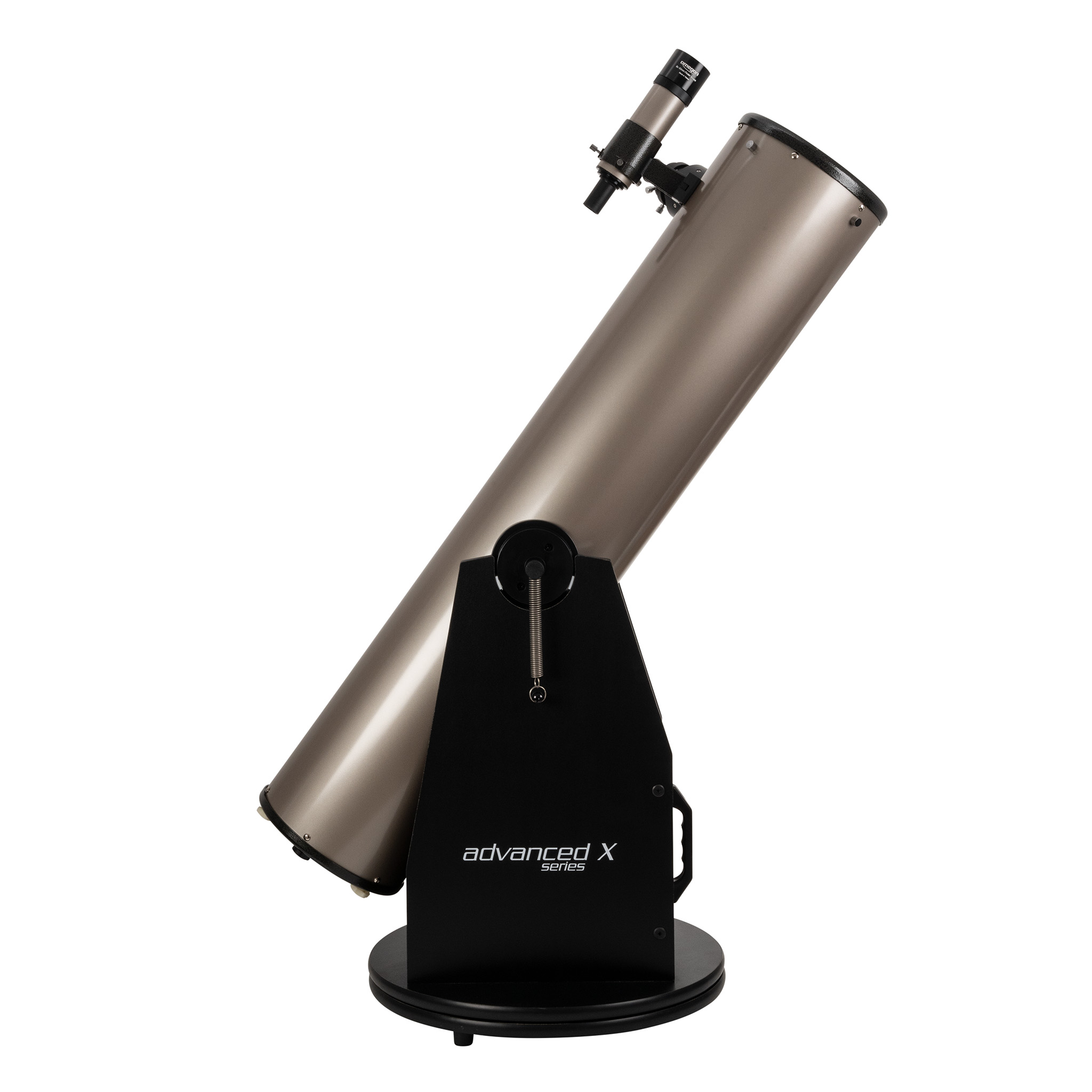

Omegon Dobson telescope Advanced X N 203/1200

Product description

Specifications

Customer reviews

Recommended accessories

Downloads

Product description:

Now the whole sky consists of nebulae, star clusters and galaxies
The Omegon Advanced X Dobsonian - this is a 'fast' telescope with which you can comfortably observe planets, star clusters, nebulae and galaxies. It is finished to a high-quality, consists of only two sections and is very easy to use. Even if you are a beginner you will have no problems operating it, as it is not neceassry to align the axes. It works on a simple principle - set it up and start observing immediately. But there is even more to it.

The advantages in a nutshell

smooth fine focusing - 2" Crayford focuser with 1.25" adapter
Teflon bearing and tensioning springs - these let you move the telescope in all directions, up to the zenith or around its own axis
main mirror - 94% enhanced coating for brighter images
faster cool-down for getting started observing faster - main mirror fan

Main mirror with 94% reflection coating for brighter images
A Dobsonian telescope is an expert in deep sky observing. High contrast, a wealth of visible detail and a bright image go with an excellent telescope just like the stars belong in the night sky - and this is exactly what the parabolic main mirror provides you with. The 94% 'enhanced coating' on the mirror means you can enjoy ultra-bright images, and even lets you make out deep sky objects at the limits of perception.

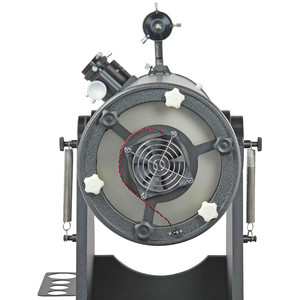

Get started with your observing faster - main mirror fan
Just a quiet, unobtrusive hum, but with a big effect - the built-in 12V fan means 50% faster cool-down of your main mirror. This allows your telescope to reach optimum image quality more rapidly. So you do not have to wait so long any more.

2" Crayford focuser
Use 1.25" or the larger 2" eyepieces for stunning visual observing. The ball bearings allow you to smoothly focus your objects.

Easy to move in all directions
Move the telescope to view an object and then track it - nothing is simpler! ATeflon bearing on the large azimuth turntable and two tensioning springs on the altitude axis allow you to move your telescope freely in all directions, and to manually track objects to always keep them in the field of view.

The Dobsonian advantage - simple and rapid assembly
What is the advantage of this design? A Dobsonian telescope consists of only two parts, which you can put together in no time. It is also much less expensive than a comparable sized telescope on an equatorial mount. Its main use is for enjoying visual observing. Discover the night sky - it is unbelievable what you can see using your own eyes.

Included in delivery

telescope + rockerbox with eyepiece tray
8x50 finder scope

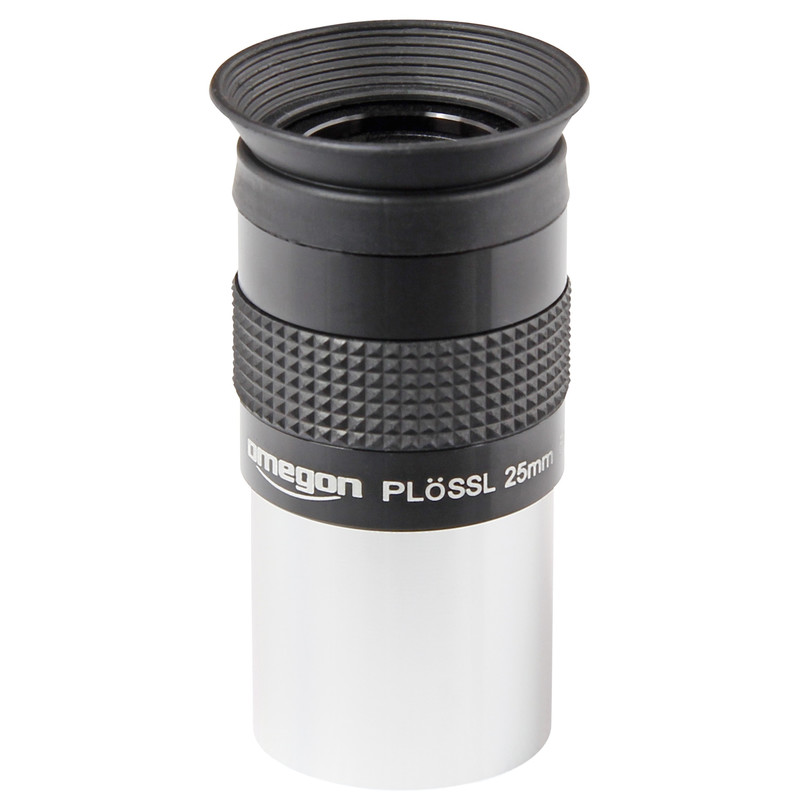

1.25", 25mm eyepiece

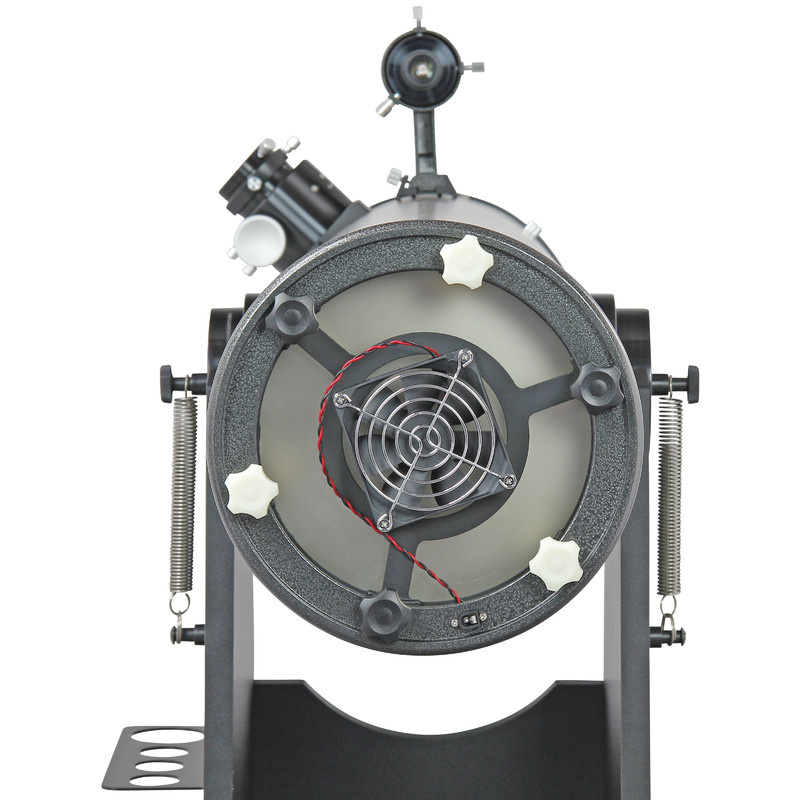

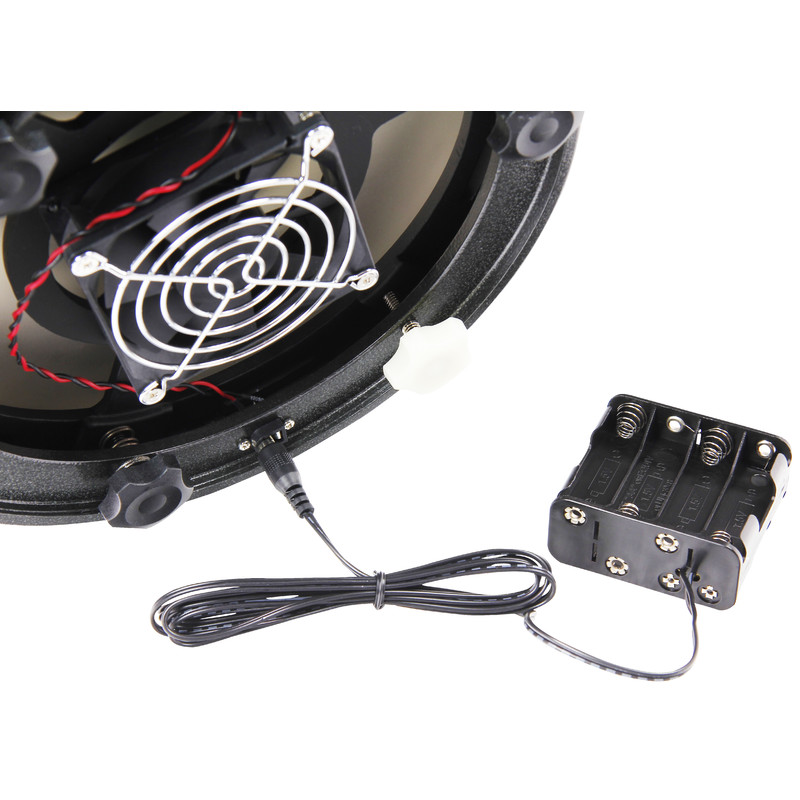

Faster cool-down for getting started observing sooner - main mirror fan

The battery pack takes eight 1.5V AA batteries.

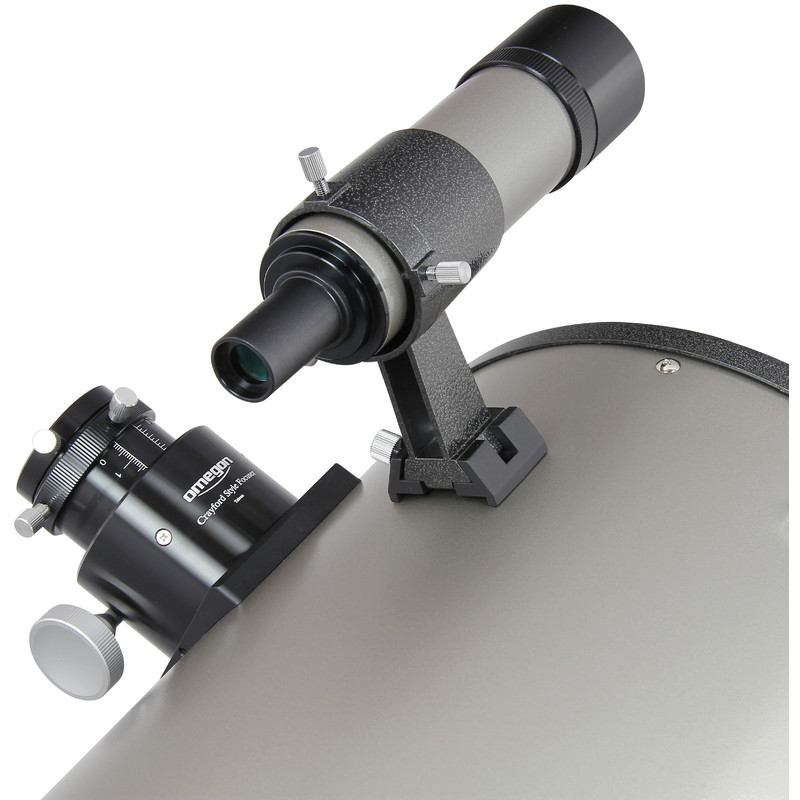

Crayford focuser for 2" and 1.25" eyepieces plus an 8x50 finder scope

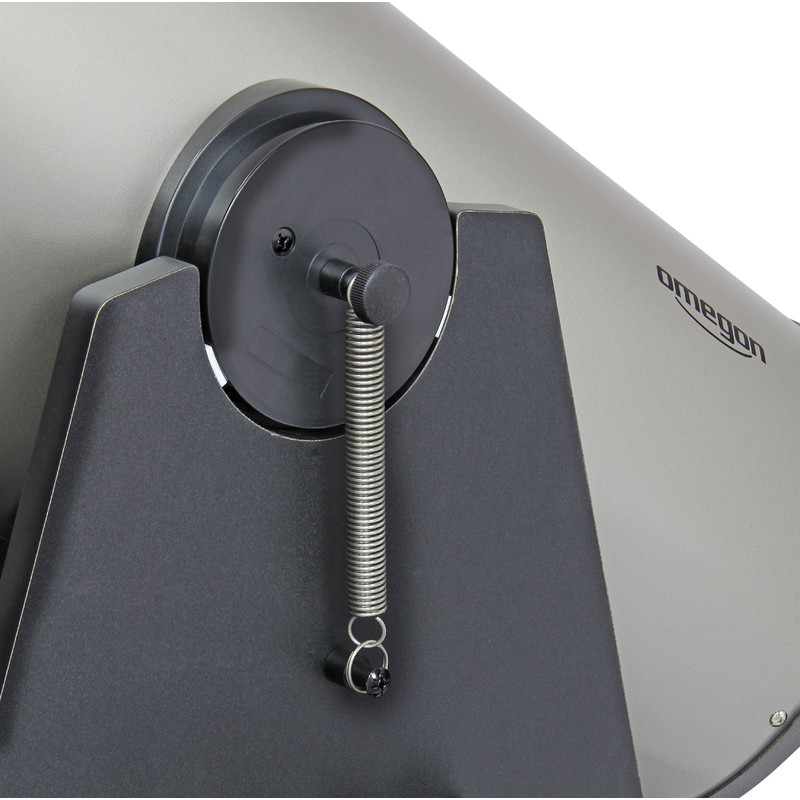

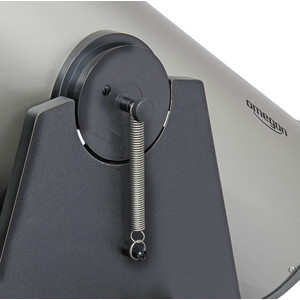

Well-designed adjustment in the altitude axis - two large altitude wheels for smooth movement and tensioning springs steady the telescope

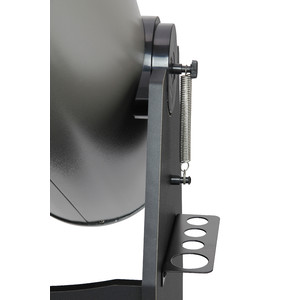

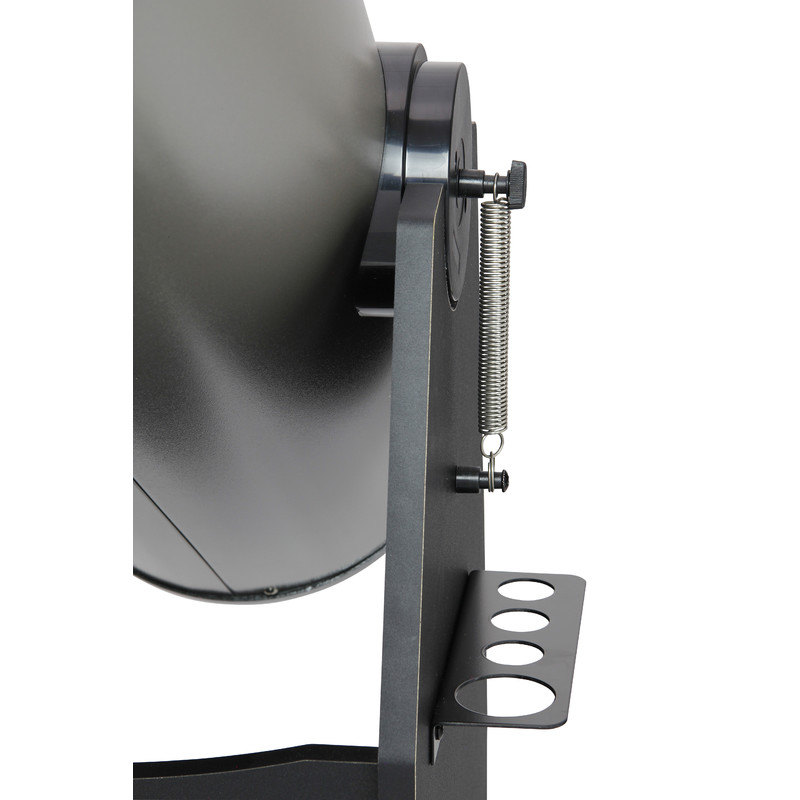

Practical and always handy - eyepiece tray suitable for a 2" eyepiece or three 1.25" eyepieces

Recommended accessories:

Before buying this product, make sure to check our accessory recommendations.

accessory details

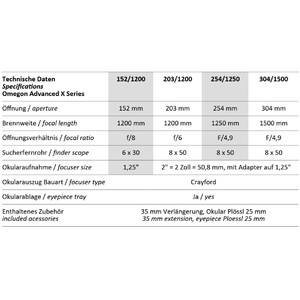

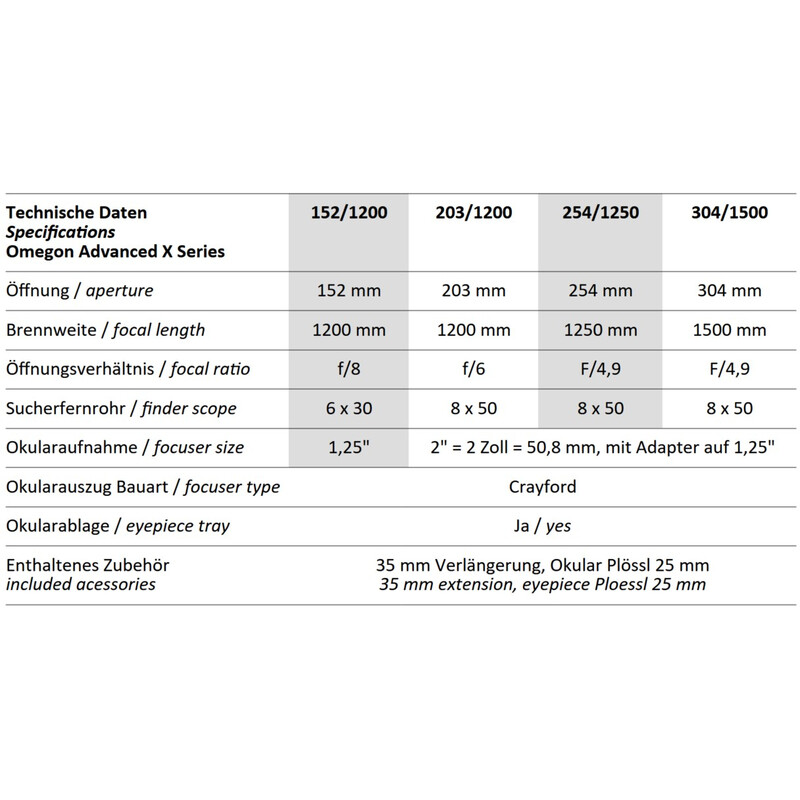

Optics
Type	Reflector
Type of build	Newton
Aperture (mm)	203
Focal length (mm)	1200
Aperture ratio (f/)	6
Resolving capacity	0,58
Limit value (mag)	13,3
Light gathering capacity	820
Max. useful magnification	400
Tube weight (kg)	10,2
Focuser
Type of build	Crayford
Connection ( to eyepiece)	2
Mount
Mounting type	Dobson
Type of build	Dobson
GoTo control	no
Tracking	no
Tripod
Type	Rockerbox
Material	Wood
Included accessories
1.25'' eyepieces	Plössl 25mm - 1,25
Finder scope	8x50
Miscellaneous	eyepiece tray
General
Total weight (kg)	20,4
Series	Advanced X
Special recommendation	yes
Area of application
Moon & Planets	yes
Nebulae & galaxies	yes
Nature Observation	not recommended
Astrophotography	not recommended
Sun	not recommended (Only with appropriate Sun filter)
recommended for
Beginners	yes
Advanced	yes
Experienced amateurs	no
