Telescopes > Meade > LightSwitch > Meade Telescope ACF-SC 203/2000 LightSwitch 8 GoTo
( 4 / 5 )
Product no.: 20031

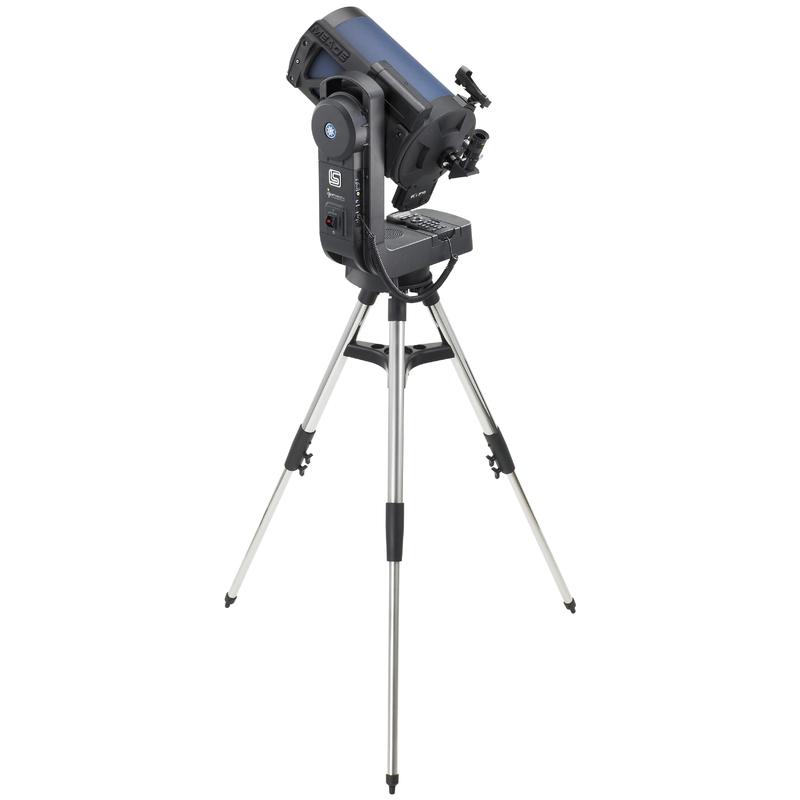

Telescope ACF-SC 203/2000 LightSwitch 8 GoTo

$ 2,700.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Meade ACF-SC telescopes:

Almost every large telescope worldwide is a Ritchey-Chrétien, including NASA's Hubble space telescope. The technology used by the pros can now belong to you too. Meade's new Advanced Coma-Free System - powerful and high-precision - is within the reach of all ambitious amateur astronomers, astrophotographers and CCD photographers! It provides perfectly sharp star images, at the highest professional observatory level, over the entire field of view. The secret of coma-free system is - as the name says - the complete absence of coma, an optical aberration in which starlight is distorted and pulled into comet-like tails outside the central part of the image. Whether for observing or photography, the ACF Cassegrain optics from Meade is way ahead of conventional mass produced telescopes. It offers fantastic image quality, previously only available from Ritchey Chrétien telescopes and other exotic systems costing several times as much as the Meade system.

The LightSwitch GoTo mount:

The new innovative LightSwitch technology avoids all the difficulties that most beginners normally encounter with telescope alignment. After turning it on, the telescope aligns itself completely automatically and without further input. Equipped with an integrated sensor module (ISM), encompassing GPS and LNT (Level North technology), and combined with the new Eclips CCD camera, the new patented LightSwitch technology replaces the human eye and offers the only alignment procedure, worldwide, that needs no user input currently available in the field of amateur telescopes. After turning it on, electronic sensors download the current time and work out the current location of the device. Precision alignment is then carried out with the help of two stars, which are recorded and compared to an internally generated current star map within the camera. The telescope is then aligned, with no interactive user input necessary.

Equipped with a simple-to-use user interface and a high-sensitivity, low-noise wide-angle digital camera, the user can create high resolution images of the night sky, which can either be stored on SD card or immediately examined via the telescope's video output. By means of built-in speakers and video output, the 'built-in astronomer' (Astronomer Inside) takes the user to the most beautiful celestial objects, and includes an encyclopedia of the night sky that can provide interactive guided tours of hundreds of deep sky objects using pre-programmed audio and video material.


It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Our expert comment:

The instrument has been tested by our colleague Marcus Schenk and has left a very positive impression. You only have to turn it on, and the entire location and time inputting as well as alignment using the alignment star takes place automatically. His comment: A marvel of technology!

The instrument's own camera is only used as an electronic finder for alignment with the star selected. Photography through/with the optics of the telescope is not possible. Although it is possible to output the signal, it is actually not a good astronomy camera. If you want to look at the image on a PC, we recommend adding the DSI camera from Meade

Menu navigation on the Autostar control is in English.

(Bernd Gährken)

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
203
Focal length (mm)
2000
Aperture ratio (f/)
9,9
Resolving capacity
0,57
Limit value (mag)
13,3
Light gathering capacity
840
Max. useful magnification
406
Coating
UHTC
Tube material
Aluminium
Tube length (mm)
360
Tube weight (kg)
13,6
Tube construction
Full tube

Reflector


Correction plate - Material
Float glass
Primary mirror - Material
Pyrex glass
Secondary mirror material
Pyrex glass

Focuser


Type of build
SC thread
Connection ( to eyepiece)
2

Mount


Type of build
LightSwitch
Mounting type
Azimuthal
GoTo control
yes
Tracking speed
6,5 - 3 - 1,5
Tracking speed
128 - 64 - 16 - 8 - 2 - 1
Power supply
12
Power consumption (mA)
2500

GoTo control


Alignment method
LightSwitch, fully automated
Software
AutoStar #497
GPS
yes
Database
100.000
Tracking speeds
sidereal, Lunar, custom
GoTo Language
English

Tripod


Type
Tripod
Height (cm)
64 - 110
Material
Steel

Included accessories


1.25'' eyepieces
26mm
Deviating optics
1.25", 90°Amici prism
Finder scope
Red dot finder

General


Series
LightSwitch
Special recommendation
yes

Area of application


Sun
not recommended

Recommended for


Observatories
no
Advanced
no
Beginners
yes

Recommended accessories

Telescope accessories > Prisms & Diagonal mirrors (4)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Adaptors (3)

Meade SC/T2 adapter

$ 75.00*
Telescope accessories > Transport & storage (5)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Cables & power supplies (8)
Power pack

Meade Power pack 230V / 12V 5A

$ 118.00*
Telescope accessories > Other (5)
Soft dew shield cap

Astrozap Soft dew shield cap Meade SC 203/2000 LightSwitch 8

$ 129.00*
Eyepieces (5)
Eyepiece

Omegon Eyepiece LE Planetary 18mm 1,25''

$ 149.00*
Eyepieces (3)
Eyepiece

Omegon SWA 38mm eyepiece, 2”

$ 179.00*
Eyepieces (4)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces (4)

Omegon Suitcase with eyepieces and accessories

$ 199.00*
Eyepieces > Other (4)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Moon filters & Polarizing filters (4)
Filters

Omegon Filters Variable grey filter 1.25"

$ 34.90*
Filters > Nebulae filters (8)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (2)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Camera mounts (4)

Omegon Easypic Universal Smartphone Adapter

$ 129.00*
Astrophotography > Other (1)
Adaptors

Baader Adaptors Plug-in connection 2 " A/T-2a for putting into all 2 " Okularauszüge

$ 43.90*
Mountings & accessories (1)

Meade Vibration Isolation Pads

$ 97.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)

John Wiley & Sons Astronomy For Dummies

$ 24.90*
Outdoor > Lamps (3)
Astronomy torch

Explore Scientific Astronomy torch Astro R-Lite

$ 18.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 18.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Meade Telescope ACF-SC 203/2000 LightSwitch 8 GoTo

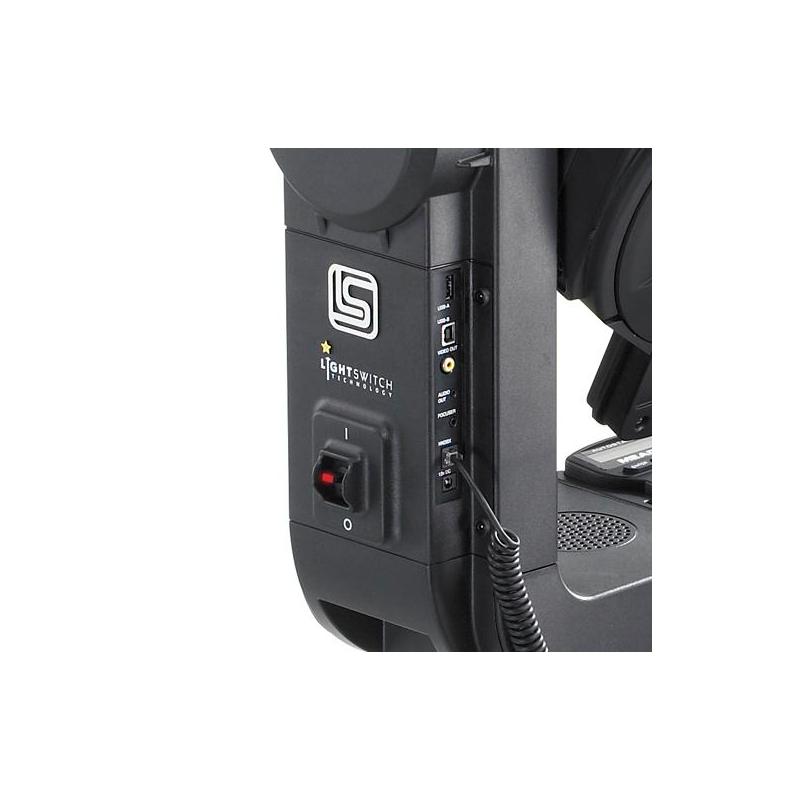

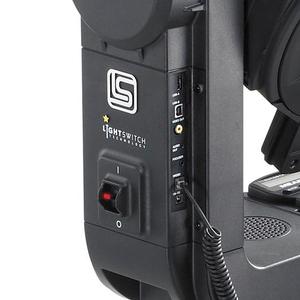

The LightSwitch main switch - switch on and get started. In addition the extensive and compact input/output section.

Meade Telescope ACF-SC 203/2000 LightSwitch 8 GoTo

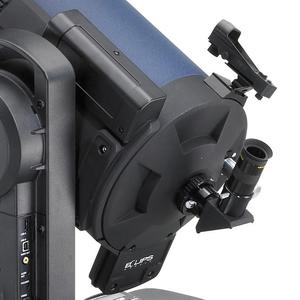

The focuser, red dot finder and Eclips CCD imaging unit in detail

Customer reviews

Meade LightSwitch 8 inch ACF

Review by Siemen Geeraerts on 29.08.2011 15:27:09

( 4 / 5 )

Hi,
I got my Meade LightSwitch 8" about 4 months now and i'm very happy that I buy it here at "Astroshop"(very good service!).
Its is my first telescope ever. It's a quick and easy setup, no problem for one person!
In a clear night you just need to flip a switch and 7 minutes later you ready to go (Yes, It's just that easy!).
The onboard media data on this telescope is very cool and interesting for people that wanna learn more about stars, planets, messiers, ... So it's worth to buy the Meade LCD-screen where the media shows you lots of cool pictures and animations of celestial bodies (More fun for the people around you). I like this scope the only negative thing is that mead doesn't have a equatorial mount for the lightswitch what is necessary for long exposures (> 5 min). Maybe mead is making it in the future.
