Telescopes > Meade > Other > Meade Telescope ACF-SC 355/3550 14" UHTC LX200 OTA
Product no.: 10197

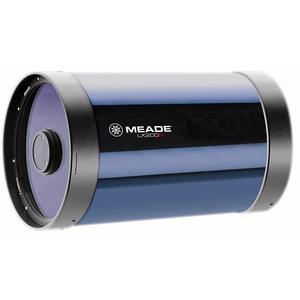

Telescope ACF-SC 355/3550 14" UHTC LX200 OTA

$ 7,300.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Meade ACF-SC telescopes:

Almost every large telescope worldwide is a Ritchey-Chrétien, including NASA's Hubble space telescope. The technology used by the pros can now belong to you too. Meade's new Advanced Coma-Free System - powerful and high-precision - is within the reach of all ambitious amateur astronomers, astrophotographers and CCD photographers! It provides perfectly sharp star images, at the highest professional observatory level, over the entire field of view. The secret of coma-free system is - as the name says - the complete absence of coma, an optical aberration in which starlight is distorted and pulled into comet-like tails outside the central part of the image. Whether for observing or photography, the ACF Cassegrain optics from Meade is way ahead of conventional mass produced telescopes. It offers fantastic image quality, previously only available from Ritchey Chrétien telescopes and other exotic systems costing several times as much as the Meade system.

All LX200 models feature a primary mirror locking mechanism, which effectively prevents movement of the primary mirror during long exposure astrophotography or observing. Turn the lock knob located just above the telescopes main focus knob and the progressive-tension primary lock completely cancels any residual image shift due to mirror movement during visual, photographic, or imaging applications.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
355
Focal length (mm)
3550
Aperture ratio (f/)
10
Resolving capacity
0,32
Limit value (mag)
14,6
Light gathering capacity
2570
Max. useful magnification
710
Coating
UHTC
Tube weight (kg)
23

Reflector


Primary mirror - Diameter (mm)
365
Correction plate - Material
Float glass
Primary mirror - Material
Pyrex glass
Secondary mirror material
Pyrex glass

Focuser


Connection ( to eyepiece)
2

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

General


Series
Other

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
yes
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes

Product safety

Manufacturer: Meade Acquisition Corp. / Sea Freight, 89 Hangar Way, CA 95076 Watsonville, US, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
