Telescopes > Officina Stellare > RiDK > Officina Stellare Dall–Kirkham telescope DK 400/2800 RiDK SGA OTA
Product no.: 56951

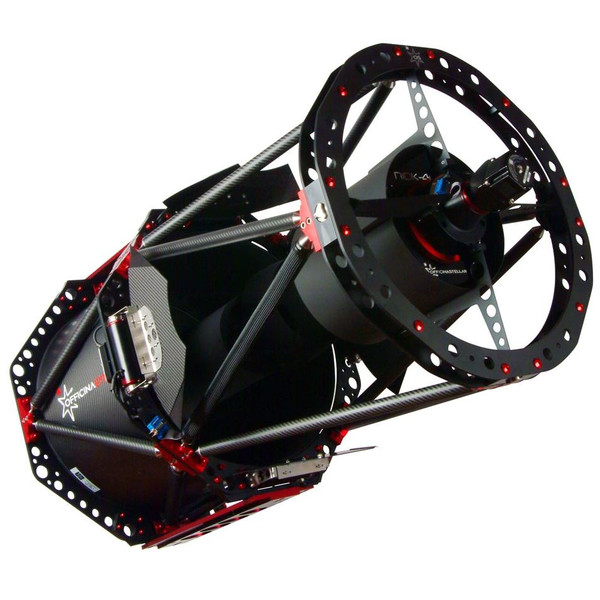

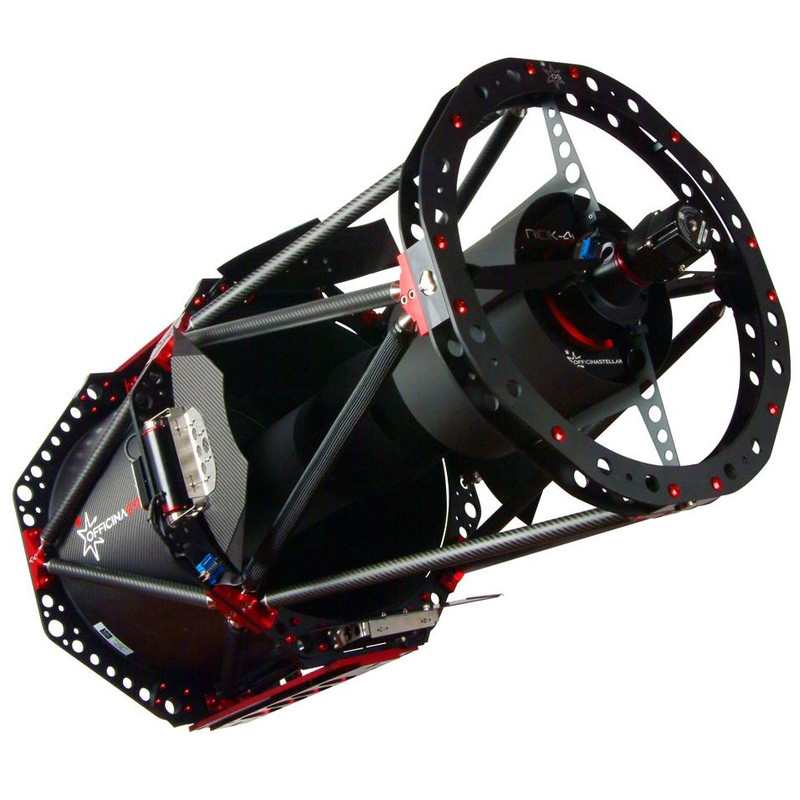

Dall–Kirkham telescope DK 400/2800 RiDK SGA OTA

$ 23,000.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

The RiDK Range (Riccardi Dall-Kirkham) represents the new reference point for all modified Dall-Kirkham instruments available on the market. The unique experience and creativity of Massimo Riccardi, Chief Optical Designer at Officina Stellare, gives birth to a new class astrograph of superior performance and image quality.

The results are simply amazing: an optical system based on a spherical secondary mirror (then very easy to aling!) able to deliver minimum 70mm large corrected and flat field (depending from diameter) that with a polychromatic (range 400 to 750 nm) maximum 4 micron spot size at field edge! Since the corrector group is close to the focal plane, chromatic aberration is undetectable.

These outstanding optics are mounted inside the state of the art OS truss mechanics used in all the OS open tube architecture telescopes. The same mechanics approved and used from worldwide research institutes for professional studies, designed to be thermal stable versus temperature change.

The RiDK series is 100% Made in Italy. Optics are made in Occhiobello Plant under the strict quality control of Massimo Riccardi.

Specifications

Optics


Type
Reflector
Type of build
Dall–Kirkham telescope
Aperture (mm)
400
Aperture ratio (f/)
7
Resolving capacity
0,29
Limit value (mag)
14,8
Light gathering capacity
3270
Max. useful magnification
800
Tube material
Carbon
Focal length (mm)
2800
Tube construction
Truss Tube

Reflector


Secondary mirror obstruction
48

Focuser


Backfocus (mm)
240
Type of build
FF72
Free aperture (mm)
72
Motorized
no
Load capacity (kg)
7
Adjustment range (mm)
15
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M72

Mount


Type of build
OTA

Included accessories


Prism rail
Losmandy-Style
focusing help
no

General


Series
RiDK
Total weight (kg)
40

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no

Recommended for


Beginners
no
Advanced
no
Observatories
yes

Downloads
