Telescopes > Tecnosky > Tecnosky Apochromatic refractor AP LUX 60/360 ED OTA
Product no.: 76426

Apochromatic refractor AP LUX 60/360 ED OTA

$ 402.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • ED doublet with FPL-53 glass
  • Fast aperture ratio of f/6
  • Small and lightweight – the perfect travel companion
  • Fine focusing via helical focuser

Product description

In brief:

  • ED double lens with FPL53 glass
  • Fast f/6 aperture ratio
  • Small, compact, lightweight – the perfect travel companion!
  • Fine focusing via helical focusers

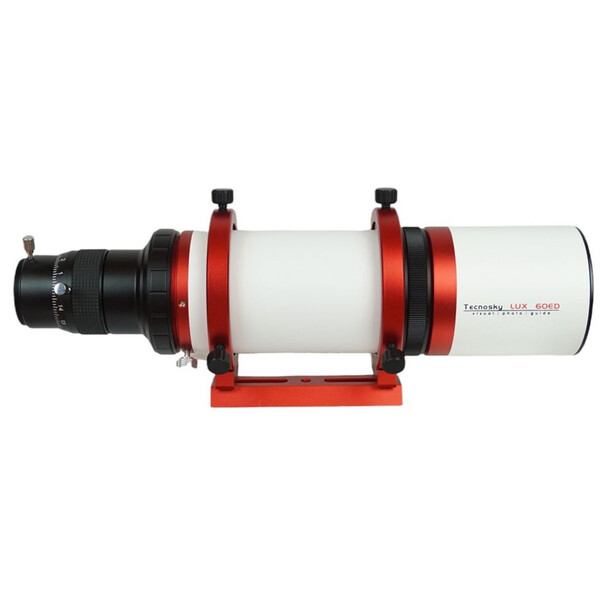

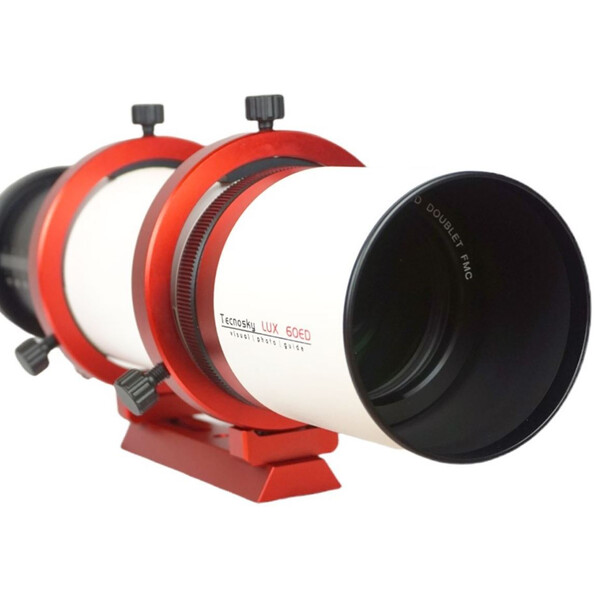

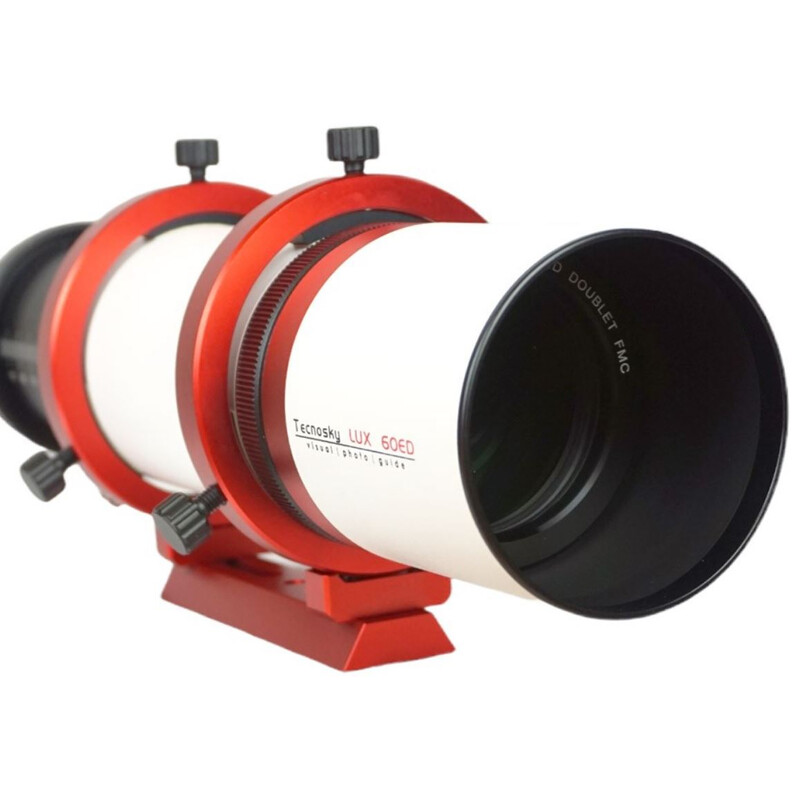

The Tecnosky LUX60 is a small apochromatic refractor with a diameter of 60 mm, FPL53 glass and a focal length of 360 mm (f/6).

Visual use:

With a diagonal mirror and a 30 mm - 40 mm eyepiece (also zoom), it can be used for wide-field observations of star clusters and extensive nebulae. Even at magnifications of up to 150x, it is possible to discover numerous details on the Moon and planets!

If you use a 45° Amici prism instead of the classic 90° diagonal mirror, you have a telescope for daytime observation in outstanding quality!

Photography:

Thanks to the apochromatic 60 mm doublet and the fast f/6 aperture ratio, the LUX60 can be used for deep sky astrophotography – no flattener is required for small sensors, while a field flattener is recommended for larger 4/3" or APS-C sensors.

Guiding:

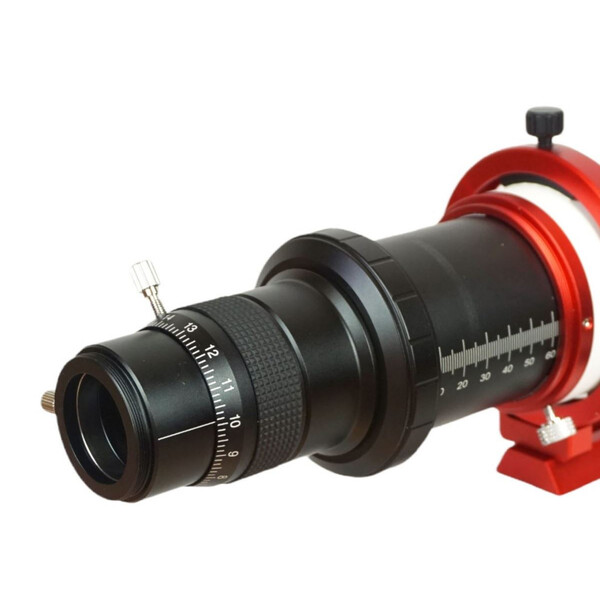

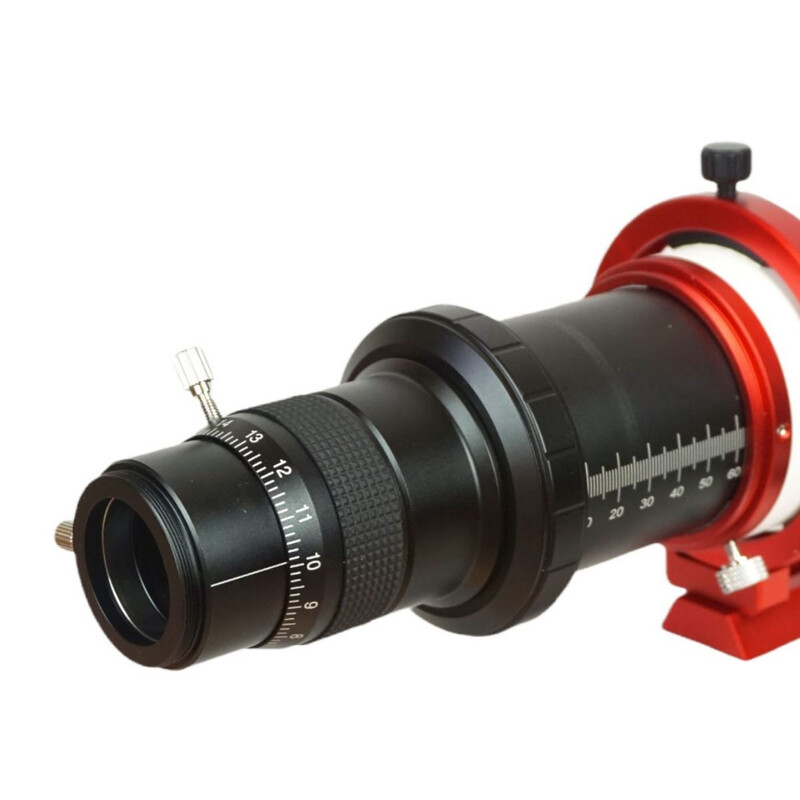

The exceptional optical quality of this refractor also improves autoguiding; in fact, a very precise guide star is always advisable to ensure high-quality tracking control. The robust helical focuser does not rotate during focusing and can be locked in place.

The removable, graduated extension allows focusing even with cameras with a short back focus!

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
60
Focal length (mm)
360
Aperture ratio (f/)
6
Resolving capacity
2,30
Limit value (mag)
12,3
Light gathering capacity
70
Max. useful magnification
120
Tube material
Aluminium
Tube weight (kg)
1,3
tube diameter (mm)
76
Stray light baffles in the OTA
yes
Tube construction
Full tube
lens design
Doublet
Coating
FMC

Focuser


Type of build
Helical
Gear reduction
without
Rotating
no
Connection ( to eyepiece)
1.25
Connecting threaded socket (camera-side)
T2
Backfocus (mm)
130

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Prism rail
Vixen-Style
Tube clamps
yes
Dew Shield
yes
Transport cases
no
Deviating optics
no
Finder scope
without
Carrying handle
no
finder base
without

Area of application


Astrophotography
yes (very good)
Moon & Planets
not recommended
Nebulae & galaxies
yes

Recommended for


Beginners
no
Advanced
yes
Observatories
no
