Telescopes > APM > LZOS > APM Apochromatic refractor AP 130/780 LZOS 3.7-ZTA Riccardi Reducer M63 OTA
Product no.: 70783

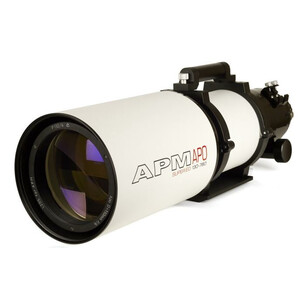

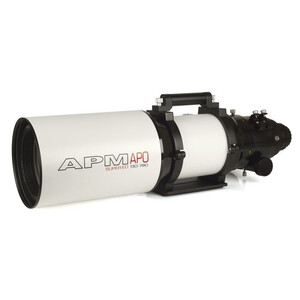

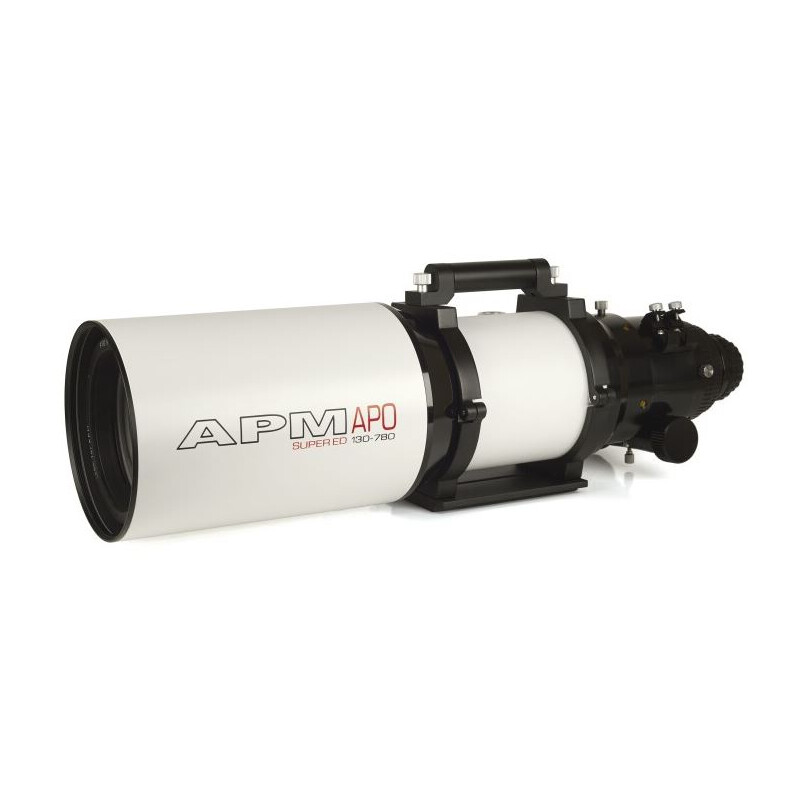

Apochromatic refractor AP 130/780 LZOS 3.7-ZTA Riccardi Reducer M63 OTA

$ 6,900.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The 130 mm f/6.0 APM LZOS Triplet SuperED Apo is one of the world's best telescopes in terms of quality and imaging performance. With f/6, it is in the optimal mid-range for both visual and astrophotographic use. In just a few simple steps, you can transform this instrument from a very good planetary telescope into a high-quality astrograph. The back focus is fully sufficient for binoculars or long astrophotographic image trains.

The high-quality multi-coating and the optimised interior of the tube contribute significantly to the overall result.

An interferometric test report is included in the scope of delivery, providing information about the exact optical performance data.

The basic equipment of the telescope is already quite extensive and includes, for example, a Losmandy rail, CNC tube clamps, a finder shoe and a sturdy case.

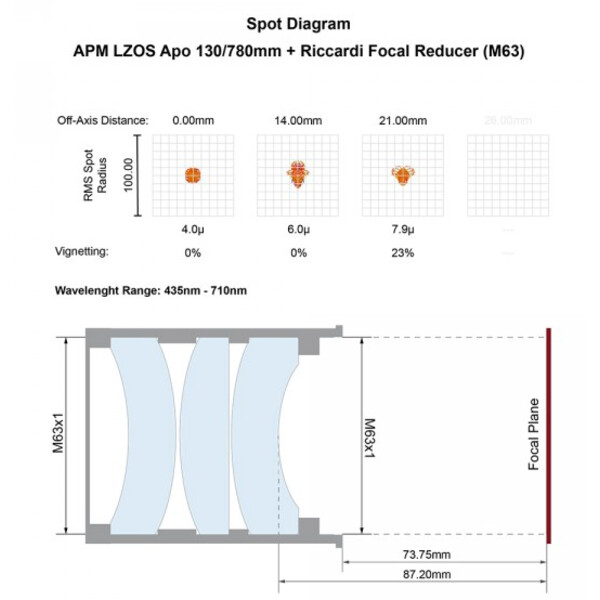

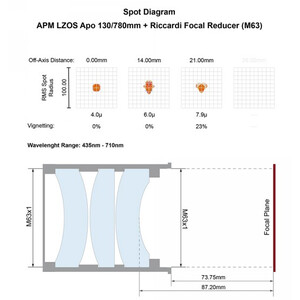

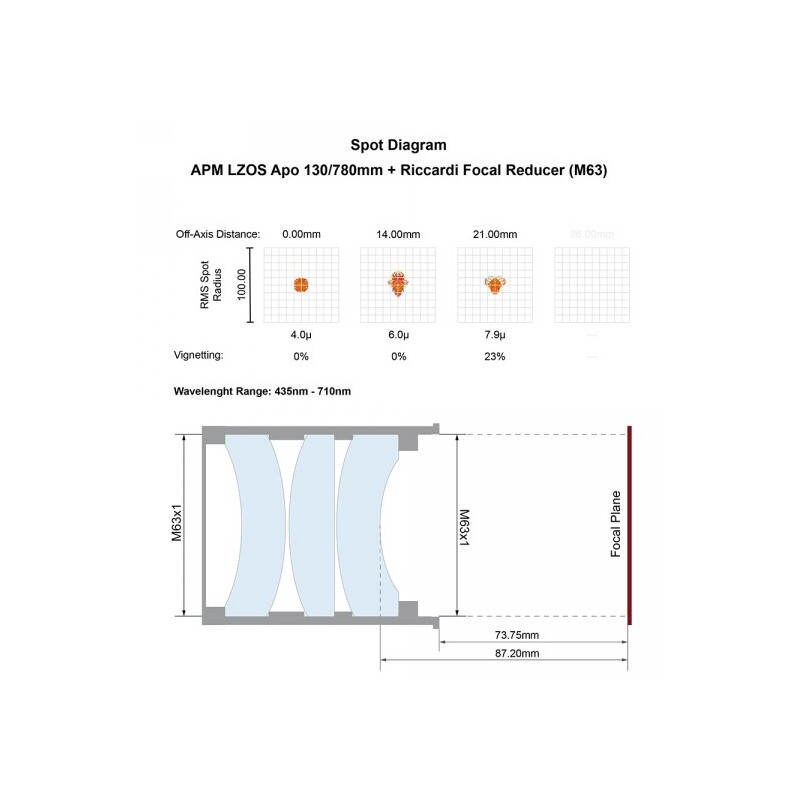

Ricardi Reducer: This focal length reduction lens and adapter are included in the scope of delivery. The focal length is reduced to 585 mm, while the aperture ratio is reduced from f/6.0 to f/4.5. The fully corrected image circle is 42 mm.

The Riccardi Reducer allows a camera to be connected via the M48 thread. However, an M48/T2 adaptor is also included in the scope of delivery.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
130
Focal length (mm)
780
Aperture ratio (f/)
6
Resolving capacity
1,06
Limit value (mag)
12,4
Light gathering capacity
340
Max. useful magnification
260
Tube weight (kg)
10
Tube length (mm)
830
Carrying length (mm)
680
lens design
Triplet
Coating
FMC
Tube material
Aluminium
Fully Corrected Field (mm)
42

Focuser


Type of build
Hybrid
Free aperture (mm)
94
Connection ( to eyepiece)
2
Gear reduction
1:10 fine focusing
Rotating
yes
Connecting threaded socket (camera-side)
M48
Backfocus (mm)
180

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Corrector
0.75x Reducer
Prism rail
Losmandy-Style
Finder scope
no
finder base
Vixen/Skywatcher Level
Deviating optics
no
Eyepiece adaptor
2" / 1.25"
Tube clamps
yes
Dew Shield
yes
Carrying handle
yes
Transport cases
yes
Test protocol
yes

General


Series
LZOS

Area of application


Astrophotography
yes (very good)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: APM Telescopes - Markus Ludes, Quierschieder Weg 38, 66280 Sulzbach, DE, www.apm-telescopes.de

Recommended accessories

Telescope accessories > Prisms & Diagonal mirrors (4)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Transport & storage (4)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (2)
Adapter

Omegon 2'' adapters with reducer 1.25 ''

$ 29.90*
Eyepieces (4)
Eyepiece

Omegon Eyepiece LE Planetary 18mm 1,25''

$ 99.00*
Eyepieces (3)
Eyepiece

Omegon SWA 38mm eyepiece, 2”

$ 179.00*
Eyepieces (4)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (3)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Moon filters & Polarizing filters (3)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Filters > Nebulae filters (4)
Filters

Omegon Filters 1.25'' deep sky filter

$ 89.00*
Filters > Other (1)

Omegon 2'' filter wheel

$ 189.00*
Astrophotography > Cameras (13)
Camera

Omegon Camera GUIDE 2000 C Color

$ 199.00*
Astrophotography > Camera adaptor (8)
Camera adaptor

TS Optics Camera adaptor M48 compatible with Canon EOS R/RP

$ 42.90*
Astrophotography > Other (3)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Mounts & accessories (1)
Mount

Skywatcher Mount EQ6-R Pro SynScan GoTo

$ 2,320.00*
Observatories (1)

Omegon Tent observatory

$ 175.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 26.90*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 33.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

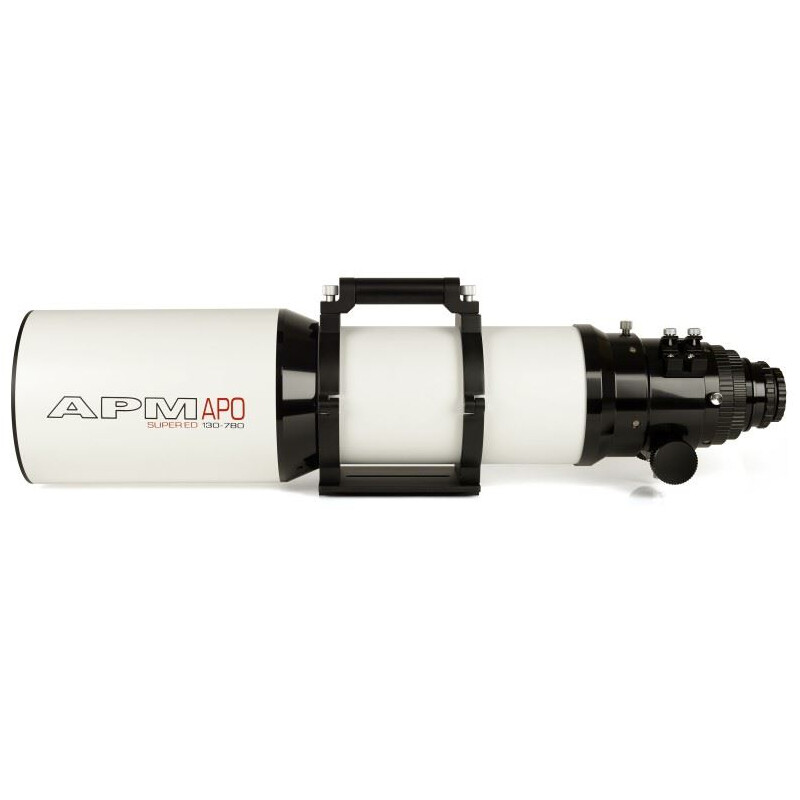

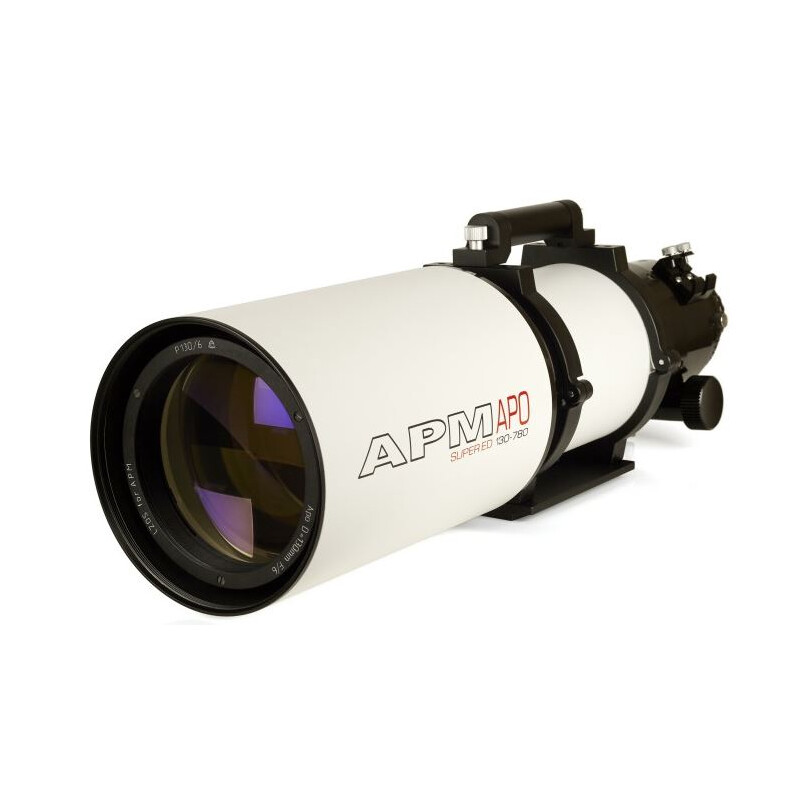

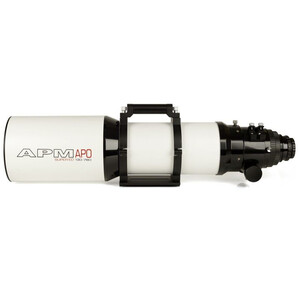

APM Apochromatic refractor AP 130/780 LZOS 3.7-ZTA  Riccardi Reducer M63 OTA

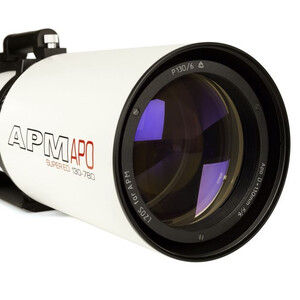

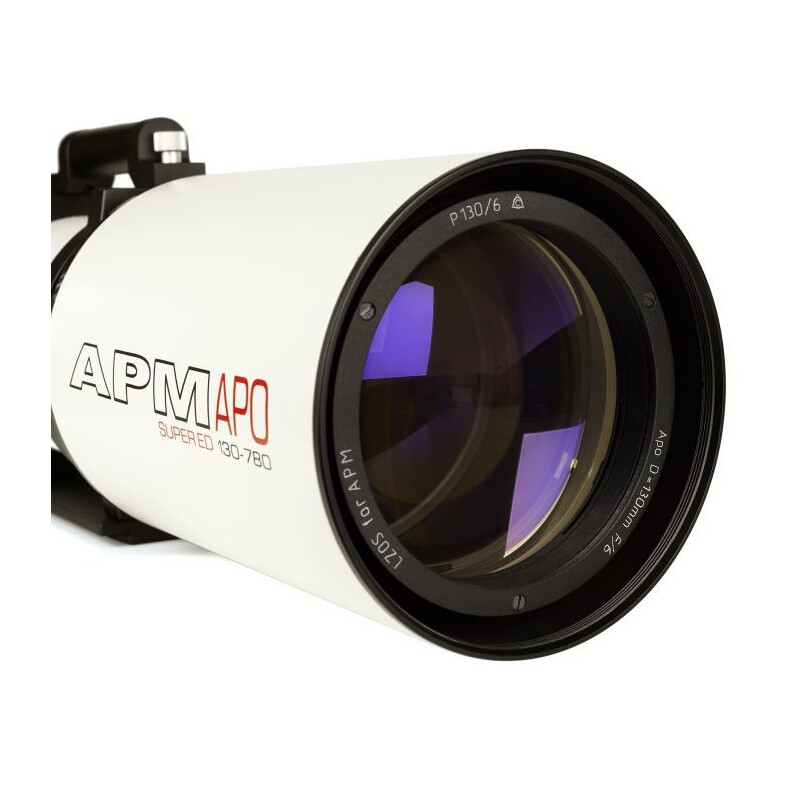

Original optics by LZOS
