Your partner for astronomy
Telescopes > Askar > Askar Apochromatic refractor AP 50/200 ACL200 OTA
Product no.: 70018

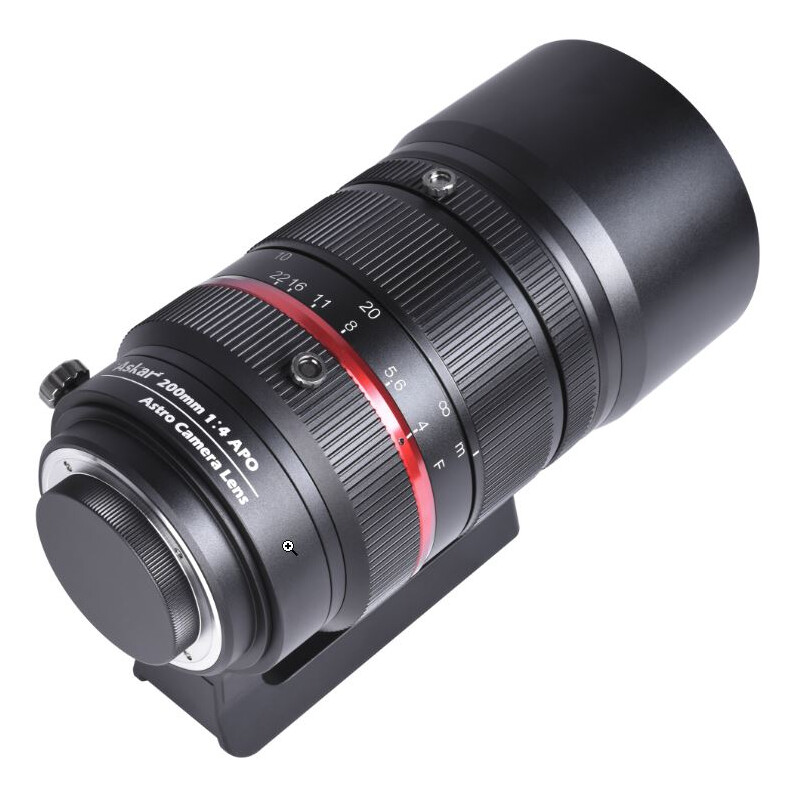

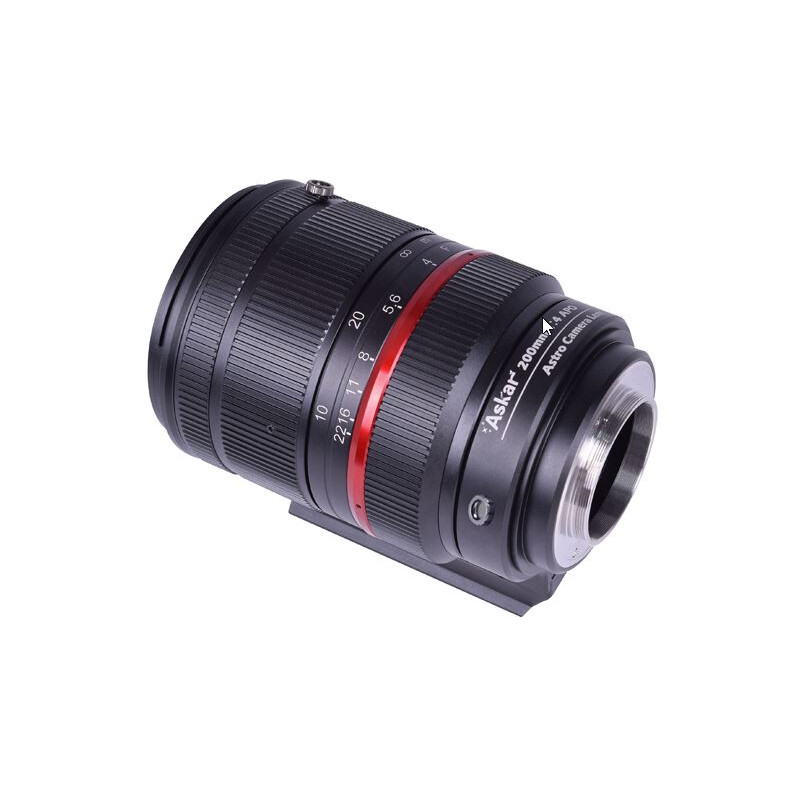

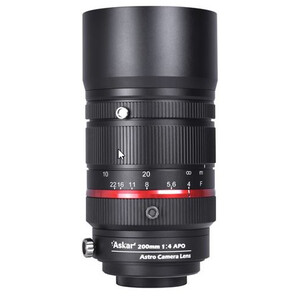

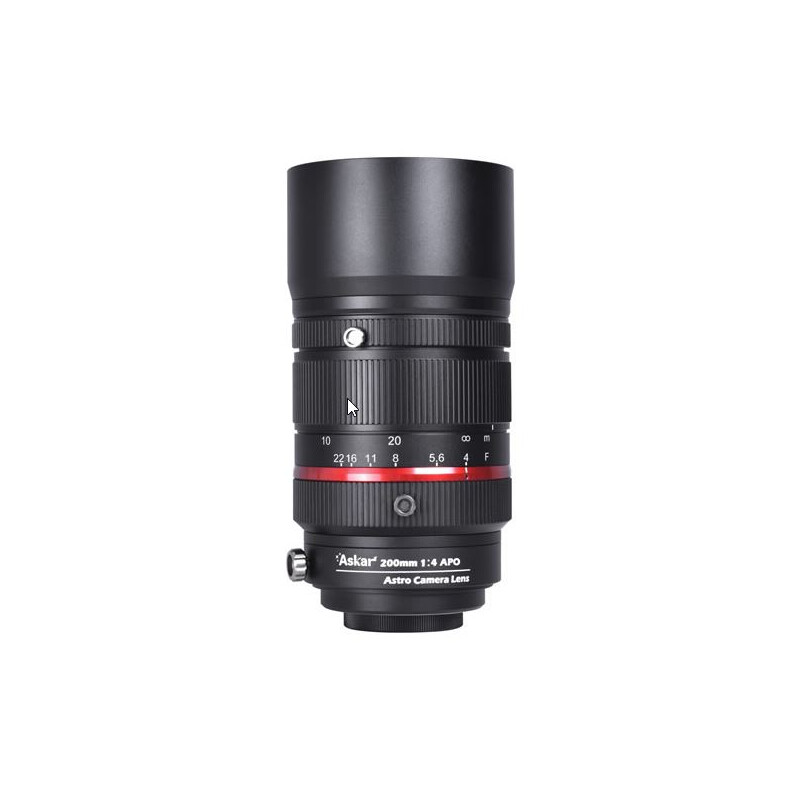

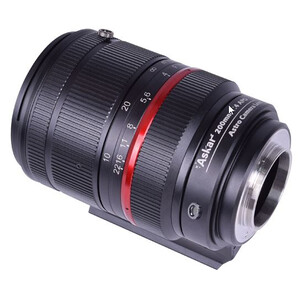

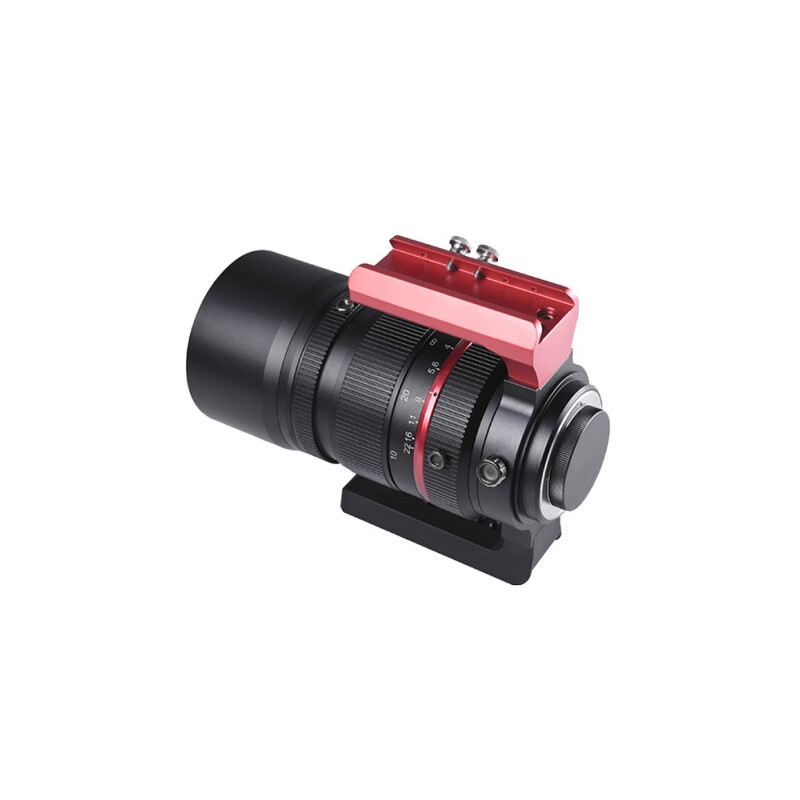

Apochromatic refractor AP 50/200 ACL200 OTA

$ 1,040.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
  • Telescope with the advantages of a telephoto lens
  • Corrected, fully illuminated image field up to full format
  • Apochromatic optics with integrated field flattener
  • Fine focus for precise sharpness
  • Landscape and wildlife photography from 3 metres close up with aperture f/4 to f/22

Product description

Full-featured apochromatic refractor combined with the convenient operation of a telephoto lens. The requirements of astrophotographers were taken into account in particular.

  • The optics are a 4-element apo with two ED special glass elements for the best possible colour correction. An additional 2-element corrector is permanently built into the tube and guarantees a distortion-free field up to full format.
  • In addition to normal focusing for landscape photography, microfocusing is also available at the front end of the apochromatic refractor. You can focus with an accuracy of 0.002 millimetres and then fix the optimal focus position.
  • The Apo has an M48x0.75 connection thread on the camera side with a working distance of 55 millimetres to the camera. This allows you to connect all common cameras with the appropriate T-ring.
  • In addition, the Apo has an M69x1 internal thread with a working distance of 66.5 millimetres.

Of course, you can also use the Apo without restriction for landscape and animal photography. The results will inspire you.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
50
Focal length (mm)
200
Aperture ratio (f/)
4
Resolving capacity
2,76
Limit value (mag)
10,3
Light gathering capacity
50
Max. useful magnification
100
lens design
Quadruplet
Tube weight (kg)
1,5
tube diameter (mm)
100
Tube length (mm)
195
Stray light baffles in the OTA
yes
Tube construction
Full tube

Focuser


Type of build
Helical
Connecting threaded socket (camera-side)
M48
Backfocus (mm)
55
Motorized
no
Gear reduction
yes
Rotating
yes

Included accessories


Dew Shield
yes
Corrector
integrated
Prism rail
Vixen-Style

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
yes (Photography)
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: SHARPSTAR OPTICS CO.,LTD, 3/F, No.5 building , Science and Technology Center, No.79 Jin-Sui Road,, 314001 Zhe-Jiang, CN, http://www.sharpstar-optics.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Telescope accessories > Transport & storage (5)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (8)
Adapter

TS Optics Adapter M69/M48

$ 72.00*
Eyepieces (8)
Eyepiece

Omegon Eyepiece OGDO 4mm 80°

$ 299.00*
Eyepieces > Other (2)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Nebulae filters (4)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (4)

Askar filter drawer

$ 248.00*
Astrophotography > Cameras (13)
Camera

Omegon Camera GUIDE 2000 C Color

$ 199.00*
Astrophotography > Camera adaptor (6)
Camera adaptor

TS Optics Camera adaptor M48 compatible with Canon EOS

$ 34.90*
Astrophotography > Camera mounts (4)
no image

TS Optics camera holder for finder shoe, with 1/4" screw

$ 44.90*
Astrophotography > Guiding (3)
Off-Axis-Guider

Askar Off-Axis-Guider T2/M48/M54

$ 317.00*
Astrophotography > Other (1)
Focusing Mask

TS Optics Focusing Mask Bahtinov 65-100mm

$ 35.90*
Observatories (1)

Omegon Tent observatory

$ 175.00*
Media (4)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 26.90*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 33.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Askar Apochromatic refractor AP 50/200 ACL200 OTA

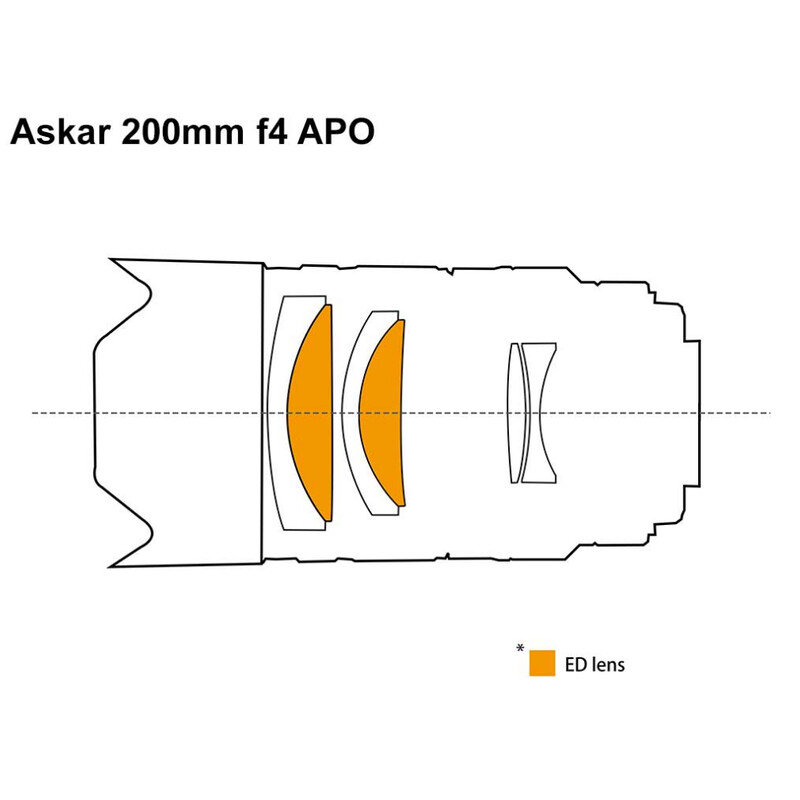

Optical design
Askar Apochromatic refractor AP 50/200 ACL200 OTA
Example
Askar Apochromatic refractor AP 50/200 ACL200 OTA

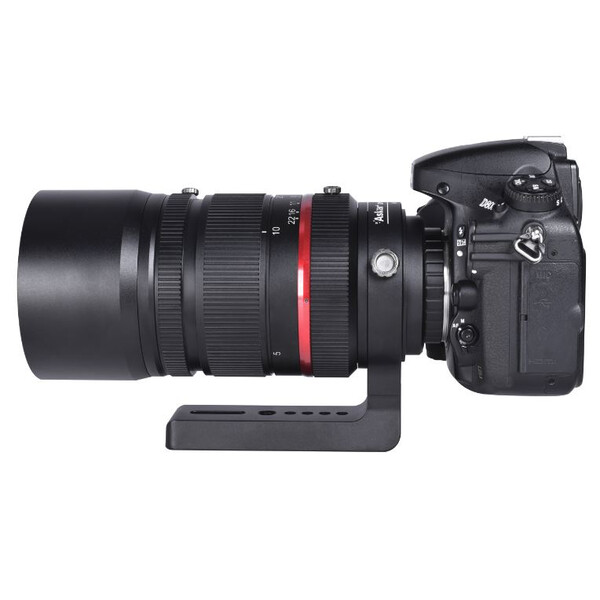

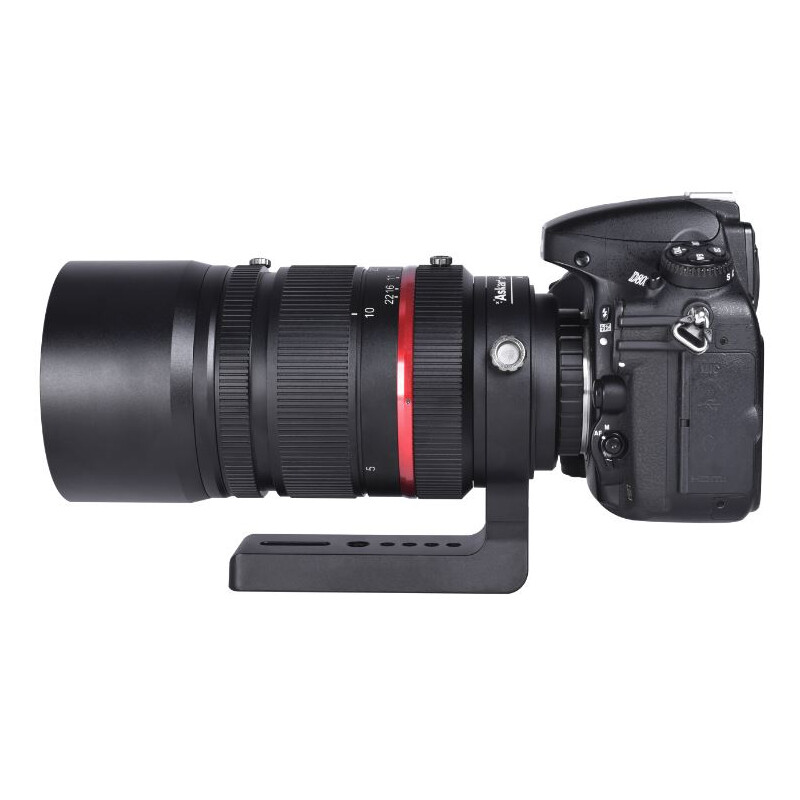

Example of use
