More about the series RASA...

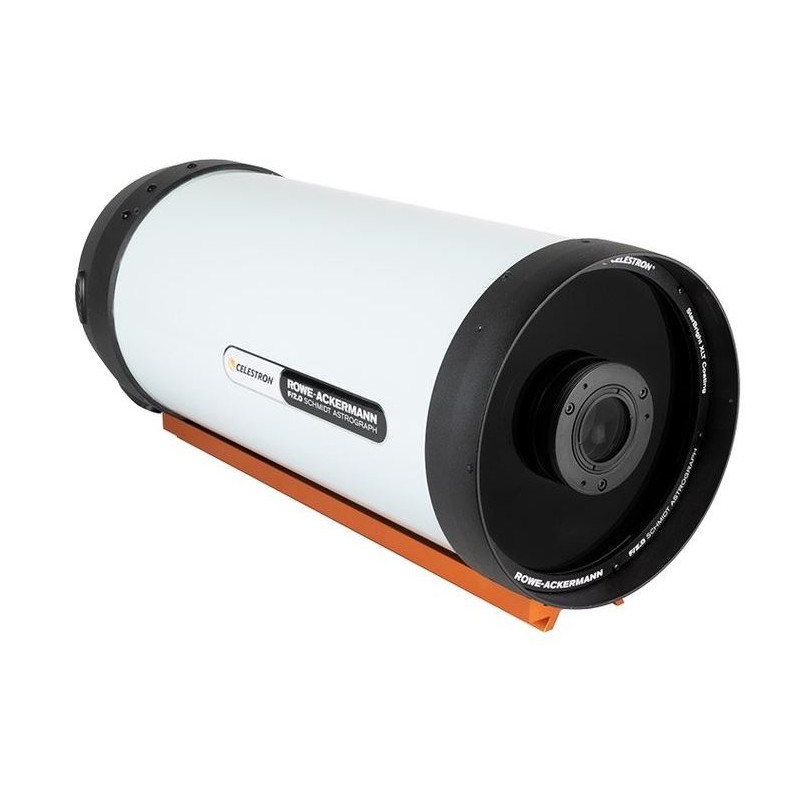

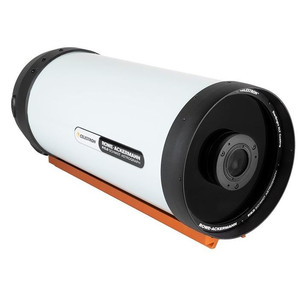

Digital Schmidt camera for wide angle astrophotography!

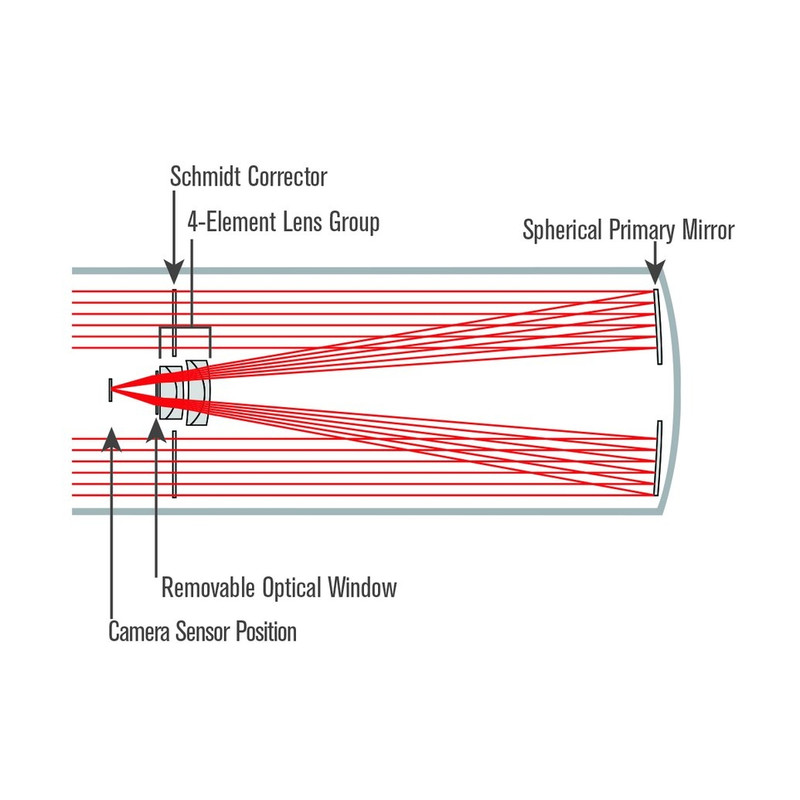

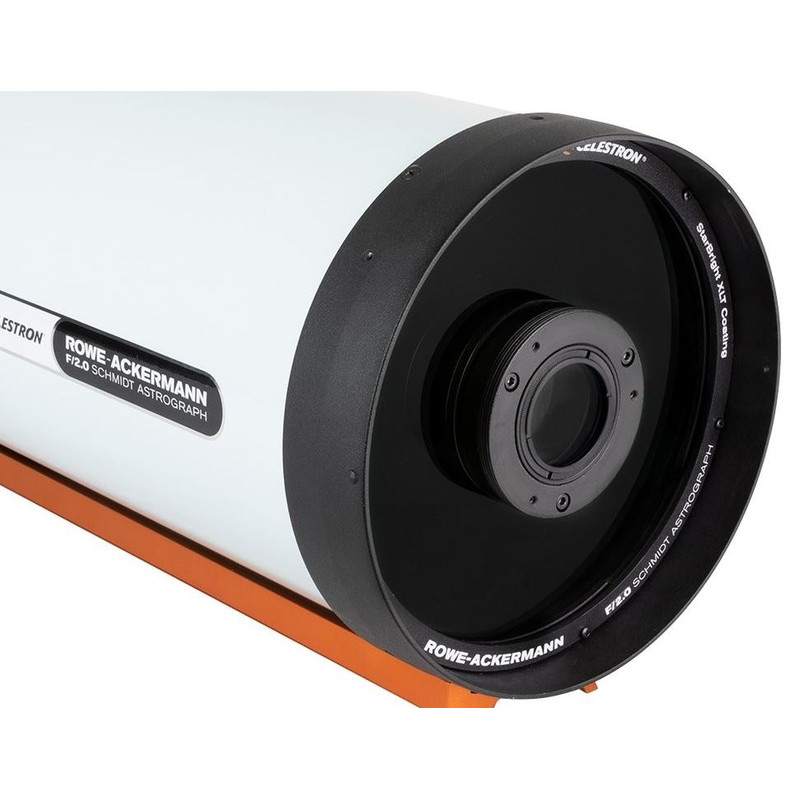

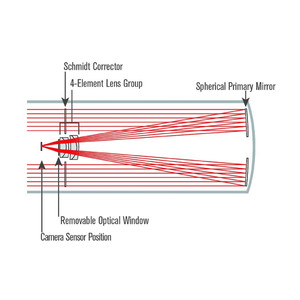

This astrograph makes it very easy to create stunning photos with a modern DSLR or astronomical CCD camera. The new optical design has a four-lens corrector, incorporating rare earth glass, which suppresses chromatic aberrations and other problems such as coma and field curvature. Never before has an astrograph in this price range delivered such optical quality and spot size over the entire image field. The design also allows for a very low vignetting.
- super-fast 11" f2.2 optics - sharply images APS format and is even optimized for sensor sizes up to a 70mm field diagonal.
- extremely short exposure times - the RASA Astrograph acquires images twenty times faster than at f10! Thirty seconds at f2.2 correspond to ten minutes at f10 - tracking control is hence superfluous!
- huge field of view - with a 620mm focal length, makes wide-angle shots a piece of cake and you and always have an overview
- excellent focusing mechanism - new bronze bearings reduce image shift, the 10:1 FeatherTouch micro-focuser allows highly precise focusing!

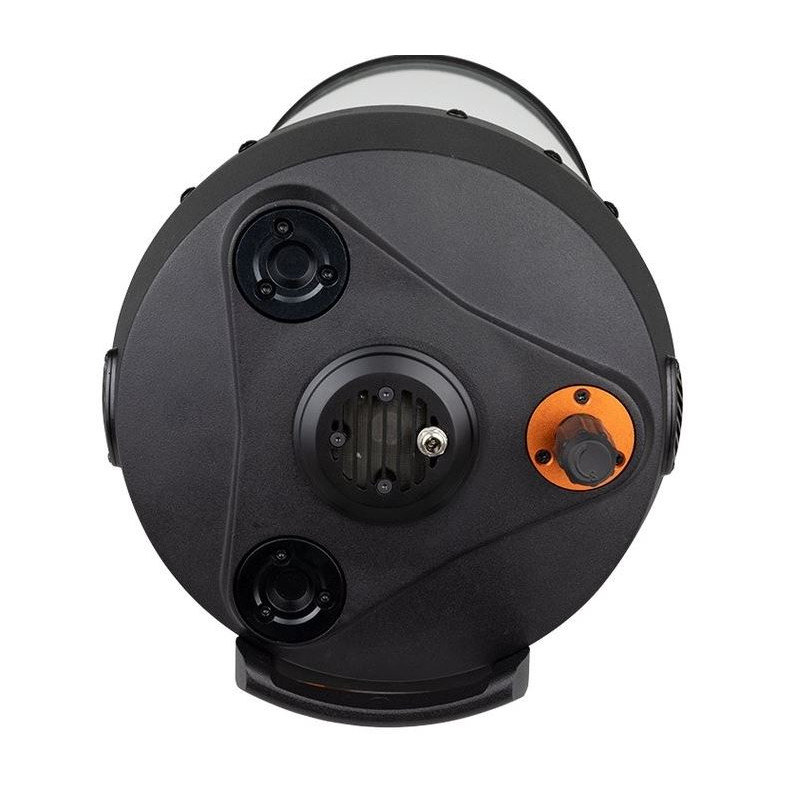

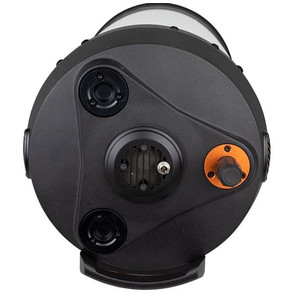

- innovative Features - quieter 12V MagLev fan reduces the cooling phase, keeps out dust and allows optimum air circulation in the OTA. Various adapters for popular camera brands are included. Back focus for the camera supplied adapters: 55mm, back focus for the front lens group: 69.26mm
RASA stands for Rowe-Ackermann-Schmidt Astrograph - Dave Rowe and Mark Ackermann are renowned optical instrument designers. Together, they hold numerous patents on their inventions. The RASA astrograph combines their expertise and experience.

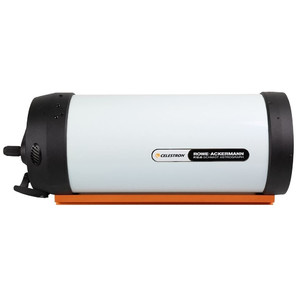

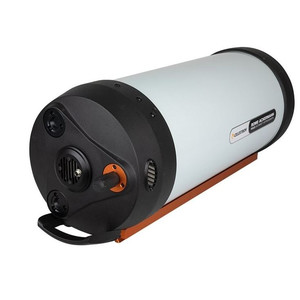

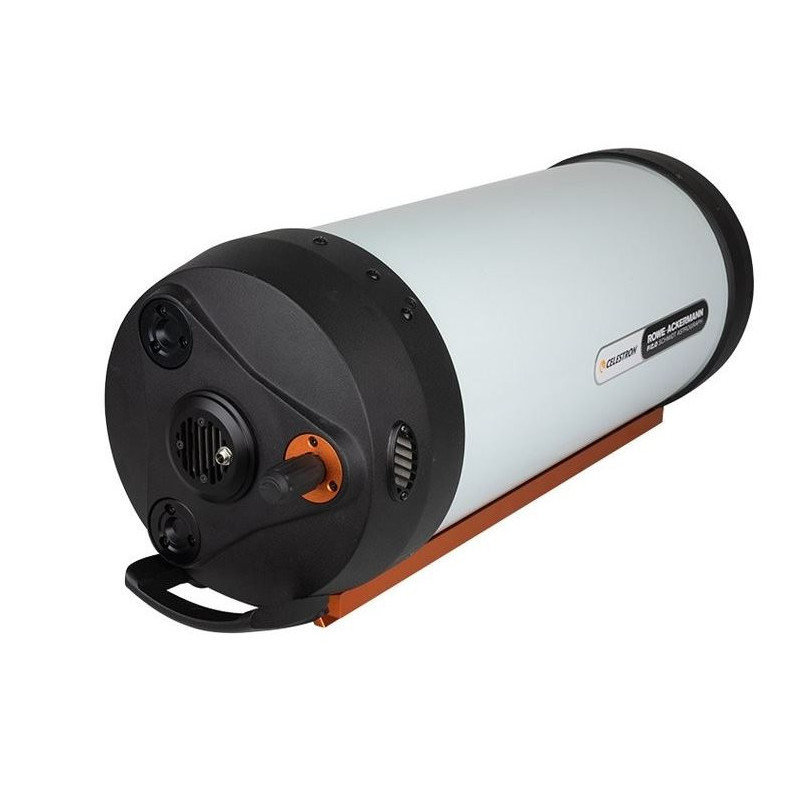

Additional features of the RASA 8:
- Ultra-stable focusing system: 6 sealed precision ball bearings prevent image shift
- Internal filter holder: integrates a light pollution filter seamlessly into the light path
- Spectral range from 390-800 nanometres, allowing a brighter overall signal to be recorded

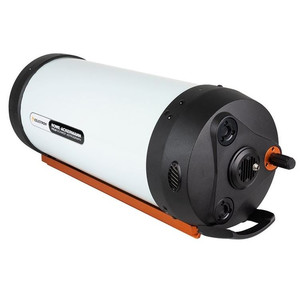

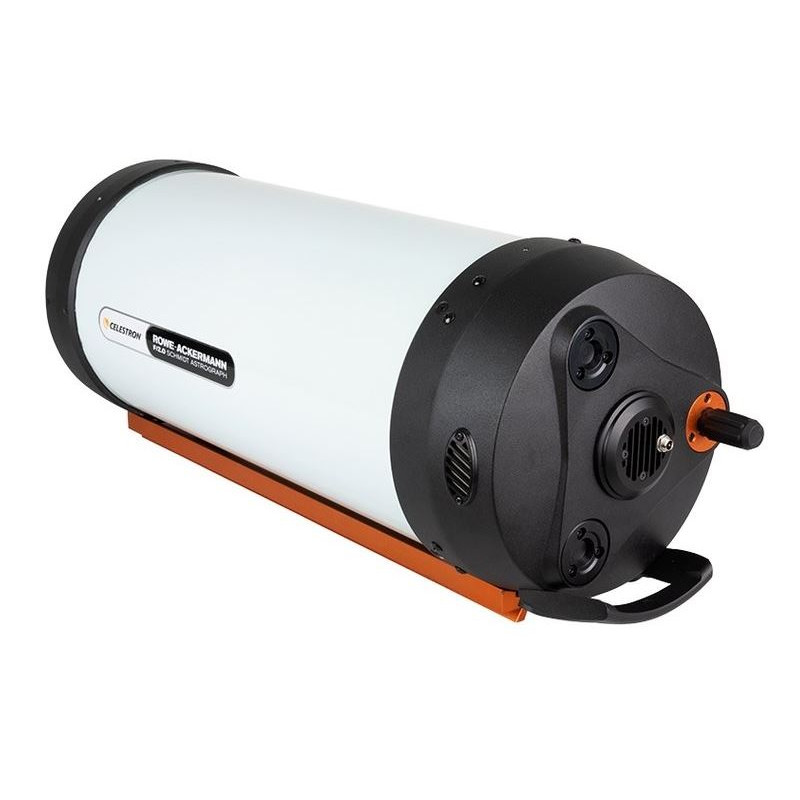

- Sturdy carrying handle

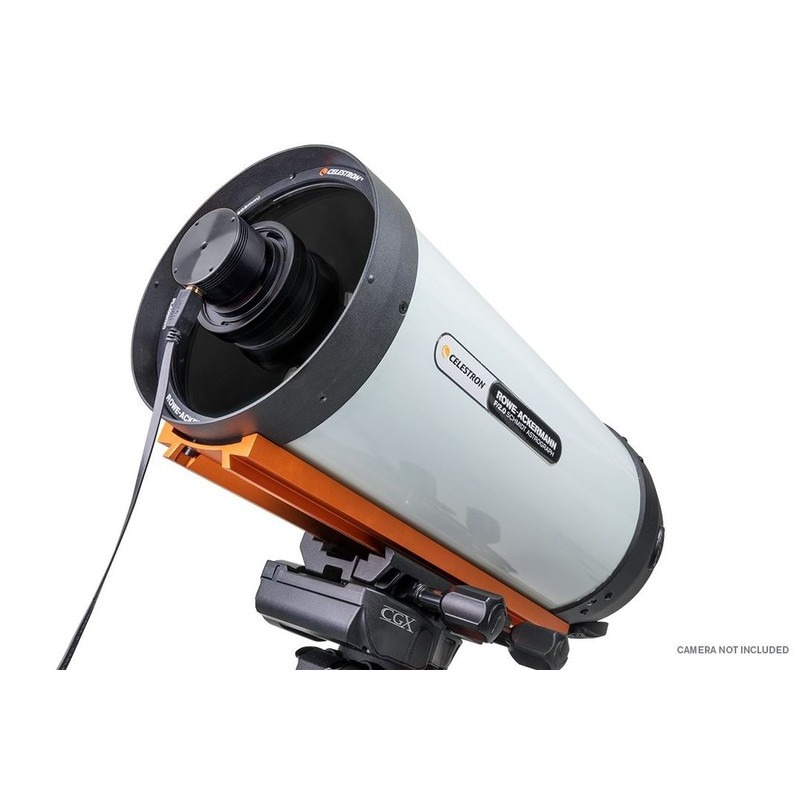

- Safety screw on the prism rail to prevent accidental slipping during mounting
Which camera is the RASA 800 suitable for?

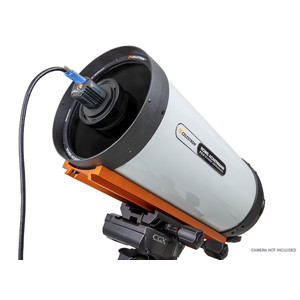

Unlike the larger RASA 1100, which is optimised for DSLR and large CCD cameras, the 8" model was developed for astronomical CMOS colour cameras, smaller CCD cameras and mirrorless cameras. Due to the available back focus, the telescope does not work with standard DSLR cameras. It is optimised for sensors with a diagonal of up to 22 mm and still offers good performance with sensors with a diagonal of up to 32 mm. The APS-C format sensors used in many mirrorless cameras are a good choice. 42 mm full-frame sensors also work in principle, but the performance at the edges of the sensor is poor and the field illumination is reduced. Furthermore, we do not recommend combining the RASA 800 with a camera body with a diameter of more than 10 cm.
