Telescopes > Meade > OTA > Meade Telescope ACF-SC 152/1524 LX85 OTA
Product no.: 70135

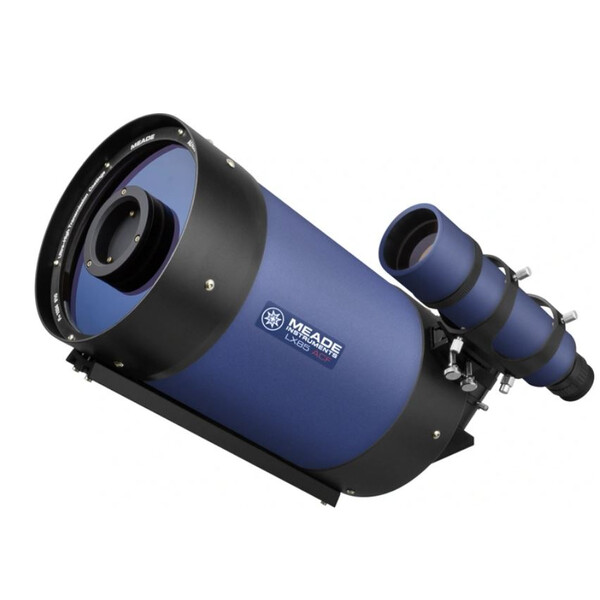

Telescope ACF-SC 152/1524 LX85 OTA

$ 1,370.00 incl. VAT plus shipping costs
too expensive?
long-term
Product can be shipped as of 01.04.2025 + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

This telescope, with its Schmidt-Cassegrain optics, leaves nothing to be desired - SC telescopes are suitable for all applications. No matter if you want to observe planets, far-off nebulae or galaxies, no matter if purely visually or also photographically, anything is possible with an SC telescope!

The compact optics ensure low leverage stress on the mount and make the telescope easy to transport. Focusing takes place internally and is so adjustable that even with astrophotographic accessories attached, focusing is usually no problem.

SC telescopes have a spherical primary mirror. This is usually a drawback, since only parabolic mirrors, as used in Newtonian telescopes, can also correctly focus off-axis light rays. The optical designer Bernhard Schmidt (1879-1935) therefore developed a special correction plate to take care of this. The plate is attached to the front of the OTA. Once used in combination with this Schmidt plate, SC telescopes produce a sharp image with no spherical aberration. This also has the advantage that the OTA is completely closed off at both ends, protecting the main mirror from contamination and preventing disturbing air turbulence.

The secondary mirror is mounted under the centre of this correction plate, and reflects the light back to the main mirror. There, it exits through a hole in the main mirror and through an opening in the back of the OTA. This folded light path is named after Laurent Cassegrain (1629-1693). Even professional telescopes use the advantages of this design - heavy accessories generate hardly any leverage stress and the telescope's eyepiece remains at almost the same height, even if objects of very different altitudes are being observed. This means that no ladder is required and the viewing position is comfortable and safe even for children - this is not unimportant, especially for balcony astronomers!

Advanced Coma-free Optics (ACF): Meade's ACF optical design eliminates the typical aberrations of all mirror optics. Thanks to ACF, the stars are also point-shaped right out to the edge of the image field, displaying no elongated comet-like distortions. The image field is flatter than that of classic Schmidt-Cassegrain telescopes. ACF optical systems show their strengths especially in astrophotographic applications.

Ultra-High Transmission Coatings (UHTC): This special multi-layer coating on the front correction plate provides up to 15% more light transmission. The result -brighter star clusters, finer details in nebulae and more surface detail on planets!

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
Schmidt-Cassegrain
Aperture (mm)
152,4
Focal length (mm)
1524
Aperture ratio (f/)
10
Resolving capacity
0,91
Limit value (mag)
12,3
Light gathering capacity
470
Max. useful magnification
304
Tube weight (kg)
5
tube diameter (mm)
210
Tube length (mm)
420
Coating
UHTC
Stray light baffles in the OTA
yes
Tube construction
Full tube

Reflector


secondary mirror design
hyperbolic
Main mirror´s construction
spherical
Ventilation for central mirror
no
Primary mirror - Diameter (mm)
152,4
Primary mirror - Material
Borosilicate glass
corrector plate coatings
UHTC

Focuser


Type of build
Internal
Connection ( to eyepiece)
1,25"
Connecting threaded socket (camera-side)
SC
Gear reduction
without

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


1.25'' eyepieces
Super Ploessl 26 mm
Finder scope
Finder scope 8x50mm
Deviating optics
1.25", 90° star diagonal
Eyepiece adaptor
1.25" - 2" SC thread
Prism rail
Vixen-Style

General


Series
OTA

Area of application


Astrophotography
yes
Moon & Planets
yes (very good)
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
not recommended
Advanced
yes
Observatories
no
