Telescopes > Meade > OTA > Meade Telescope ACF-SC 203/2032 UHTC LX65 OTA
Product no.: 66031

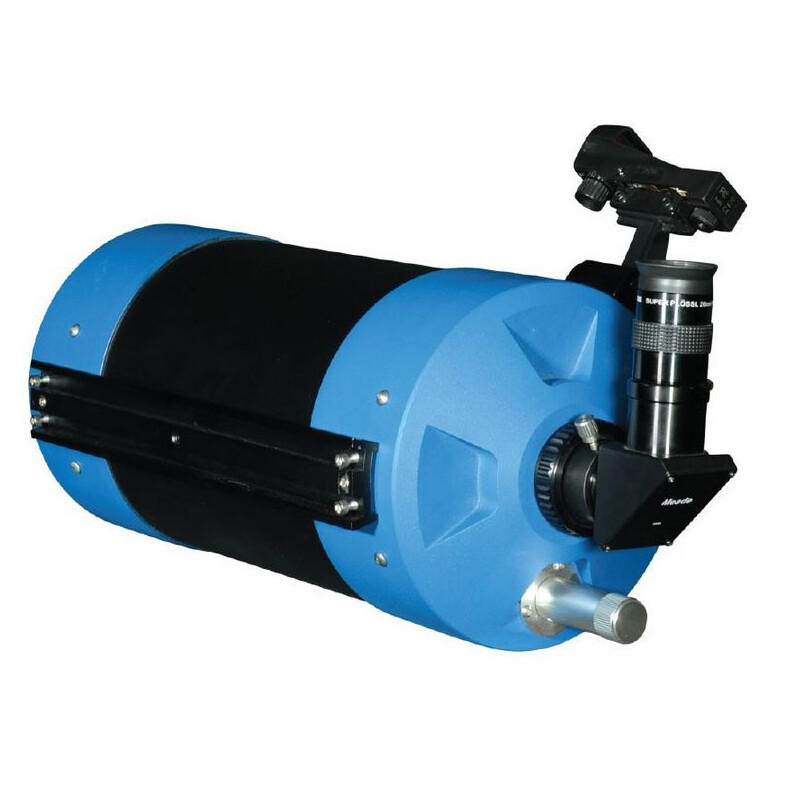

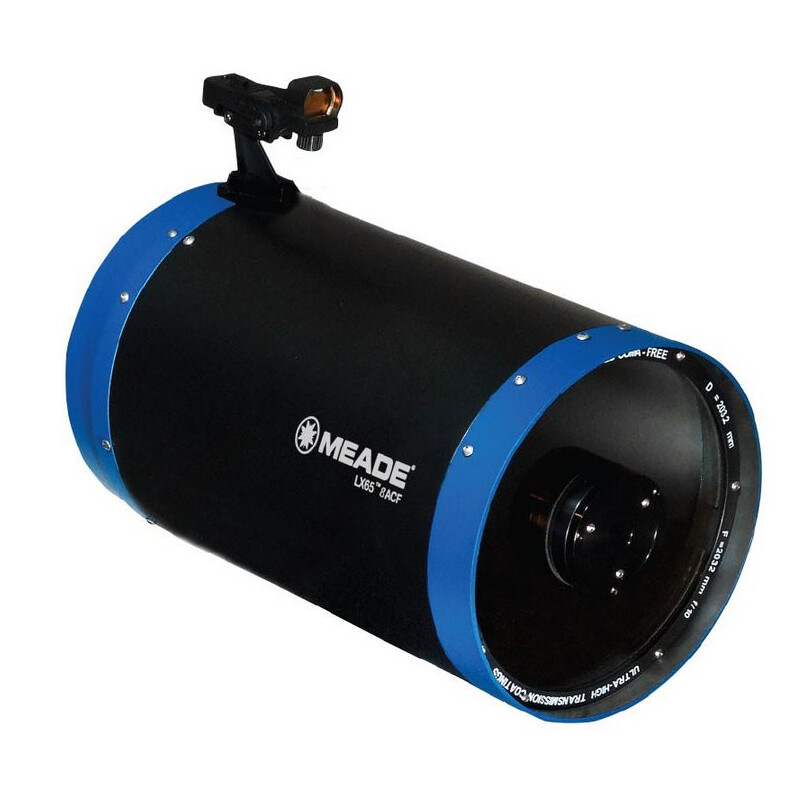

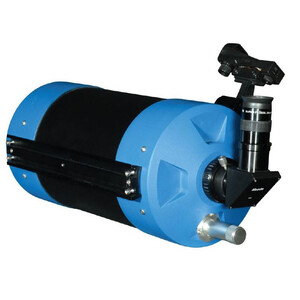

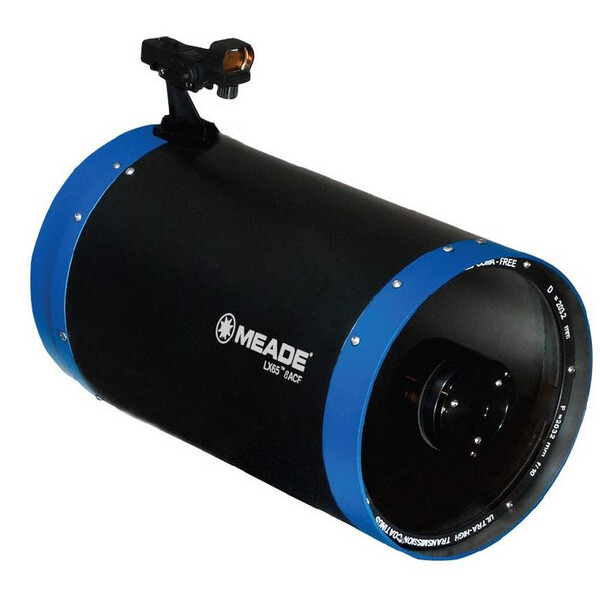

Telescope ACF-SC 203/2032 UHTC LX65 OTA

$ 1,920.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Meade ACF-SC telescopes:

Almost every large telescope worldwide is a Ritchey-Chrétien, including NASA's Hubble space telescope. The technology used by the pros can now belong to you too. Meade's new Advanced Coma-Free System - powerful and high-precision - is within the reach of all ambitious amateur astronomers, astrophotographers and CCD photographers! It provides perfectly sharp star images, at the highest professional observatory level, over the entire field of view. The secret of coma-free system is - as the name says - the complete absence of coma, an optical aberration in which starlight is distorted and pulled into comet-like tails outside the central part of the image. Whether for observing or photography, the ACF Cassegrain optics from Meade is way ahead of conventional mass produced telescopes. It offers fantastic image quality, previously only available from Ritchey Chrétien telescopes and other exotic systems costing several times as much as the Meade system.

Advanced Coma-free Optics (ACF): Meade's ACF optical design eliminates the typical aberrations of all mirror optics. Thanks to ACF, the stars are also point-shaped right out to the edge of the image field, displaying no elongated comet-like distortions. The image field is flatter than that of classic Schmidt-Cassegrain telescopes. ACF optical systems show their strengths especially in astrophotographic applications.

Ultra-High Transmission Coatings (UHTC): This special multi-layer coating on the front correction plate provides up to 15% more light transmission. The result -brighter star clusters, finer details in nebulae and more surface detail on planets!

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
203
Focal length (mm)
2032
Aperture ratio (f/)
10
Resolving capacity
0,68
Limit value (mag)
13,3
Light gathering capacity
840
Max. useful magnification
406
Tube weight (kg)
5,5
tube diameter (mm)
249
Tube length (mm)
460
Carrying length (mm)
460
Coating
UHTC
Stray light baffles in the OTA
yes
Tube construction
Full tube

Reflector


secondary mirror design
hyperbolic
Main mirror´s construction
spherical
Ventilation for central mirror
no
Primary mirror - Diameter (mm)
203
Primary mirror - Material
Borosilicate glass
corrector plate coatings
UHTC

Focuser


Type of build
Internal
Connection ( to eyepiece)
1,25"
Connecting threaded socket (camera-side)
SC
Gear reduction
without

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


1.25'' eyepieces
26mm
Finder scope
Red dot finder
Deviating optics
1.25", 90° star diagonal
Eyepiece adaptor
1,25"-SC
Prism rail
Vixen-Style

General


Series
OTA

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no
