Telescopes > Omegon > Pro Astrograph > Omegon Telescope Pro Astrograph 304/1200 OTA
Product no.: 54742

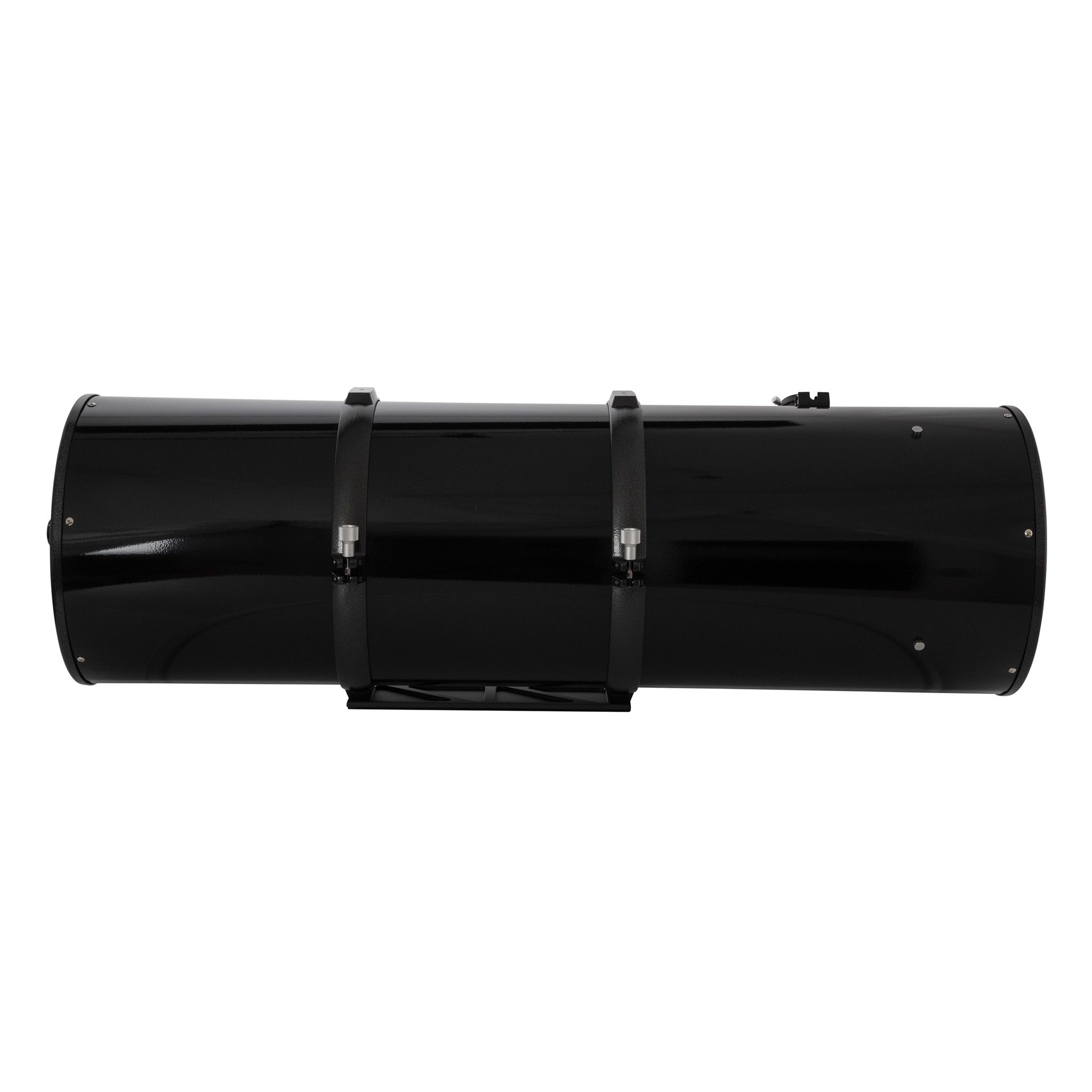

Telescope Pro Astrograph 304/1200 OTA

RRP: $ 1,247.80 Our price:
$ 1,190.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery the day after tomorrow, 30.03.2024!

Product description

More about the series Pro Astrograph...

Omegon f/4 astrograph - for unforgettable astronomy photos
Which other type of telescope can be used to create a beautiful image with so little effort? With Omegon astrographs this is easier than with 'ordinary' telescopes. Why? The answer is obvious - because an aperture ratio of f/4 means a big light output and consequently shorter exposure times. Immerse yourself in the world of deep sky photography. Admire faint galaxies or details in hydrogen nebulae. The Omegon astrograph sets a new benchmark for your astronomy photos.

The advantages in a nutshell

  • f/4 astrograph - a telescope with ultra-fast aperture ratio for short exposures
  • suitable to go on medium mountings due to its short overall length
  • wide field of view for extended objects - approx. 24mm is illuminated
  • 94% reflection parabolic main mirror for bright images
  • large secondary mirror - good illumination for DSLR cameras
  • robust 2" Crayford focuser with 1:10 reduction and 1.25" reducer
  • faster cool-down for getting started observing quicker - main mirror fan

94% reflection f/4 main mirror
Astrographs are suitable for visual observing, but only show their full potential when used for astrophotography. Their f/4 aperture means they are among the 'fastest' Newtonian telescopes around, allowing you to take shorter exposure images.
The secondary mirror and the parabolic BK7 main mirror are 94% reflective, providing brighter and higher contrast images. One can see a visible improvement when compared to a 'normal' mirror which is around 88% reflective.

No shadows, only light - large secondary mirror
Attach your DSLR camera or a modern CCD camera to the telescope and enjoy impressive illumination over a wide field of view. No shadowing is noticeable thanks to the particularly large secondary mirror (see also below). Observing with 2" wide-field eyepieces is now perfect.

Less mistakes - more fun with the photography
The particularly short OTA length and focal length means the telescope is compact - the astrograph is about 20% shorter as compared to an f/5 system. This means you can also use this OTA's excellent optics on a medium mount, saving yourself the expense and clumsiness of a heavier mount.
Another advantage is that the astrograph is perfect for extended deep sky objects thanks to its shorter focal length. This system is also more tolerant of small tracking errors than a telescope with a longer focal length. You will achieve some astounding astrophotography with even just a little effort.

3" focuser with linear ball bearings - illuminate huge fields of view

Instead of using classic ball-bearings this eyepiece has a 'Linear-Power-System'. The advantage is that a stainless steel rail makes the focuser much more stable. Your equipment will not tilt or slip.

The 72mm inner diameter of the focuser tube provides shadow-free illumination for large and fast telescopes. It is even suitable for full-frame sensors. It is the right focuser for your large field camera.

In comparison, a 2" focuser would show unsightly shadowing on the edge of the image - a 3" focuser means more freedom for large and extended images, and that's just how it should be!

Of course, this focuser has even more features

  • dual rate 1:10 reduction assists you in accurately focusing astronomical objects. - a 2" to 1.25" adapter is included for all eyepieces and adapters
  • laser-engraved scale to help you find a previously used focus position
  • only 82mm long and with 50mm of adjustment
  • 74x0.5mm thread for adapter or filter wheel
  • friction adjustment
  • length 82mm

Get started observing faster - main mirror fan
Just a quiet, unobtrusive hum, but what an effect! - the built-in 12V fan means 50% faster cool-down of your main mirror. This allows your telescope to reach optimum image quality more rapidly, so you do not have to wait for so long.

Included in delivery and other important data

  • 12" astrograph OTA with 88mm secondary mirror
  • secondary mirror marking for collimation
  • tube-ring clamps and 22cm Vixen-style prism rail
  • 2" 35mm extender
  • OTA length 1170mm, OTA outer diameter 355mm
  • 12V fan

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
304
Focal length (mm)
1200
Aperture ratio (f/)
4
Resolving capacity
0,38
Limit value (mag)
14,2
Light gathering capacity
1870
Max. useful magnification
606
Tube weight (kg)
20,8
Tube material
Steel
Tube length (mm)
1170
Coating
Aluminium and silicon dioxide
tube diameter (mm)
355
Tube construction
Full tube

Reflector


Main mirror´s construction
parabolic
Secondary mirror obstruction
29
Secondary mirror diameter (mm)
88
Ventilation for central mirror
yes
Primary mirror - Material
BK7
reflectivity
94

Focuser


Type of build
Crayford
Connection ( to eyepiece)
3
Gear reduction
1:10 Fine movement

Mount


Type of build
OTA
Mounting type
no mount
GoTo control
no

Included accessories


Miscellaneous
Main mirror ventilation
Extension tubes
yes
Tube clamps
yes
Eyepiece adaptor
1,25" & 2"
Prism rail
Losmandy-Style

General


Series
Pro Astrograph
Total weight (kg)
20,8

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Recommended accessories

Workshop service (1)

Astroshop Collimation/adjustment Newtonian 8"-12"

$ 82.00*
Telescope accessories > Transport & storage (7)

Oklop Tragegurte für Newton-Teleskope 8"-12"

$ 31.90*
Telescope accessories > Other (9)

Omegon Step-down ring 109 to 78mm

$ 24.90*
Eyepieces (3)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (1)

Omegon eyepiece and accessories case, large

$ 249.00*
Filters (3)
Filters

Omegon Filters OIII filter 1.25''

$ 89.00*
Astrophotography > Camera adaptor (3)
Projection adapter

Omegon Camera adapter 1.25"

$ 24.90*
Astrophotography > Camera mounts (4)

Omegon Easypic Universal Smartphone Adapter

$ 129.00*
Astrophotography > Other (2)
Camera

Lacerta Camera Standalone Autoguider MGEN Version 3

$ 1,010.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy (2)
Transport cases

Omegon Transport cases eyepiece case

$ 99.00*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 18.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Omegon Telescope Pro Astrograph 304/1200 OTA
Pleiaden (M45) taken by Carlos Malagon
Omegon Telescope Pro Astrograph 304/1200 OTA
Andromeda (M31) taken by Carlos Malagon
