Telescopes > Revelation > Revelation Ritchey-Chretien RC 304/2432 Carbon Truss OTA
Product no.: 52014

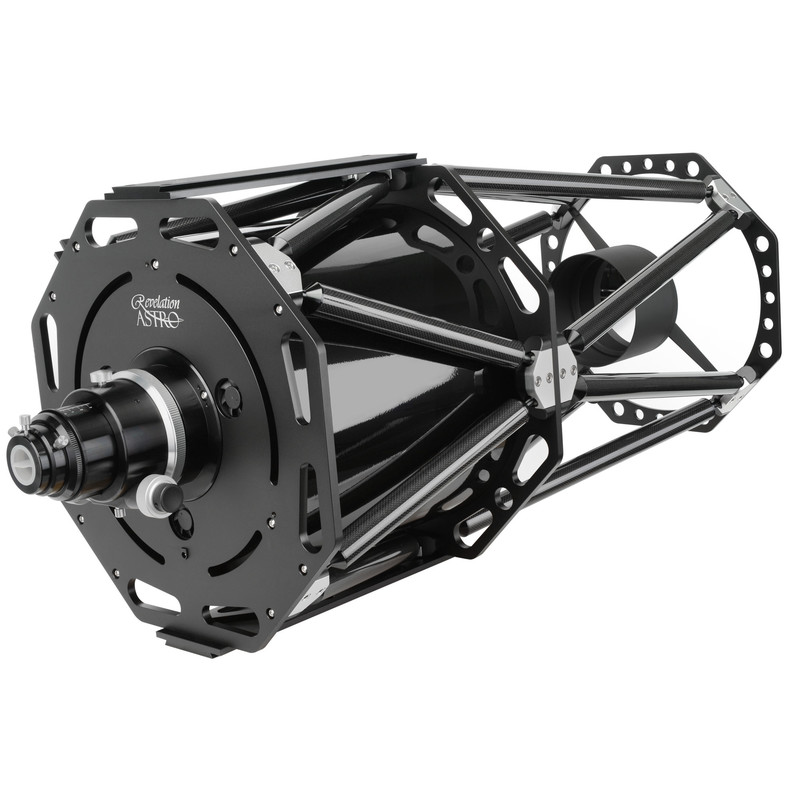

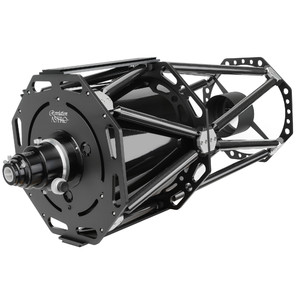

Ritchey-Chretien RC 304/2432 Carbon Truss OTA

$ 4,640.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Ritchey-Chretien telescopes: dream telescopes for every astro-photographer!

Of all the Cassegrain mirror telescope versions, the Ritchey-Chretien variant offers the highest level of optical error correction. A Ritchey-Chretien telescope is not only designed to ensure no spherical aberration, but also no coma. In practice this means that stars are not only perfectly in focus in the center of the image, but also right across the field of view. Since no additional coma corrector is required, there is also no chromatic aberration - the colour error typically experienced with lenses.

In an RC telescope the main mirror is fixed and focusing is carried out using the focuser. In an SC telescope the mirror is movable to enable focusing which can lead to image shifting.

The fact that the Ritchey-Chretien system is the mirror configuration with the highest levels of correction has meant that almost all large research telescopes in the world are RC telescopes. The hyperbolic primary and secondary mirrors that give the advantage of high image quality are very expensive to produce. For this reason an RC telescope was, even for wealthy amateur astronomers, until recently a dream that could never be realised. In the meantime Ritchey-Chretien telescopes are now available in the same price range as simpler Cassegrain systems.

This RC telescope is especially optimised for astrophotography; a large secondary mirror provides the necessary illumination of the image field, even for full-frame cameras. The combination of temperature stable quartz mirror substrate ("low thermal expansion glass") with highly-reflective coating ensures bright images and alignment accuracy!

Specifications

Optics


Type
Reflector
Type of build
Ritchey-Chretien
Aperture (mm)
304
Focal length (mm)
2432
Aperture ratio (f/)
8
Resolving capacity
0,38
Limit value (mag)
14,2
Light gathering capacity
1890
Max. useful magnification
608
Tube weight (kg)
24
Tube material
Carbon
Tube construction
Truss Tube

Reflector


Secondary mirror diameter (mm)
135
Secondary mirror material
Quartz
Primary mirror - Material
Quartz
Primary mirror - Diameter (mm)
304
Adjustable
yes
Blend pipe diameter (mm)
88
Secondary mirror obstruction
49
Ventilation for central mirror
yes

Focuser


Backfocus (mm)
125
Free aperture (mm)
76

Mount


Mounting type
no mount
Type of build
OTA
GoTo control
no

Included accessories


Extension tubes
yes
Finder scope
without
Deviating optics
no
Eyepiece adaptor
1,25" - 2"
Corrector
without
Prism rail
Losmandy-Style
Battery compartment
yes

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Miscellaneous


Battery type
Mignon (AA, LR6) (4 pieces)

Recommended accessories

Telescope accessories > Transport & storage (5)
Carry case

Geoptik Carry case Bag for RC-10"

$ 205.00*
Telescope accessories > Other (7)

Astrozap Light shroud for 12" Truss tube RC

$ 183.00*
Eyepieces (3)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (1)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Nebulae filters (5)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (3)
Filters

Omegon Filters Variable grey filter 1.25"

$ 34.90*
Astrophotography > Camera mounts (4)

Omegon Easypic Universal Smartphone Adapter

$ 129.00*
Astrophotography > Other (5)
Camera

Lacerta Camera Standalone Autoguider MGEN Version 3

$ 1,010.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy (2)

Omegon eyepiece and accessories case, large

$ 249.00*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 18.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
Miscellaneous (1)

Varta Professional Mignon (AA) lithium batteries, pack of 4

$ 13.90*

*All prices include VAT plus shipping costs.

Revelation Ritchey-Chretien RC 304/2432 Carbon Truss OTA

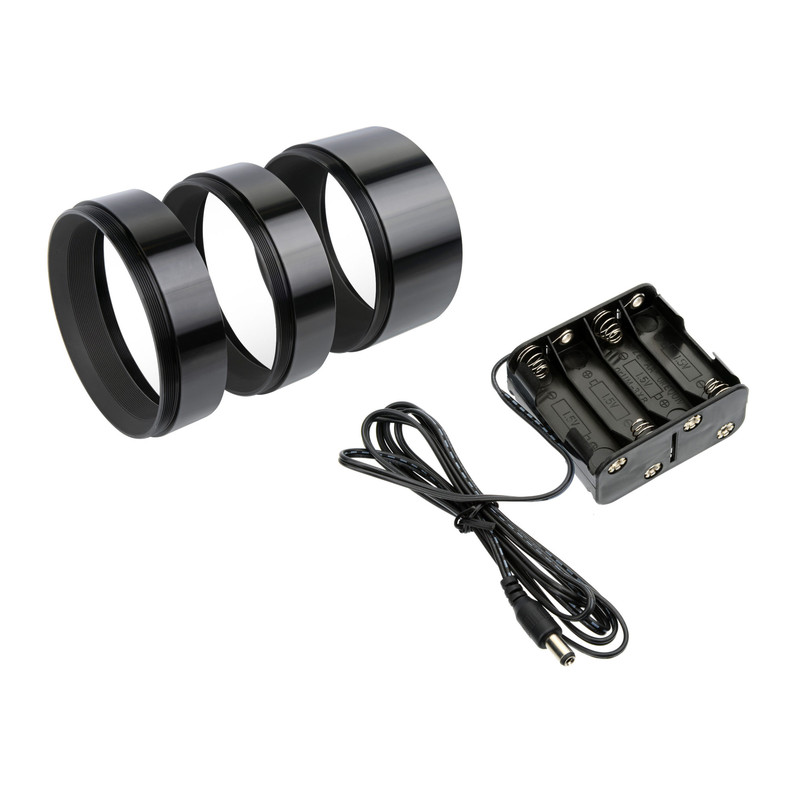

Included accessories
