Product description:

Esprit ED refractor - triplet apochromat telescope from Skywatcher

These three lens element Esprit apochromats are the new top-of-the-range models in Skywatcher's stable. Skywatcher is offering quality high-end telescopes in apertures of 120mm and 150mm for astrophotographers and demanding observers.

The triplet lens consists of an Ohara-FPL 53 lens and two elements from Schott. This combination shows no detectable colour fringing and provides a high contrast image.

Flat image field

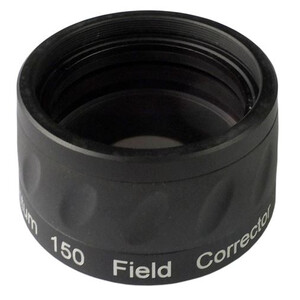

An additional built-in flat-field corrector means Esprit apos always deliver absolutely flat and sharp images. The corrector sits directly on the focuser and provides very well corrected shots even if you are using a full format chip camera.

Linear Power focuser

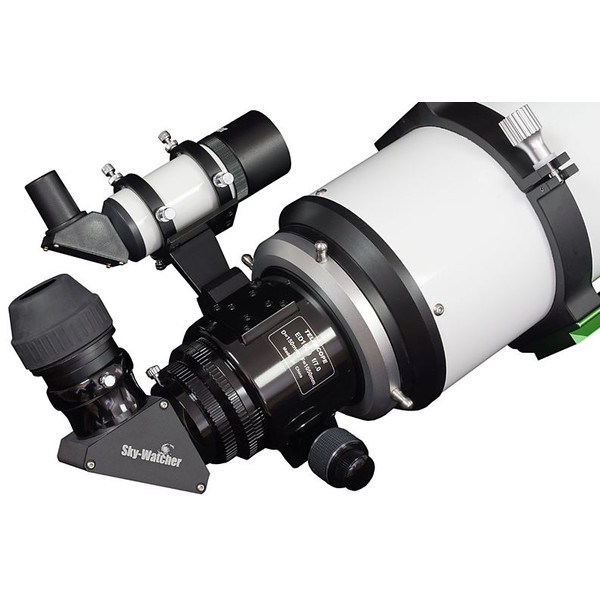

The 3" Linear Power focuser provides you with all the options you need for astrophotography. Its size means that even full frame camera chips are optimally illuminated. Additional adapters reduce this large opening to the standard 2" or 1.25" sizes, as required.

This new Linear Power focuser can support even heavier accessories. The drawtube runs on a sturdy stainless steel rail and additional four roller bearings. The focuser is hence just as easy to use as a Crayford focuser, but able to carry much larger loads. This focuser can also be rotated which is immensely useful for astrophotography, so you can easily find the right camera orientation for your favourite photo subjects.

The 1:11 reduction ratio always guarantees sensitive and accurate focusing to give the optimum sharpness for camera and eyepiece.

The advantages at a glance:

triplet apochromatic objective
FLP-53 Ohara glass
remarkable contrast and no detectable colour fringing
objective lens cell easily collimated
good illumination - even of full-frame camera chips
3" Linear Power focuser with 2" and 1.25 "adapters
1:11 reduction ratio for extremely accurate focusing
focuser can carry up to 5kg unclamped and up to 10kg clamped
very high-quality mechanical and optical manufacturing
pull-out dew shield

Recommended accessories:

Before buying this product, make sure to check our accessory recommendations.

accessory details

Specifications:

Optics
Type	Refractor
Type of build	Apochromat Triplet
Aperture (mm)	150
Focal length (mm)	1050
Aperture ratio (f/)	7
Resolving capacity	0,77
Limit value (mag)	12,7
Light gathering capacity	460
Max. useful magnification	300
Tube weight (kg)	14,50
Tube material	Aluminium
Tube construction	Full tube
Focuser
Type of build	Linear Crayford
Connection ( to eyepiece)	2
Gear reduction	1:11 fine focusing
Free aperture (mm)	76
Load capacity (kg)	5
Mount
Type of build	OTA
Mounting type	no mount
GoTo control	no
Included accessories
2'' eyepieces	LET Okular 28mm
Finder scope	9x50
Deviating optics	2", 90° star diagonal
Tube clamps	yes
Dew Shield	yes
Carrying case	yes
Prism rail	Losmandy-Style
Eyepiece adaptor	1,25" - 2"
General
Series	ESPRIT
Total weight (kg)	17,04
Area of application
Moon & Planets	yes
Nebulae & galaxies	yes
Nature Observation	yes
Astrophotography	yes
Sun	not recommended (Only with appropriate Sun filter)
recommended for
Beginners	no
Advanced	yes
Observatories	yes

Telescope accessories > Prisms & Diagonal mirrors
	Omegon 1,25'' Amici Prism 90°	$ 99.00*
	Omegon 45°, 1.25'' to 1.25'' Amici prism	$ 99.00*
	Omegon Star diagonal with 99% reflection, 2"	$ 119.00*
	Baader Planetarium 2" 90° Amici prism	$ 272.00*
+ Show more accessories in this category.
- Show less accessories in this category.
Telescope accessories > Transport & storage
	Omegon aluminium case, large	$ 49.90*
	Omegon Bumbag for eyepieces	$ 39.90*
	Omegon eyepiece case	$ 59.00*
	Omegon transport bag for accessories	$ 59.00*
+ Show more accessories in this category.
- Show less accessories in this category.
Telescope accessories > Other
	Omegon Radiant Finder with fastener	$ 39.90*
	Telrad - projection finder scope with base	$ 69.00*
	noctutec Dark adaptation glasses for astronomers	$ 26.90*
	Omegon 2'' - 1.25'' Twist-lock adapter	$ 49.90*
	Omegon 2'' adapters with reducer 1.25 ''	$ 24.90*
	Omegon Binocular head Binoviewer 1.25''	$ 199.00*
	Omegon 2'', 2X premium Barlow lens	$ 249.00*
	Farpoint Telescopic exsiccator, 2"	$ 75.00*
+ Show more accessories in this category.
- Show less accessories in this category.
Eyepieces
	Omegon LE Series Eyepiece, 14.5mm, 1.25''	$ 99.00*
	Omegon Eyepiece LE Planetary 9mm 1,25''	$ 99.00*
	Omegon Eyepiece LE Planetary 6mm 1,25''	$ 99.00*
	Omegon Eyepiece LE Planetary 5mm 1,25''	$ 99.00*
+ Show more accessories in this category.
- Show less accessories in this category.
Eyepieces
	Omegon Flatfield ED eyepiece 18mm 1,25''	$ 119.00*
	Omegon Flatfield ED eyepiece 15mm 1,25''	$ 119.00*
	Omegon Flatfield ED eyepiece 5mm 1,25''	$ 119.00*
Eyepieces
	Meade Eyepiece Series 5000 HD-60 6.5mm 1.25"	$ 143.00*
	Omegon SWA 38mm eyepiece, 2”	$ 139.00*
	Omegon SWA 26mm eyepiece, 2”	$ 139.00*
Eyepieces
	Omegon Ultra Wide Angle eyepiece 9mm 1,25"	$ 59.00*
	Omegon Ultra Wide Angle eyepiece 15mm 1,25"	$ 59.00*
	Omegon Ultra Wide Angle eyepiece 20mm 1,25"	$ 59.00*
	TeleVue Ethos 2" 17mm eyepiece	$ 890.00*
	TeleVue Nagler Type 5 2" 31mm eyepiece	$ 780.00*
	Omegon Panorama II 2'', 21mm eyepiece	$ 229.00*
	Omegon Panorama II 2'', 15mm eyepiece	$ 229.00*
+ Show more accessories in this category.
- Show less accessories in this category.
Eyepieces > Other
	Omegon Illuminated crosshair eyepiece, 12.5mm	$ 79.00*
	Baader Hyperion Universal Mark IV 2", 8-24mm Zoom eyepiece	$ 244.00*
	Omegon eyepiece and accessories case, large	$ 219.00*
	Omegon Deluxe eyepiece case, optimised for focal lengths up to 1200mm	$ 299.00*
+ Show more accessories in this category.
- Show less accessories in this category.
Filters > Moon filters & Polarizing filters
	Omegon Variable grey filter 1.25"	$ 49.90*
	Omegon 2'' Moon filter 25% Transmission	$ 24.90*
	Omegon Variable Polarising Filter 2"	$ 69.00*
Filters > Nebulae filters
	Omegon Filters Nebula/ city light filter 1.25 ''	$ 39.90*
	Omegon Filters UHC Filter, 1.25“	$ 69.00*
	Omegon Filters OIII filter 1.25''	$ 69.00*
	Omegon Filters 1.25'' deep sky filter	$ 59.00*
	Omegon Filters 1.25'' Clear Sky filter	$ 99.00*
	Omegon Filters Light Pollution Filter, 2”	$ 59.00*
	Omegon Filters UHC Filter, 2"	$ 99.00*
	Omegon Filters OIII Filter 2"	$ 99.00*
	Lumicon Filters Ultra High Contrast 2''	$ 270.00*
+ Show more accessories in this category.
- Show less accessories in this category.
Filters > Other
	Omegon Color filter set 1,25'' (6 pieces)	$ 59.00*
	Meade Series 4000 Color Filter Set 1,25"	$ 66.00*
	Omegon 2'' filter wheel	$ 149.00*
Astrophotography > Camera adaptor
	Omegon Camera adapter 1.25"	$ 39.90*
	Omegon T2-Ring for Canon EOS	$ 24.90*
	Omegon T2-Ring für Nikon	$ 24.90*
	Baader Adaptors Plug-in connection 2 " A/T-2a for putting into all 2 " Okularauszüge	$ 39.90*
+ Show more accessories in this category.
- Show less accessories in this category.
Astrophotography > Camera mounts
	Omegon Easypic Universal Smartphone Adapter	$ 89.00*
	Omegon Universal digital camera adapter	$ 39.90*
	Baader Microstage II	$ 55.00*
	Omegon Universal digital camera adapter	$ 29.90*
+ Show more accessories in this category.
- Show less accessories in this category.
Astrophotography > Other
	Farpoint Bahtinov focus mask for telescopes with apertures of 140mm to 215mm	$ 32.90*

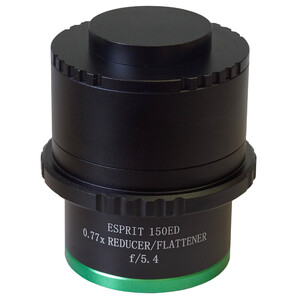

	Skywatcher Esprit-150ED M48 field flattener	$ 332.00*
