Telescopes > Tecnosky > Tecnosky Apochromatic refractor AP 80/344 Flatfield V2 OTA
Product no.: 57323

Apochromatic refractor AP 80/344 Flatfield V2 OTA

$ 1,480.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The AP 80/344 optics are an apochromat optimised for astrophotography with DSLR cameras in APS-C format or comparable astro cameras. The integrated flattener (field flattening lens) ensures a consistent focus position right to the edge of the image field and, with f/4.3, provides a particularly fast aperture ratio. This high light intensity significantly reduces the required exposure time and allows the use of narrow-band filters despite the relatively small aperture.

The triplet lens with FPL-53 special glass ensures high colour purity. The entire optical system, consisting of the objective and flattener, delivers a colour-pure, crisp image across the entire image field. A diagonal mirror is included in the scope of delivery so that you can enjoy this performance with your own eyes. It can be screwed onto the M48 thread.

The focuser weighs 4 kilograms and can therefore support heavy cameras, which can be moved sensitively using the low-profile focusing mechanism.

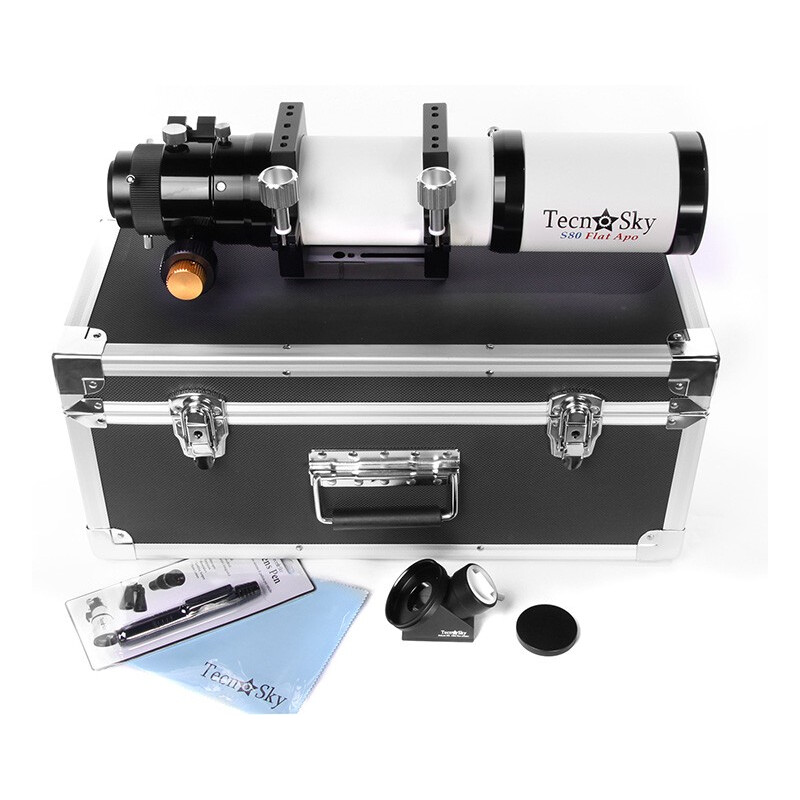

With a transport length of just 370 millimetres, the telescope is very easy to transport. The sturdy transport case also helps.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
80
Focal length (mm)
344
Aperture ratio (f/)
4,3
Resolving capacity
1,44
Limit value (mag)
11,3
Light gathering capacity
130
Max. useful magnification
160
Tube weight (kg)
3,6
Carrying length (mm)
370
Tube construction
Full tube
lens design
Triplet

Focuser


Type of build
Gear rack
Gear reduction
1:10 fine focusing
Rotating
yes
Free aperture (mm)
64
Connecting threaded socket (camera-side)
M48
Backfocus (mm)
55
Load capacity (kg)
4

Mount


Type of build
OTA
Mounting type
no mount
GoTo control
no

Included accessories


Dew Shield
yes
Tube clamps
yes
Prism rail
Vixen-Style
Finder scope
no
Deviating optics
2", 90° star diagonal
Corrector
integrated
Transport cases
yes

Area of application


Astrophotography
yes (very good)
Nature Observation
no
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: TecnoSky, Via Fubine 79, 15023 Felizzano, IT, www.tecnosky.it
Responsible person: TecnoSky, Via Fubine 79, 15023 Felizzano, IT, [email protected]

Recommended accessories

Telescope accessories > Transport & storage (5)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (4)

Omegon DUNEDRY dehumidifier

$ 29.90*
Eyepieces (3)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (1)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Nebulae filters (4)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (3)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Astrophotography > Cameras (13)
Camera

Omegon Camera GUIDE 2000 C Color

$ 199.00*
Astrophotography > Camera adaptor (8)
Camera adaptor

Explore Scientific Camera adaptor M48 compatible with Canon EOS

$ 29.90*
Astrophotography > Camera mounts (3)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Astrophotography > Other (2)
Guidescope

Omegon Guidescope module finder

$ 99.00*
Mounts & accessories (2)
Mount

Celestron Mount Advanced VX AVX GoTo

$ 1,420.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 26.90*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 32.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

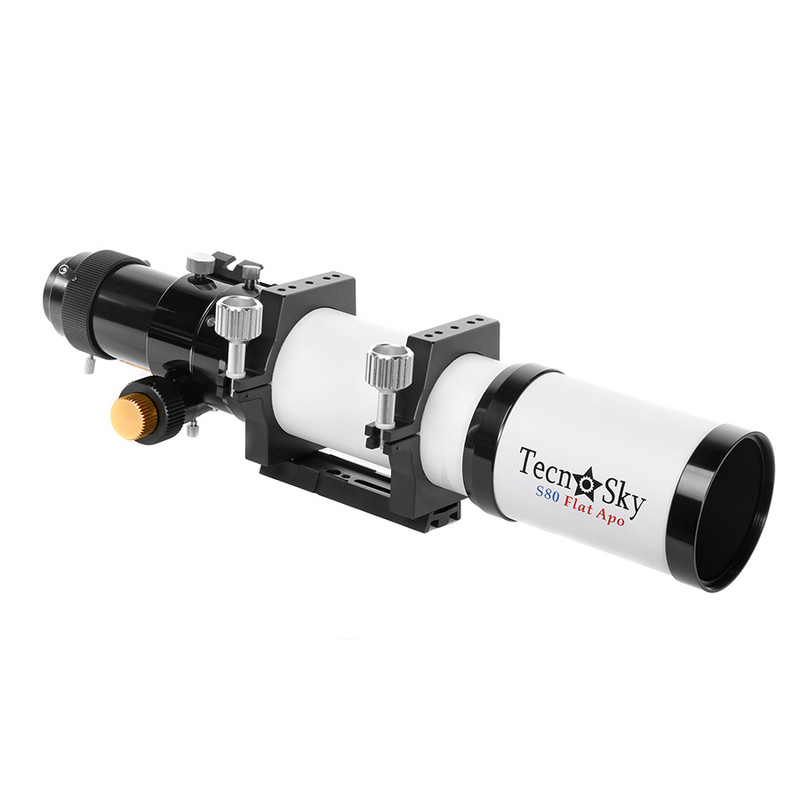

Tecnosky Apochromatic refractor AP 80/344 Flatfield V2 OTA

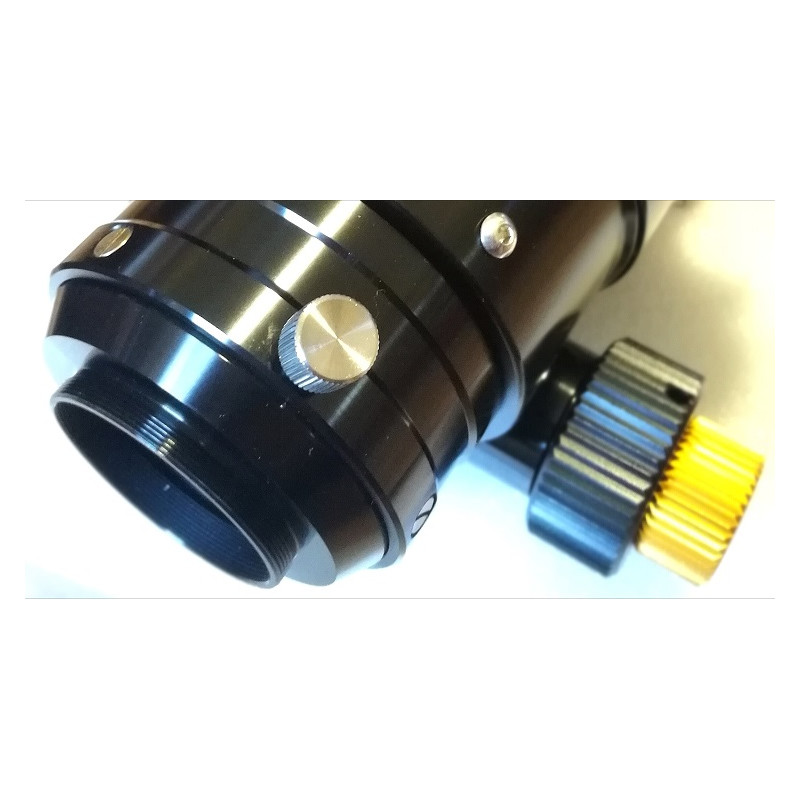

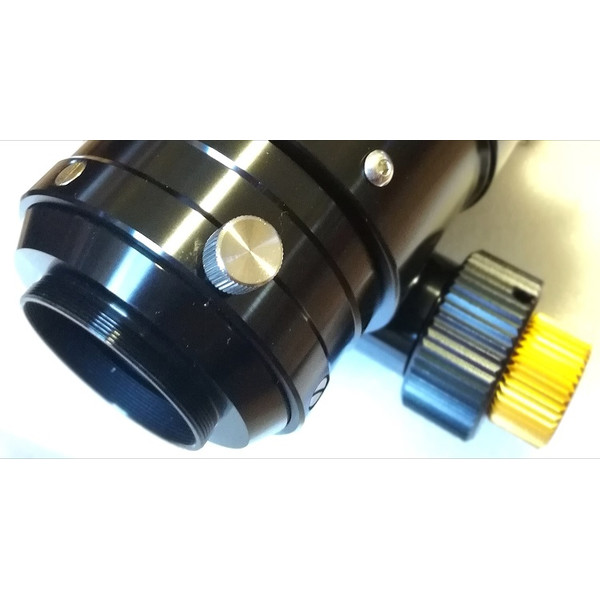

Focuser
Tecnosky Apochromatic refractor AP 80/344 Flatfield V2 OTA

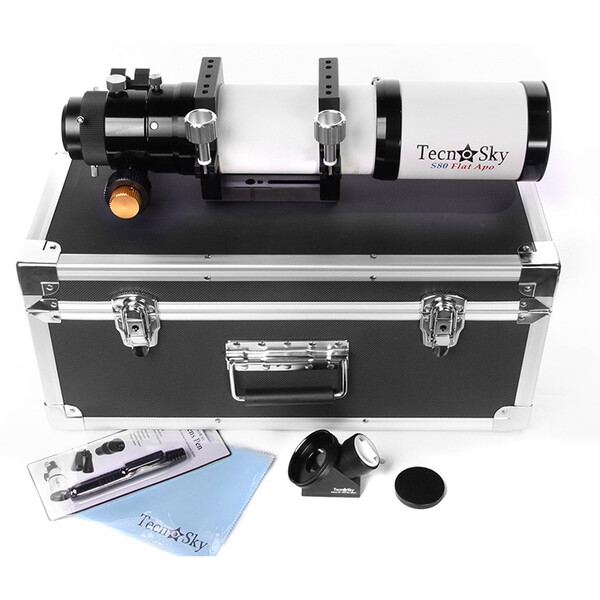

Scope of delivery
