Telescopes > Vixen > Advanced Polaris > Vixen Apochromatic refractor AP 80/600 ED80Sf Advanced Polaris
Product no.: 47822

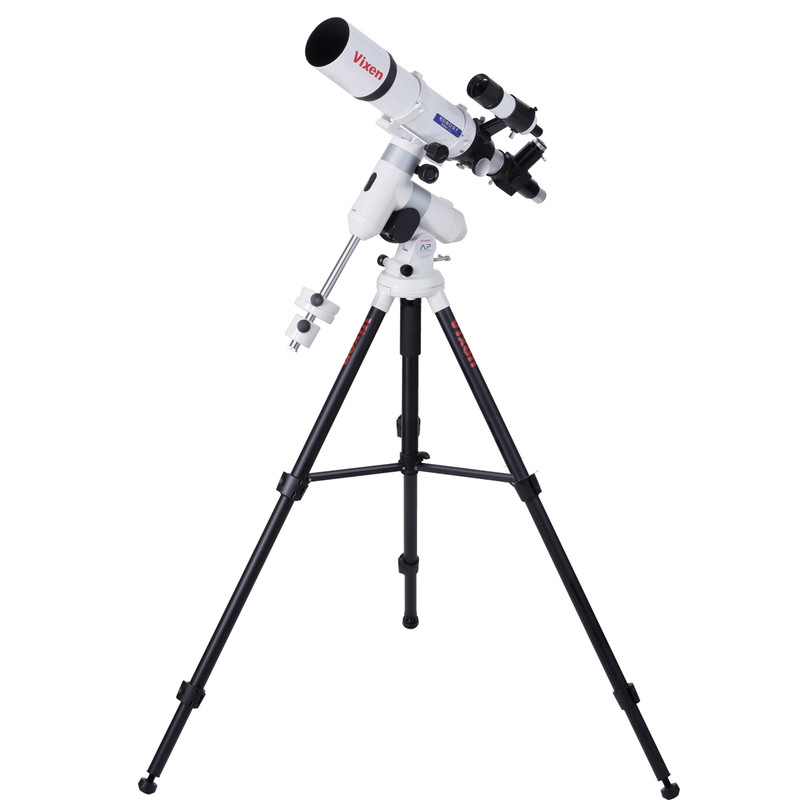

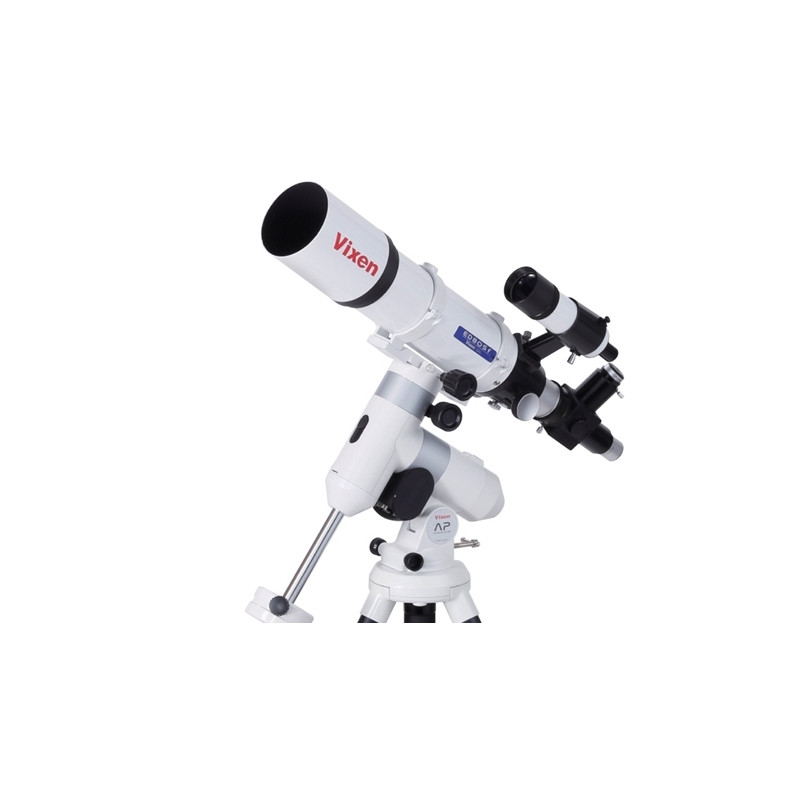

Apochromatic refractor AP 80/600 ED80Sf Advanced Polaris

$ 2,170.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

The handy Traveling mount Polaris Advanced combined with a genuine ED Apo: A dream telescope for mobile, rapid deployment and for ambitious beginners.

Vixen Ap 80/600

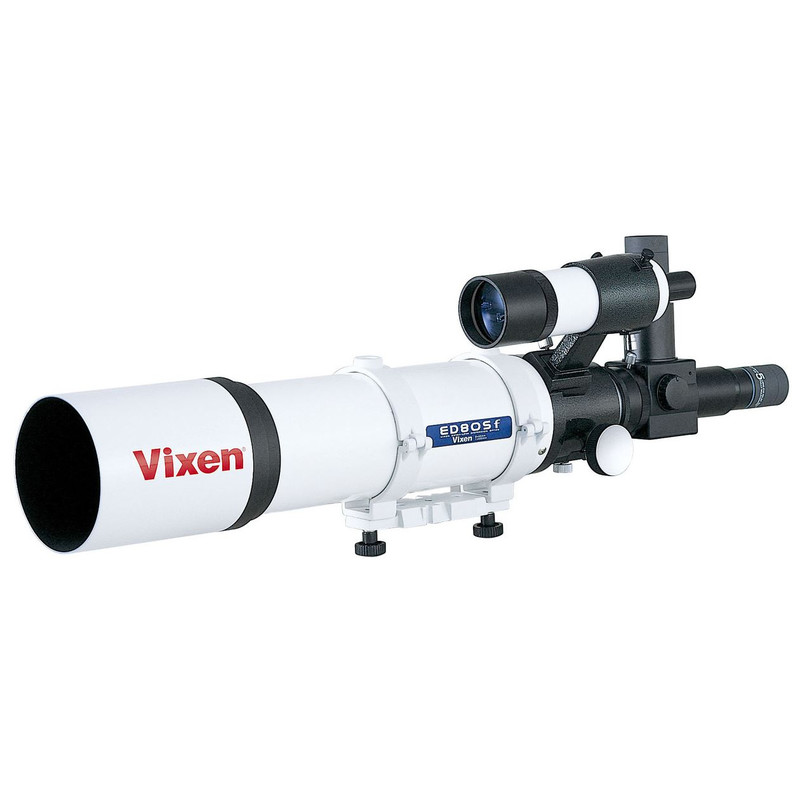

The ED80Sf refractor with Vixen's new Dual Speed Focuser, features high-grade glass (FPL-53) and quality components. Coupled with a medium f/7.5 focal ratio, the ED "S" series provides a sharp, color-free image of high contrast. At only 22.4", this is our ultimate grab-n-go APO travel scope.

The Advanced Polaris equatorial mount is ideal for beginners, but also for more experienced observers who are looking for a light travel mount.

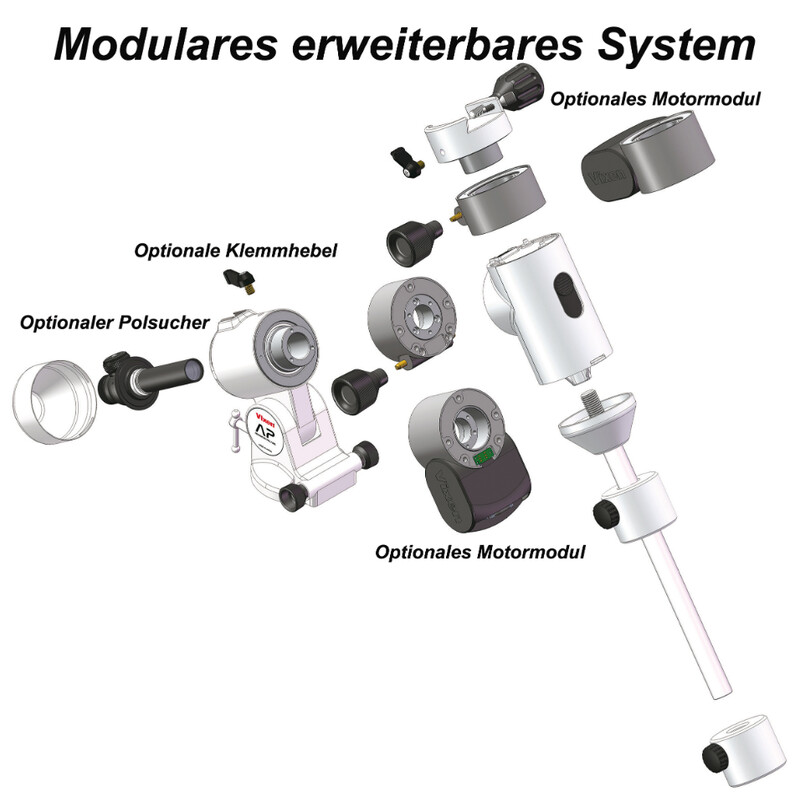

The Advanced Polaris not only has a very stylish design, but also some powerful features under the hood, as the illustration on the right shows. An aluminium gearwheel with a 58.4mm diameter and 144 teeth allows fine adjustments to the axes, as well as 9mm diameter worm shafts, each supported by two bearings - that’s precision engineering at its best!

What is special about the Advanced Polaris is the adjustable slipper clutch: without having to unlock anything, you can simply move your telescope in the direction in which you want to point it. The exact centering of the eyepiece is then done using rotary knobs. The slipper clutch works even if your Advanced Polaris is equipped with motors (AP-SM). This allows you to quickly and intuitively navigate the sky.

In order to align the mount to the north, you can use either a polar finder scope, or the compass of the of the Vixen Polarie photo mount. The Advanced Polaris has connectors for both options. The compass has the advantage that you do not need to bend down under the mount, and also don’t need a view of the Polar Star for alignment. The polar finder and compass can be found under “recommended accessories”. In summary: thanks to the extensive accessories available, the mount can be enhanced to suit all your needs.

The APP-TL130 tripod was developed for the Advanced Polaris mount, it it is also compatible with the Porta II, GP and fork mounts from Vixen.

The APP-TL130 tripod guarantees both portability and stability for astronomical observations. Retracted it measures only 60 centimeters and is therefore an ideal companion for people on the go. The tripod can be extended to a maximum height of 130 centimeters. The tips of the tripod legs have a retractable rubber cover, which protects the floor from scratches.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
80
Focal length (mm)
600
Aperture ratio (f/)
7,5
Resolving capacity
1,44
Limit value (mag)
11,3
Light gathering capacity
130
Max. useful magnification
160
Tube length (mm)
570
tube diameter (mm)
100
Tube weight (kg)
3,4
Tube construction
Full tube
lens design
Doublet

Focuser


Connection ( to eyepiece)
1,25"
Type of build
Gear rack

Mount


GoTo control
no
Mounting type
Equatorial
Load capacity (kg)
6

Tripod


Weight (kg)
3
Material
Aluminium
Height (cm)
130
Type
Tripod
Colour
black

Included accessories


1.25'' eyepieces
NPL 20mm, NPL 6mm
Deviating optics
1.25'' tilting mirror for 2 eyepieces
Finder scope
9x50
Counterweights (kg)
1
Camera adaptor
T2 (M42 x 0,75)
Prism rail
Vixen-Style
Tube clamps
yes

General


Series
Advanced Polaris
Total weight (kg)
12,4

Area of application


Astrophotography
yes (only with appropriate accessories)
Moon & Planets
yes
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)
Nature Observation
no

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Recommended accessories

Telescope accessories > Transport & storage (5)
Carry case

Oklop Carry case Padded bag for 80/600 refractors

$ 53.00*
Telescope accessories > Other (3)
Finder

Omegon Radiant Finder with fastener

$ 49.90*
Eyepieces (3)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (2)
Eyepiece

Vixen Eyepiece NPL 25mm 1.25"

$ 53.00*
Filters > Nebulae filters (4)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (1)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Camera adaptor (4)
Camera adaptor

Vixen Camera adaptor Wide Photo Adapter 60DX compatible with Canon EOS

$ 159.00*
Astrophotography > Other (2)
Camera

Lacerta Camera Standalone Autoguider MGEN Version 3

$ 1,000.00*
Mountings & accessories (3)

Vixen RA motor with Star Book One controller

$ 640.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor > Lamps (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Outdoor > Other (1)

Omegon aluminium case, large

$ 89.00*
Astronomy (3)

Baader Sun filter foil 20 x 29 cm

$ 30.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 17.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Vixen Apochromatic refractor AP 80/600 ED80Sf Advanced Polaris
The resistance of the slip clutch is adjustable and so can be adapted to optics of different weights.
Vixen Apochromatic refractor AP 80/600 ED80Sf Advanced Polaris

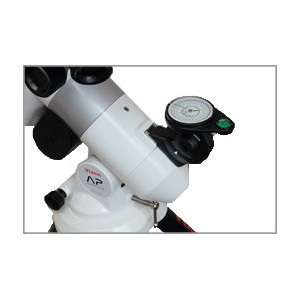

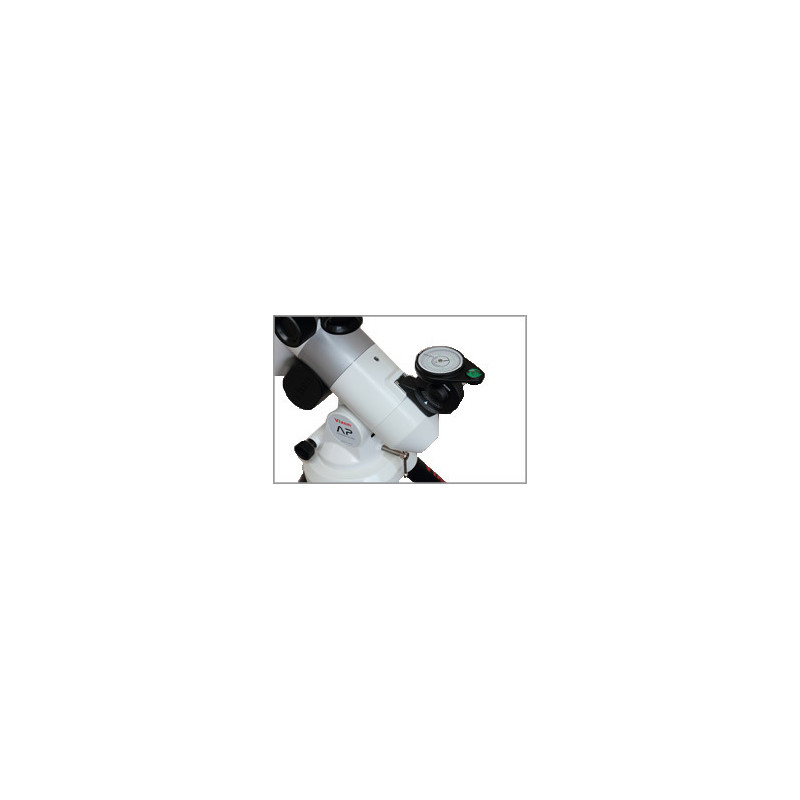

North alignment with optional compass
