Telescopes > William Optics > Cat > William Optics Apochromatic refractor AP 61/300 RedCat 61 OTA
Product no.: 79115

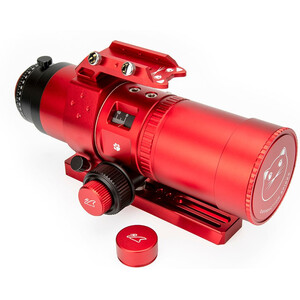

Apochromatic refractor AP 61/300 RedCat 61 OTA

$ 2,080.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
  • Petzval design
  • Compact and lightweight
  • Quadruplet apochromat
  • Integrated corrector

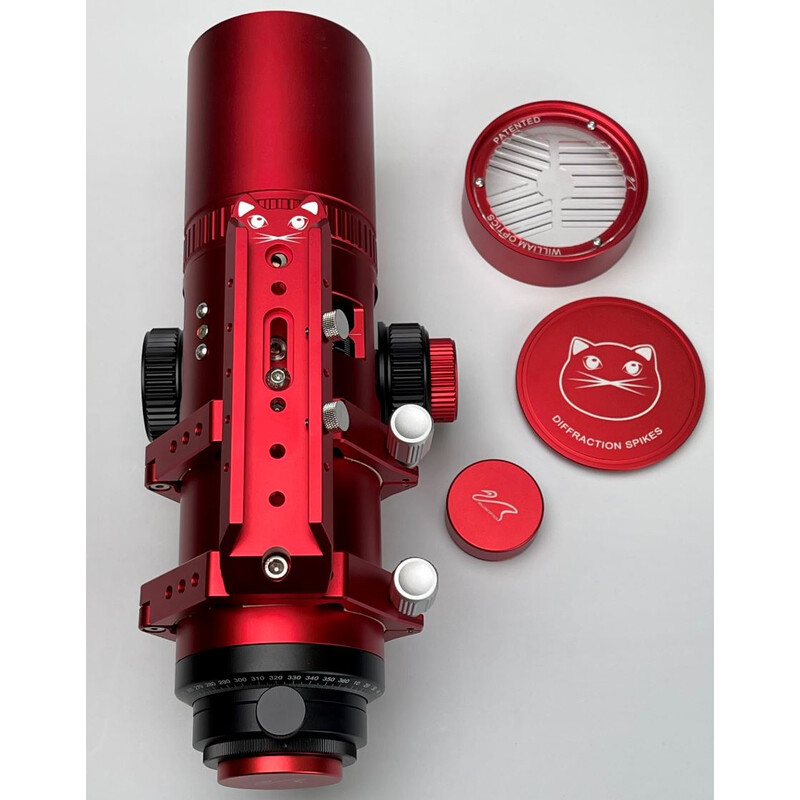

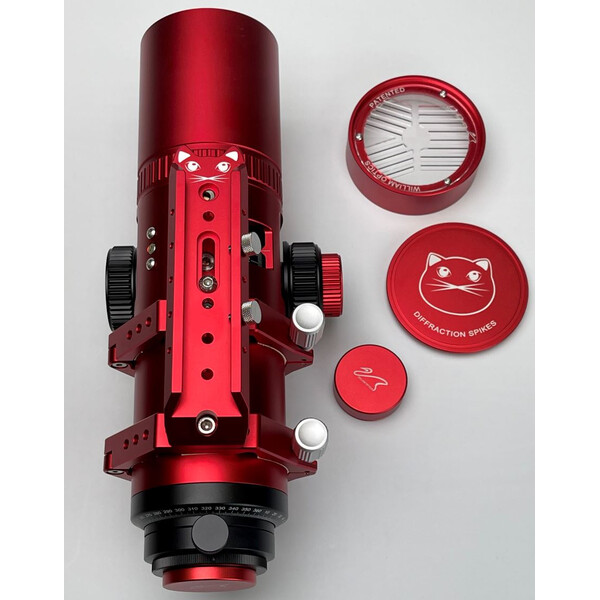

  • Bag, focusing mask, tube clamps and prism rail included in delivery

Product description

More about the series Cat...

The Cat series astrographs are very handy optics for nature and astrophotography. They are available in RedCat and SpaceCat colour variants. The heart of the system is the Petzval-design optics: four lenses in three elements ensure a colour-corrected and, above all, flat image field. No external image field flattener is required!
Other special features include the field rotator with filter holder, which allows the camera to be rotated, and the tilting adaptor for perfect collimation of the image plane with the camera's sensor plane.

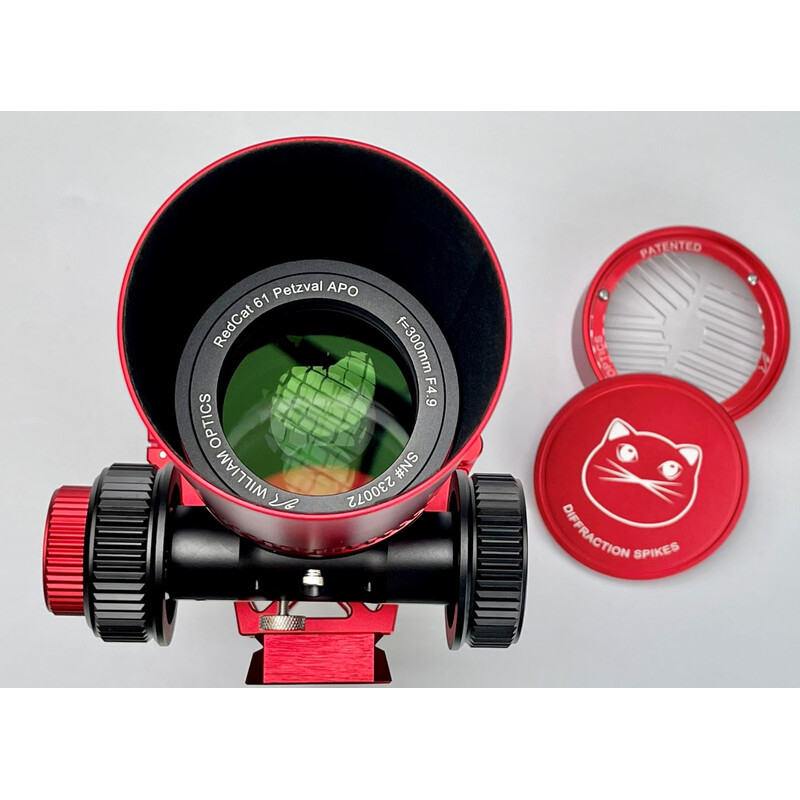

The AP 61/300 lens is an impressive combination of small dimensions, relatively low price and excellent optical quality, and is aimed at all astrophotographers and nature photographers. The heart of the optical design is the Petzval design consisting of 4 elements in 3 groups, using FPL53 and FPL51 glass. The result is a colour-pure, corrected image field with a diameter of over 45 millimetres – ideal for full-frame cameras! The fast aperture ratio of f/4.9 allows for short exposure times.

The included prism rail offers three connection options: for screwing with a photo thread, via Arca-Swiss mounting or for insertion into a prism clamp according to Vixen standard. With these options, it should be no problem to attach the telescope to all common photo tripods, camera mounts or astronomical mounts.

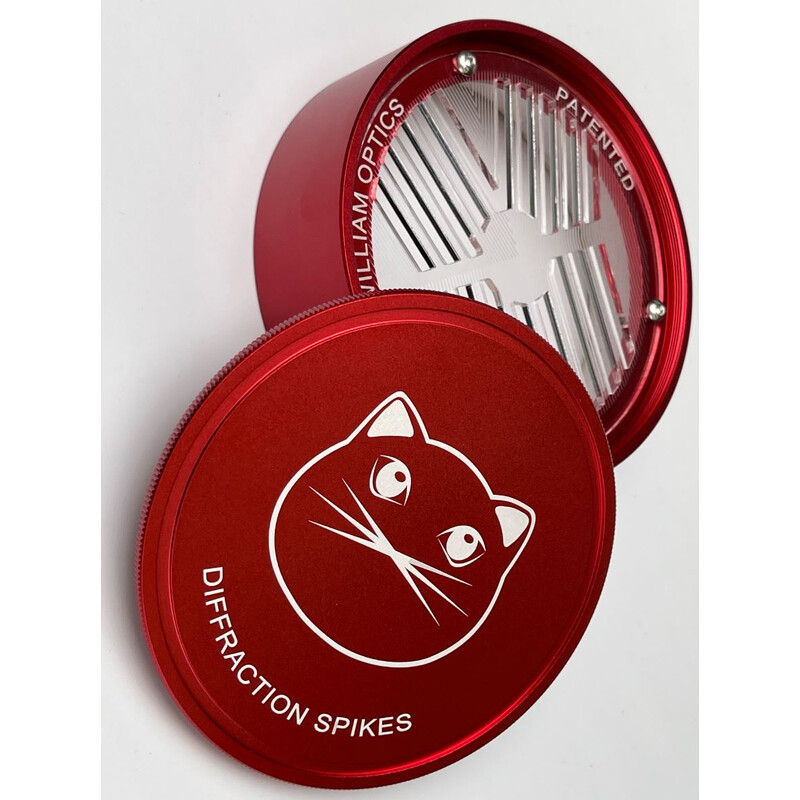

The scope comes with a protective nylon carrying bag and a specially designed Bahtinov mask. This mask helps with focusing and is permanently integrated into the lens attachment.

Optics such as the RedCat 61 are ideal for photographers who are dedicated to the night sky, but also to animal photography. With the Redcat 61, you not only get impressive optical performance, but you can also enjoy the durable and beautiful finish of William Optics.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
61
Focal length (mm)
300
Aperture ratio (f/)
4,9
Resolving capacity
2,26
Limit value (mag)
12,3
Light gathering capacity
80
Max. useful magnification
122
Tube weight (kg)
3,4
Tube length (mm)
365
Tube material
Aluminium
Coating
multiple
Tube construction
Full tube
dew cap diameter (mm)
80
lens design
Quadruplet

Focuser


Tilting Adaptor
yes
Type of build
Internal
Connecting threaded socket (camera-side)
M48
Backfocus (mm)
57
Free aperture (mm)
45
Rotating
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Carry case
yes
Miscellaneous
Bahtinov focus mask
Prism rail
Arca-Swiss & Vixen-Style
Thread for camera tripod
yes
Corrector
integrated

General


Series
Cat
Colour
red

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
yes
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: William Optics Co. Ltd, TW, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
