Telescopes > William Optics > WO Star > William Optics Apochromatic refractor AP 71/350 WO-Star 71 Blue OTA
Product no.: 55190

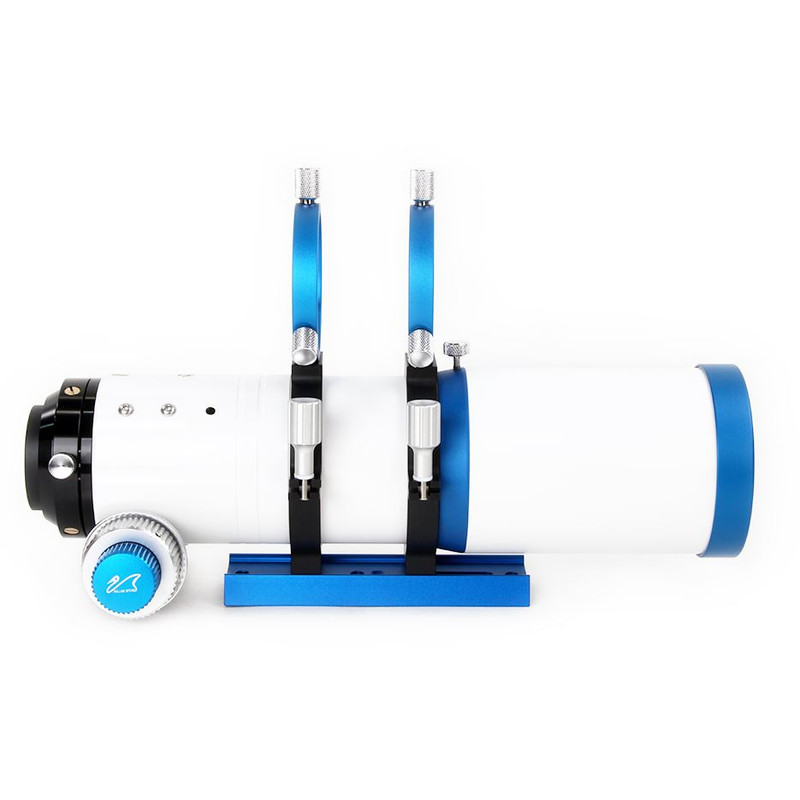

Apochromatic refractor AP 71/350 WO-Star 71 Blue OTA

$ 1,700.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series WO Star...

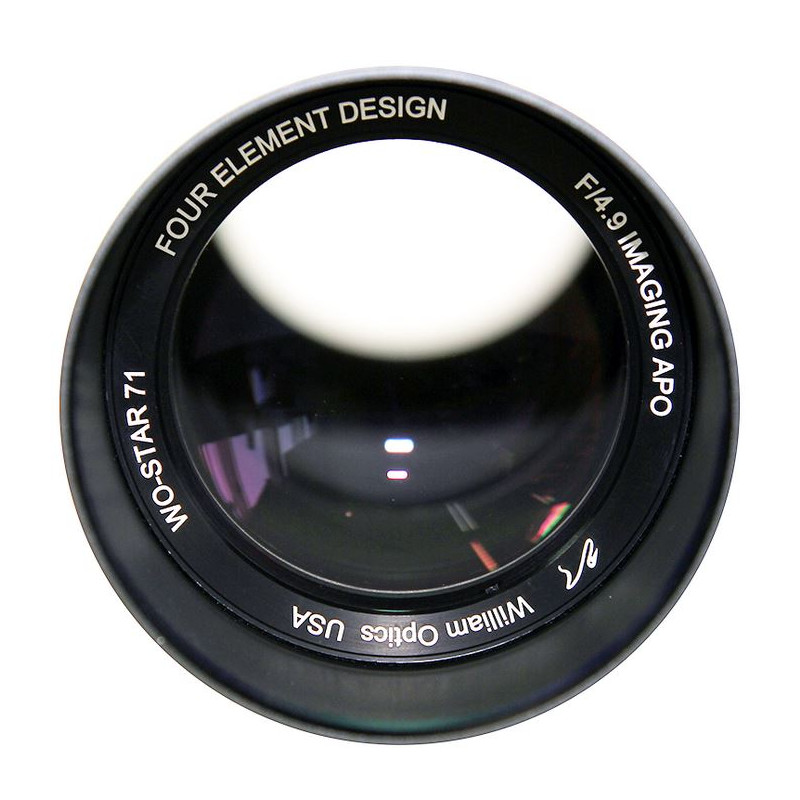

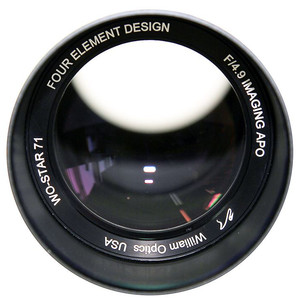

This apochromatic refractor, optimised for astrophotography, consists of four elements in three groups: 2-1-1 configuration. This unique design made of FPL-53 (Ohara) fluorite glass illuminates sensors with a 45 mm diagonal with colour-pure, point-like star images - ideal for full-frame cameras!

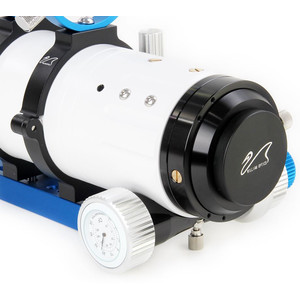

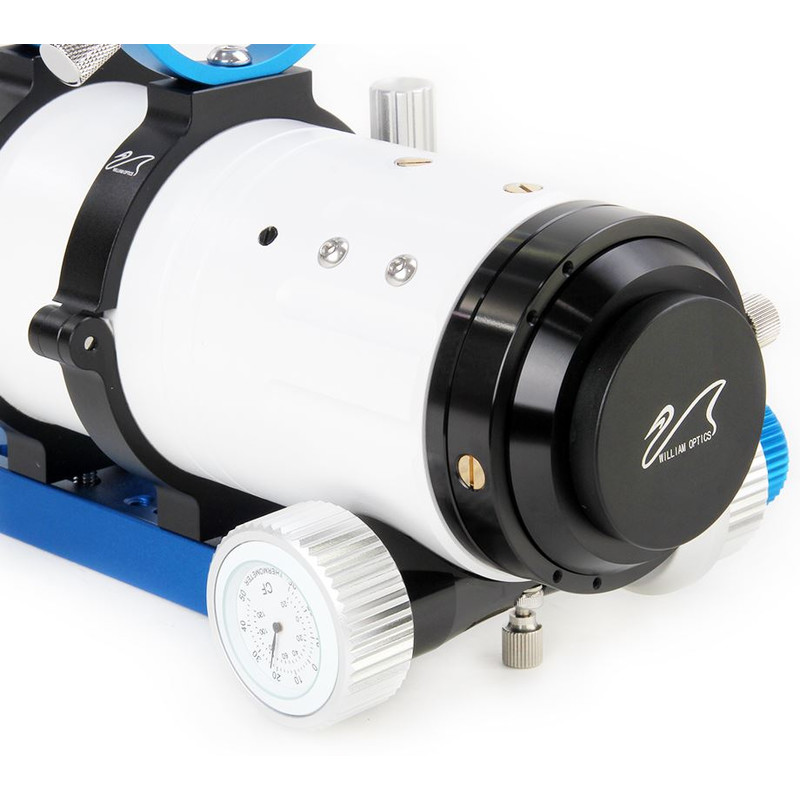

The 2.5" focuser with 1:10 reduction and 35 mm focus travel is equipped with an M48 thread. This offers numerous connection options for cameras. For example, a single-lens reflex camera (DSLR) can be connected directly using a bayonet adaptor with M48 thread. Since the correction optics are already integrated into the optical system of the Star 71, there are no problems with optical path lengths, as is otherwise the case when using an external flattener.

The Star 71 apochromat is ideal for photographing large nebulae, such as the Rosette Nebula or Lagoon Nebula (M8), as well as large galaxies such as Andromeda (M31) or the Triangulum Galaxy (M33).

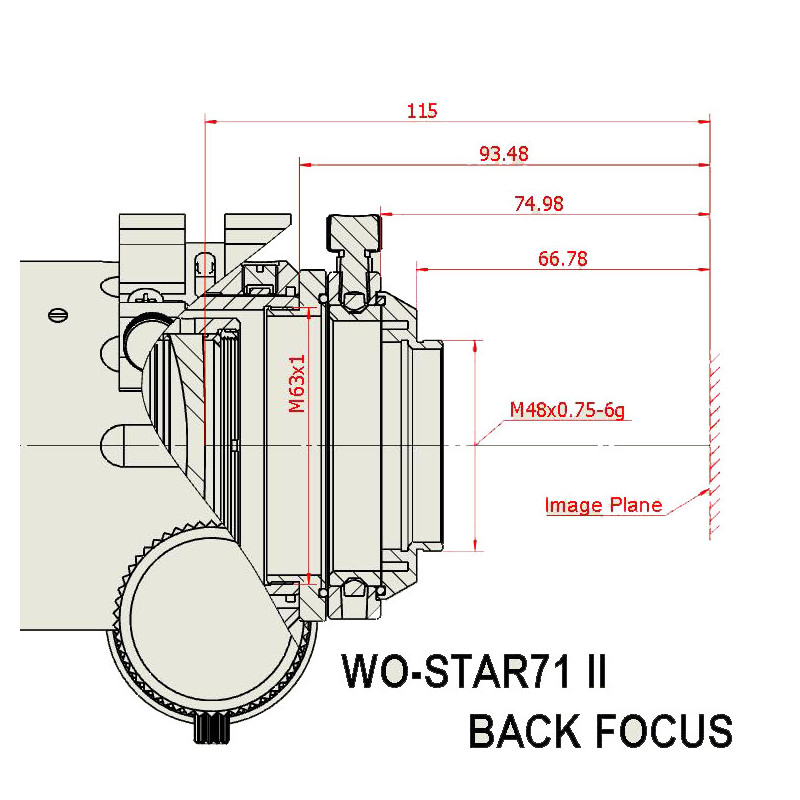

The Star 71 was developed for photography. Therefore, it is not supplied with a diagonal mirror. A normal 2" diagonal mirror cannot be connected, as the back focus of the Star 71 is not sufficient. However, to enable the Star 71 to be used visually, William Optics has developed a special diagonal mirror to which 1.25" eyepieces can be attached as usual. You will find the mirror under "Recommended accessories".

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Tube weight (kg)
1,9
Resolving capacity
1,62
Type of build
Apochromat
Focal length (mm)
350
Limit value (mag)
11,1
Light gathering capacity
100
Max. useful magnification
142
Aperture (mm)
71
Aperture ratio (f/)
4,9
Tube material
Aluminium
Type
Refractor
Tube construction
Full tube
lens design
Triplet

Focuser


Gear reduction
1:10 fine focusing
Adjustment range (mm)
35
Type of build
Gear rack
Free aperture (mm)
64
Connecting threaded socket (camera-side)
M48

Mount


Mounting type
no mount
Type of build
OTA

Included accessories


Dew Shield
yes
Corrector
integrated
Tube clamps
yes
Prism rail
Vixen-Style
Finder scope
no

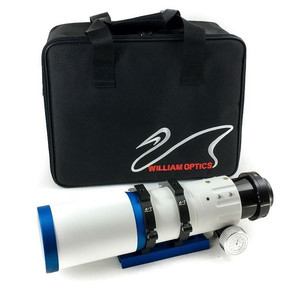

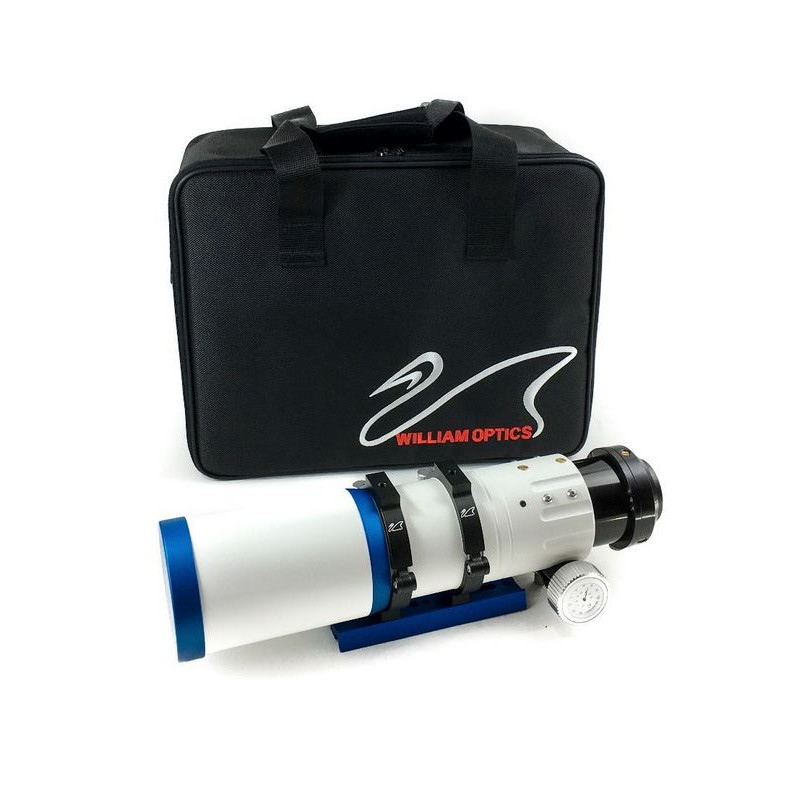

Carry case
yes
Deviating optics
no

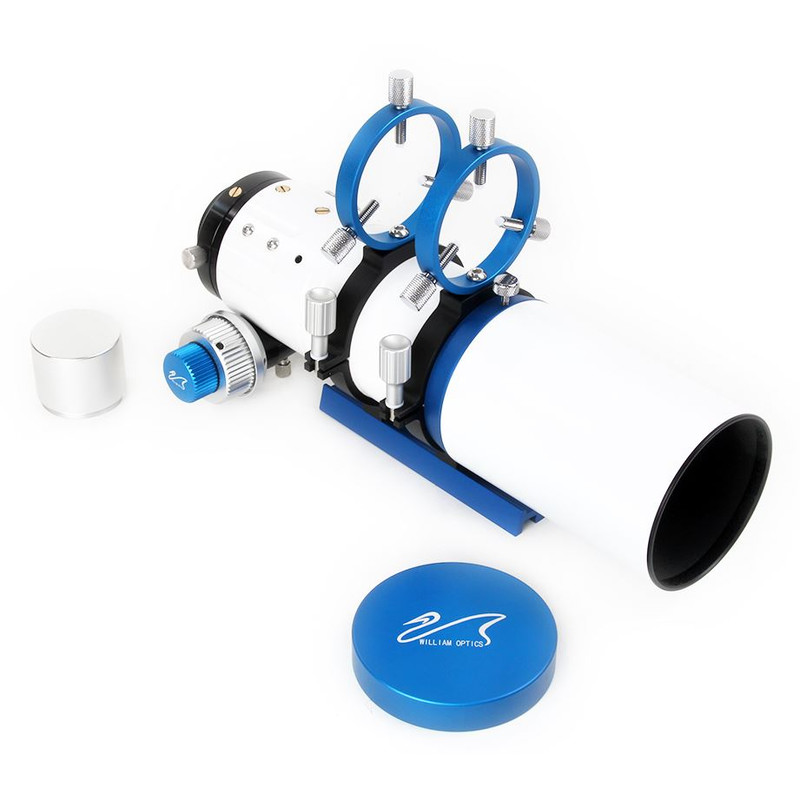

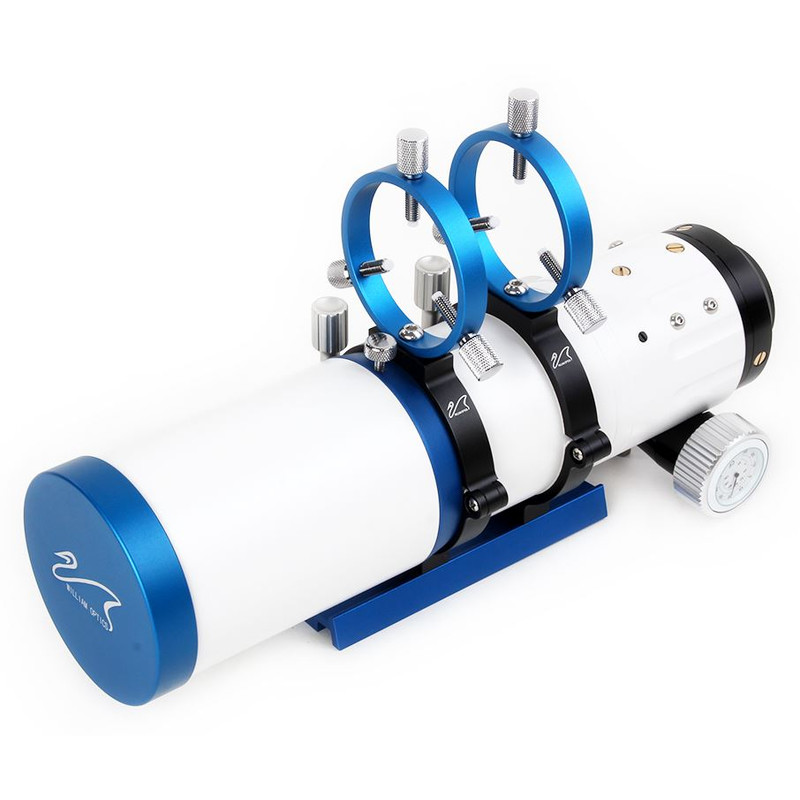

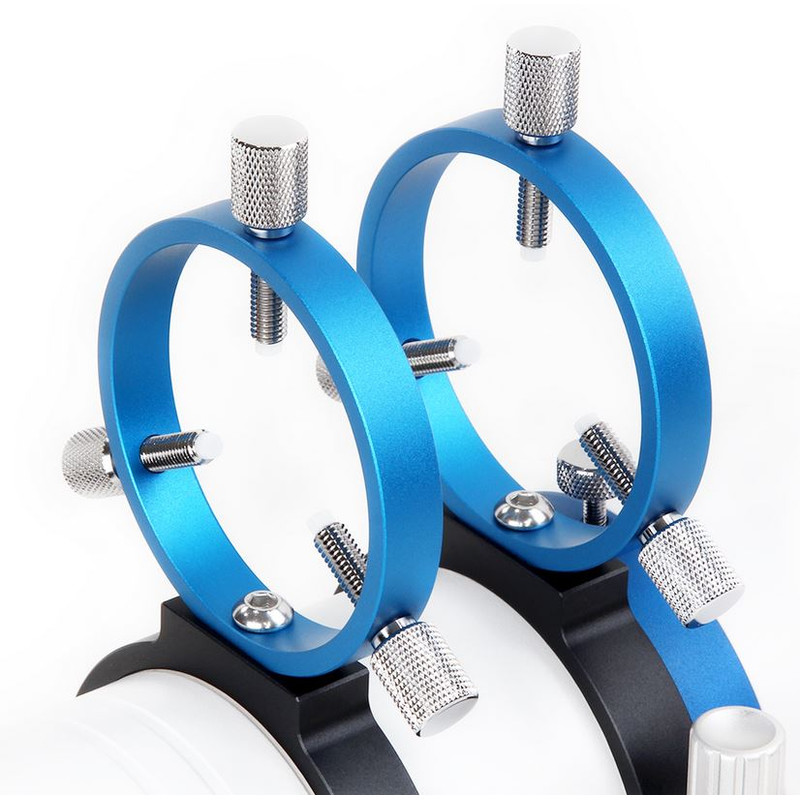

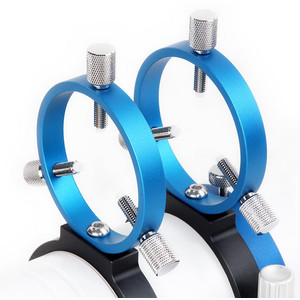

Guide scope rings
yes

General


Total weight (kg)
2,2
Series
WO Star

Area of application


Astrophotography
yes (very good)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: William Optics Co. Ltd, TW, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Telescope accessories > Transport & storage (5)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (4)

Omegon DUNEDRY dehumidifier

$ 29.90*
Eyepieces (8)
Eyepiece

Omegon Eyepiece OGDO 4mm 80°

$ 299.00*
Eyepieces > Other (1)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Nebulae filters (4)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (3)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Astrophotography > Cameras (13)
Camera

Omegon Camera GUIDE 2000 C Color

$ 199.00*
Astrophotography > Camera adaptor (5)
Camera adaptor

Skywatcher Adaptor Canon, M48x0.75

$ 33.90*
Astrophotography > Camera mounts (3)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Astrophotography > Guiding (4)
Guidescope

William Optics Guidescope AC 50/200 RotoLock Red OTA

$ 230.00*
Mounts & accessories (1)
Mount

Skywatcher Mount EQM-35 PRO SynScan GoTo

$ 1,090.00*
Observatories (1)

Omegon Tent observatory

$ 175.00*
Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 26.90*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 33.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

William Optics Apochromatic refractor AP 71/350 WO-Star 71 Blue OTA

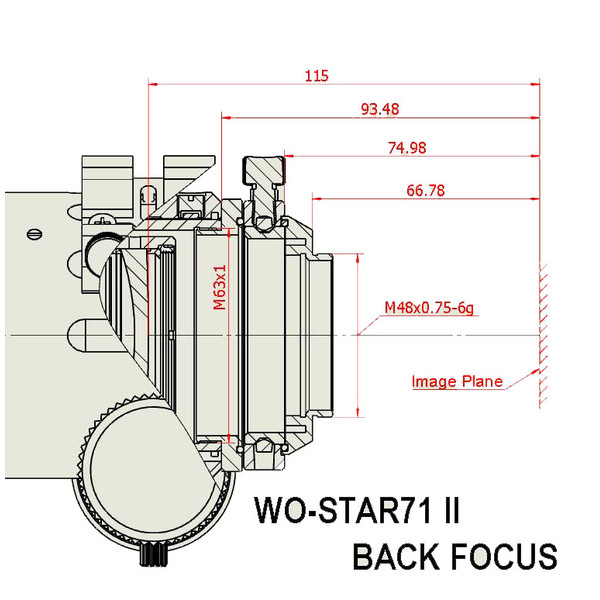

Dimensions
William Optics Apochromatic refractor AP 71/350 WO-Star 71 Blue OTA

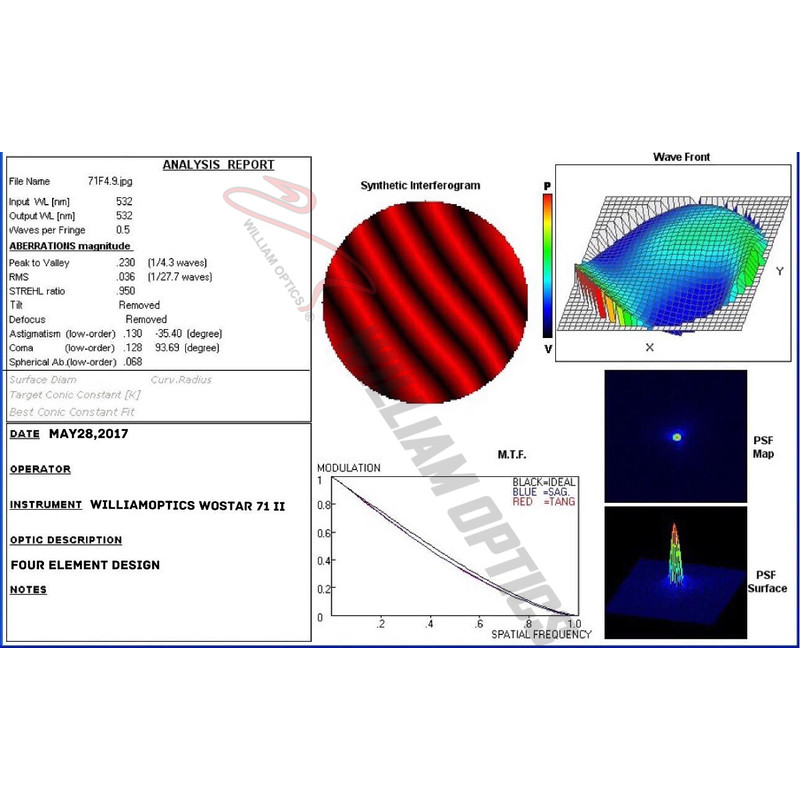

Test report
