Telescopes > Levenhuk > Kelvin > Levenhuk Maksutov telescope MC 90/1170 MAK90 AZ GOTO Wi-Fi
Product no.: 93030

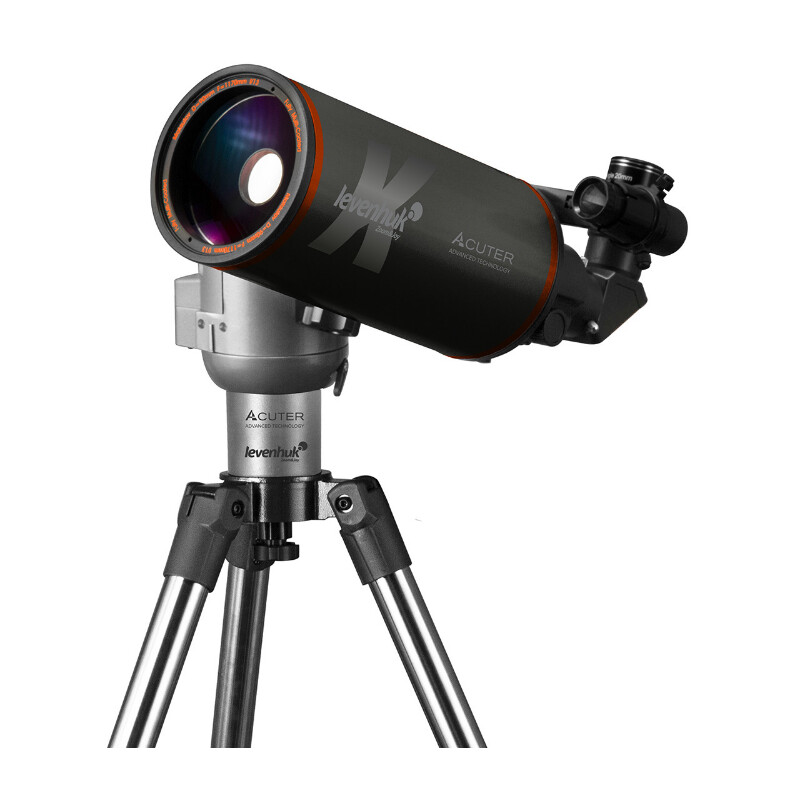

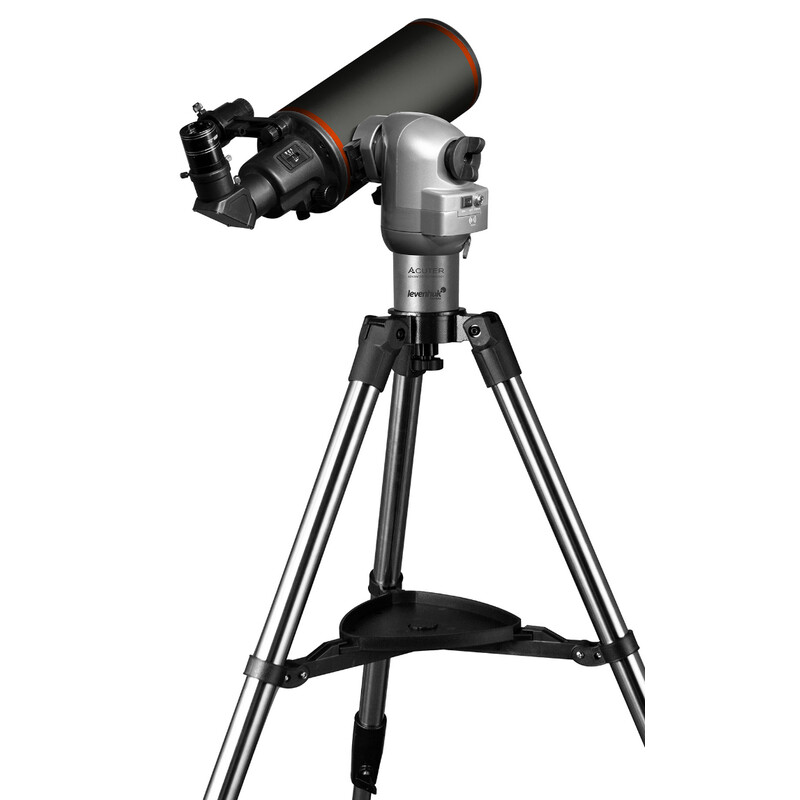

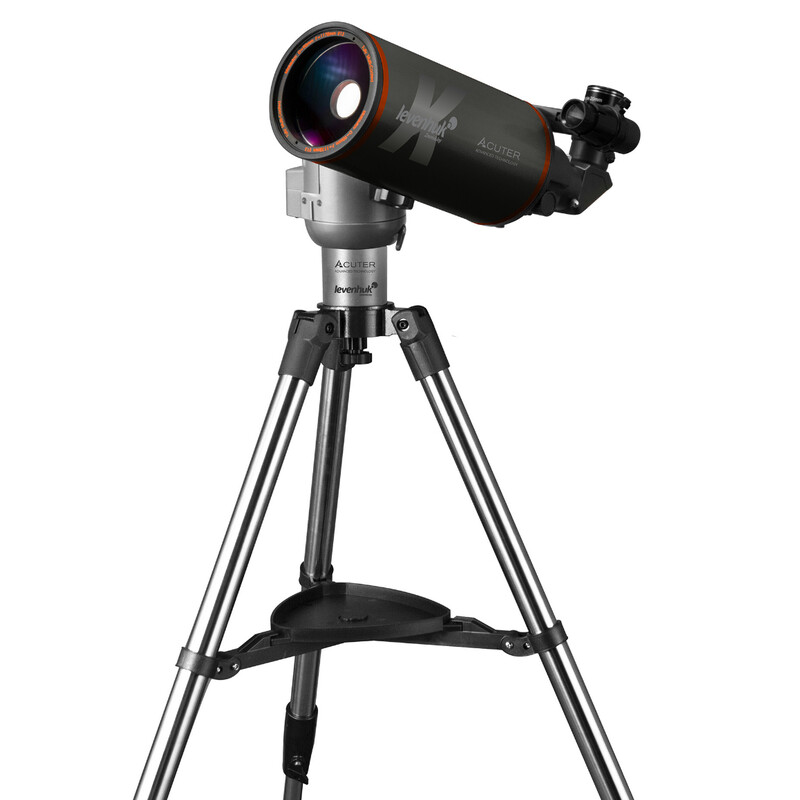

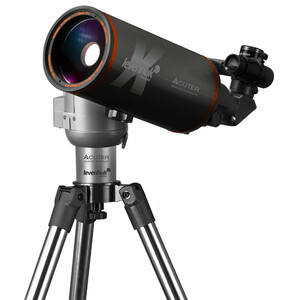

Maksutov telescope MC 90/1170 MAK90 AZ GOTO Wi-Fi

$ 780.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • Robust, reliable optics with closed tube
  • Ideal for lunar, planetary and nature observations
  • Integrated WiFi and Bluetooth
  • Smartphone controls
  • Sturdy stainless steel tripod

Product description

Maksutov telescopes

Maksutov telescopes are very compact and therefore ideally suited for portable use or for when travelling. The enclosed optics and collimation stability with Maksutovs ensure their robustness.

Maksutov telescopes have a very long focal length despite their compact design. But the field of view is rather narrow when compared to achromatic refractor telescopes. However, this combination makes Maksutov telescopes ideal instruments for observing the Moon and planets. And when equipped with an Amici prism, they are also very well suited to nature-watching and nature photography.

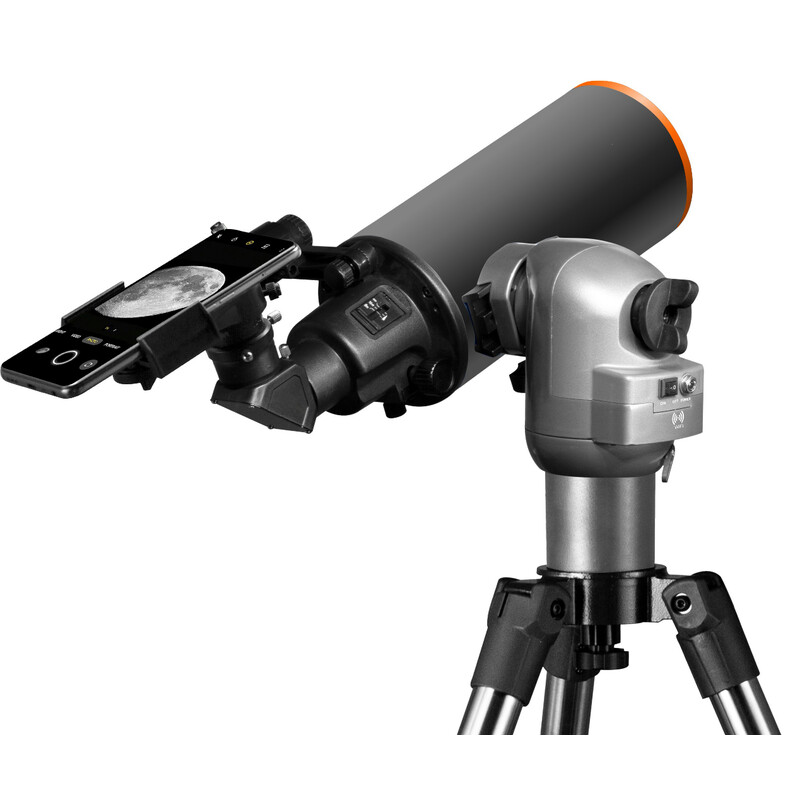

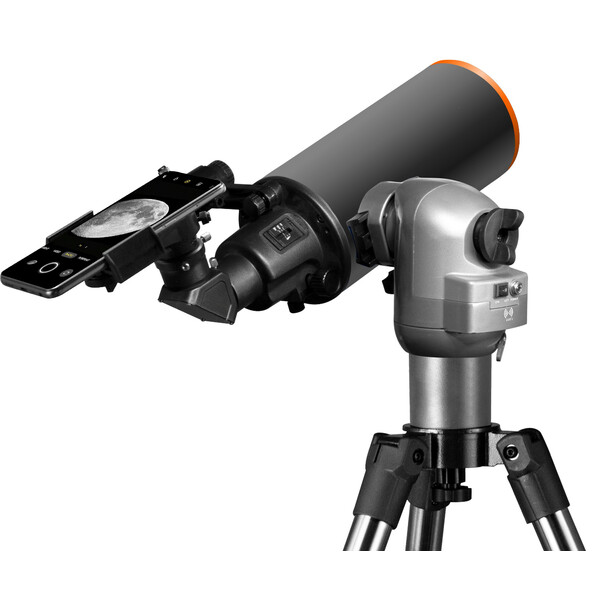

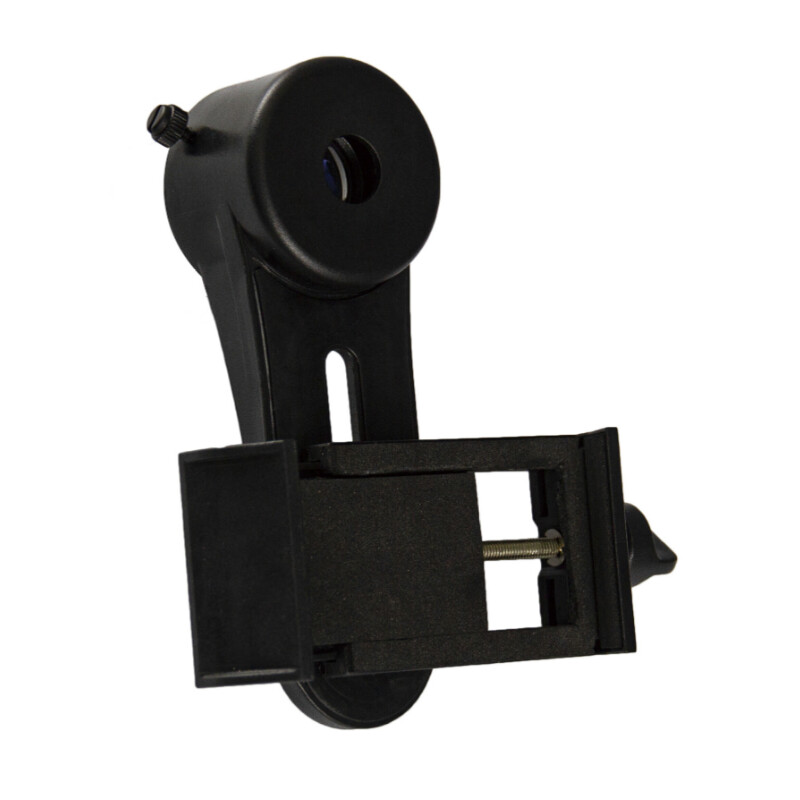

The smartphone adapter with Bluetooth shutter release allows you to take touch-free photographs of the Moon without blurring the image.

The finder scope produces an upright, non-inverted image, so that it matches the view through the telescope. This makes things much easier, particularly during nature observation.

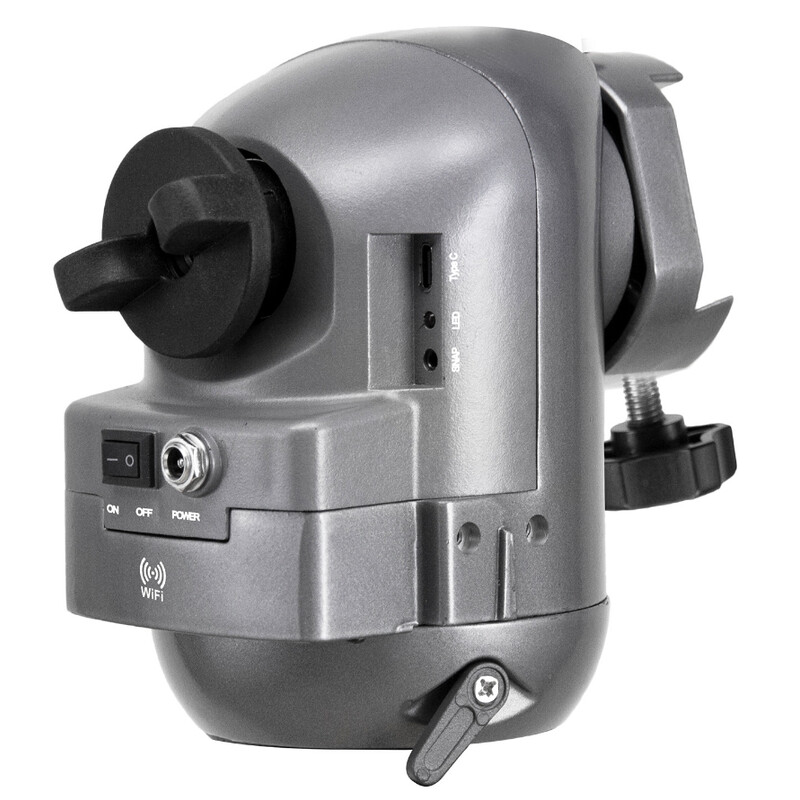

The Acuter Traverse Pro GoTo mount is a very lightweight, computer-controlled azimuth mount for astronomy. With built-in Bluetooth and WiFi, it can be used anywhere and controlled wirelessly via smartphone or tablet. This requires the installation of the free Acuter Sky app for iOS or Android.

The mount can support telescopes weighing up to 5 kilograms and allows you to automatically navigate to more than 11,000 celestial objects in the app's extensive database. Once you have entered your coordinates into the app and followed a simple alignment procedure, you are ready to search for your favourite objects in the universe using your telescope via the intuitive touchscreen interface.

A sturdy stainless steel tripod with accessory tray and extendable legs is included in the set.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
Maksutov
Aperture (mm)
90
Focal length (mm)
1170
Aperture ratio (f/)
13
Resolving capacity
1,53
Limit value (mag)
11,6
Light gathering capacity
170
Max. useful magnification
180
Tube weight (kg)
1,9
Tube length (mm)
380
Tube construction
Full tube
Close focus limit (m)
8

Reflector


Main mirror´s construction
spherical
secondary mirror design
meniscus lens
Primary mirror - Material
H-K9L
Secondary mirror material
H-K9L
Correction plate - Material
H-K9L

Focuser


Type of build
Internal
Connection ( to eyepiece)
1,25"

Mount


Mounting type
Azimuthal
Load capacity (kg)
4,5
GoTo control
yes
Mounting saddle
Vixen-Style
Motors
Servomotors
Power consumption (mA)
750
Power supply
12-14
Battery compartment
yes
Weight (kg)
1,2
Pre-drive
Gear
Drive type
Worm wheel
Threaded tripod connector
3/8

GoTo control


Bluetooth
yes
Database
11000
GPS
Yes, via Smartphone
Alignment method
3-Star Alignment, 2-Star Alignment, 1-Star Alignment
with hand paddle
no
Software
Acuter SkyApp
GoTo Language
multilingual
WIFI
yes

Tripod


Type
Tripod
Accessory plate
yes
Material
Steel
Max. tripod height (cm)
116
Min. tripod height (cm)
75
Weight (kg)
2,7

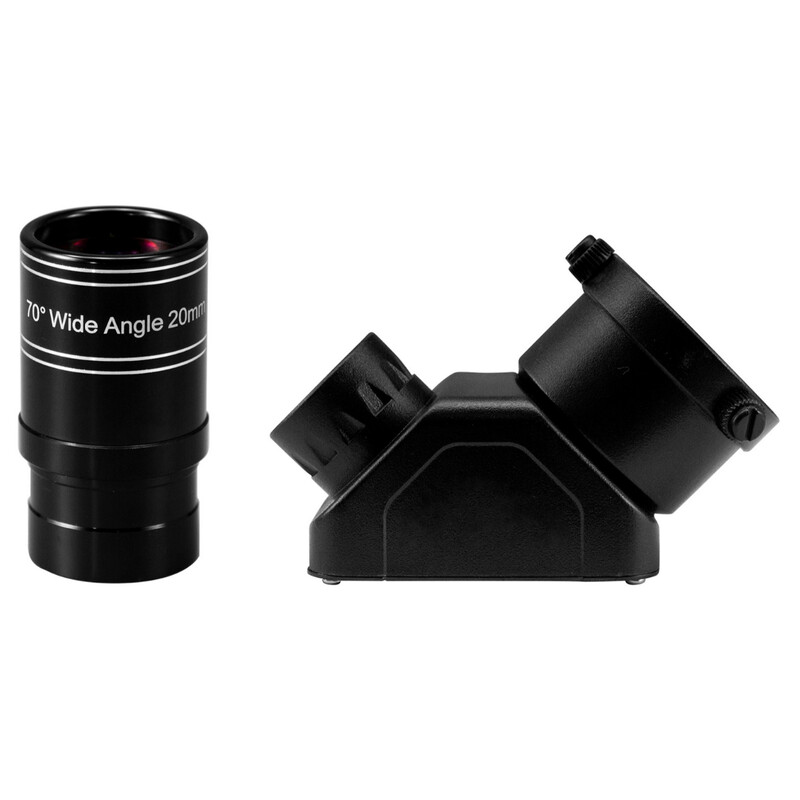

Included accessories


1.25'' eyepieces
20mm
Deviating optics
1.25", 90° star diagonal
Finder scope
6x21
Carry case
yes
Prism rail
Vixen-Style
Thread for camera tripod
yes
Camera adaptor
Smartphone
Power pack
no
Battery compartment
yes
Miscellaneous
Shutter Release
Dew Shield
no

General


Series
Kelvin
shipping weight (kg)
8

Area of application


Moon & Planets
yes (very good)
Nebulae & galaxies
not recommended
Nature Observation
yes
Astrophotography
yes (Moon & Planets)
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Miscellaneous


Battery type
Mignon (AA, LR6) (8 pieces)

Product safety

Manufacturer: Levenhuk Optics s.r.o., V Chotejne 700/7, 102 00 Prag, CZ, www.levenhuk.com

Recommended accessories

Telescope accessories > Transport & storage (5)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (9)

Omegon Soft dew shield cap 4" (115-135mm OTA-⌀)

$ 34.90*
Eyepieces (5)

Omegon Eyepiece OGDO 4mm 80°

$ 299.00*
Eyepieces > Other (2)

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 79.00*
Filters (6)

Omegon Filters Moon filter 1.25"

$ 19.90*
Astrophotography > Cameras (11)

Omegon Camera GUIDE 2000 C Color

$ 239.00*
Astrophotography > Camera adaptor (3)

Omegon Camera adapter 1.25"

$ 24.90*
Astrophotography > Camera mounts (3)

Omegon Easypic Universal Smartphone Adapter

$ 119.00*
Astrophotography > Other (2)

Omegon Guidescope module finder

$ 99.00*
Observatories (1)

Omegon Tent observatory

$ 158.00*
Media (4)

Omegon Star chart Planisphere

$ 19.90*
Outdoor (1)

Omegon LED headlamp

$ 14.90*
Globes & Maps (1)

Oculum Verlag Sky Quality Map Europe

$ 26.90*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 33.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 1.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 6.90*
Miscellaneous (1)

Varta Professional Mignon (AA) lithium batteries, pack of 4

$ 14.90*

*All prices include VAT plus shipping costs.

Levenhuk Maksutov telescope MC 90/1170 MAK90 AZ GOTO Wi-Fi
Included accessories
Levenhuk Maksutov telescope MC 90/1170 MAK90 AZ GOTO Wi-Fi
Smartphone adapter
Levenhuk Maksutov telescope MC 90/1170 MAK90 AZ GOTO Wi-Fi
Mount
Levenhuk Maksutov telescope MC 90/1170 MAK90 AZ GOTO Wi-Fi

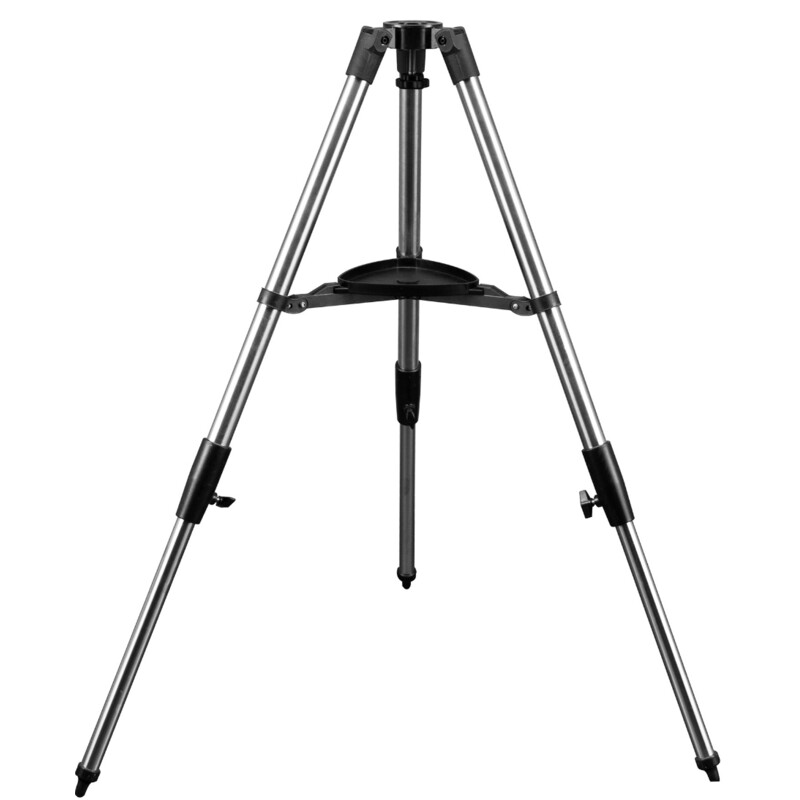

Tripod
