Telescopes > Meade > OTA > Meade Telescope ACF-SC 406/3251 UHTC LX850 OTA
Product no.: 45050

Telescope ACF-SC 406/3251 UHTC LX850 OTA

$ 15,800.00 incl. VAT plus shipping costs
too expensive?
long-term
Product can be shipped as of 01.04.2025 + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

Meade ACF-SC telescopes:

Almost every large telescope worldwide is a Ritchey-Chrétien, including NASA's Hubble space telescope. The technology used by the pros can now belong to you too. Meade's new Advanced Coma-Free System - powerful and high-precision - is within the reach of all ambitious amateur astronomers, astrophotographers and CCD photographers! It provides perfectly sharp star images, at the highest professional observatory level, over the entire field of view. The secret of coma-free system is - as the name says - the complete absence of coma, an optical aberration in which starlight is distorted and pulled into comet-like tails outside the central part of the image. Whether for observing or photography, the ACF Cassegrain optics from Meade is way ahead of conventional mass produced telescopes. It offers fantastic image quality, previously only available from Ritchey Chrétien telescopes and other exotic systems costing several times as much as the Meade system.

Advanced Coma-free Optics (ACF): Meade's ACF optical design eliminates the typical aberrations of all mirror optics. Thanks to ACF, the stars are also point-shaped right out to the edge of the image field, displaying no elongated comet-like distortions. The image field is flatter than that of classic Schmidt-Cassegrain telescopes. ACF optical systems show their strengths especially in astrophotographic applications.

Ultra-High Transmission Coatings (UHTC): This special multi-layer coating on the front correction plate provides up to 15% more light transmission. The result -brighter star clusters, finer details in nebulae and more surface detail on planets!

Zero Image Shift Micro-Focuser: Image focusing is achieved by focusing the primary mirror. This is designed in such a way that it cannot result in the mirror shifting. Precise focusing is carried out with a 1:7 ratio using a very handy lever. The models with 14" and 16" apertures (355mm and 406mm) are additionally equipped with a special fixing so that even with these more difficult mirrors the focus remains as it was set.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
406
Focal length (mm)
3251
Aperture ratio (f/)
8
Resolving capacity
0,28
Limit value (mag)
14,8
Light gathering capacity
3360
Max. useful magnification
812
Tube weight (kg)
35
Tube construction
Full tube
Coating
UHTC
tube diameter (mm)
440
Tube length (mm)
833

Reflector


Main mirror´s construction
spherical
secondary mirror design
hyperbolic
Primary mirror - Material
Borosilicate glass
Adjustable
yes

Focuser


Type of build
primary mirror focusing
Connection ( to eyepiece)
2
Gear reduction
1:7 fine focusing

Mount


Mounting type
no mount
Type of build
OTA
GoTo control
no

Included accessories


Prism rail
Losmandy-Style
finder base
Meade/Explore Scientific T-Profil
2'' eyepieces
without
Finder scope
without
Dew Shield
no
Deviating optics
no

General


Series
OTA

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Recommended accessories

Workshop service (1)

Astroshop Adjustment & auto-collimation star test Schmidt Cassegrain 12"-16"

$ 126.00*
Telescope accessories > Prisms & Diagonal mirrors (4)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Transport & storage (4)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (8)
Heater strap

Lunatico Heater strap ZeroDew 16" heating band - USB

$ 165.00*
Eyepieces (4)
Eyepiece

Omegon Eyepiece LE Planetary 18mm 1,25''

$ 149.00*
Eyepieces (3)
Eyepiece

Omegon SWA 38mm eyepiece, 2”

$ 179.00*
Eyepieces (4)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (4)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Moon filters & Polarizing filters (3)
Filters

Omegon Filters 2'' Moon filter 25% Transmission

$ 24.90*
Filters > Nebulae filters (5)
Filters

Omegon Filters 1.25'' deep sky filter

$ 89.00*
Filters > Other (1)

Omegon 2'' filter wheel

$ 189.00*
Astrophotography > Cameras (12)
Camera

Omegon Camera GUIDE 2000 C Color

$ 199.00*
Astrophotography > Camera adaptor (4)
Projection adapter

Omegon Camera adapter 1.25"

$ 24.90*
Astrophotography > Other (3)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Mounts & accessories (1)

Losmandy dovetail plate for Meade 16" f/8

$ 370.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 17.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

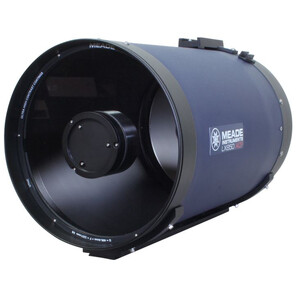

Meade Telescope ACF-SC 406/3251 UHTC LX850 OTA

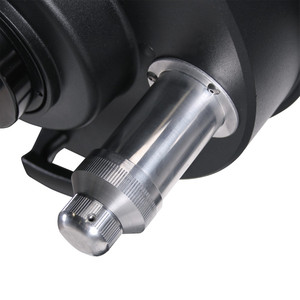

Focusing knob
Meade Telescope ACF-SC 406/3251 UHTC LX850 OTA

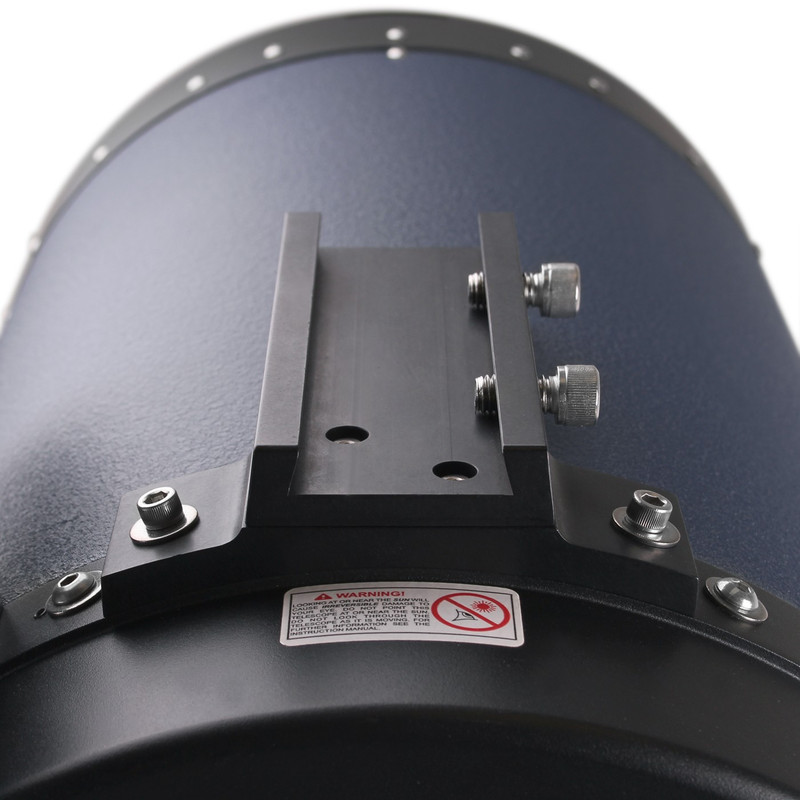

Prism rail
Meade Telescope ACF-SC 406/3251 UHTC LX850 OTA

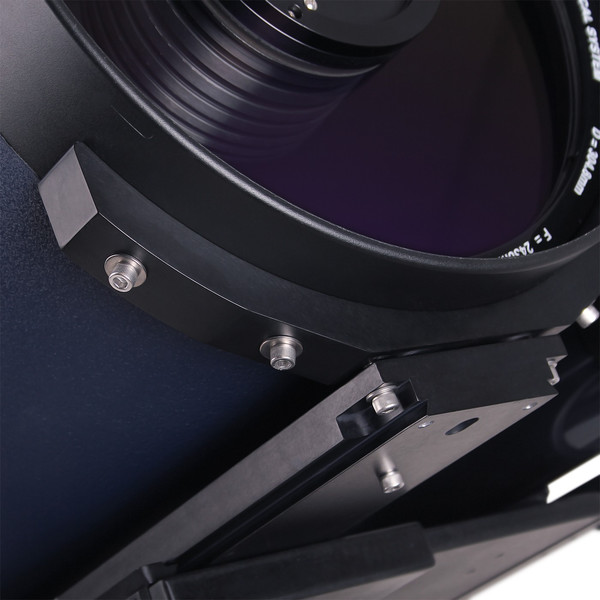

Finder mounting bracket included
