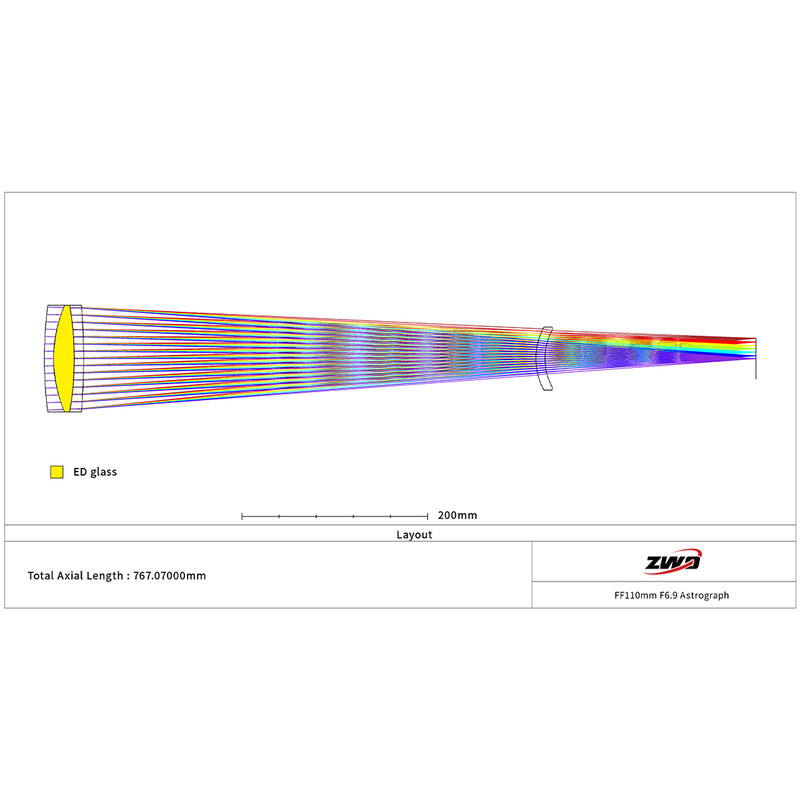

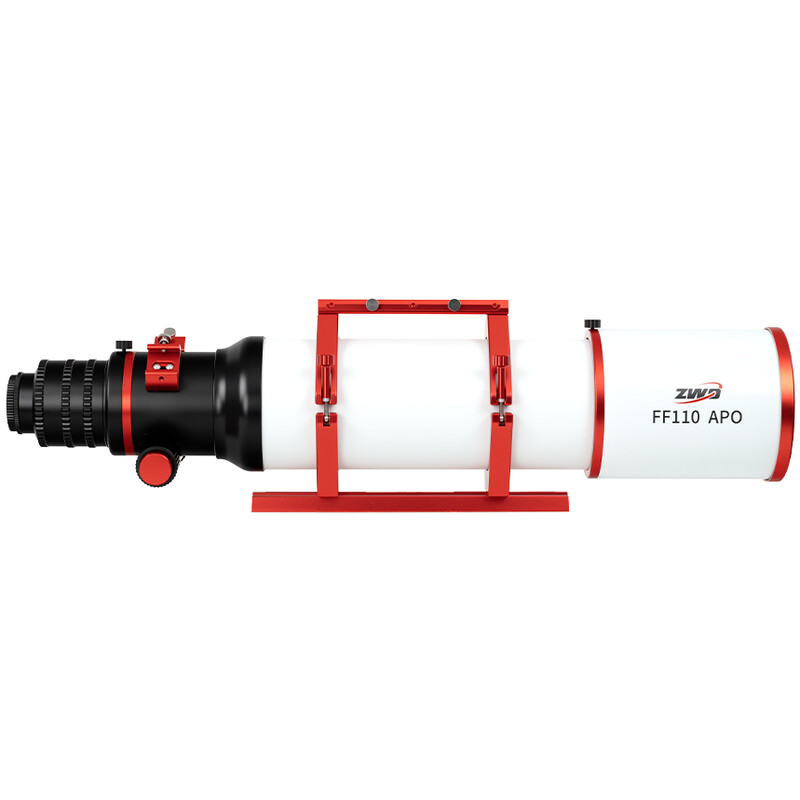

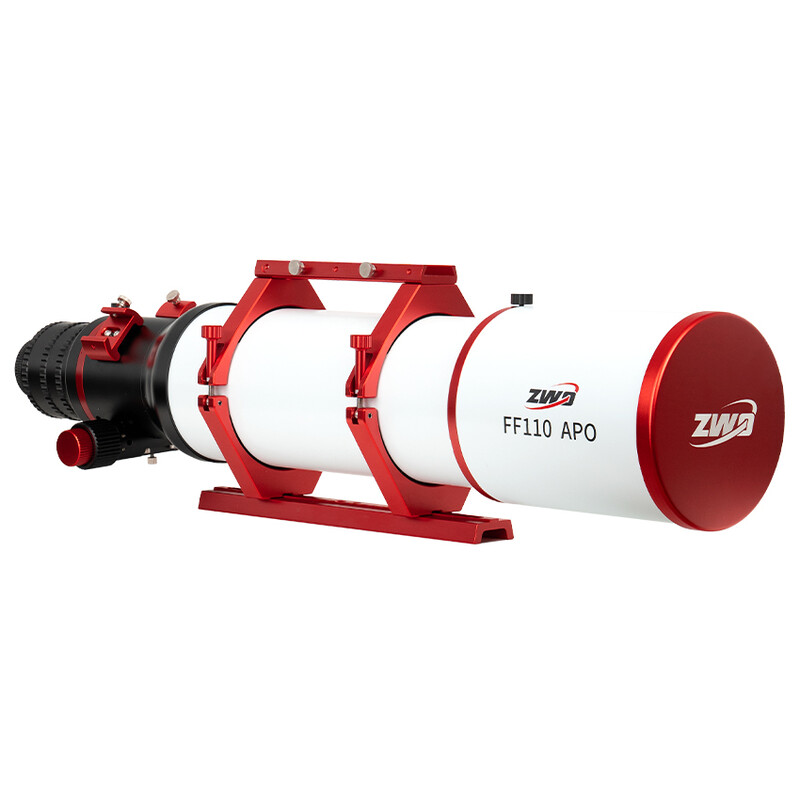

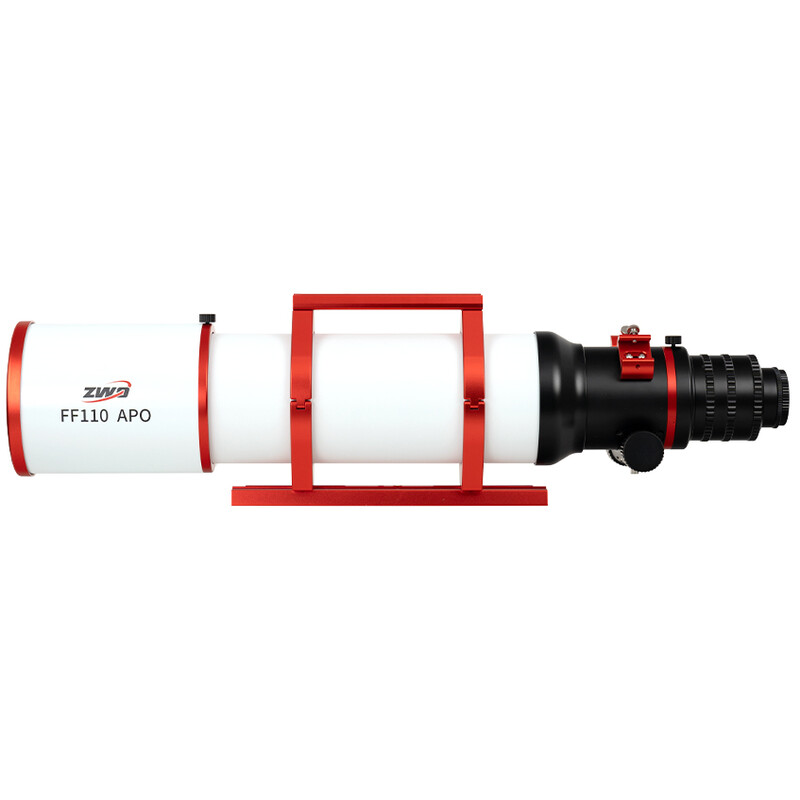

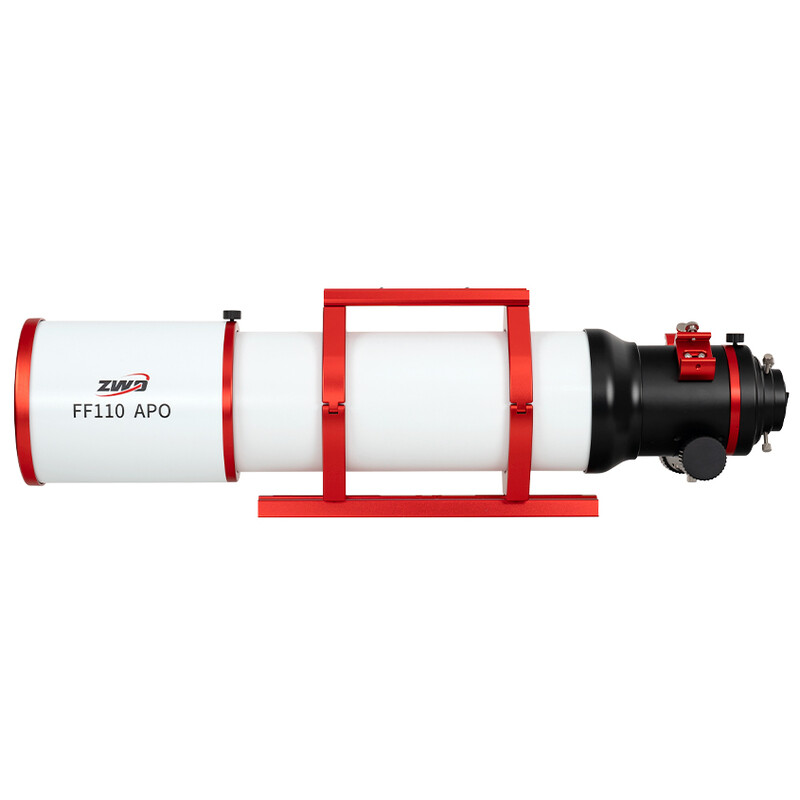

This apochromatic telescope features a three-lens objective with a central lens made of ED (extra-low dispersion) glass. This ensures excellent suppression of chromatic aberration, which is inherent in refracting telescopes. The result is a bright and high-contrast image.

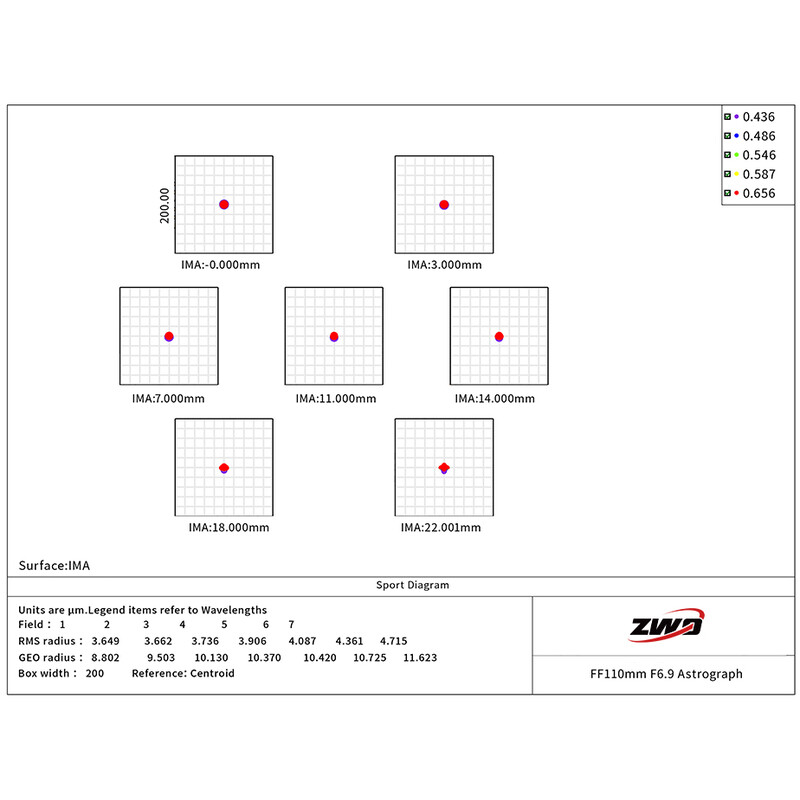

A fourth lens is positioned downstream of the objective lens, which flattens the curved image field. This is why this apochromatic telescope is also marketed as a quadruplet or Astrograph. This lens in the optical path ensures consistent sharpness right to the edge of the image field. There is therefore no need to purchase a separate image field flattener. Furthermore, this design makes back focus uncritical: if the image is in focus on the camera sensor, the required distance to the camera sensor is also correct.

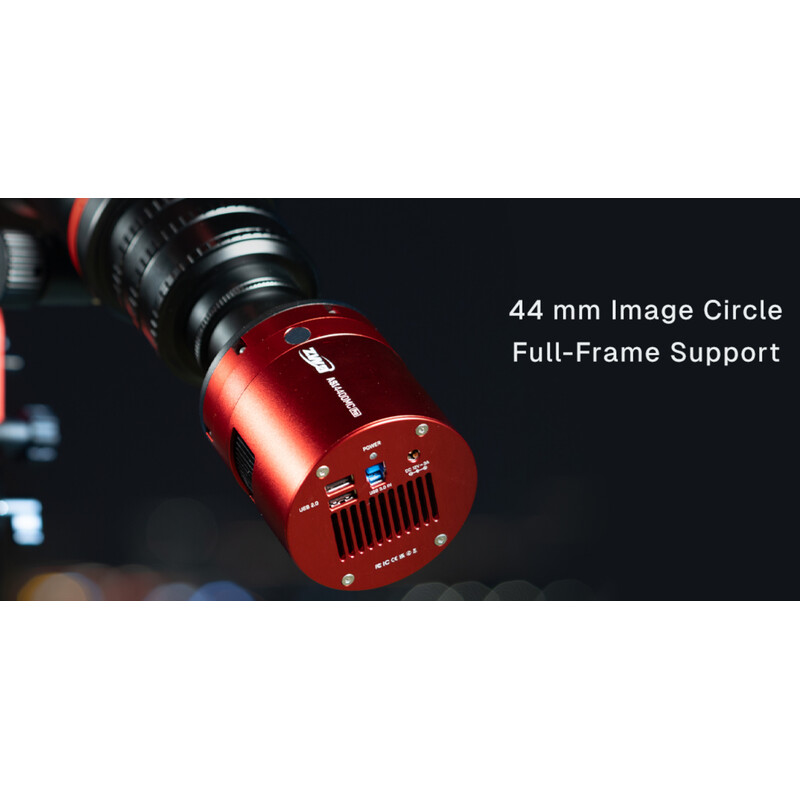

The extension tube with integrated filter thread included in the scope is designed for astrophotography. It features the standard thread sizes found on most cameras, so securely attaching a camera is no problem. For visual observation, this tube is simply removed. This leaves sufficient space to the objective focus to attach an optional diagonal mirror and an eyepiece – and this is done very easily via the 2-inch barrel mount.
A reduction gear is provided to allow for precise focus adjustment. The integrated rotator enables optimal alignment of the camera sensor with the telescope image or field of view. Both features are essential for astrophotography and are included with this Apo.
The practical handle and the standard viewfinder shoes on the focuser allow for the attachment of additional accessories.
Speaking of standards: mounting on an astronomical mount is very simple via a prism rail in accordance with the Vixen standard.

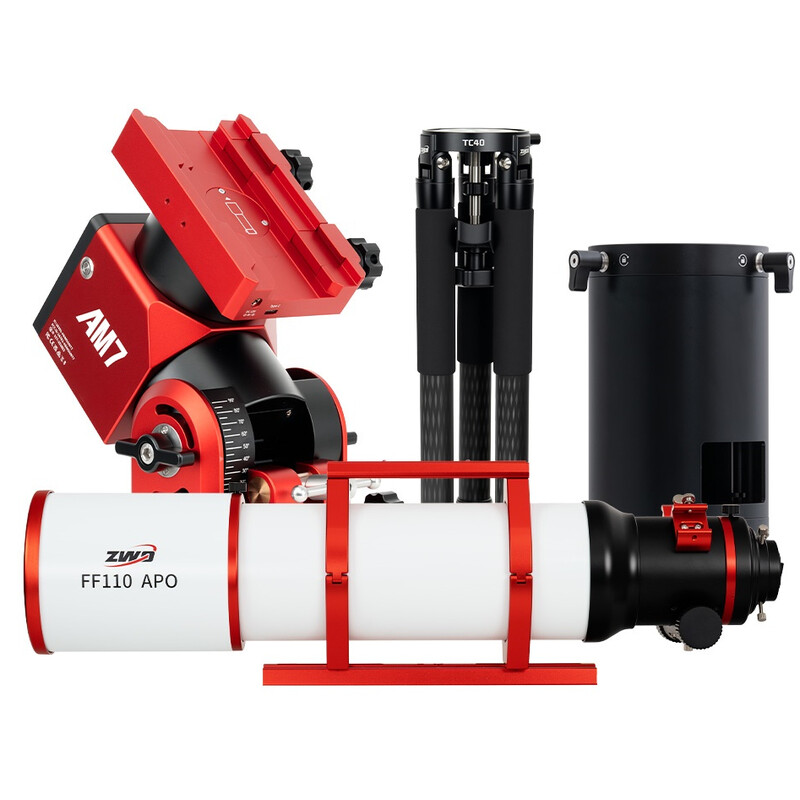

The AM7 is ZWO's most powerful mount, featuring an industry-standard strain wave gear. This makes the mount particularly compact yet very resilient. It can carry 20 kilograms without counterweights. This is ideal for mobile astrophotography. If you want to use the mount in a stationary position, you can equip it with optional counterweights and even load it with up to 30 kilograms.
Stepper motors with toothed belts are used in the primary gear on both axes. The periodic error is less than 10 arc seconds and there is no backlash (gear play when switching the direction of movement). The AM7 is particularly smooth-running anyway. Each mount is individually measured and delivered with a PE test report.
- The AM7 supports both parallactic mode for photography and azimuth mode for visual observation and can be used worldwide thanks to its 0° to 90° elevation adjustment.
- The mounting saddle allows the use of prism rails according to Vixen or Losmandy standards. This means that almost any telescope can be mounted.
- Power supply: DC 12 volts, 3 amps minimum, plug: D5.5x2.1mm, centre positive
ZWO stands for wireless networking of all important components: smart astrophotography! For this purpose, the mount is equipped with Bluetooth and Wi-Fi. The AM7 can thus be controlled wirelessly with the Sky Atlas app for iOS or Android or connect wirelessly to ZWO's ASIAIR computer.
If you prefer, the mount can also be operated without a Smartphone using the hand controller.
This tripod's light weight and compact size make it the ideal travel companion. However, with a load capacity of 50kg, using it with large mounts and telescopes is no issue.
For improved stability you can use the supplied weight containers. Simply attach these to the tripod legs and fill them with sand or stones, for example.
