Telescopes > Askar > Askar Apochromatic refractor AP 60/408 60F Flatfield
Product no.: 87148

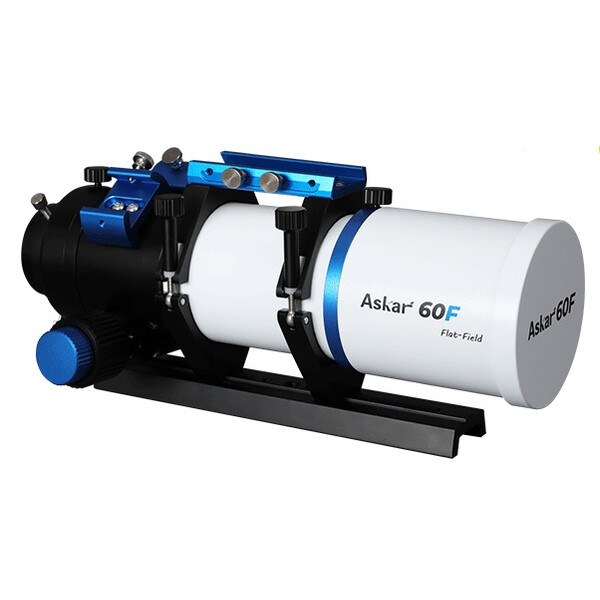

Apochromatic refractor AP 60/408 60F Flatfield

$ 690.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
  • Triplet design with one ED element
  • Integrated corrector
  • No further corrective optics required
  • For visual observations and astrophotography alike
  • M48, M54 and M64 adaptors included in delivery

Product description

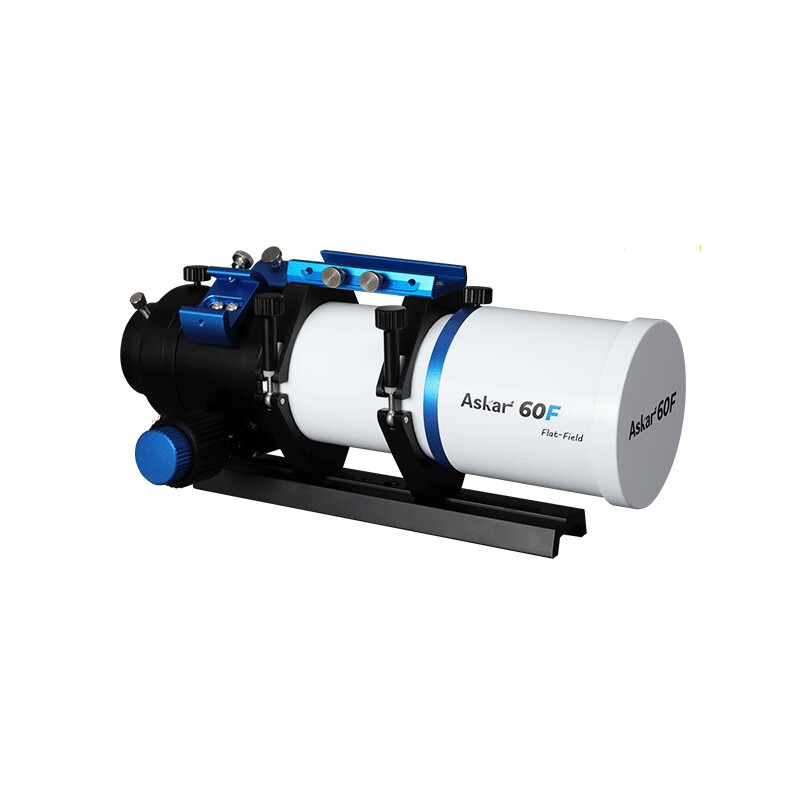

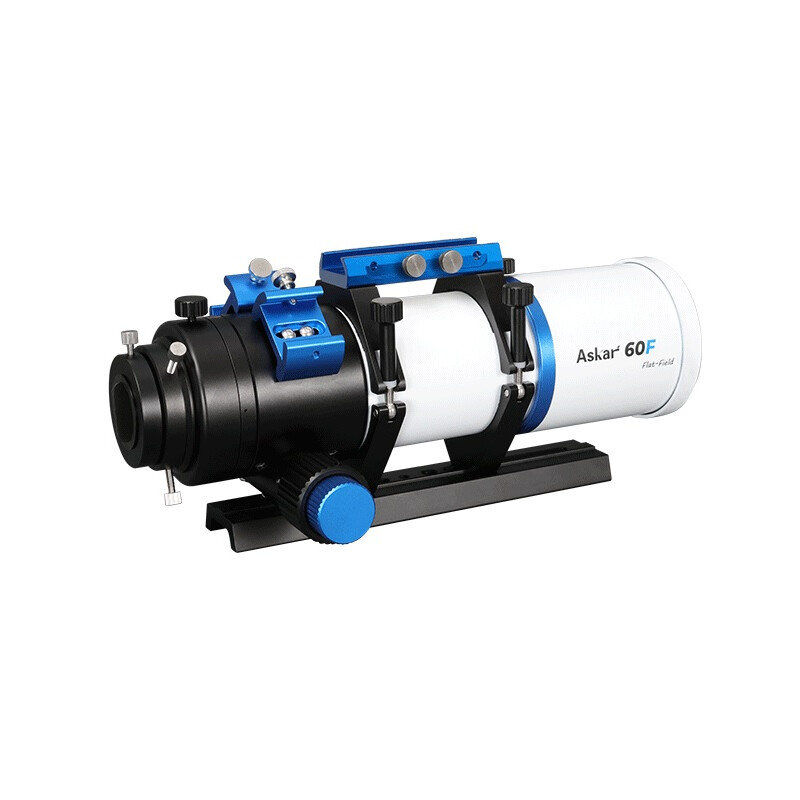

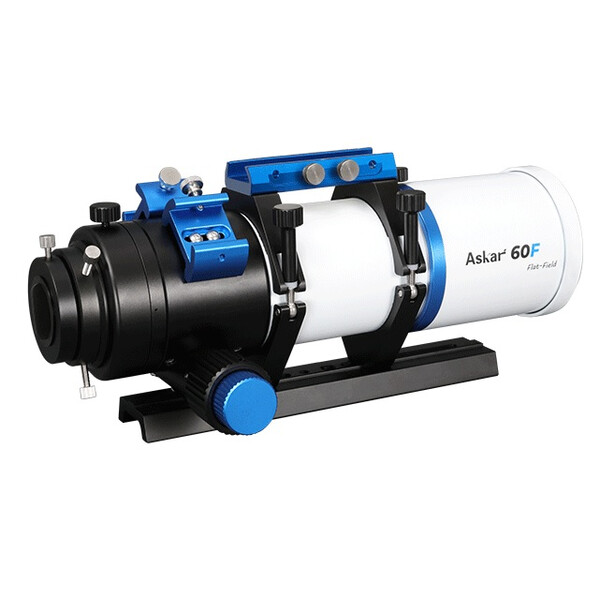

Compact, portable and powerful astrograph for beginners or as a travel telescope!

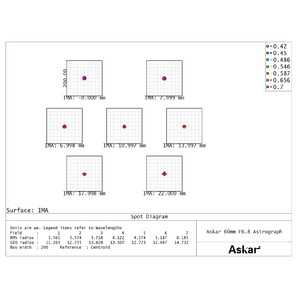

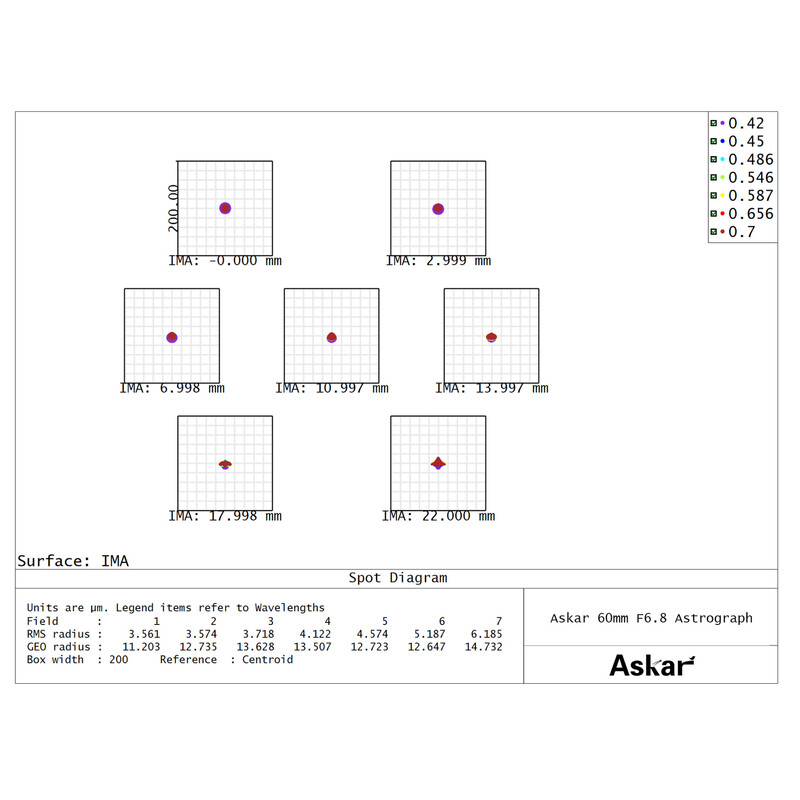

The Askar 60F has a lens design with three front lenses in the objective and a rear correction lens. An ED glass in the objective effectively reduces chromatic aberrations. The Askar 60F is corrected for 44 mm full-frame cameras.

Thanks to the integrated correction lens (field flattener), the Askar 60F does not require an additional flattener or complex back focus calculations. Simply connect your camera, adjust the focus and you are ready to take pictures. This makes astrophotography easier and more fun!

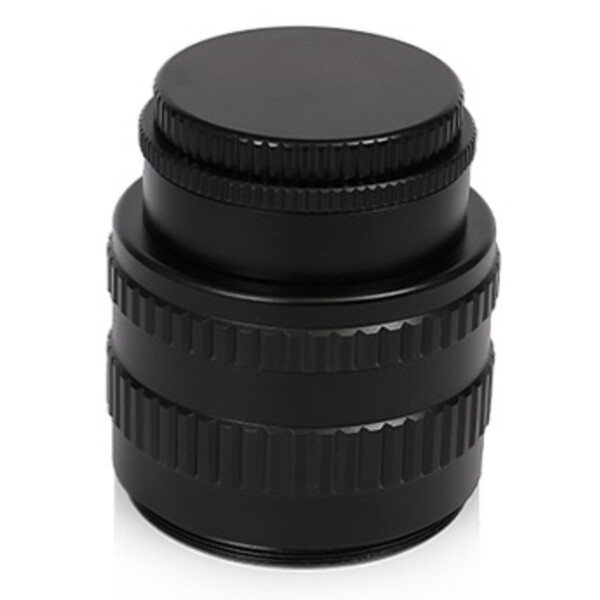

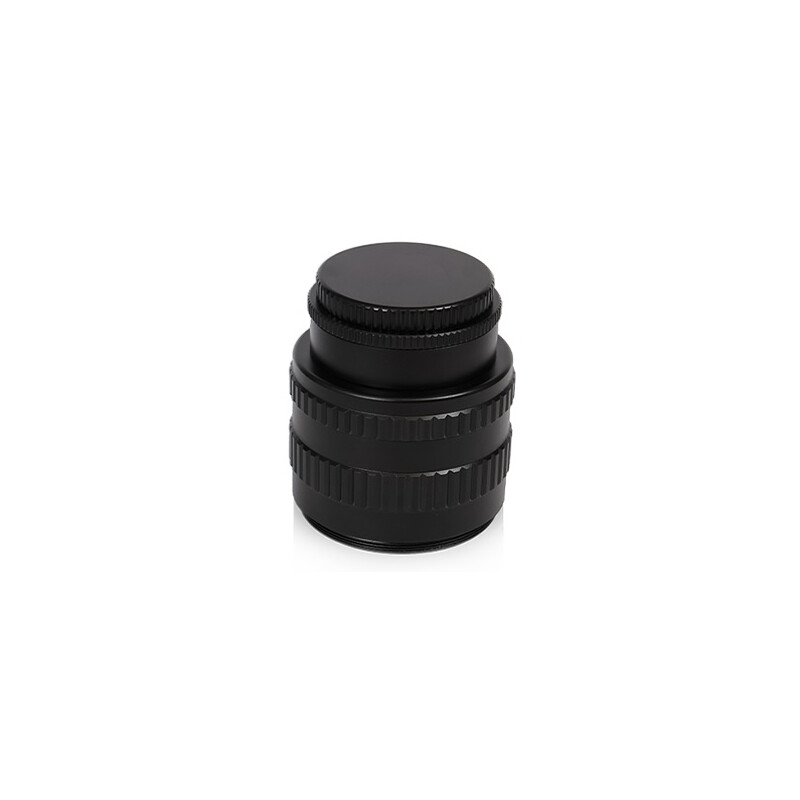

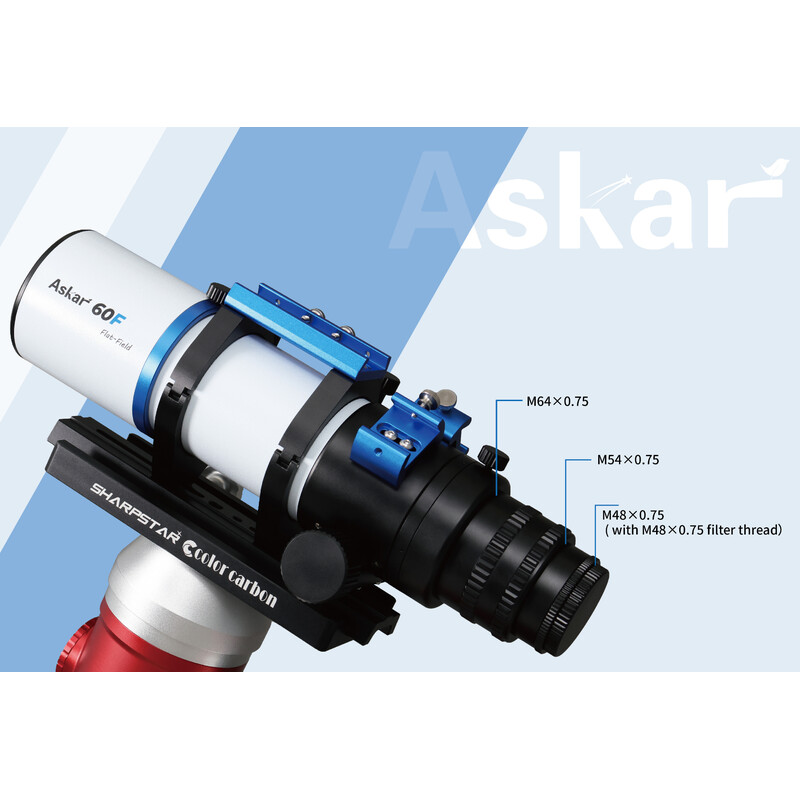

The Askar 60F is compact and easy to transport, no matter where your journey of discovery takes you. It is designed for both visual observations and photography. It comes with a photographic adaptor with integrated 2-inch filter thread and has M48×0.75 and M54×0.75 thread connections, making it compatible with DSLRs and astronomical cameras for quick connection and immediate shooting.

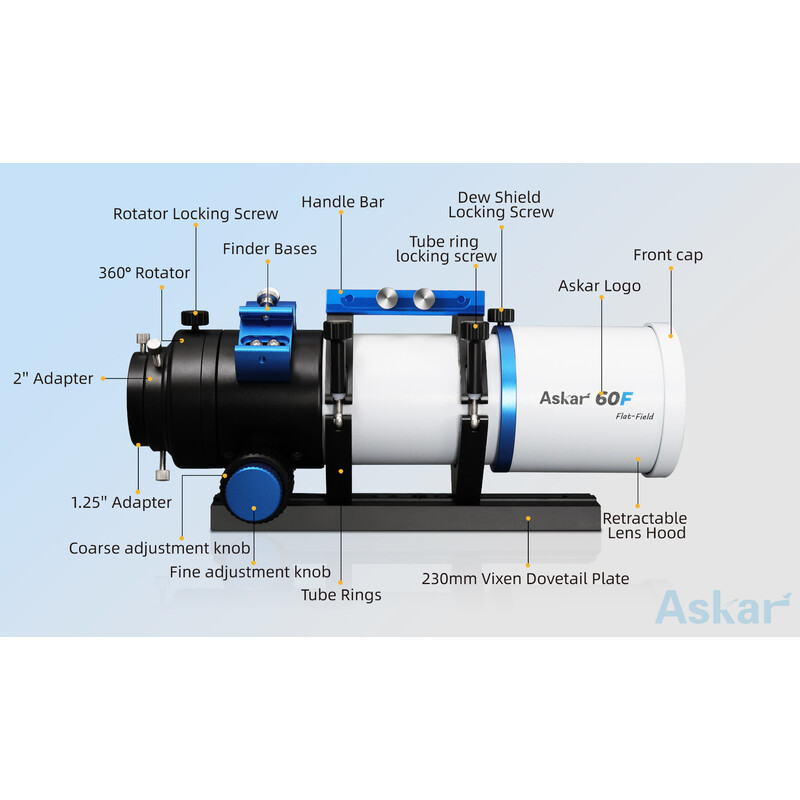

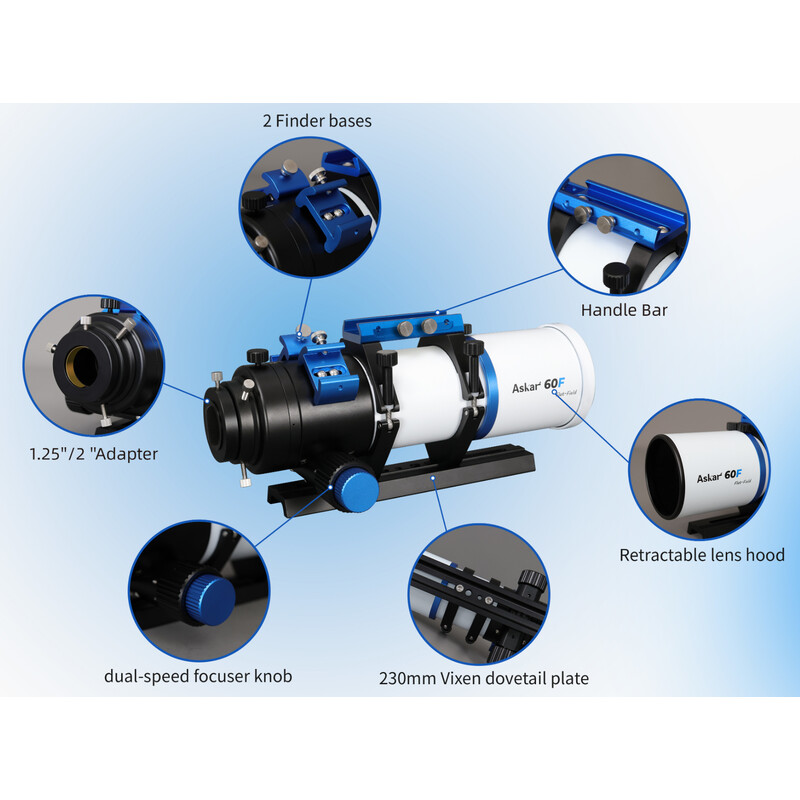

The Askar 60F features a retractable dew shield that reduces transport length and improves portability. The inside of the tube is lined with matt felt to better eliminate stray light, while the outside features an elegant blue and white colour scheme, high-quality CNC machining and paint finish.

The two finder shoes and carrying handles offer many options for attaching accessories.

The Vixen-standard prism rail is 230 millimetres long and can be screwed into place using standard 1/4" and 3/8" photo threads.

As for the focuser, the Askar 60F is equipped with an R&P focuser with reduction gear and a 2.4-inch diameter, which allows for fine adjustment at a ratio of 1:10. The fine adjustment knob has a non-slip cover and there is a 360° rotator on the rear for precise angle adjustment.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
60
Focal length (mm)
408
Aperture ratio (f/)
6,8
Resolving capacity
2,30
Limit value (mag)
10,7
Light gathering capacity
70
Max. useful magnification
120
lens design
Triplet
Tube weight (kg)
2,86
tube diameter (mm)
78
Tube length (mm)
323
Carrying length (mm)
289
dew cap diameter (mm)
87,6
Fully Corrected Field (mm)
44

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M48, M54, M64
Free aperture (mm)
61
Adjustment range (mm)
50
Rotating
yes
Filter thread
yes

Included accessories


Dew Shield
yes
Corrector
integrated
Prism rail
Vixen-Style
Carrying handle
yes
finder base
Vixen/Skywatcher Level
Eyepiece adaptor
2" / 1.25"
Tube clamps
yes

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: SHARPSTAR OPTICS CO.,LTD, 3/F, No.5 building , Science and Technology Center, No.79 Jin-Sui Road,, 314001 Zhe-Jiang, CN, http://www.sharpstar-optics.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
